Welcome to the dedicated eCommerce LIFTER
Lifter by Pramac is involved in the construction of electric and manual pallet trucks and forklifts.
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 1150x520
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1200
- Load centre distance (mm)
- 600
- Load axle to end forks (mm)
- 886
- Wheel base (mm)
- 1119
- Service weight (Kg)
- 155
- Axle load, laden rear (Kg)
- 924
- Axle load, laden front (Kg)
- 431
- Axle load, unladen front (Kg)
- 124
- Axle load, unladen rear (Kg)
- 31
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.I.
- Tyres: rear wheels
- NYLON
- Diameter steering wheels (mm)
- 186
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 82
- Diameter stabilizers wheels front (mm)
- 75
- Width stabilizers wheels front (mm)
- 32
- Quantity rear wheels
- 2
- Quantity front wheels
- 1 driven
- Tread front (mm)
- 369
- Tread rear (mm)
- 371
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1345
- Height of tiller in drive position min (mm)
- 885
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1510
- Lenght to face of forks (mm)
- 360
- Overall width (mm)
- 520
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1150
- Distance between fork arms (mm)
- 520
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1782
- Turning radius (mm)
- 1268
- Travel speed laden (Km/h)
- 4.3
- Travel speed unladen (Km/h)
- 4.8
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.02
- Max gradeability laden (%)
- 10
- Max gradeability unladen (%)
- 25
- Service brake
- Electric
- Drive motor power (KW)
- 0.35
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 25
- Battery weight max (Kg)
- 40
- Energy consumption according to VDI cycle (KWh/h)
- 0.28
- Sound level at driver's ear
- 67
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 1150x540
- Drive
- Manual
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1000
- Load centre distance (mm)
- 600
- Load axle to end forks (mm)
- 993
- Wheel base (mm)
- 1231
- Service weight (Kg)
- 139
- Axle load, laden rear (Kg)
- 706
- Axle load, laden front (Kg)
- 433
- Axle load, unladen front (Kg)
- 112
- Axle load, unladen rear (Kg)
- 27
- Tyres: front wheels
- RUBBER
- Tyres: rear wheels
- POLY.I.
- Diameter steering wheels (mm)
- 200
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 80
- Width load rollers (mm)
- 50
- Quantity rear wheels
- 2
- Tread front (mm)
- 155
- Tread rear (mm)
- 447
- Lift height (mm)
- 715
- Height of tiller in drive position max (mm)
- 1300
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1690
- Lenght to face of forks (mm)
- 540
- Overall width (mm)
- 540
- Thickness fork (mm)
- 48
- Width fork (mm)
- 160
- Lenght fork (mm)
- 1150
- Distance between fork arms (mm)
- 540
- Ground clearance at centre of wheelbase (mm)
- 21
- Aisle width (mm)
- 2193
- Turning radius (mm)
- 1541
- Lifting speed laden (m/s)
- 0.08
- Lifting speed unladen (m/s)
- 0.13
- Lowering speed laden (m/s)
- 0.16
- Lowering speed unladen (m/s)
- 0.06
- Lift motor power (KW)
- 1.6
- Battery voltage (V)
- 12
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 14
- Battery weight max (Kg)
- 14
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 1150x540
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 1150x680
- Drive
- Manual
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1000
- Load centre distance (mm)
- 600
- Load axle to end forks (mm)
- 993
- Wheel base (mm)
- 1231
- Service weight (Kg)
- 146
- Axle load, laden rear (Kg)
- 710
- Axle load, laden front (Kg)
- 436
- Axle load, unladen front (Kg)
- 118
- Axle load, unladen rear (Kg)
- 28
- Tyres: front wheels
- RUBBER
- Tyres: rear wheels
- POLY.I.
- Diameter steering wheels (mm)
- 200
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 80
- Width load rollers (mm)
- 50
- Quantity rear wheels
- 2
- Tread front (mm)
- 155
- Tread rear (mm)
- 587
- Lift height (mm)
- 715
- Height of tiller in drive position max (mm)
- 1300
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1690
- Lenght to face of forks (mm)
- 540
- Overall width (mm)
- 680
- Thickness fork (mm)
- 48
- Width fork (mm)
- 160
- Lenght fork (mm)
- 1150
- Distance between fork arms (mm)
- 680
- Ground clearance at centre of wheelbase (mm)
- 21
- Aisle width (mm)
- 2193
- Turning radius (mm)
- 1543
- Lifting speed laden (m/s)
- 0.08
- Lifting speed unladen (m/s)
- 0.13
- Lowering speed laden (m/s)
- 0.13
- Lowering speed unladen (m/s)
- 0.06
- Lift motor power (KW)
- 1.6
- Battery voltage (V)
- 12
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 14
- Battery weight max (Kg)
- 14
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 1150x680

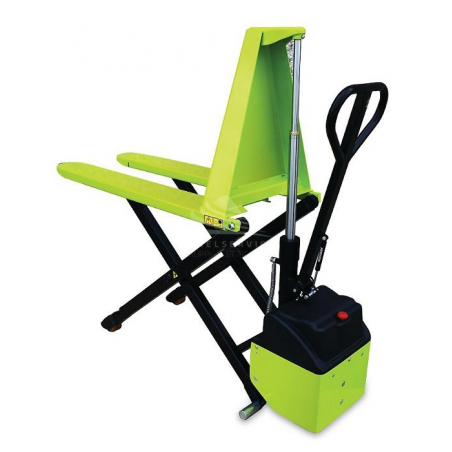

PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 2000x540
- Drive
- Manual
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1000
- Load centre distance (mm)
- 1000
- Load axle to end forks (mm)
- 1509
- Wheel base (mm)
- 1748
- Service weight (Kg)
- 262
- Axle load, laden rear (Kg)
- 801
- Axle load, laden front (Kg)
- 461
- Axle load, unladen front (Kg)
- 169
- Axle load, unladen rear (Kg)
- 93
- Tyres: front wheels
- RUBBER
- Tyres: rear wheels
- POLY.I.
- Diameter steering wheels (mm)
- 200
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 80
- Width load rollers (mm)
- 50
- Quantity rear wheels
- 2
- Tread front (mm)
- 155
- Tread rear (mm)
- 447
- Lift height (mm)
- 715
- Height of tiller in drive position max (mm)
- 1300
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 2543
- Lenght to face of forks (mm)
- 540
- Overall width (mm)
- 540
- Thickness fork (mm)
- 48
- Width fork (mm)
- 160
- Lenght fork (mm)
- 2000
- Distance between fork arms (mm)
- 540
- Ground clearance at centre of wheelbase (mm)
- 21
- Aisle width (mm)
- 2763
- Turning radius (mm)
- 2058
- Lifting speed laden (m/s)
- 0.08
- Lifting speed unladen (m/s)
- 0.13
- Lowering speed laden (m/s)
- 0.13
- Lowering speed unladen (m/s)
- 0.06
- Lift motor power (KW)
- 1.6
- Battery voltage (V)
- 12
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 14
- Battery weight max (Kg)
- 14
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 2000x540

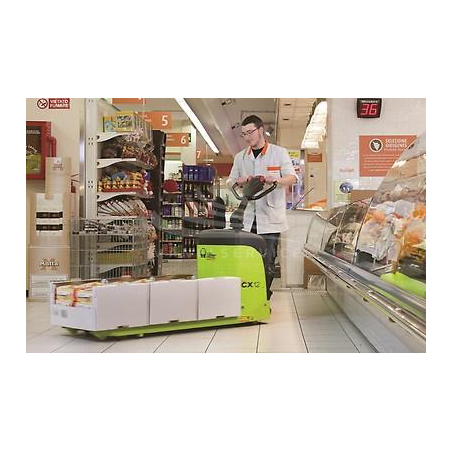

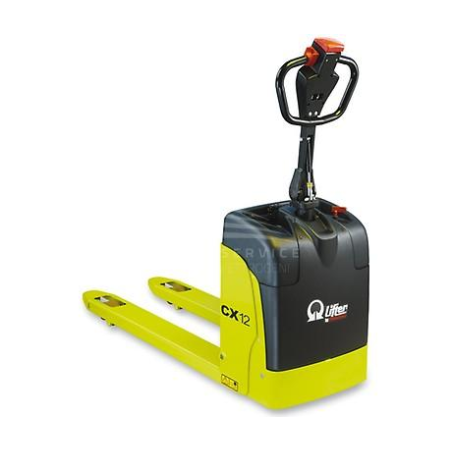

PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 1000x520
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1200
- Load centre distance (mm)
- 500
- Load axle to end forks (mm)
- 736
- Wheel base (mm)
- 969
- Service weight (Kg)
- 153
- Axle load, laden rear (Kg)
- 938
- Axle load, laden front (Kg)
- 415
- Axle load, unladen front (Kg)
- 123
- Axle load, unladen rear (Kg)
- 30
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.I.
- Tyres: rear wheels
- NYLON
- Diameter steering wheels (mm)
- 186
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 82
- Diameter stabilizers wheels front (mm)
- 75
- Width stabilizers wheels front (mm)
- 32
- Quantity rear wheels
- 2
- Quantity front wheels
- 1 driven
- Tread front (mm)
- 369
- Tread rear (mm)
- 371
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1345
- Height of tiller in drive position min (mm)
- 885
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1360
- Lenght to face of forks (mm)
- 360
- Overall width (mm)
- 520
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1000
- Distance between fork arms (mm)
- 520
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1582
- Turning radius (mm)
- 1118
- Travel speed laden (Km/h)
- 4.3
- Travel speed unladen (Km/h)
- 4.8
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.02
- Max gradeability laden (%)
- 10
- Max gradeability unladen (%)
- 25
- Service brake
- Electric
- Drive motor power (KW)
- 0.35
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 24
- Battery weight max (Kg)
- 40
- Energy consumption according to VDI cycle (KWh/h)
- 0.28
- Sound level at driver's ear
- 67
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 1000x520
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 1500x540
- Drive
- Manual
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1000
- Load centre distance (mm)
- 762
- Load axle to end forks (mm)
- 1283
- Wheel base (mm)
- 1531
- Service weight (Kg)
- 235
- Axle load, laden rear (Kg)
- 736
- Axle load, laden front (Kg)
- 499
- Axle load, unladen front (Kg)
- 159
- Axle load, unladen rear (Kg)
- 76
- Tyres: front wheels
- RUBBER
- Tyres: rear wheels
- POLY.I.
- Diameter steering wheels (mm)
- 200
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 80
- Width load rollers (mm)
- 50
- Quantity rear wheels
- 2
- Tread front (mm)
- 155
- Tread rear (mm)
- 447
- Lift height (mm)
- 715
- Height of tiller in drive position max (mm)
- 1300
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 2076
- Lenght to face of forks (mm)
- 540
- Overall width (mm)
- 540
- Thickness fork (mm)
- 48
- Width fork (mm)
- 160
- Lenght fork (mm)
- 1525
- Distance between fork arms (mm)
- 540
- Ground clearance at centre of wheelbase (mm)
- 21
- Aisle width (mm)
- 2450
- Turning radius (mm)
- 1841
- Lifting speed laden (m/s)
- 0.08
- Lifting speed unladen (m/s)
- 0.13
- Lowering speed laden (m/s)
- 0.13
- Lowering speed unladen (m/s)
- 0.06
- Lift motor power (KW)
- 1.6
- Battery voltage (V)
- 12
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 14
- Battery weight max (Kg)
- 14
PRAMAC LIFTER ELECTRIC PALLET TRUCK HX10E 1500x540
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 1000x520 GEL
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1200
- Load centre distance (mm)
- 500
- Load axle to end forks (mm)
- 736
- Wheel base (mm)
- 969
- Service weight (Kg)
- 157
- Axle load, laden rear (Kg)
- 938
- Axle load, laden front (Kg)
- 419
- Axle load, unladen front (Kg)
- 127
- Axle load, unladen rear (Kg)
- 30
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.I.
- Tyres: rear wheels
- NYLON
- Diameter steering wheels (mm)
- 186
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 82
- Diameter stabilizers wheels front (mm)
- 75
- Width stabilizers wheels front (mm)
- 32
- Quantity rear wheels
- 2
- Quantity front wheels
- 1 driven
- Tread front (mm)
- 369
- Tread rear (mm)
- 371
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1345
- Height of tiller in drive position min (mm)
- 885
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1360
- Lenght to face of forks (mm)
- 360
- Overall width (mm)
- 520
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1000
- Distance between fork arms (mm)
- 520
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1582
- Turning radius (mm)
- 1118
- Travel speed laden (Km/h)
- 4.3
- Travel speed unladen (Km/h)
- 4.8
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.02
- Max gradeability laden (%)
- 10
- Max gradeability unladen (%)
- 25
- Service brake
- Electric
- Drive motor power (KW)
- 0.35
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 40
- Battery capacity max (Ah)
- 40
- Battery weight min (Kg)
- 25
- Battery weight max (Kg)
- 40
- Energy consumption according to VDI cycle (KWh/h)
- 0.28
- Sound level at driver's ear
- 67
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 1000x520 GEL

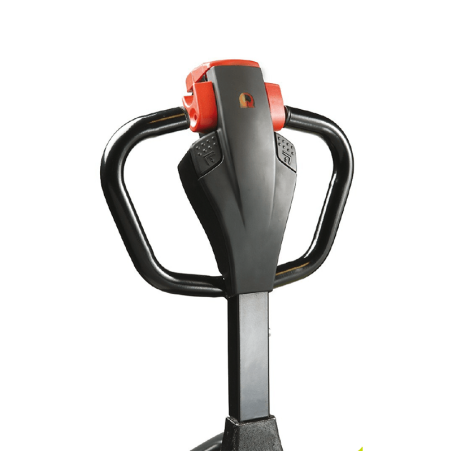

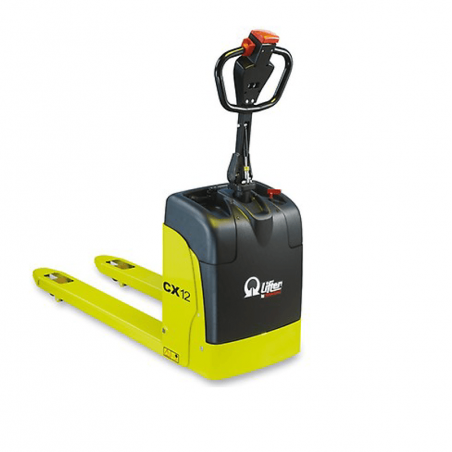

PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 800x520
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1200
- Load centre distance (mm)
- 400
- Load axle to end forks (mm)
- 536
- Wheel base (mm)
- 769
- Service weight (Kg)
- 150
- Axle load, laden rear (Kg)
- 1017
- Axle load, laden front (Kg)
- 333
- Axle load, unladen front (Kg)
- 121
- Axle load, unladen rear (Kg)
- 29
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.I.
- Tyres: rear wheels
- NYLON
- Diameter steering wheels (mm)
- 186
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 82
- Diameter stabilizers wheels front (mm)
- 75
- Width stabilizers wheels front (mm)
- 32
- Quantity rear wheels
- 2
- Quantity front wheels
- 1 driven
- Tread front (mm)
- 369
- Tread rear (mm)
- 371
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1345
- Height of tiller in drive position min (mm)
- 885
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1160
- Lenght to face of forks (mm)
- 360
- Overall width (mm)
- 520
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 800
- Distance between fork arms (mm)
- 520
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1382
- Turning radius (mm)
- 918
- Travel speed laden (Km/h)
- 4.3
- Travel speed unladen (Km/h)
- 4.8
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.02
- Max gradeability laden (%)
- 10
- Max gradeability unladen (%)
- 25
- Service brake
- Electric
- Drive motor power (KW)
- 0.35
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 60
- Battery capacity max (Ah)
- 60
- Battery weight min (Kg)
- 25
- Battery weight max (Kg)
- 40
- Energy consumption according to VDI cycle (KWh/h)
- 0.28
- Sound level at driver's ear
- 67
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 800x520
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 800x520 GEL
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1200
- Load centre distance (mm)
- 400
- Load axle to end forks (mm)
- 536
- Wheel base (mm)
- 769
- Service weight (Kg)
- 154
- Axle load, laden rear (Kg)
- 1017
- Axle load, laden front (Kg)
- 337
- Axle load, unladen front (Kg)
- 125
- Axle load, unladen rear (Kg)
- 29
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.I.
- Tyres: rear wheels
- NYLON
- Diameter steering wheels (mm)
- 186
- Width steering wheels (mm)
- 50
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 82
- Diameter stabilizers wheels front (mm)
- 75
- Width stabilizers wheels front (mm)
- 32
- Quantity rear wheels
- 2
- Quantity front wheels
- 1 driven
- Tread front (mm)
- 369
- Tread rear (mm)
- 371
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1345
- Height of tiller in drive position min (mm)
- 885
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1160
- Lenght to face of forks (mm)
- 360
- Overall width (mm)
- 520
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 800
- Distance between fork arms (mm)
- 520
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1382
- Turning radius (mm)
- 918
- Travel speed laden (Km/h)
- 4.3
- Travel speed unladen (Km/h)
- 4.8
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.02
- Max gradeability laden (%)
- 10
- Max gradeability unladen (%)
- 25
- Service brake
- Electric
- Drive motor power (KW)
- 0.35
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 40
- Battery capacity max (Ah)
- 40
- Battery weight min (Kg)
- 25
- Battery weight max (Kg)
- 40
- Energy consumption according to VDI cycle (KWh/h)
- 0.28
- Sound level at driver's ear
- 67
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX12 800x520 GEL

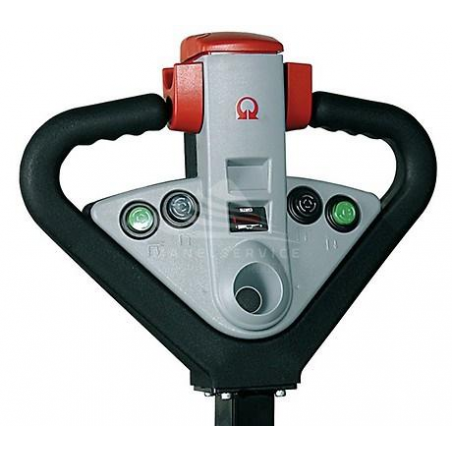

PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1400
- Load centre distance (mm)
- 600
- Load axle to end forks (mm)
- 935
- Wheel base (mm)
- 1195
- Service weight (Kg)
- 224
- Axle load, laden rear (Kg)
- 1042
- Axle load, laden front (Kg)
- 583
- Axle load, unladen front (Kg)
- 186
- Axle load, unladen rear (Kg)
- 38
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 250
- Width steering wheels (mm)
- 76
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 80
- Diameter stabilizers wheels front (mm)
- 100
- Width stabilizers wheels front (mm)
- 40
- Quantity rear wheels
- 2
- Tread front (mm)
- 530
- Tread rear (mm)
- 375
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1242
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1560
- Lenght to face of forks (mm)
- 411
- Overall width (mm)
- 720
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1150
- Distance between fork arms (mm)
- 525
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1810
- Turning radius (mm)
- 1344
- Travel speed laden (Km/h)
- 4.3
- Travel speed unladen (Km/h)
- 4.8
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.04
- Lowering speed unladen (m/s)
- 0.05
- Max gradeability laden (%)
- 5
- Max gradeability unladen (%)
- 10
- Service brake
- Electric
- Drive motor power (KW)
- 0.7
- Lift motor power (KW)
- 1
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 70
- Battery capacity max (Ah)
- 70
- Battery weight min (Kg)
- 30
- Battery weight max (Kg)
- 30
- Sound level at driver's ear
- 59 dB(A)
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION
- Battery type
- AGM
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1400
- Load centre distance (mm)
- 600
- Load axle to end forks (mm)
- 935
- Wheel base (mm)
- 1195
- Service weight (Kg)
- 255
- Axle load, laden rear (Kg)
- 1047
- Axle load, laden front (Kg)
- 609
- Axle load, unladen front (Kg)
- 213
- Axle load, unladen rear (Kg)
- 42
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 250
- Width steering wheels (mm)
- 76
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 80
- Diameter stabilizers wheels front (mm)
- 100
- Width stabilizers wheels front (mm)
- 40
- Quantity rear wheels
- 2
- Tread front (mm)
- 530
- Tread rear (mm)
- 375
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1238
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1560
- Lenght to face of forks (mm)
- 411
- Overall width (mm)
- 720
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1150
- Distance between fork arms (mm)
- 525
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1810
- Turning radius (mm)
- 1344
- Travel speed laden (Km/h)
- 6
- Travel speed unladen (Km/h)
- 6
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.04
- Max gradeability laden (%)
- 5
- Max gradeability unladen (%)
- 10
- Service brake
- Electric
- Drive motor power (KW)
- 0.7
- Lift motor power (KW)
- 1
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 85
- Battery capacity max (Ah)
- 85
- Battery weight min (Kg)
- 61
- Battery weight max (Kg)
- 61
- Sound level at driver's ear
- 59 dB(A)
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO LI-ION
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1400
- Load centre distance (mm)
- 500
- Load axle to end forks (mm)
- 785
- Wheel base (mm)
- 1045
- Service weight (Kg)
- 203
- Axle load, laden rear (Kg)
- 1042
- Axle load, laden front (Kg)
- 561
- Axle load, unladen front (Kg)
- 169
- Axle load, unladen rear (Kg)
- 34
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 250
- Width steering wheels (mm)
- 76
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 60
- Diameter stabilizers wheels front (mm)
- 100
- Width stabilizers wheels front (mm)
- 40
- Quantity rear wheels
- 2
- Tread front (mm)
- 506
- Tread rear (mm)
- 375
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1242
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1500
- Lenght to face of forks (mm)
- 500
- Overall width (mm)
- 720
- Thickness fork (mm)
- 50
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1000
- Distance between fork arms (mm)
- 525
- Ground clearance at centre of wheelbase (mm)
- 35
- Aisle width (mm)
- 1700
- Turning radius (mm)
- 1285
- Travel speed laden (Km/h)
- 4.5
- Travel speed unladen (Km/h)
- 4.7
- Lifting speed laden (m/s)
- 0.02
- Lifting speed unladen (m/s)
- 0.03
- Lowering speed laden (m/s)
- 0.04
- Lowering speed unladen (m/s)
- 0.04
- Max gradeability laden (%)
- 5
- Max gradeability unladen (%)
- 10
- Service brake
- Electric
- Drive motor power (KW)
- 0.7
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 70
- Battery capacity max (Ah)
- 70
- Battery weight min (Kg)
- 32
- Battery weight max (Kg)
- 32
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x525

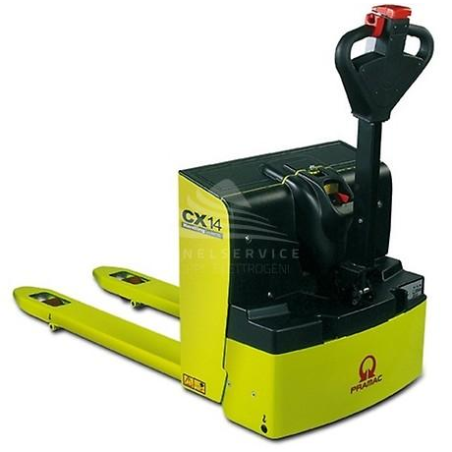

PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x685
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1400
- Load centre distance (mm)
- 500
- Load axle to end forks (mm)
- 785
- Wheel base (mm)
- 1045
- Service weight (Kg)
- 209
- Axle load, laden rear (Kg)
- 1045
- Axle load, laden front (Kg)
- 564
- Axle load, unladen front (Kg)
- 177
- Axle load, unladen rear (Kg)
- 32
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 250
- Width steering wheels (mm)
- 76
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 60
- Diameter stabilizers wheels front (mm)
- 100
- Width stabilizers wheels front (mm)
- 40
- Quantity rear wheels
- 2
- Tread front (mm)
- 506
- Tread rear (mm)
- 535
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1242
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1500
- Lenght to face of forks (mm)
- 500
- Overall width (mm)
- 720
- Thickness fork (mm)
- 50
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1000
- Distance between fork arms (mm)
- 685
- Ground clearance at centre of wheelbase (mm)
- 35
- Aisle width (mm)
- 1700
- Turning radius (mm)
- 1285
- Travel speed laden (Km/h)
- 4.5
- Travel speed unladen (Km/h)
- 4.7
- Lifting speed laden (m/s)
- 0.02
- Lifting speed unladen (m/s)
- 0.03
- Lowering speed laden (m/s)
- 0.04
- Lowering speed unladen (m/s)
- 0.04
- Max gradeability laden (%)
- 5
- Max gradeability unladen (%)
- 10
- Service brake
- Electric
- Drive motor power (KW)
- 0.7
- Lift motor power (KW)
- 0.4
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 70
- Battery capacity max (Ah)
- 70
- Battery weight min (Kg)
- 32
- Battery weight max (Kg)
- 32
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1000x685
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO Li-Ion
- Battery type
- Li-Ion
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 1400
- Load centre distance (mm)
- 600
- Load axle to end forks (mm)
- 935
- Wheel base (mm)
- 1195
- Service weight (Kg)
- 255
- Axle load, laden rear (Kg)
- 1047
- Axle load, laden front (Kg)
- 609
- Axle load, unladen front (Kg)
- 213
- Axle load, unladen rear (Kg)
- 42
- Tyres: front wheels
- RUBBER
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 250
- Width steering wheels (mm)
- 76
- Diameter load rollers (mm)
- 82
- Width load rollers (mm)
- 80
- Diameter stabilizers wheels front (mm)
- 100
- Width stabilizers wheels front (mm)
- 40
- Quantity rear wheels
- 2
- Tread front (mm)
- 530
- Tread rear (mm)
- 375
- Lift height (mm)
- 115
- Height of tiller in drive position max (mm)
- 1238
- Height lowered (mm)
- 85
- Overall lenght (mm)
- 1560
- Lenght to face of forks (mm)
- 411
- Overall width (mm)
- 720
- Thickness fork (mm)
- 55
- Width fork (mm)
- 150
- Lenght fork (mm)
- 1150
- Distance between fork arms (mm)
- 525
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 1810
- Turning radius (mm)
- 1344
- Travel speed laden (Km/h)
- 6
- Travel speed unladen (Km/h)
- 6
- Lifting speed laden (m/s)
- 0.03
- Lifting speed unladen (m/s)
- 0.04
- Lowering speed laden (m/s)
- 0.05
- Lowering speed unladen (m/s)
- 0.04
- Max gradeability laden (%)
- 5
- Max gradeability unladen (%)
- 10
- Service brake
- Electric
- Drive motor power (KW)
- 0.7
- Lift motor power (KW)
- 1
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 50
- Battery capacity max (Ah)
- 50
- Battery weight min (Kg)
- 14
- Battery weight max (Kg)
- 14
- Sound level at driver's ear
- 59 dB(A)
PRAMAC LIFTER ELECTRIC PALLET TRUCK CX14 1150x525 EVO Li-Ion

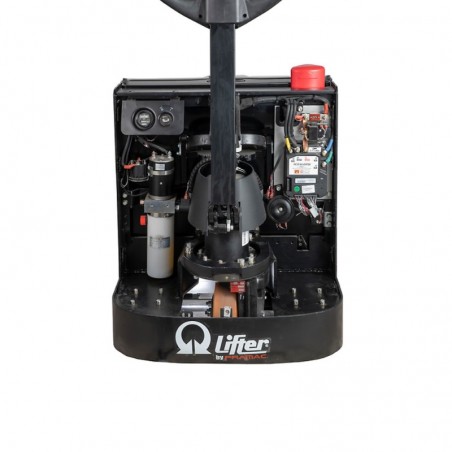

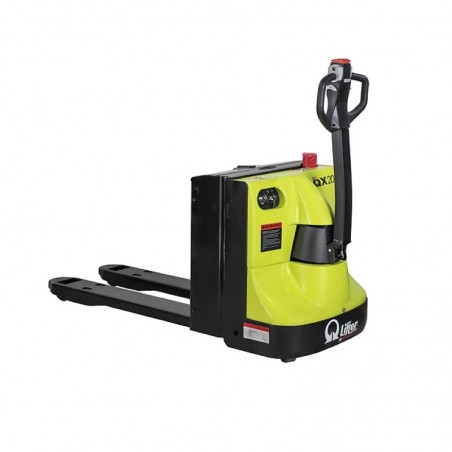

PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4
- Battery type
- Li-Ion
- Drive
- Electric
- Operator type
- Pedestrian
- Load capacity (Kg)
- 2000
- Load centre distance (mm)
- 500
- Load axle to end forks (mm)
- 832
- Wheel base (mm)
- 1268
- Service weight (Kg)
- 340
- Axle load, laden rear (Kg)
- 1599
- Axle load, laden front (Kg)
- 931
- Axle load, unladen front (Kg)
- 426
- Axle load, unladen rear (Kg)
- 104
- Tyres: front wheels
- POLY.C
- Tyres: stabilizers wheels
- POLY.C.
- Tyres: rear wheels
- POLY.C.
- Diameter steering wheels (mm)
- 230
- Width steering wheels (mm)
- 75
- Diameter load rollers (mm)
- 85
- Width load rollers (mm)
- 70
- Diameter stabilizers wheels front (mm)
- 85
- Width stabilizers wheels front (mm)
- 48
- Quantity rear wheels
- 4
- Quantity front wheels
- 1x+2
- Tread front (mm)
- 498
- Tread rear (mm)
- 515
- Lift height (mm)
- 120
- Height of tiller in drive position max (mm)
- 1200
- Height of tiller in drive position min (mm)
- 715
- Overall lenght (mm)
- 1598 - 1748
- Lenght to face of forks (mm)
- 598
- Overall width (mm)
- 710
- Thickness fork (mm)
- 55
- Ground clearance at centre of wheelbase (mm)
- 30
- Aisle width (mm)
- 2189
- Turning radius (mm)
- 1445
- Travel speed laden (Km/h)
- 5.6
- Travel speed unladen (Km/h)
- 6
- Lifting speed laden (m/s)
- 00.51
- Lifting speed unladen (m/s)
- 0.06
- Lowering speed laden (m/s)
- 0.06
- Lowering speed unladen (m/s)
- 0.032
- Max gradeability laden (%)
- 8
- Max gradeability unladen (%)
- 16
- Service brake
- Electric
- Drive motor power (KW)
- 1.1
- Lift motor power (KW)
- 0.84
- Battery voltage (V)
- 24
- Battery capacity min (Ah)
- 210
- Battery capacity max (Ah)
- 210
- Battery weight min (Kg)
- 190
- Battery weight max (Kg)
- 190
- Sound level at driver's ear
- 74 dB(A)
PRAMAC's history begins in 1966, when the Campinoti family founded L’Europea, a construction equipment company focused mainly on the Italian market.
From this point onwards PRAMAC has been expanding its activities in the energy and material handling sector, continuously growing on its global base with a wide and flexible product range to satisfy a whole spectrum of energy needs to suit its customers.
The high technological experience and the vertically integrated manufacturing processes ensure that all the company's products are designed and delivered with top of quality and high performance.
All PRAMAC's resources and energies are dedicated to the most demanding markets.
Its mission - to offer the best value for money products enhanced by a strong strategic relationship with first level components partners.
