VITRIFRIGO MACS 12000 HEAT PUMP SINGLE-BLOCK NAUTICAL AIR CONDITIONER 12000 BTU/h

  • New
vitrifrigo macs 12000 heat pump single block nautical air conditioner 12000 btuh
search
  • vitrifrigo macs 12000 heat pump single block nautical air conditioner 12000 btuh
VITRIFRIGO
0700-0002
New product

PRODUCT INCLUDES:


1 MACS 12 air conditioning units

1 Control panel

1 Electrical control box

1 Machine fixing brackets

______________________

Phase Type: Single Phase
Power Supply Voltage: 230V
Frequency: 50Hz
Air delivery Ø: 152mm
Condensate discharge pipe Ø: 18 mm
Electrical cabinet dimensions: 245 x 188 x 64 mm
Rated capacity in cooling mode (BTU/h): 12000
Rated capacity in heating mode (BTU/h): 13000
Rated consumption power (cooling mode): 0.9 KW
Rated power consumption (heating mode): 1.1 KW
Rated consumption in cooling mode: 4 A
Rated consumption in heating mode: 4.7 A
Treated air flow rate: 540 mc/h
Recommended pump capacity: 900 l/h
Width: 520 mm
Depth: 321 mm
Height: 330 mm
Net weight: 26 kg

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Outlet diameter thread type (mm/inches)
152 - 6
Refrigerating yield
12000 BTU/h
Heating power
13000 BTU/h
Absorbed average current, refrigerating (A)
4
Absorbed average current, heater (A)
4.7
Inlet power, refrigerating (KW)
0.9
Inlet power, heater (KW)
1.1
Maximum air flow rate (m³/h)
540
Length (mm)
520
Width (mm)
330
Height (mm)
321
Product type
Air conditioner
Coolant
R410A
Weight (Kg)
26
Details

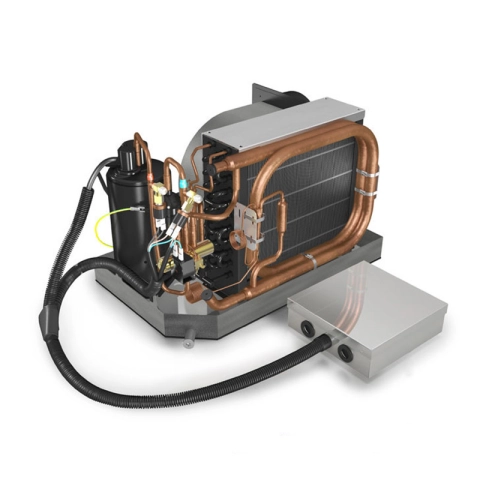

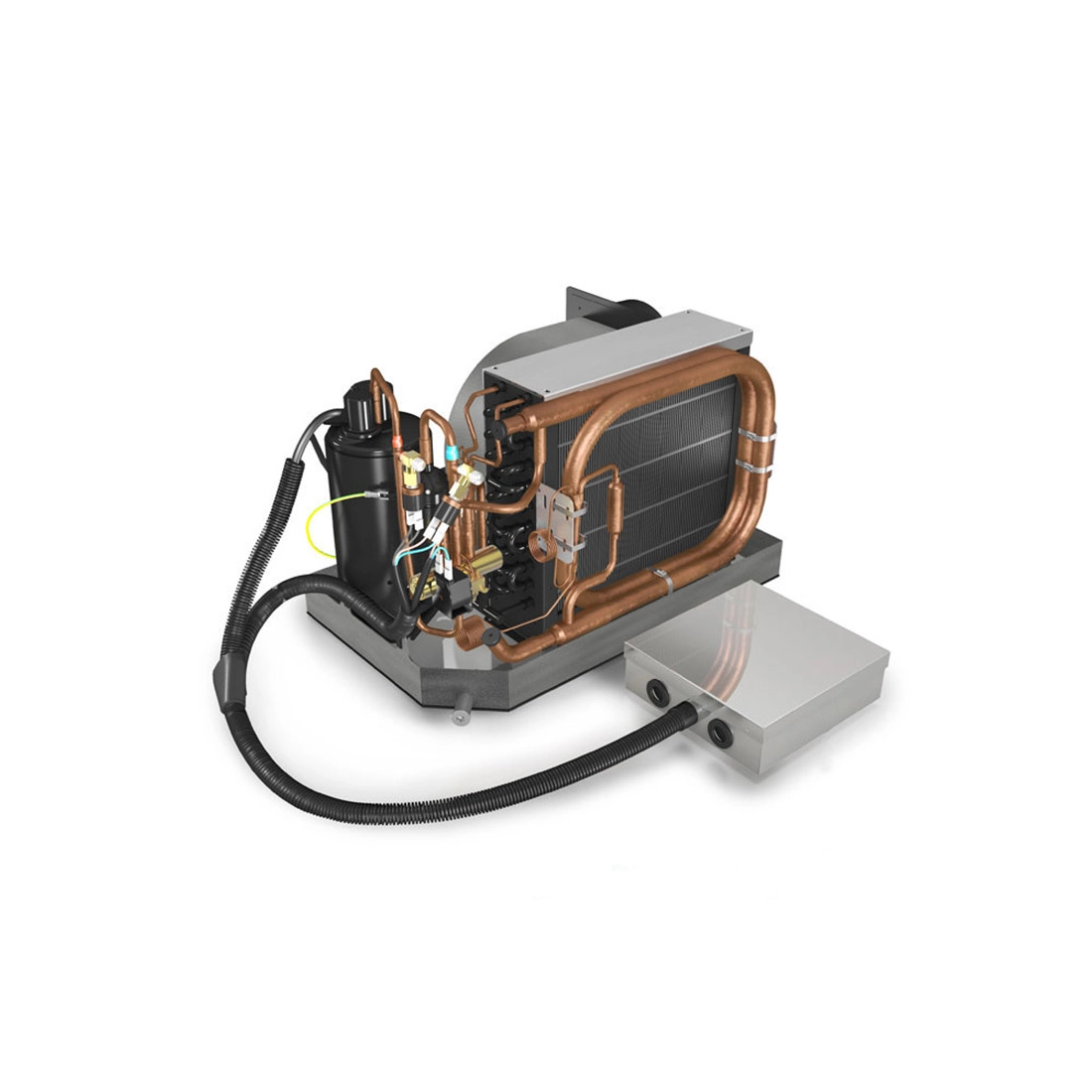

VITRIFRIGO MACS12000 AIR CONDITIONER NAUTICAL ONE-BLOCK UNIT HEAT PUMP

VITRIFRIGO MACS12000 NAUTICAL HEAT PUMP AIR CONDITIONER in a monoblock unit suitable for use on boats, with a cooling capacity of 12000 BTU/h.

VITRIFRIGO MACS12000 Nautical CLIMATISER is designed to ensure maximum comfort and well-being on board, even in extreme climatic conditions. The cooling capacity of the Vitrifrigo MACS12000 Nautical is 12,000 BTU/h, which means it can cool an area of approximately 20-25 square metres. The machine is equipped with an on-board compressor, which ensures greater energy efficiency and quieter operation than other air conditioning units.

The temperature can be controlled digitally, allowing the user to set the desired temperature precisely. The LCD display on the control panel provides precise information on the set temperature and the current temperature.

In addition, the Vitrifrigo MACS12000 Nautical AIR CONDITIONER uses environmentally friendly R410A refrigerant, which has low greenhouse gas emissions and meets international environmental standards. This makes it a sustainable choice for those who want a high-quality, environmentally friendly air conditioning system.

TECHNICAL CHARACTERISTICS VITRIFRIGO MACS12000 NAUTICAL:

Phase type: Single-phase
Power supply voltage: 230V
Frequency: 50Hz
Air delivery Ø: 152 mm
Ø condensate discharge pipe: 18 mm
Switch cabinet dimensions: 245 x 188 x 64 mm
Nominal capacity in cooling mode (BTU/h): 12000
Nominal capacity in heating mode (BTU/h): 13000
Rated consumption power (cooling mode): 0.9 KW
Rated power consumption (heating mode): 1.1 KW
Rated consumption in cooling mode: 4 A
Nominal consumption in heating mode: 4.7 A
Treated air flow rate: 540 mc/h
Recommended pump capacity: 900 l/h
Width: 520 mm
Depth: 321 mm
Height: 330 mm
Net weight: 26 kg

You are looking for a product similar to VITRIFRIGO MACS12000 Nautical or with different technical characteristics? Here you can find the area dedicated to nautical air conditioners VITRIFRIGO or other specialized brands.

Images and technical data are not binding.

Cras efficitur lacus nulla, vitae rutrum urna pharetra in. Phasellus ornare quam vel odio tincidunt posuere. Sed eu orci id orci aliquet pharetra. Cras rhoncus ullamcorper rutrum. Vestibulum et lacus vehicula, mollis lectus a, blandit ante. Quisque vitae tempor nisl. Phasellus scelerisque molestie purus liu jbnblb kkbl

Related Accessories
List price
2.815,76 € tax incl.
2.308,00 € tax excl.
Discounted Price
1.953,68 € tax incl.
1.601,38 € tax excl.
