Net weight: 23 Kg
Power supply: 230V/50Hz
Width: 454 mm.
Height: 300 mm.
Depth: 273 mm.
Air delivery diameter: 102 mm.
Condensation drain pipe diameter: 18 mm.
Panelboard dimensions: 245 x 188 x 64 mm.
Nominal capacity in cooling mode (BTU/h): 7000
Rated capacity in heating mode (BTU/h): 7800
Rated consumption power (cooling mode) (kW): 0.6
Rated power consumption (heating mode) (kW): 0.7
Rated consumption in cooling mode (A): 2.6
Nominal consumption in heating mode (A): 3
Processed air flow rate (mc/h): 400
Recommended pump capacity (l/h): 600
The VITRIFRIGO MACS7000 Nautical Air Conditioner represents
the latest innovation in cooling systems, designed to ensure optimal
comfort in single or adjacent environments.
With capacities ranging from 7,000 to 16,000 BTU/h,
the VITRIFRIGO MACS7000 Nautical is suitable for a wide range of environments,
offering the flexibility needed to meet various conditioning needs.

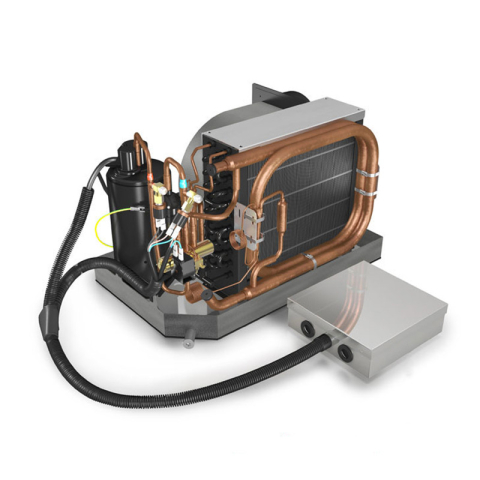

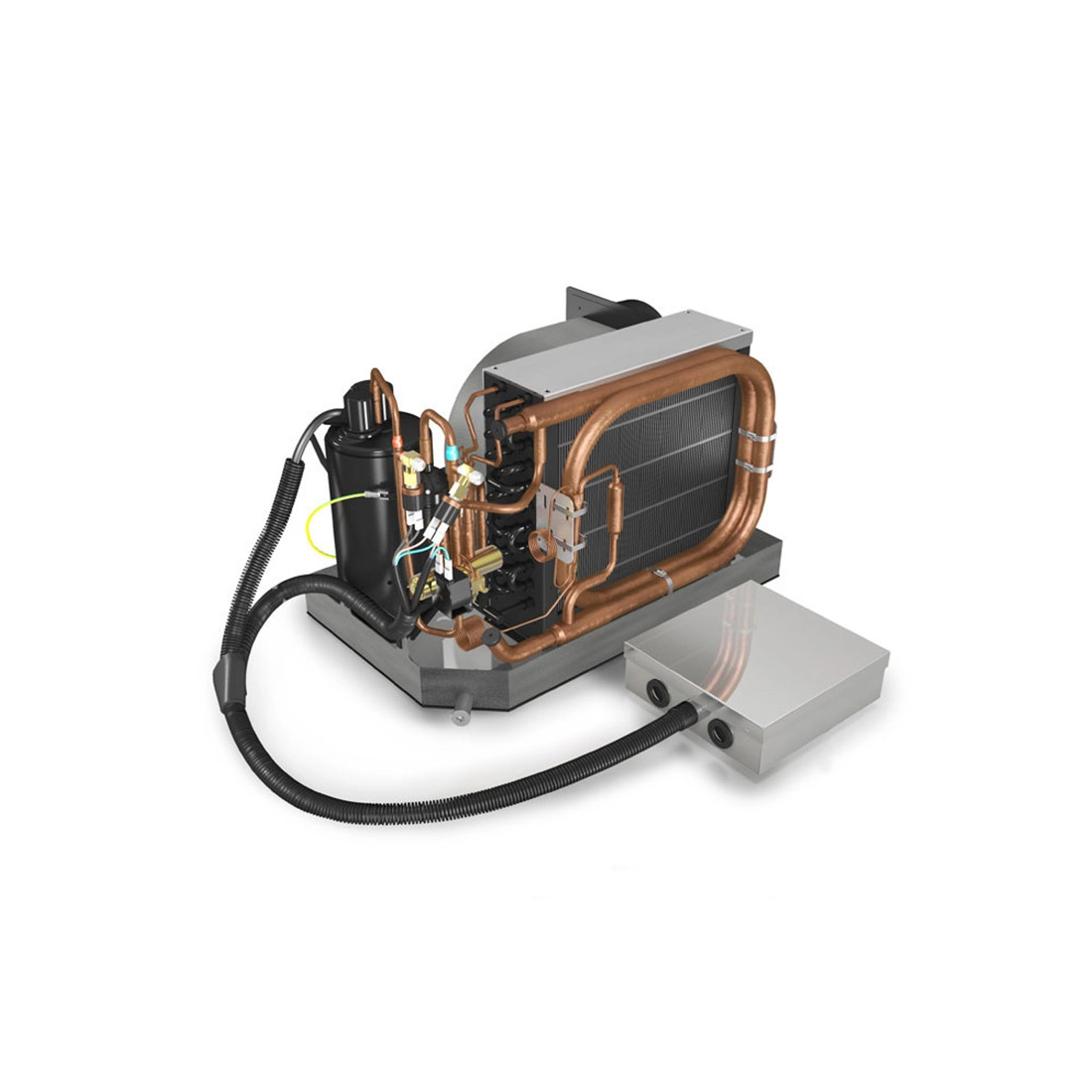

Its monoblock structure, consisting of compressor, condenser, evaporator,
and fan, makes it ideal for use in any season, ensuring constant comfort on board boats.
Thanks to its compact dimensions and lightweight of only 23 kg,
the VITRIFRIGO MACS7000 Nautical is easy to install and suitable even for limited spaces.
Its 230V/50Hz power supply ensures easy integration
with the existing electrical system on board.
The technical specifications of the VITRIFRIGO MACS7000 Nautical are impressive:
with a nominal cooling capacity of 7000 BTU/h
and a nominal heating capacity of 7800 BTU/h, it can effectively manage indoor climate
in any condition. Furthermore, its low energy consumption
and operational efficiency make it an economical and environmentally friendly choice.
The treated air flow rate of 400 m³/h ensures uniform air distribution within
the environment, while the recommended pump capacity of 600 l/h ensures optimal
operation of the conditioning system.
In summary, the VITRIFRIGO MACS7000 Nautical Air Conditioner represents
the ideal solution for cooling on board, offering high performance, reliability,
and unmatched comfort. With its advanced design and high-level technical features,
it is the perfect choice for those seeking a superior quality cooling system for their vessel.
Technical Features VITRIFRIGO MACS7000 Nutical:
Net weight: 23 Kg
Power supply: 230V/50Hz
Width: 454 mm.
Height: 300 mm.
Depth: 273 mm.
Air delivery diameter: 102 mm.
Condensation drain pipe diameter: 18 mm.
Panelboard dimensions: 245 x 188 x 64 mm.
Nominal capacity in cooling mode (BTU/h): 7000
Rated capacity in heating mode (BTU/h): 7800
Rated consumption power (cooling mode) (kW): 0.6
Rated power consumption (heating mode) (kW): 0.7
Rated consumption in cooling mode (A): 2.6
Nominal consumption in heating mode (A): 3
Processed air flow rate (mc/h): 400
Recommended pump capacity (l/h): 600
VITRIFRIGO MACS7000 Nautical
Looking for a product with different technical characteristics? Here you can find the area dedicated to nautical air conditioners VITRIFRIGO or other specialized brands.
Images and technical data are not binding.
