Supply voltage: 12V dc - 24V dc
Cooling capacity 3.5 KW
Cooling Power: 0.95W
Electrical Absorption: (in cooling mode)100 A @ 12V - 50 A @ 24V
Electrical consumption: (in heating mode)90 A @ 12V - 45 A @ 24V
External working temperature (max): 43 C
Air flow rate (Static pressure: 0 Pa ): 550 m3/h
Refrigerant: R134a
Refrigerant quantity: 600 g
Weight: 30Kg
Height: 199 mm
Length: 651 mm
Width: 710 mm

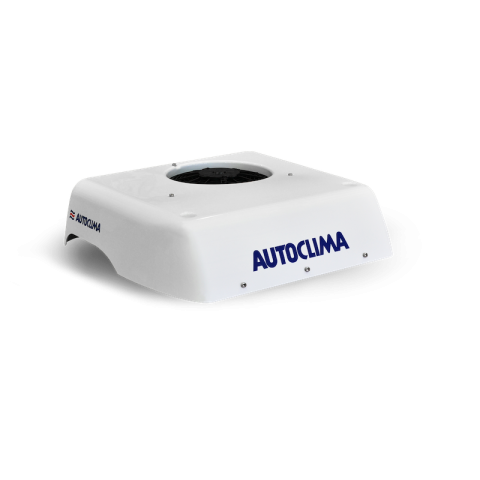

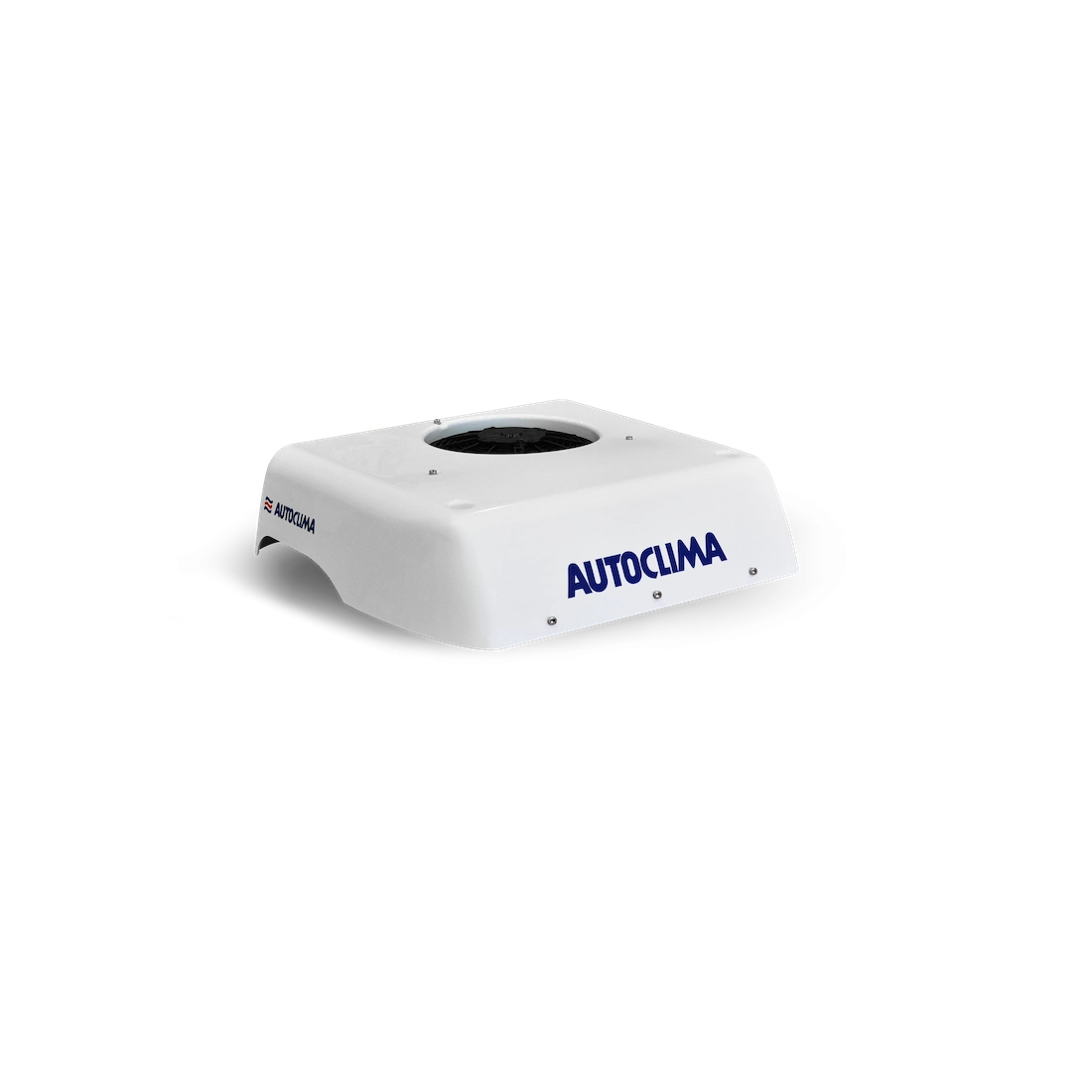

Autoclima Air conditioner Modula RT plus roof top unit the autonomous air conditioner for small and medium sized cabins
Autoclima A/C Modula RT plus roof top unit is a complete, self-contained air conditioner designed for the comfort of small to medium sized cabins in various types of vehicles.
Main features Autoclima Modula RT plus roof unit:
Power supply: 12V/24V, compatible with most vehicles.
Cooling capacity: 3.5KW, ideal for air conditioning small cabins.
Electricity consumption: 100A at 12V, 50A at 24V, low energy consumption.
Autonomous operation: does not require a compressor driven by the vehicle's heat engine.
Easy installation: only requires electrical connection.
Versions available: cooling only or with integrated electric heating.
Air diffuser comes with controls, which can be positioned on the diffuser or at a remote location.
Refrigerant: R134a, environmentally friendly and safe.
Weight: 30Kg, light and compact.
Autoclima Modula RT plus rooftop unit offers a range of benefits:
Customised comfort: regulates temperature and ventilation to create an ideal environment.
Energy efficiency: reduced consumption for greater savings.
Reliability and durability: high quality components for long-lasting operation.
Technical characteristics Autoclima Modula RT plus Rooftop unit:
Supply voltage: 12V dc - 24V dc
Cooling capacity 3.5 KW
Cooling Power: 0.95W
Electrical Absorption: (in cooling mode)100 A @ 12V - 50 A @ 24V
Electrical consumption: (in heating mode)90 A @ 12V - 45 A @ 24V
External working temperature (max): 43 C
Air flow rate (Static pressure: 0 Pa ): 550 m3/h
Refrigerant: R134a
Refrigerant quantity: 600 g
Weight: 30Kg
Height: 199 mm
Length: 651 mm
Width: 710 mm
Are you looking for an air conditioner for vehicles with different technical characteristics? HERE
you can find the entire range of AUTOCLIMA air conditioners or other specialized brands.
Non-binding images and technical data.
