MAXXAIR - Maxxfan Deluxe Ventilation System - 10 speed

  • New
maxxair maxxfan deluxe ventilation system 10 speed
search
  • maxxair maxxfan deluxe ventilation system 10 speed
  • maxxair maxxfan deluxe ventilation system 10 speed
  • maxxair maxxfan deluxe ventilation system 10 speed
  • maxxair maxxfan deluxe ventilation system 10 speed
NO BRAND
MFDeluxe 10

Voltage: 12 V
Weight: 6 Kg
Color: Transparent
Airflow: 26 m³/h
Fan Diameter: 300 Ø mm
Consumption: MIN 0.2 A - MAX 2.3 A
Closed Dimensions: 585 x 417 x 127 mm
Open Dimensions: 585 x 417 x 237 mm
Roof Cutout: MIN 360 x 360 mm
Roof Cutout: MAX 400 x 400 mm
Roof Thickness: MIN 23 - MAX 42 mm

Usable even in bad weather.
Usable even while in motion or in windy conditions.

Technical features
Voltage (V)
12
Roof thickness (mm)
MIN 23 - MAX 42
Air flow (m³/h)
26
Colour
Transparent
Weight (Kg)
6
Fan diameter (Ø mm)
300
Absorption (Min A-Max A)
0.2 - 2.3
Closed Dimensions (mm)
585 x 417 x 127
Open dimensions (mm)
585 x 417 x 237
Roof hole (mm)
MIN 360 x 360
Details

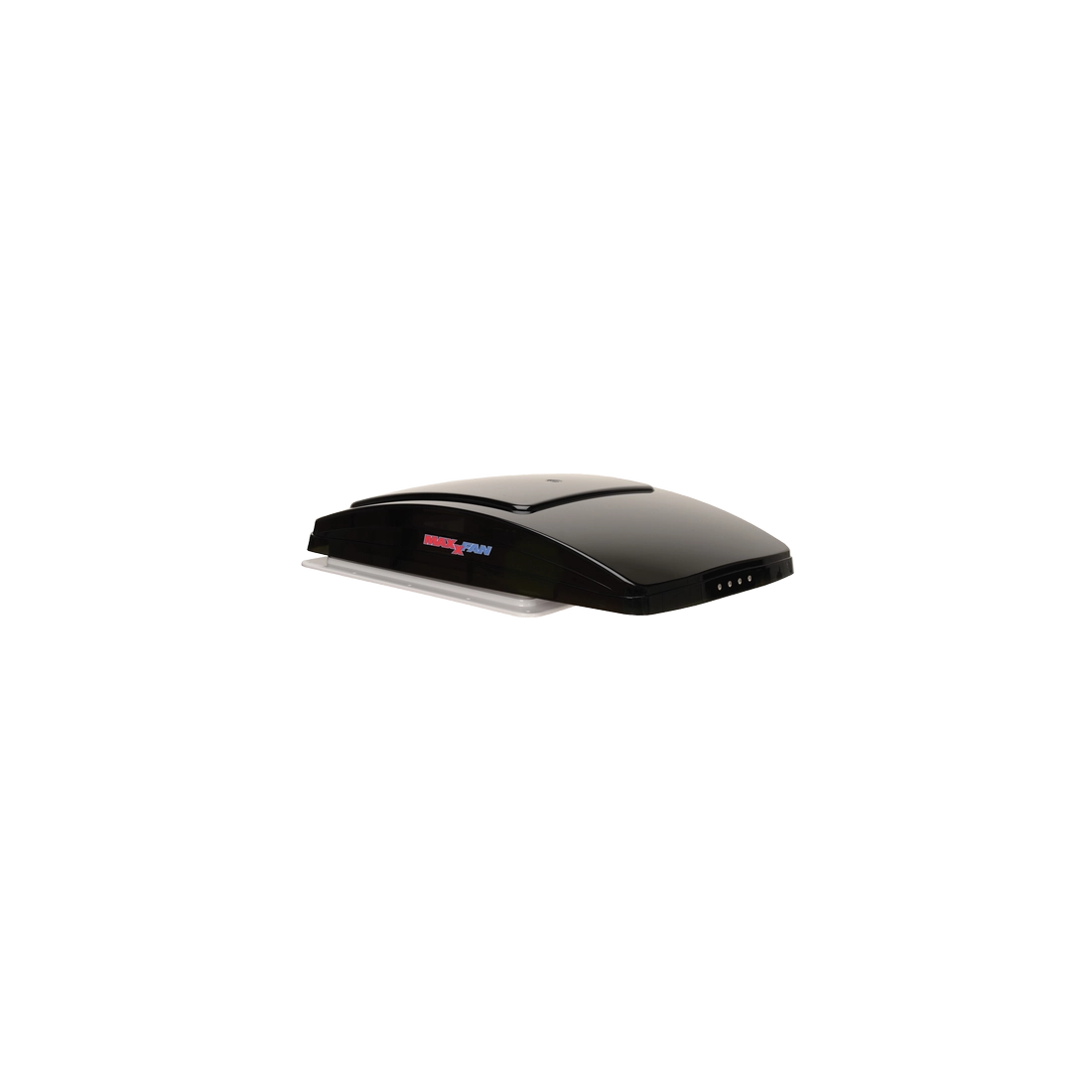

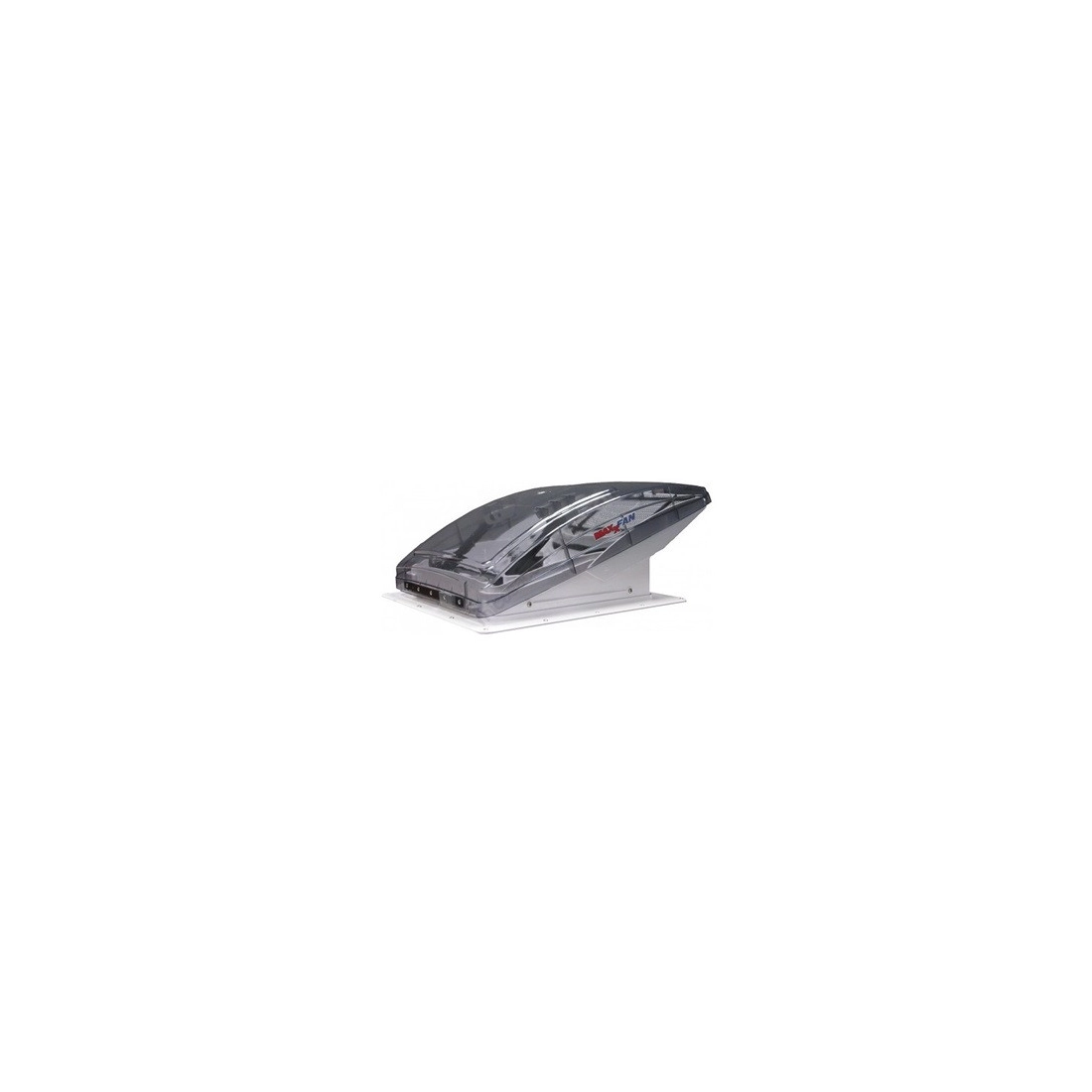

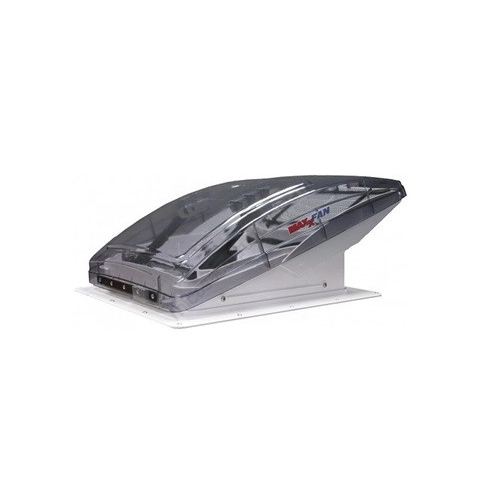

MAXXAIR - MAXXFAN DELUXE VENTILATION SYSTEM - 10 SPEEDS

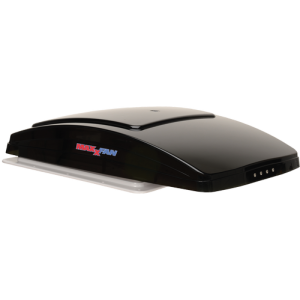

The MAXXAIR Maxxfan Deluxe is the only complete ventilation system for RVs that combines air intake, fan, and rain shield in a single unit, ensuring optimal comfort and constant protection from the elements. Thanks to its integrated rain cover, the MAXXAIR Deluxe ventilation system protects the interior environment, allowing the fan to be used even in rainy conditions or while driving.

This powerful MAXXAIR - Maxxfan Deluxe ventilation system features a reversible fan with 10 speeds, providing precise temperature control via a programmable thermostat, accessible from the ceiling control or with a convenient remote. The MAXXAIR Maxxfan Deluxe fits all standard 14"x14" roof openings, making installation simple and compatible with most RVs.

Main Features of the MAXXAIR Maxxfan Deluxe Ventilation System - 10 speeds:

Integrated rain cover: ensures continuous protection, whether the fan is on or off.
Powerful reversible fan: with 10 speeds, adjustable via thermostat for optimal temperature control.
Remote control and insect screen: easily removable without tools.
Compatible with 14"x14" roof openings: quick and secure installation.

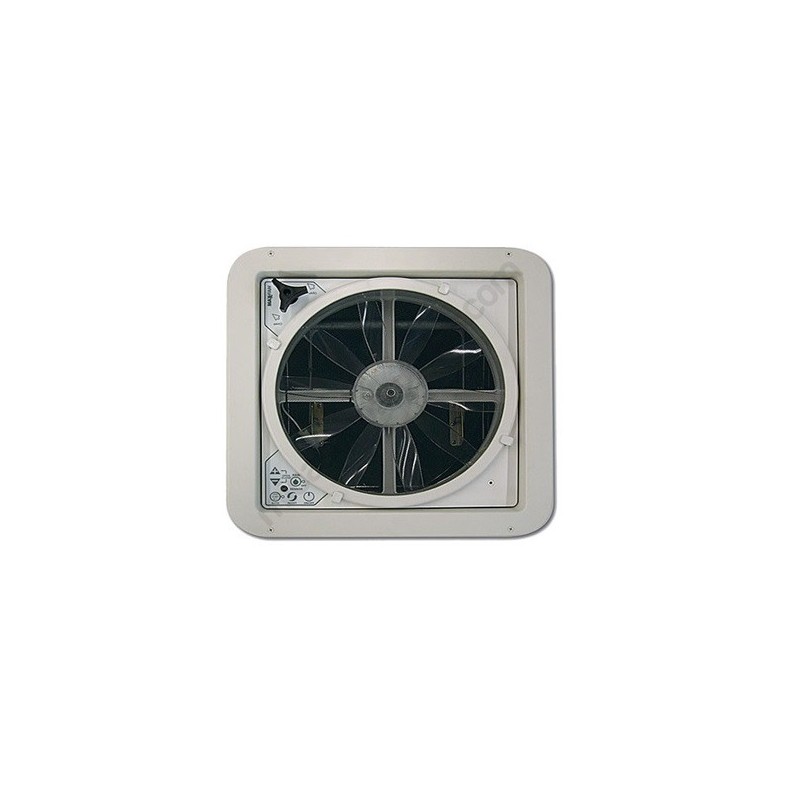

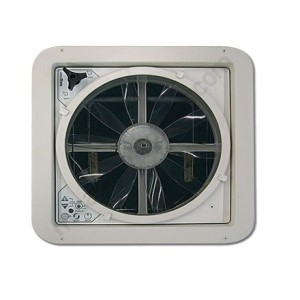

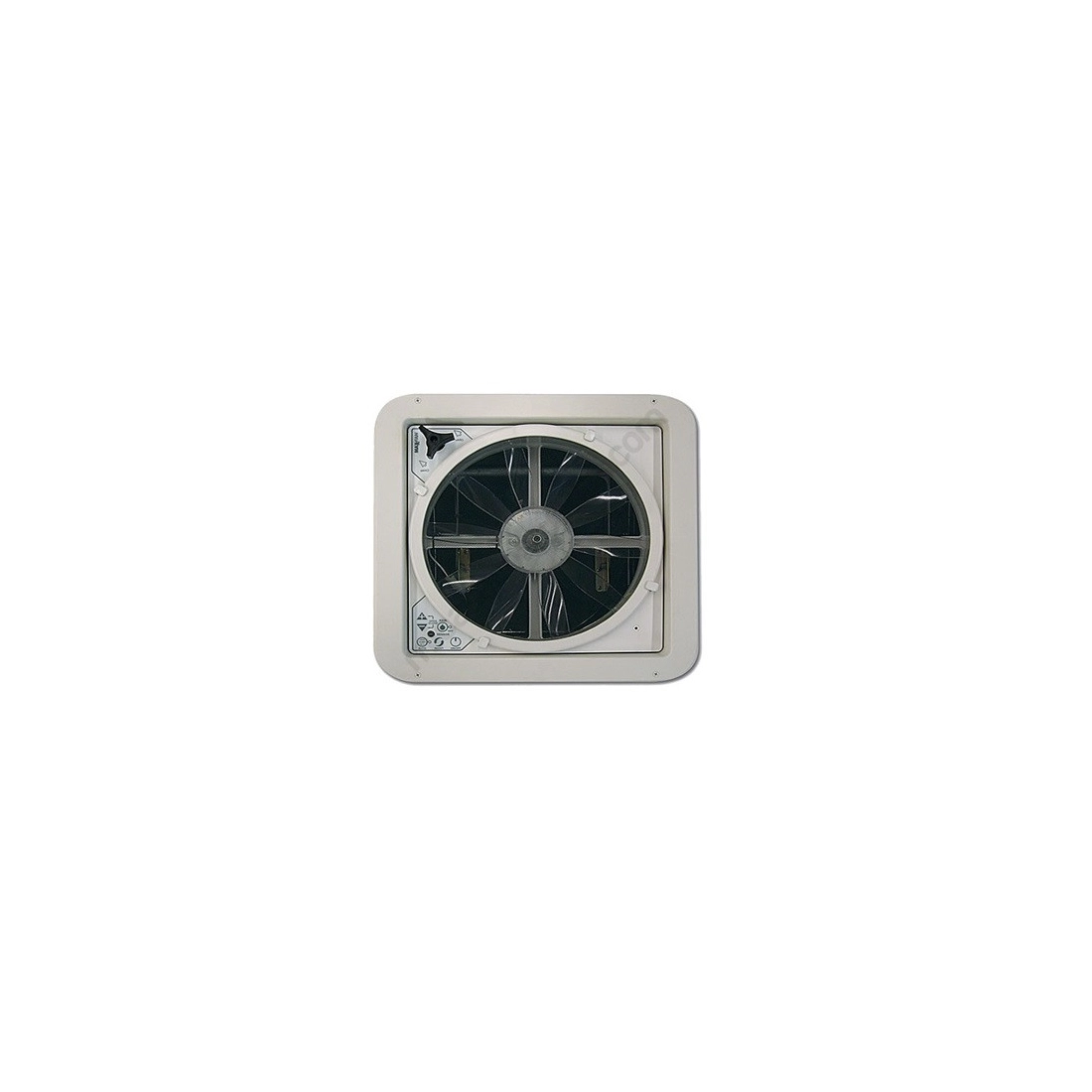

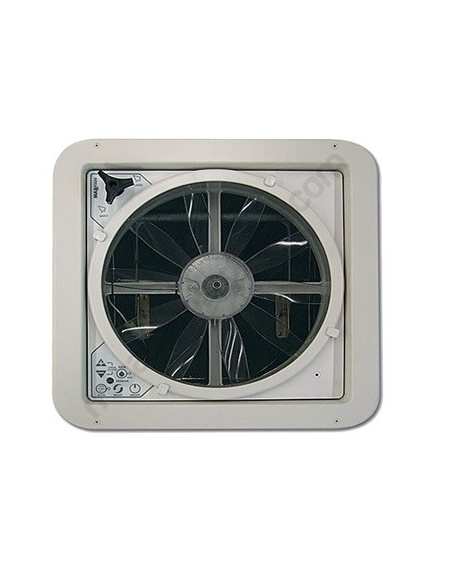

Long-lasting 12V motor: with a 10-blade fan of 300 mm diameter for an airflow of 26 m³/h, ensuring a constantly ventilated and comfortable environment.

Technical Specifications of the Maxxfan Deluxe Ventilation System - MAXXAIR:

Voltage: 12V, with consumption ranging from 0.2 A to 2.3 A.
Closed Dimensions: 585 x 417 x 127 mm; Open: 585 x 417 x 237 mm.
Roof Thickness: from 23 mm to 42 mm; compatible roof cutout from 360x360 mm to 400x400 mm.

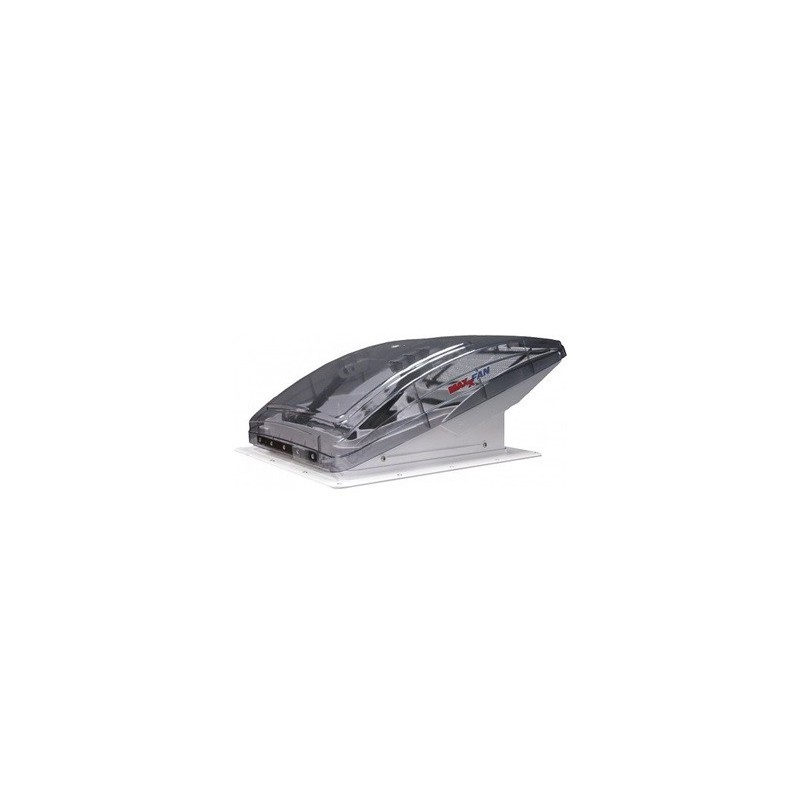

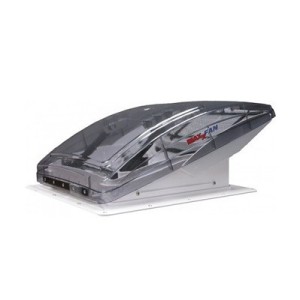

Color: transparent, with a smoke-colored lid and electric opening.
Warranty: 2 years limited, with a lifetime warranty on the lid.

The MAXXAIR Maxxfan Deluxe is the ideal choice for those seeking a reliable, powerful, and complete ventilation system.

Are you looking for an air conditioner for vehicles with different technical features? HERE you can find the entire range of air conditioners from other specialized brands.

Images and technical data are non-binding.

Technical Sheet / Manuals
Price
420,85 € tax incl.
344,96 € tax excl.
