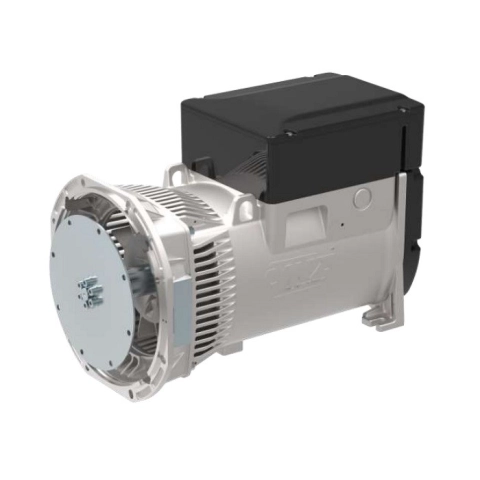

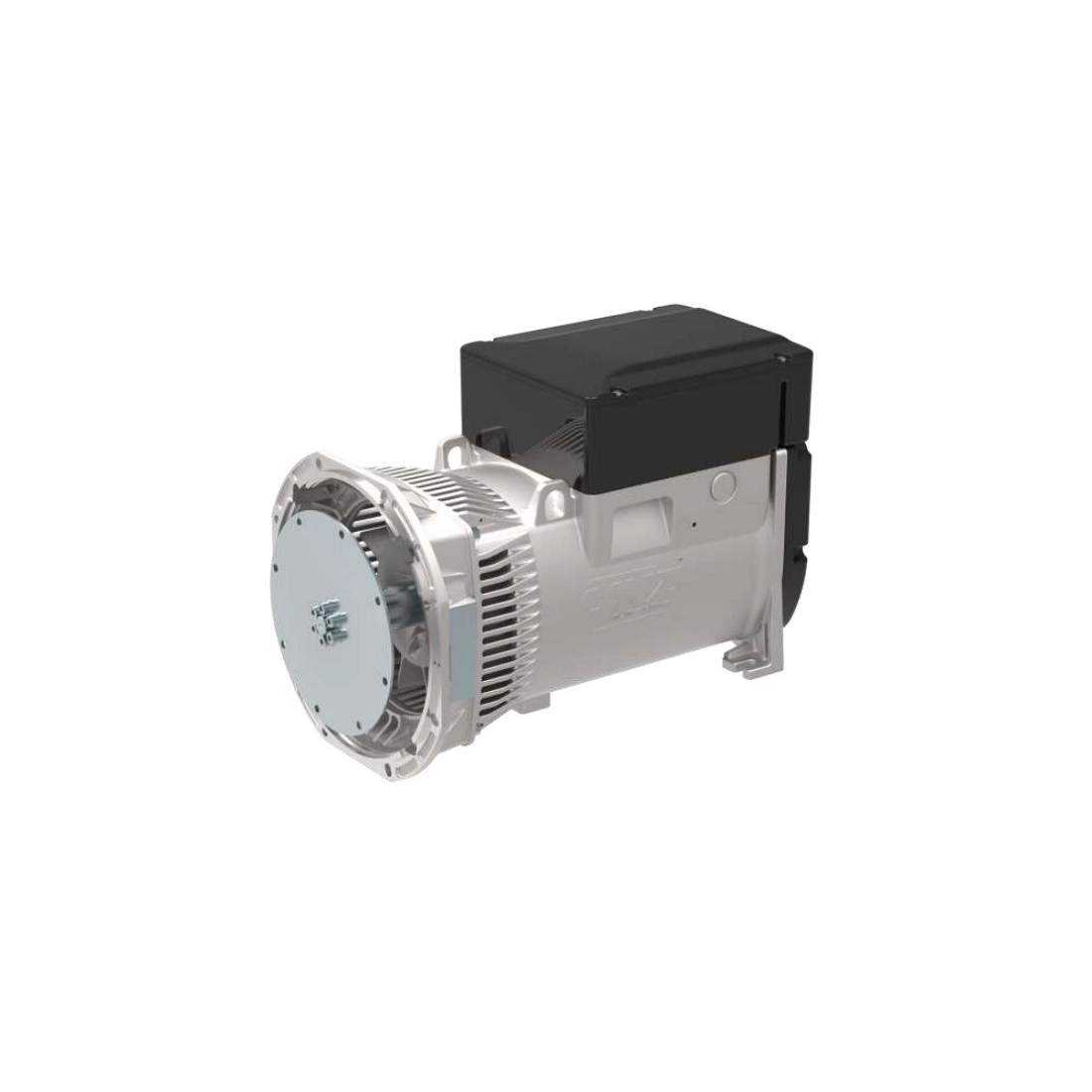

LINZ E1C13M E/2 Single-phase alternator 115/230V 18 kVA 50 Hz Brushless

LINZ E1C13M E/2 Single-phase alternator 115/230V 18 kVA 50 Hz Brushless
search
  • LINZ E1C13M E/2 Single-phase alternator 115/230V 18 kVA 50 Hz Brushless
  • LINZ E1C13M E/2 Single-phase alternator 115/230V 18 kVA 50 Hz Brushless
LINZ ELECTRIC
E1C13M E/2 J609b 50 Hz
New product

Rated power at 50Hz (kVA): 18
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Frequency: 60 Hz - 50 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9 at 50Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
18
Continuous power single phase (KVA)
18
Frequency (Hz)
50 / 60
Voltage (V)
115 / 230
Engine rpm (rpm)
3000
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
18
Protection degree
IP21
Motor insulation class
H

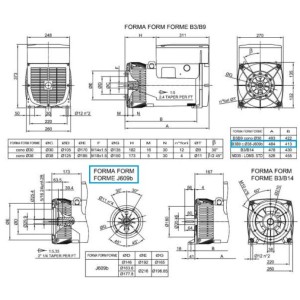

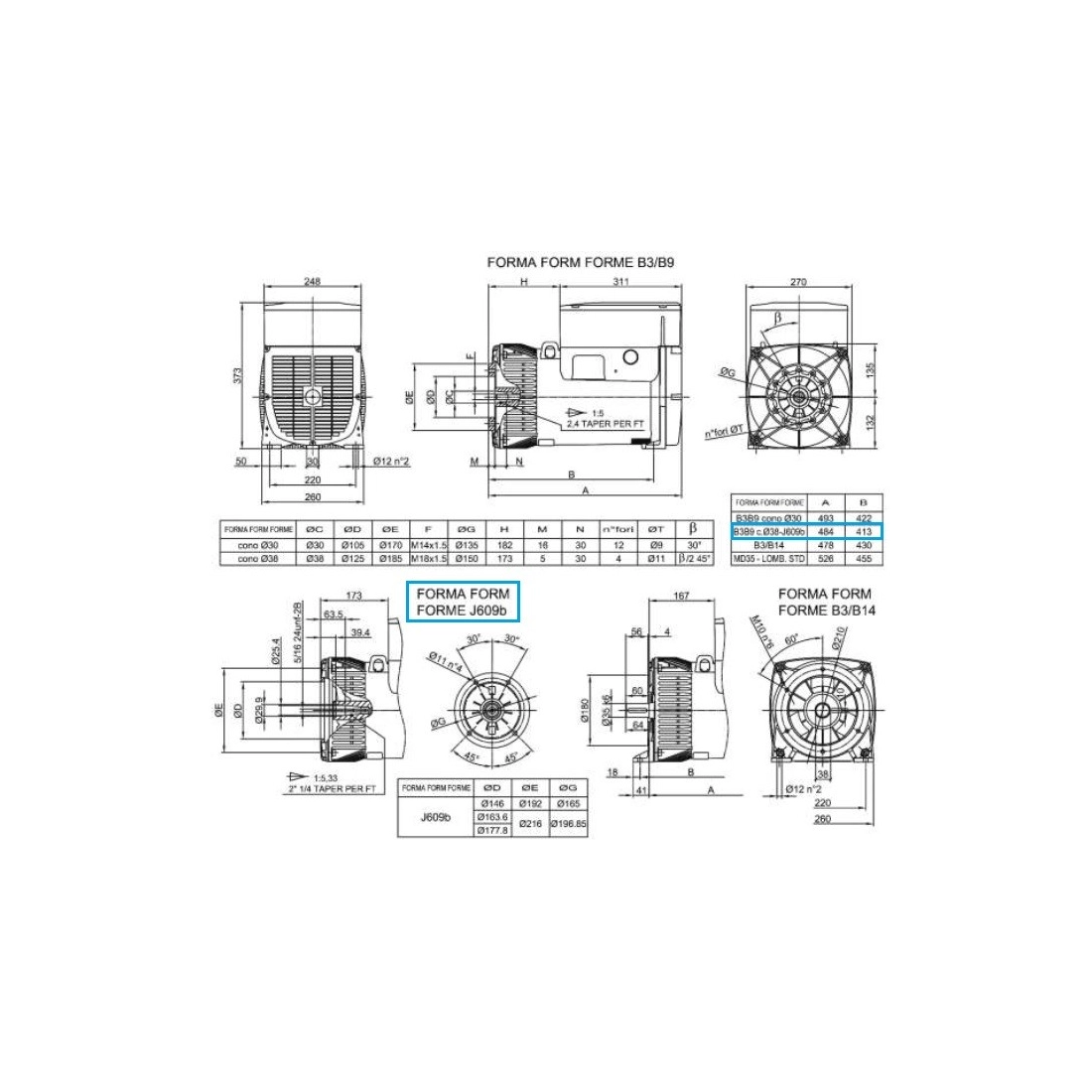

Length (mm)
495
Width (mm)
270
Height (mm)
375
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
88.4
Details

The E1C13M series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • Possibility of feeding any type of load
  • Wide range of accessories
  • High efficiency
  • Gamma: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: CAPACITOR
  • Application: FLOW-UP
  • Images and technical data are not binding.

Technical Sheet / Manuals
Related Accessories
List price
1.532,32 € tax incl.
1.256,00 € tax excl.
Discounted Price
1.282,31 € tax incl.
1.051,07 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: LINZ E1C13M E/2 Single-phase alternator 115/230V 18 kVA 50 Hz Brushless
Offer on letterhead
Product: LINZ E1C13M E/2 Single-phase alternator 115/230V 18 kVA 50 Hz Brushless
