Rated power at 50Hz (kVA): 7
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Regulation type: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.5 at 50Hz
Suppression standard R.F.F.I. EN55011

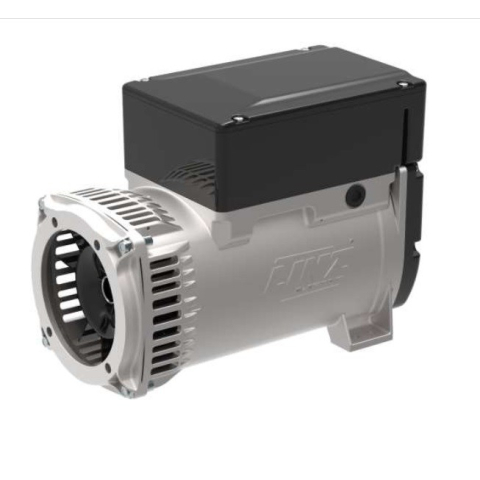

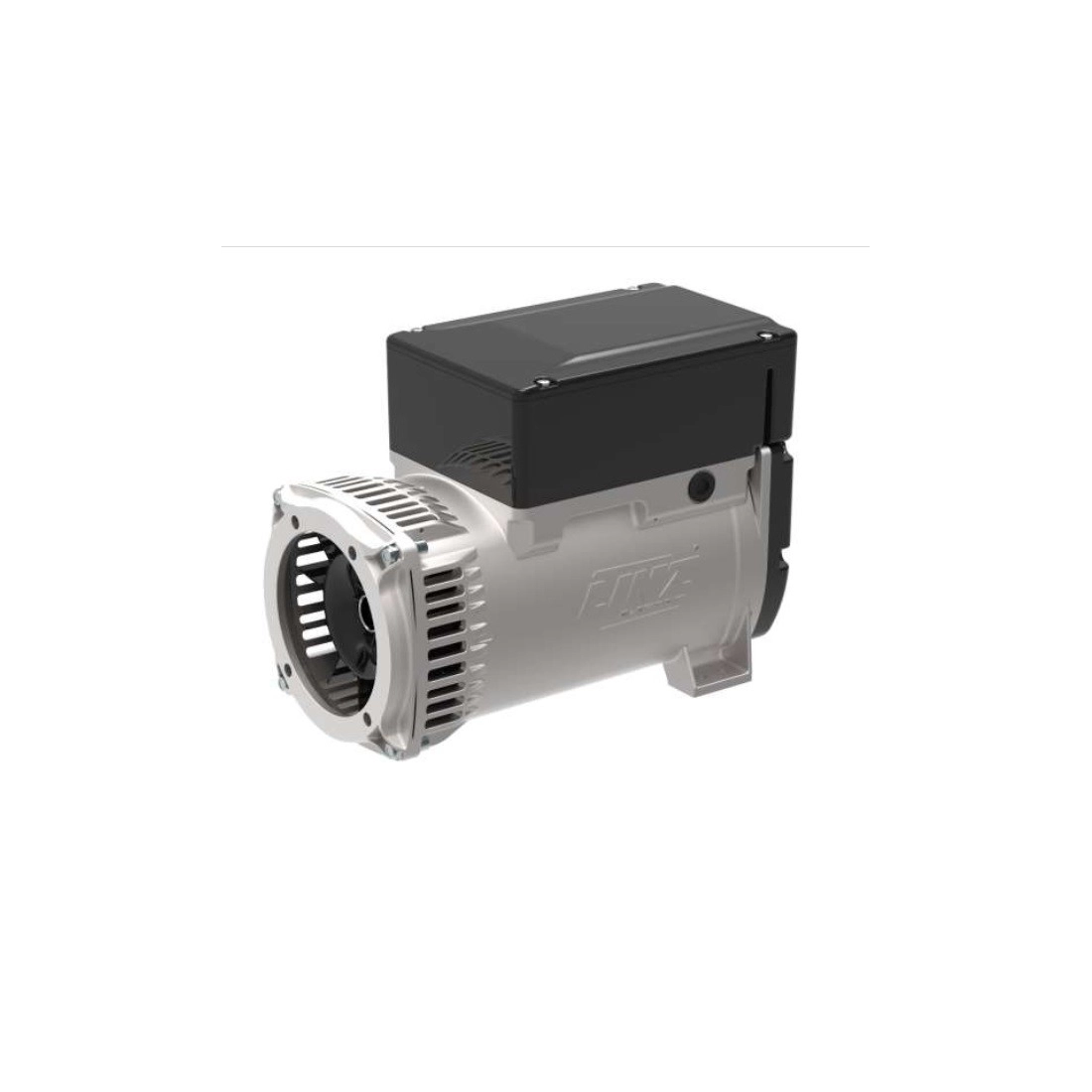

The SPE and E1E series consist of single-phase 2-pole alternators with brushes and AVR electronic regulation.
CHARACTERISTICS
Images and technical data are not binding.
