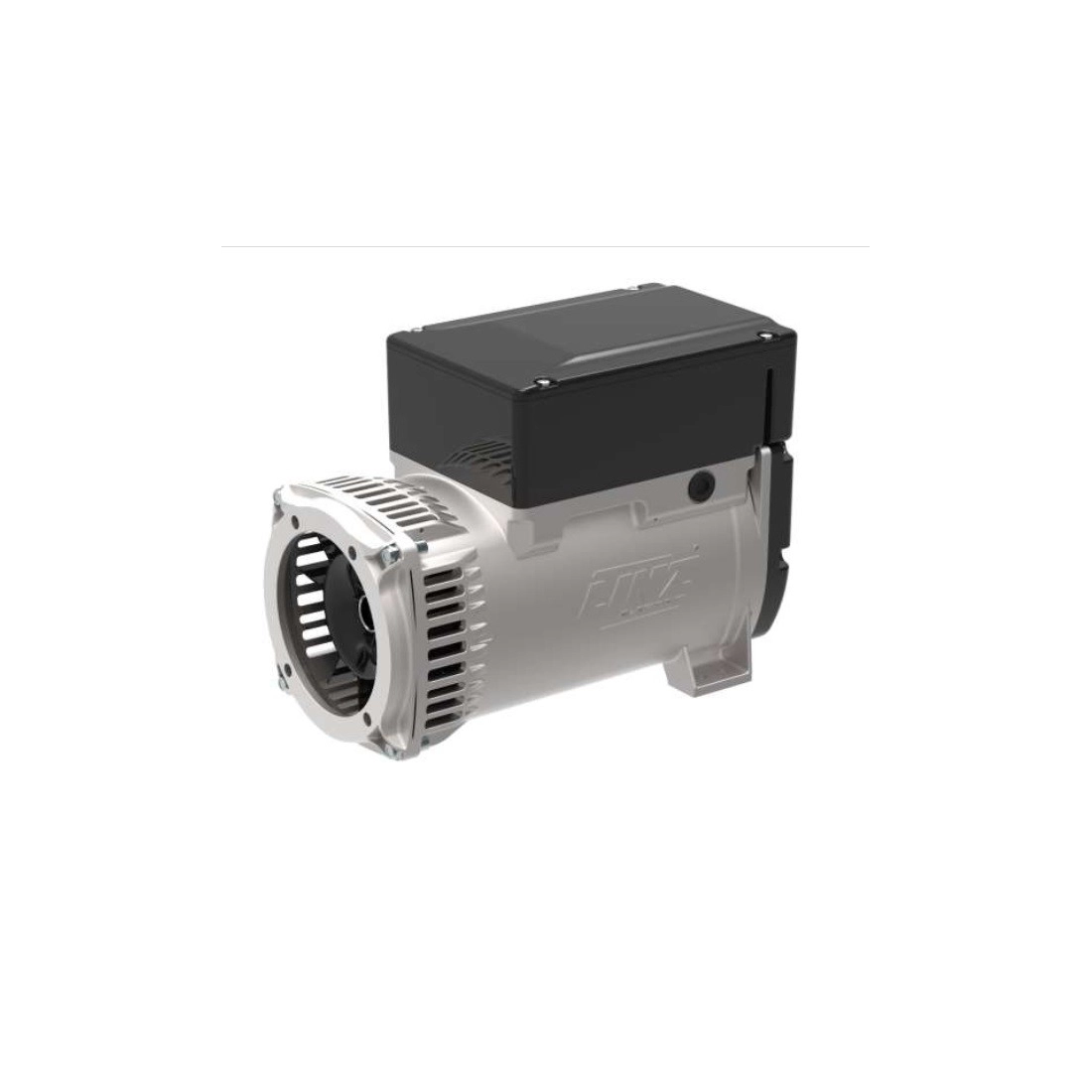

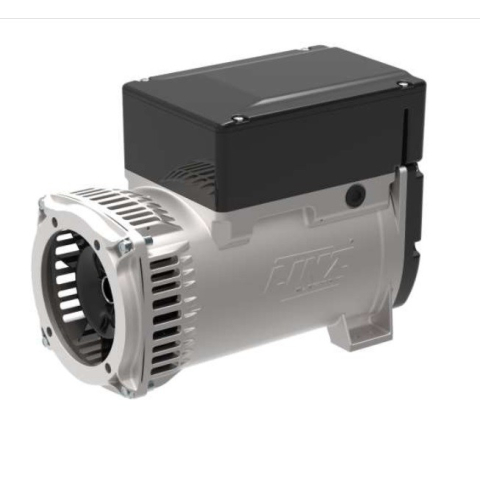

LINZ E1E10L L Single-phase alternator 115V/230V 8 kVA 50 Hz AVR

LINZ E1E10M L Single-phase alternator 115V/230V 8 kVA 50 Hz AVR
search
  • LINZ E1E10M L Single-phase alternator 115V/230V 8 kVA 50 Hz AVR
  • LINZ E1E10M L Single-phase alternator 115V/230V 8 kVA 50 Hz AVR
LINZ ELECTRIC

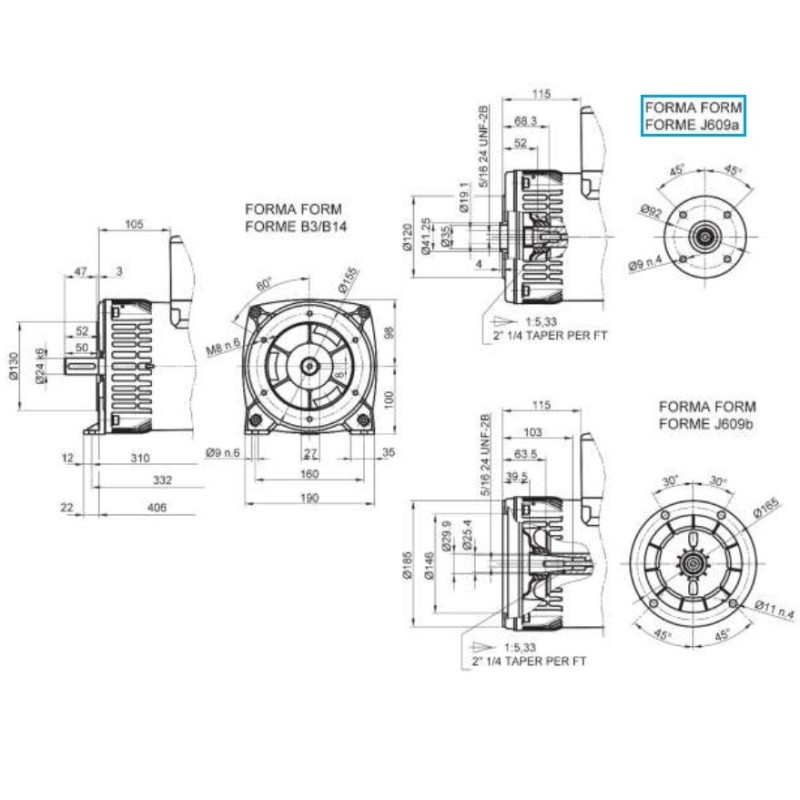

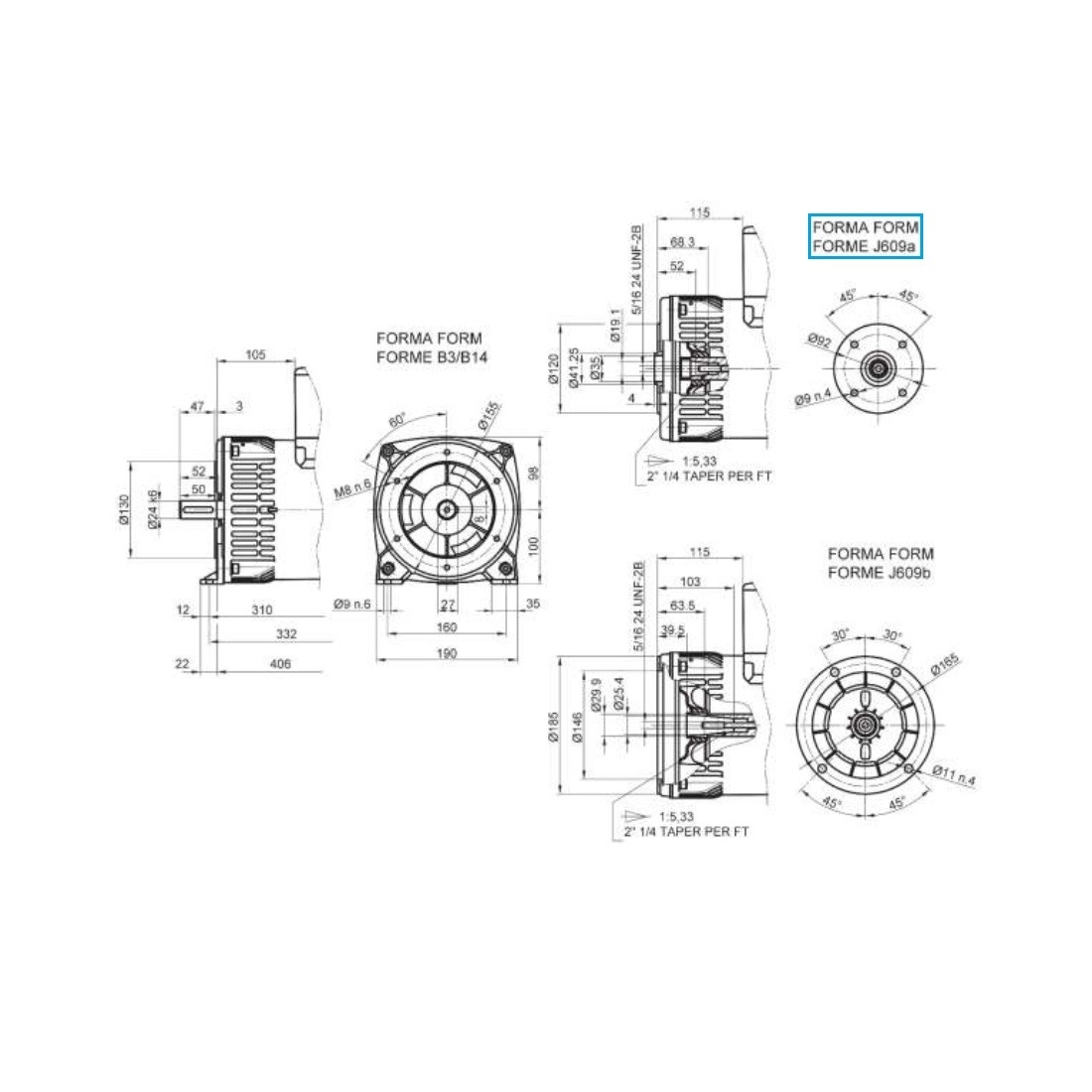

E1E10L L 50 Hz J609a
New product

Rated power at 50Hz (kVA): 8
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Regulation type: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.7 at 50Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
8
Continuous power single phase (KVA)
8
Frequency (Hz)
50
Voltage (V)
115 / 230
Engine rpm (rpm)
3000
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
8
Protection degree
IP21
Motor insulation class
H
Length (mm)
395
Width (mm)
195
Height (mm)
297
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
37.8
Details

The SPE and E1E series consist of single-phase 2-pole alternators with brushes and AVR electronic regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • High voltage accuracy
  • Wide range of accessories
  • AVR with built-in protections
  • Range: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: AVR
  • Application: PORTABLE

Images and technical data are not binding.

Technical Sheet / Manuals
icona_scheda

Technical data E1E10M L

(867.83k)
Related Accessories
List price
805,20 € tax incl.
660,00 € tax excl.
Discounted Price
647,15 € tax incl.
530,45 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: LINZ E1E10L L Single-phase alternator 115V/230V 8 kVA 50 Hz AVR
Offer on letterhead
Product: LINZ E1E10L L Single-phase alternator 115V/230V 8 kVA 50 Hz AVR
