LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz 60 Hz Brushless

LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
search
  • LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
  • LINZ E1C13S A/4 Single-phase alternator 115/230V 5.5 kVA 50 Hz Brushless
LINZ ELECTRIC

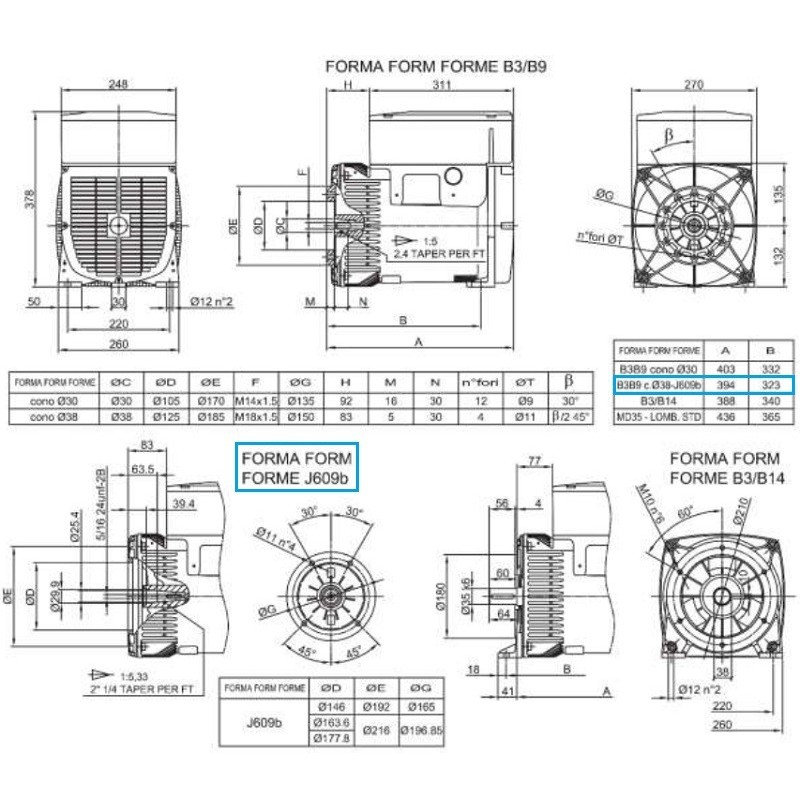

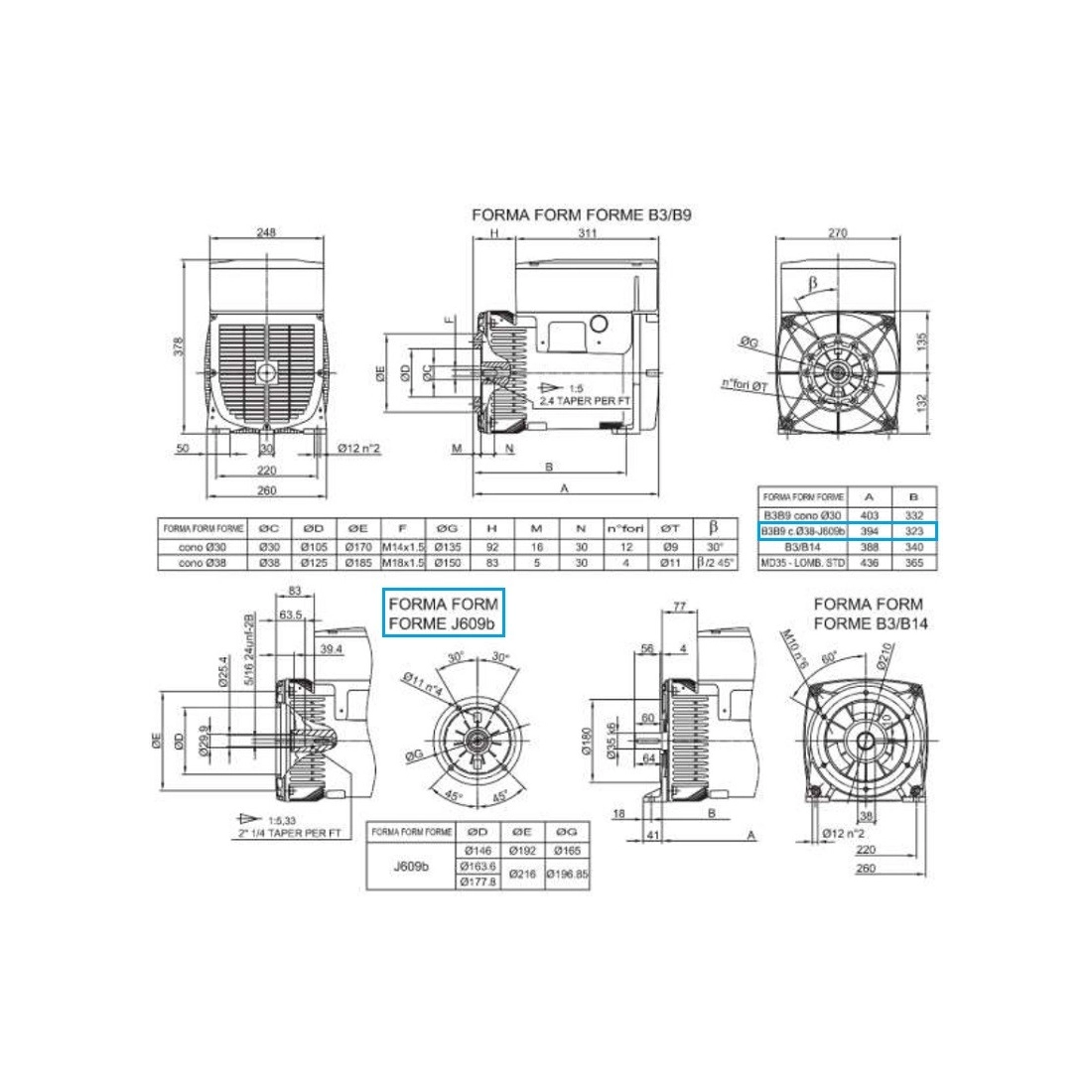

E1C13S A/4 J609b 50 Hz
New product

Rated power at 50Hz (kVA): 5.5
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Frequency: 50 Hz and 60 Hz
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9.2 at 50Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
5.5
Continuous power single phase (KVA)
5.5
Frequency (Hz)
50 / 60
Voltage (V)
115 / 230
Engine rpm (rpm)
1500
Alternator
Synchronous, brushless
Poles
4
Single-phase power (KVA)
5.5
Protection degree
IP21
Motor insulation class
H
Length (mm)
405
Width (mm)
270
Height (mm)
379
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
44
Details

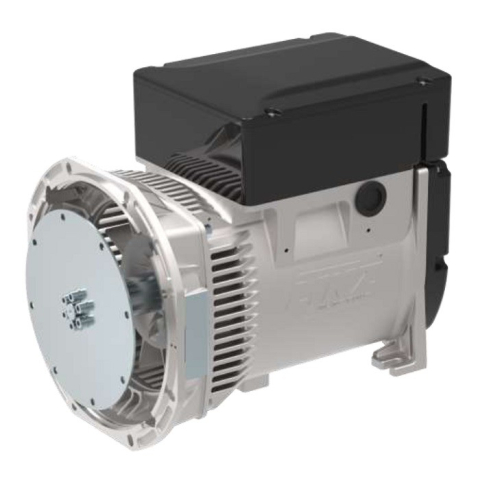

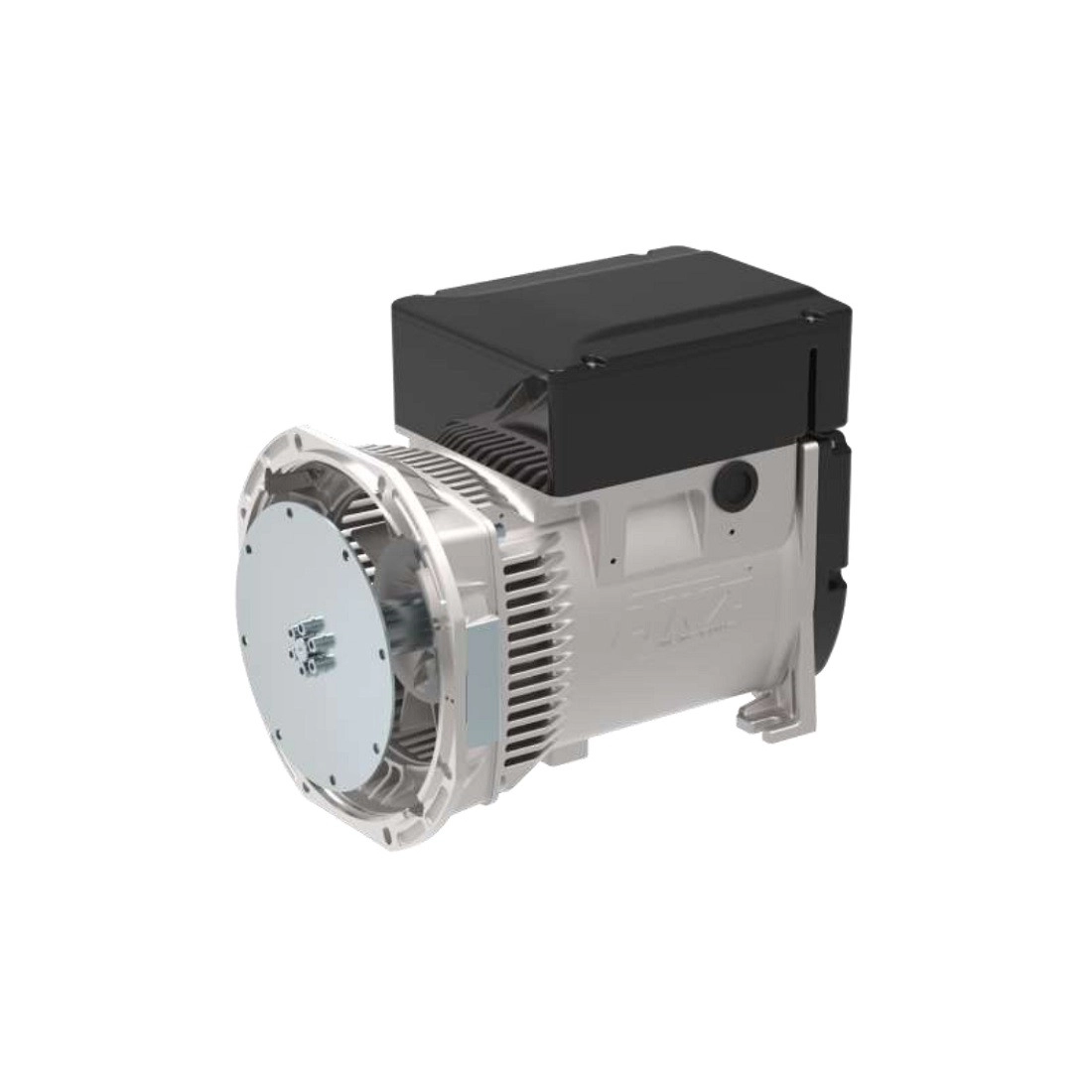

LINZ E1C13/4 series are single-phase 4 poles brushless alternators with an auxiliary winding loaded on a capacitor regulating the voltage.
This series has been designed for application in light towers with metal halide, halogen lamps or LED.

CHARACTERISTICS

  • Innovative rotating diode system
  • Low harmonic content
  • High efficiency
  • Type: Single-phase alternators
  • Poles: 4
  • Phases: Single-phase
  • Regulation: CAPACITOR
  • Application: PORTABLE, LIGHTING TOWERS
  • product available in 50 Hz and 60 Hz versions
Technical Sheet / Manuals
icona_scheda

Technical Data E1C13S A/4

(917.94k)
Related Accessories
List price
1.076,04 € tax incl.
882,00 € tax excl.
Discounted Price
901,10 € tax incl.
738,61 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
