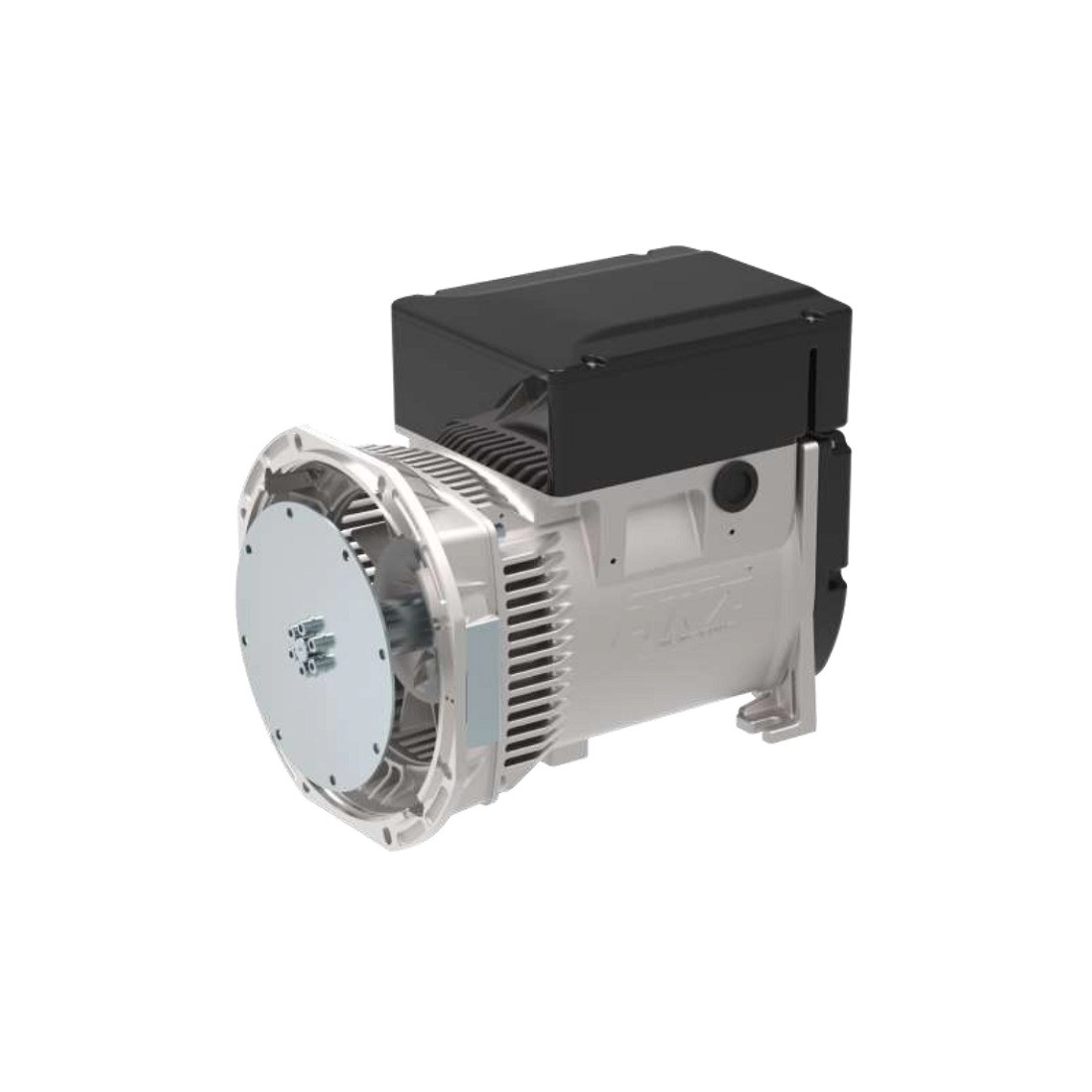

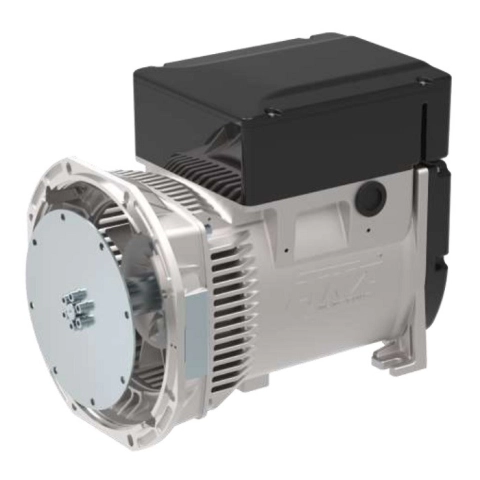

LINZ E1C13S B/4 Single-phase alternator 115/230V 7 kVA 50 Hz 60 Hz Brushless
E1C13S B/4 J609b 50 Hz
New product
Rated power at 50Hz (kVA): 7
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Frequency: 50 Hz and 60 Hz
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.3 at 50Hz
Suppression standard R.F.F.I. EN55011
Technical features
- Phase
- Single phase
- Continuous power single phase (KW)
- 7
- Continuous power single phase (KVA)
- 7
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 115 / 230
- Engine rpm (rpm)
- 1500
- Alternator
- Synchronous, brushless
- Poles
- 4
- Single-phase power (KVA)
- 7
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 405
- Width (mm)
- 270
- Height (mm)
- 379
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- Capacitor
- Weight (Kg)
- 50.5
Details
LINZ E1C13/4 series are single-phase 4 poles brushless alternators with an auxiliary winding loaded on a capacitor regulating the voltage.
This series has been designed for application in light towers with metal halide, halogen lamps or LED.
CHARACTERISTICS
- Innovative rotating diode system
- Low harmonic content
- High efficiency
- Type: Single-phase alternators
- Poles: 4
- Phases: Single-phase
- Regulation: CAPACITOR
- Application: PORTABLE, LIGHTING TOWERS
product available in 50 Hz and 60 Hz versions
Technical Sheet / Manuals
