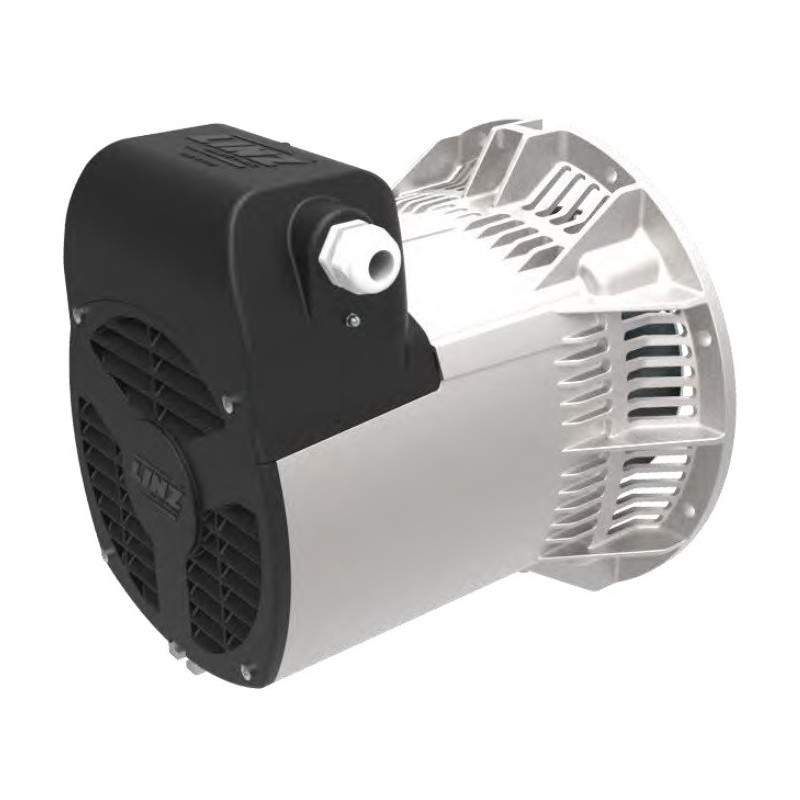

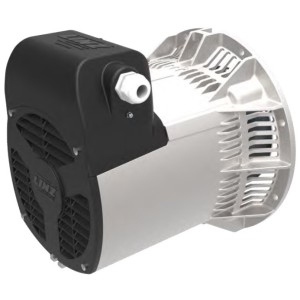

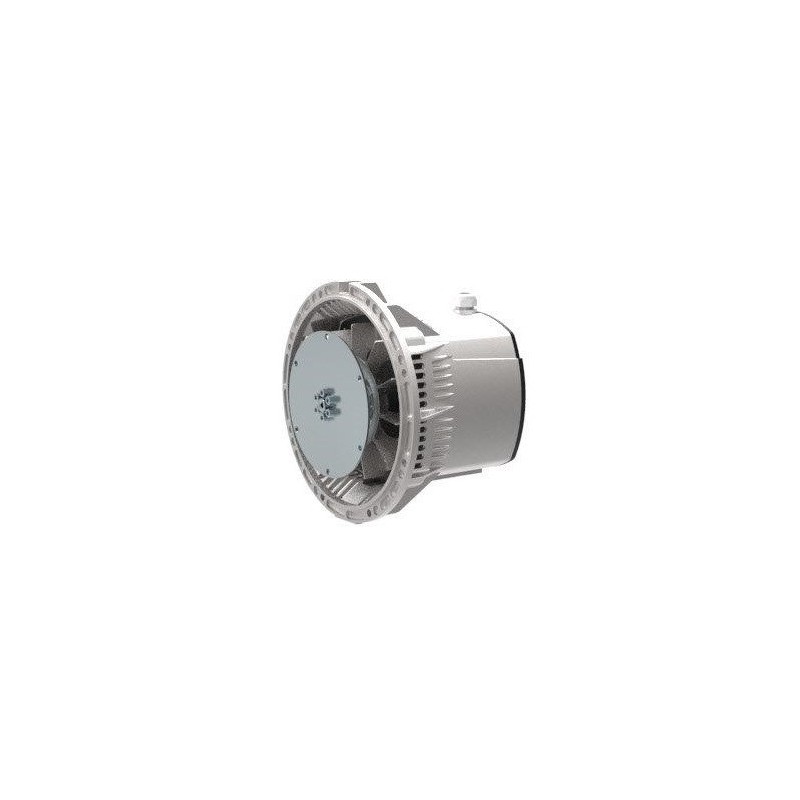

LINZ ALUMEN LE Single-phase alternator 8 kVA 60 Hz with Damping Cage

LINZ ALUMEN LE Single-phase alternator 8 kVA 60 Hz with Damping Cage
search
  • LINZ ALUMEN LE Single-phase alternator 8 kVA 60 Hz with Damping Cage
  • LINZ ALUMEN LE Single-phase alternator 8 kVA 60 Hz with Damping Cage
LINZ ELECTRIC
ALUMEN LE 6.5 60 Hz
New product

Rated power at 60 Hz (kVA): 8
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 6.4 at 60 Hz
Suppression standard R.F.F.I. EN55011
With damping cage and external cable extension

Technical features
Phase
Single phase
Continuous power single phase (KW)
8
Continuous power single phase (KVA)
8
Frequency (Hz)
60
Voltage (V)
120 / 240
Engine rpm (rpm)
1800
Alternator
Synchronous, brushless
Poles
4
Single-phase power (KVA)
8
Protection degree
IP21
Motor insulation class
H

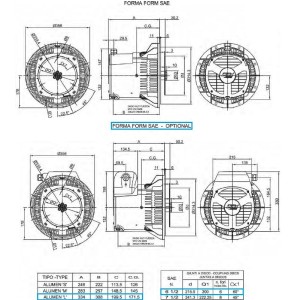

Length (mm)
334
Width (mm)
356
Height (mm)
356
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
49
Details

The LINZ ALUMEN series is a set of single-phase, 4-pole brushless alternators with an auxiliary winding to regulate the voltage, loaded onto highly insulated capacitors to protect from high ignition voltage.
This series has been especially designed for use in LIGHTING TOWERS with metal halide, halogen or LED lamps.

CHARACTERISTICS

  • Best-in-class efficiency
  • Compact and easy to assemble
  • Flexible design
  • Easy maintenance
  • Type: Single-phase alternators
  • Poles: 4
  • Phases: Single-phase
  • Regulation: CAPACITOR
  • Application: PORTABLE, LIGHTING TOWERS

Technical Sheet / Manuals
icona_scheda

Technical Data ALUMEN LE

(945.89k)
Related Accessories
List price
1.127,28 € tax incl.
924,00 € tax excl.
Discounted Price
906,01 € tax incl.
742,63 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
