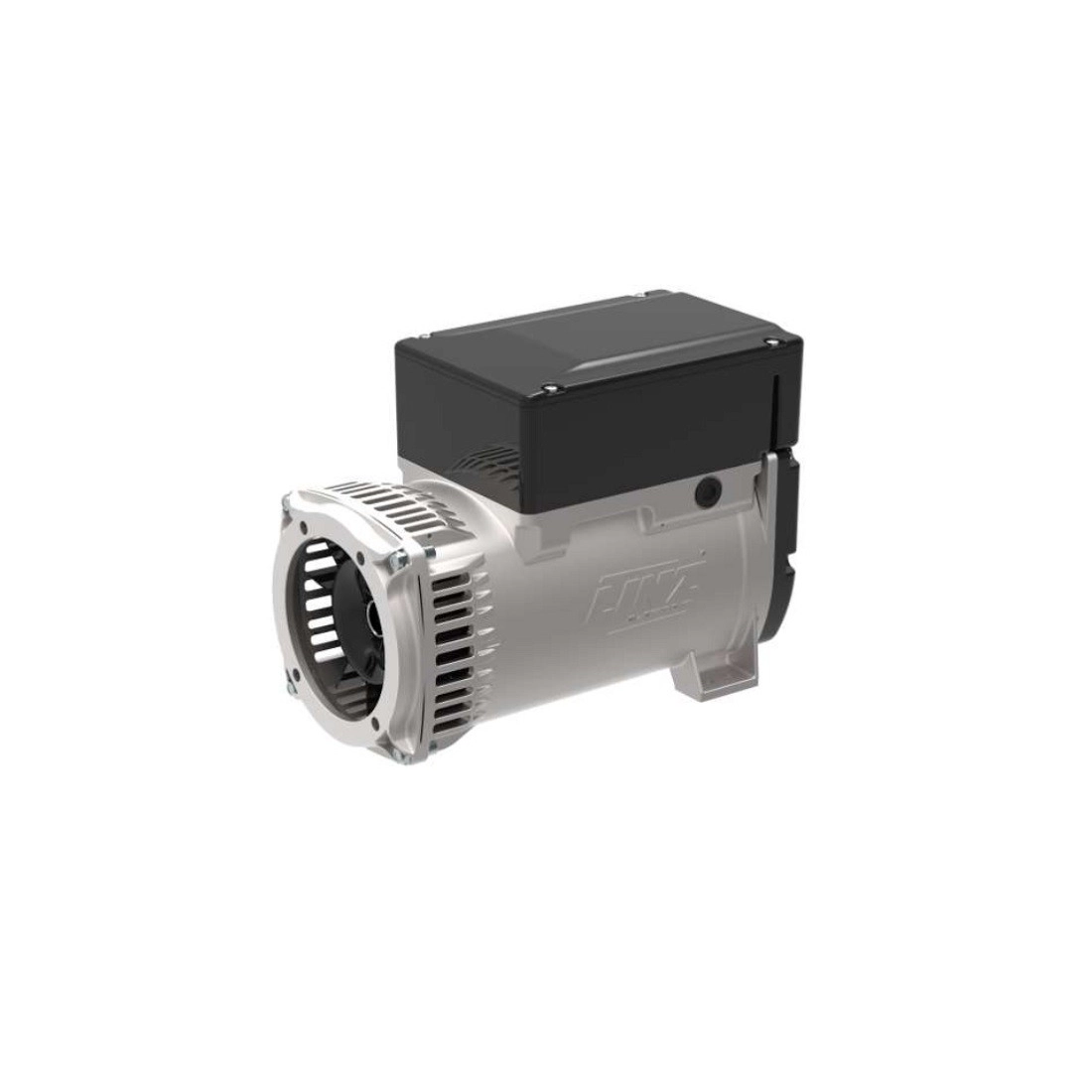

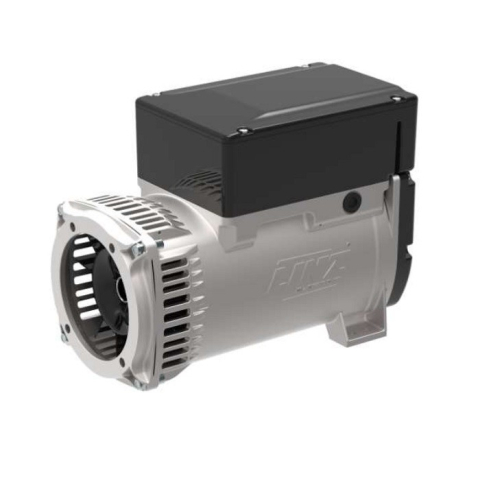

LINZ E1S10M G Three-phase alternator 230/400V 5.5 kVA 50 Hz Compound

LINZ E1S10M G Three-phase alternator 230/400V 3.5 kVA 50 Hz Compound
search
  • LINZ E1S10M G Three-phase alternator 230/400V 3.5 kVA 50 Hz Compound
  • LINZ E1S10M G Three-phase alternator 230/400V 3.5 kVA 50 Hz Compound
LINZ ELECTRIC

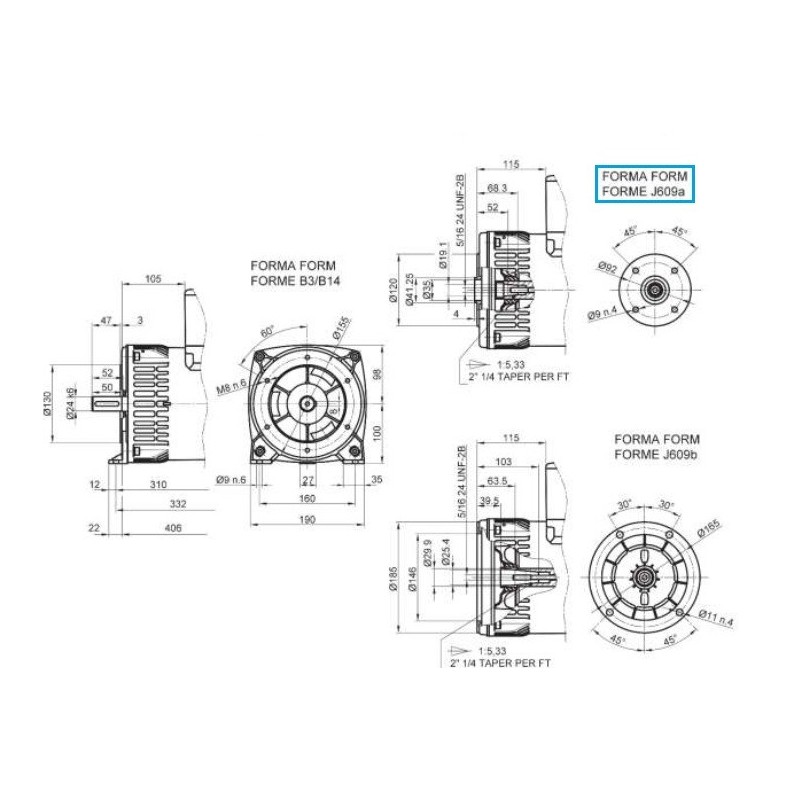

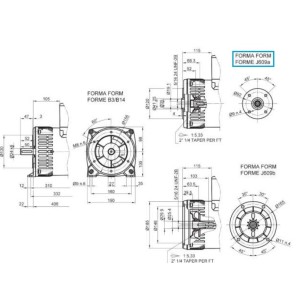

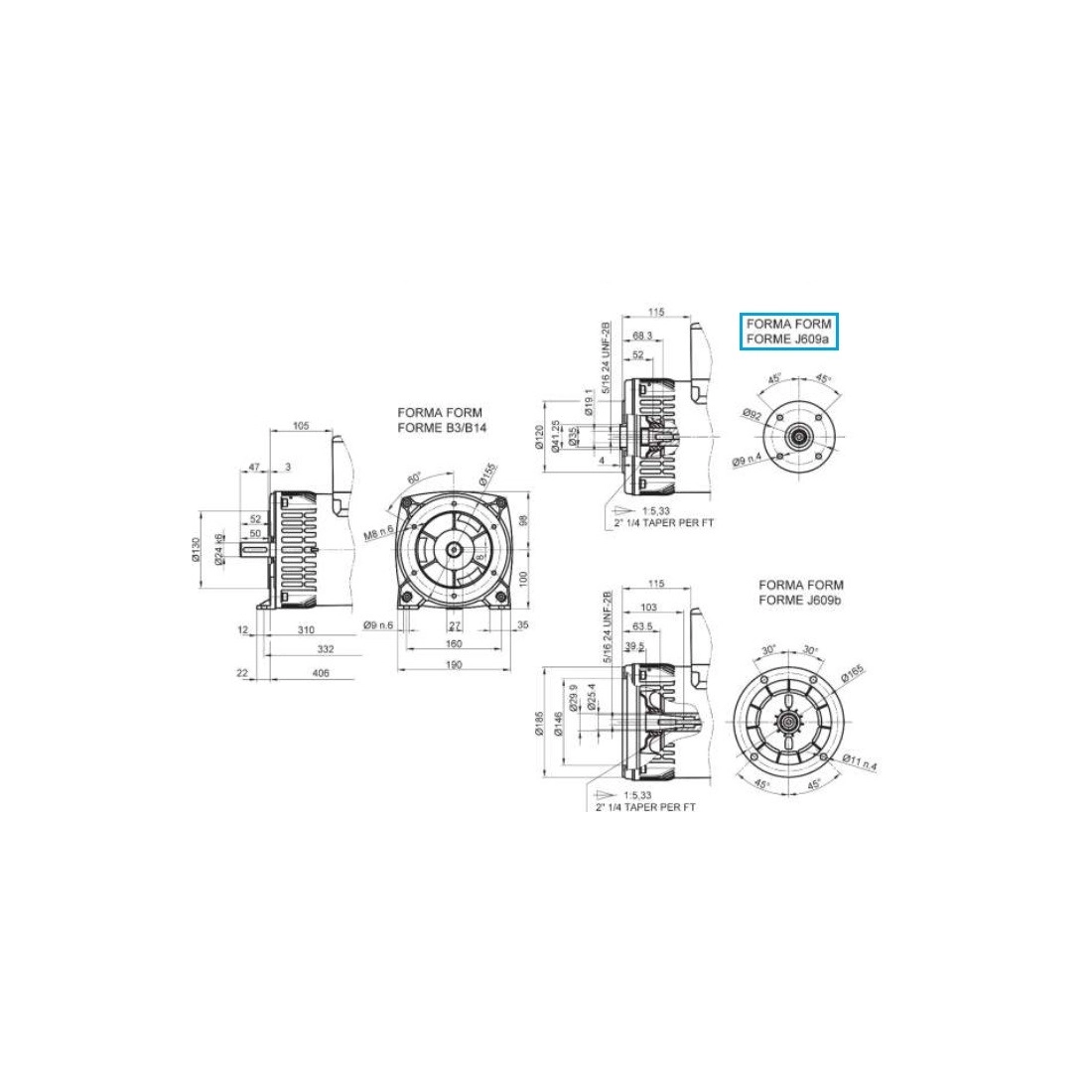

E1S10M G 50 Hz J609a
New product

Rated power at 50Hz (kVA): 5.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: compound
Insulation class: H
Frequency: 60 Hz 50 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.7 at 50Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
4.4
Continuous power three phase (KVA)
5.5
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Single-phase power (KVA)
5.5
Protection degree
IP21
Motor insulation class
H
Length (mm)
294
Width (mm)
195
Height (mm)
295
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
28.7
Details

E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE
    product available in 60 Hz and 50 Hz

Technical Sheet / Manuals
icona_scheda

Technical Data E1S10M G

(886.09k)
Related Accessories
List price
767,38 € tax incl.
629,00 € tax excl.
Discounted Price
616,75 € tax incl.
505,53 € tax excl.
