LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound

LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
search
  • LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
  • LINZ E1S11M AS Three-phase alternator 230V/400V 11.5 kVA 50 Hz Compound
LINZ ELECTRIC

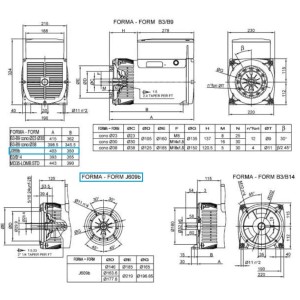

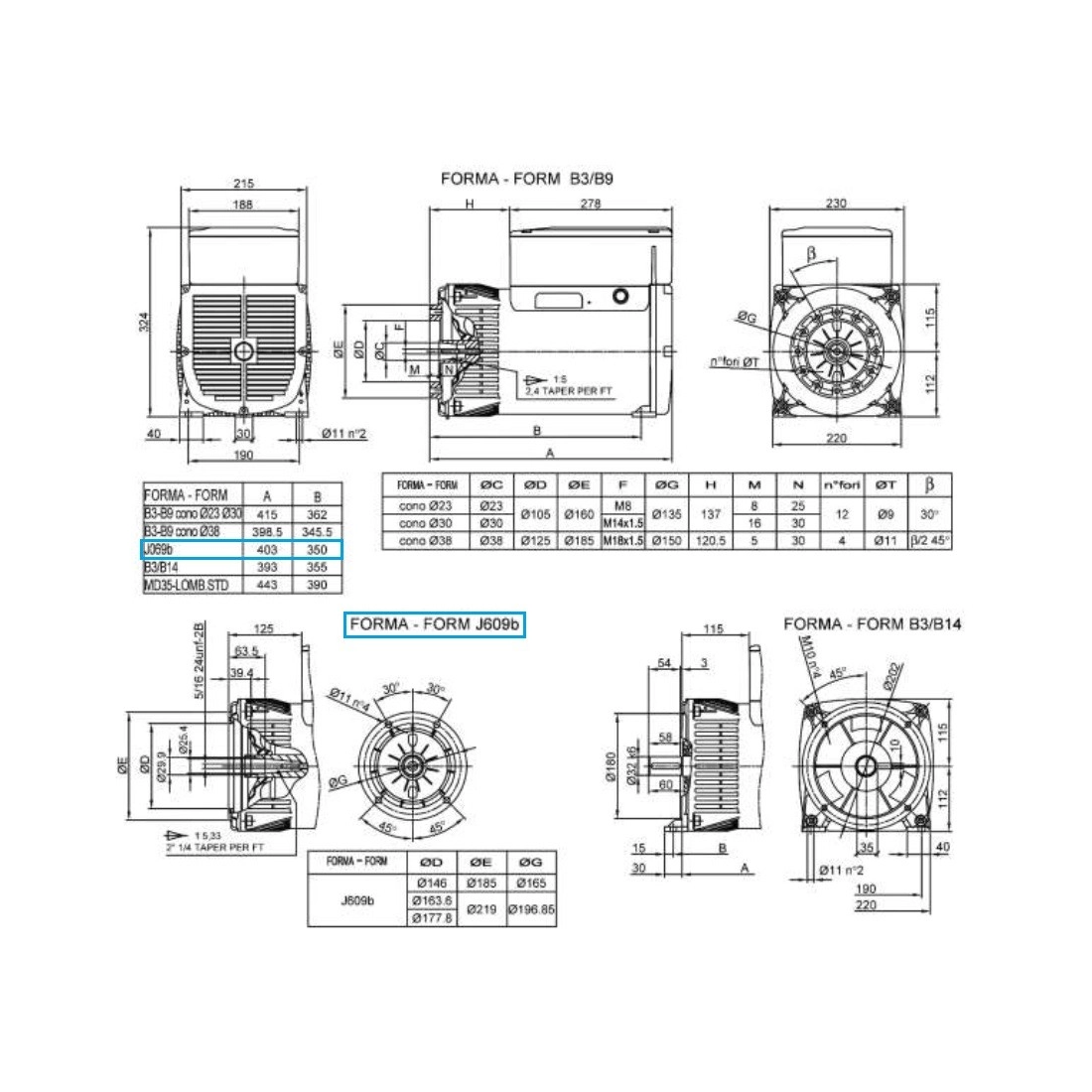

E1S11M AS 50 Hz J609b
New product

Rated power at 50 Hz (kVA): 11.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: compound
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.9 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
9.2
Continuous power three phase (KVA)
11.5
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Single-phase power (KVA)
11.5
Protection degree
IP21
Motor insulation class
H
Length (mm)
415
Width (mm)
230
Height (mm)
325
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
50.5
Details

E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE
    product available in 50 Hz and 60 Hz versions

Technical Sheet / Manuals
icona_scheda

Technical Data E1S11M AS

(921.98k)
Related Accessories
List price
1.015,04 € tax incl.
832,00 € tax excl.
Discounted Price
815,80 € tax incl.
668,69 € tax excl.
