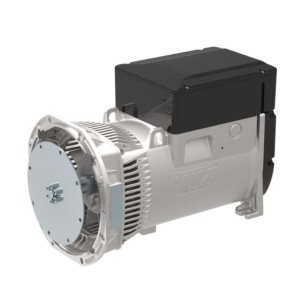

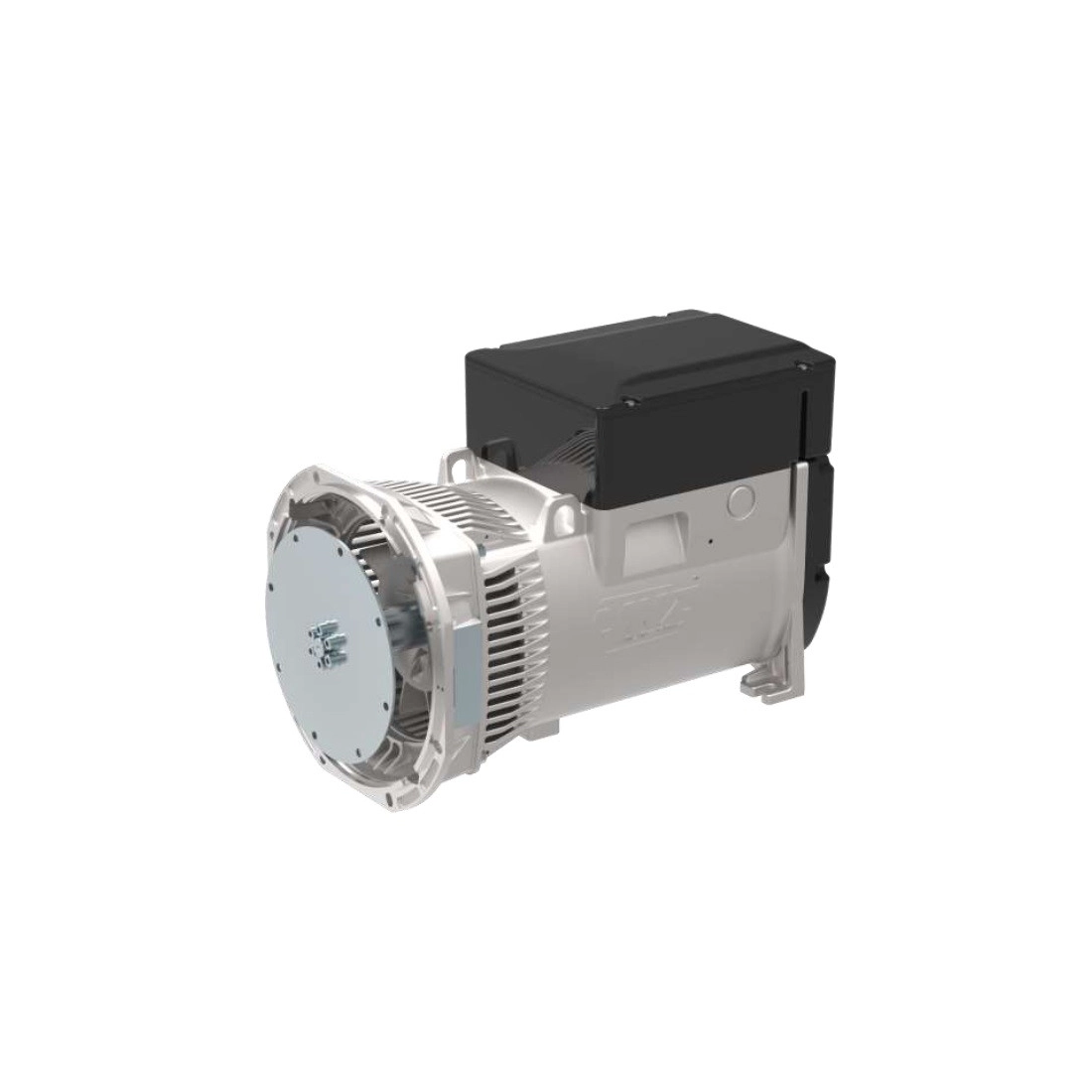

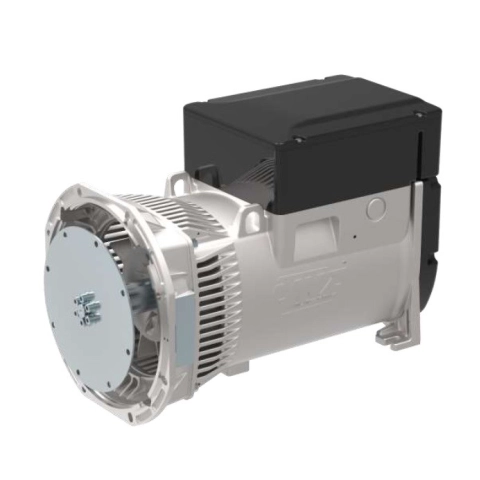

LINZ E1S13M D/2 Three-phase alternator 230V/400V 22 kVA 50 Hz 60 Hz Compound

LINZ E1S13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
search
  • LINZ E1S13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
  • LINZ E1S13M D/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
LINZ ELECTRIC
E1S13M D/2 50 Hz J609 c25.4
New product

Rated power at 50 Hz (kVA): 22
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: compound
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9.2 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
17.6
Continuous power three phase (KVA)
22
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Three-phase power (KVA)
22
Protection degree
IP21
Motor insulation class
H
Length (mm)
495
Width (mm)
270
Height (mm)
379
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
77.7
Details

E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE
    product available in 50 Hz and 60 Hz versions

Technical Sheet / Manuals
icona_scheda

Technical Data E1S13M D/2

(926.42k)
Related Accessories
List price
1.636,02 € tax incl.
1.341,00 € tax excl.
Discounted Price
1.356,13 € tax incl.
1.111,58 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: LINZ E1S13M D/2 Three-phase alternator 230V/400V 22 kVA 50 Hz Compound
Offer on letterhead
Product: LINZ E1S13M D/2 Three-phase alternator 230V/400V 22 kVA 50 Hz Compound
