Rated power at 60 Hz (kVA): 12.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 10.1 at 60 Hz
Suppression standard R.F.F.I. EN55011

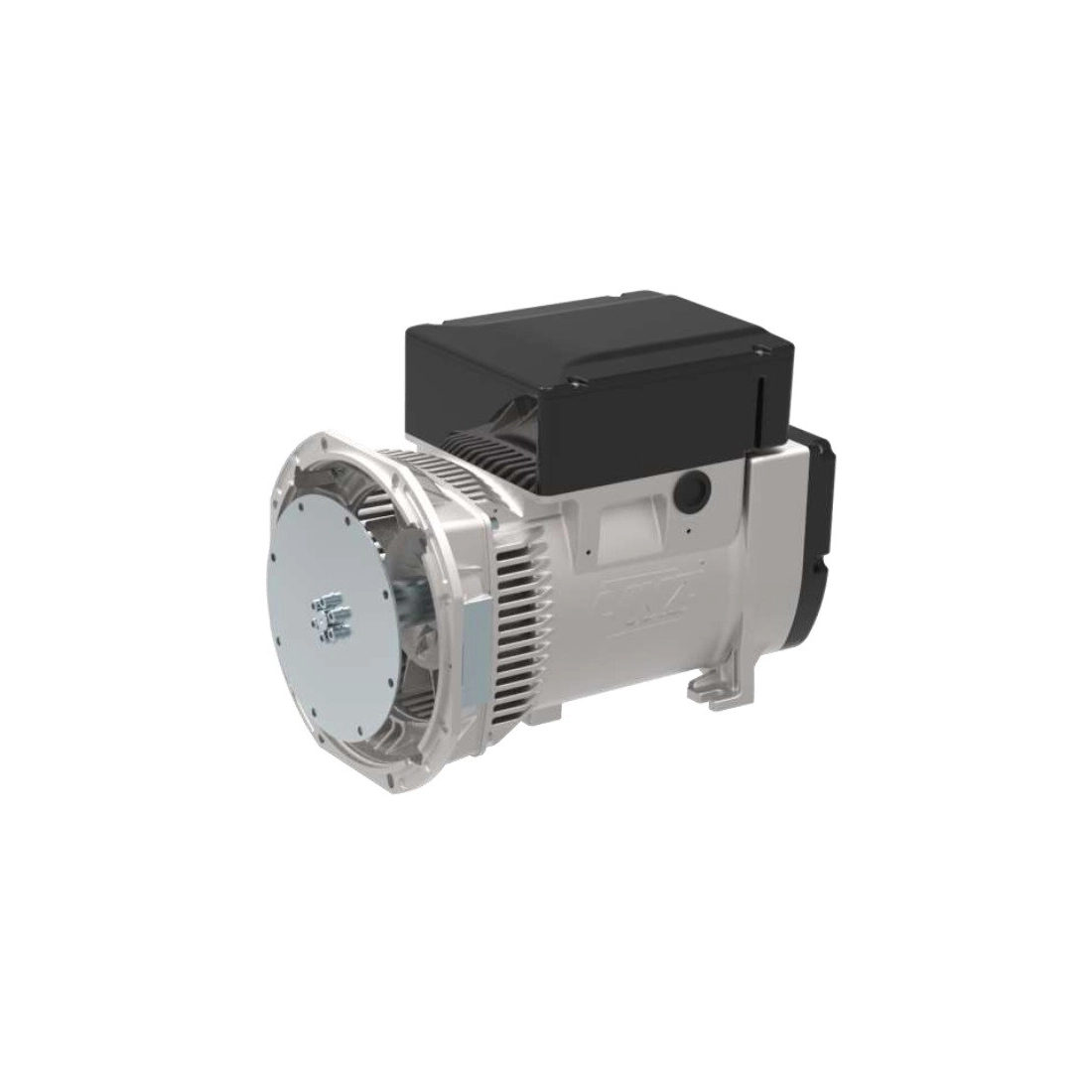

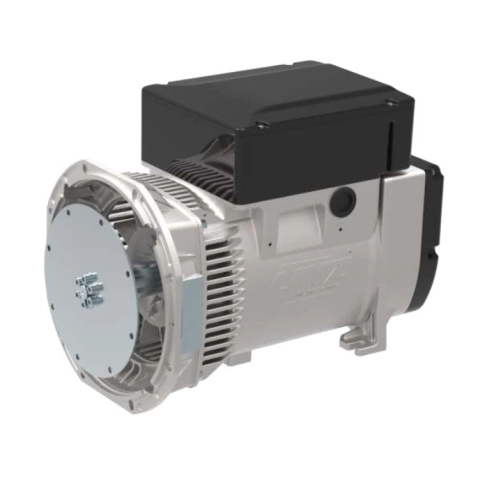

E1X/2 series are three-phase brushless 2 poles alternators with exciter and electronic regulation (AVR).
CHARACTERISTICS
