LINZ E1X13S C/2 Three-phase alternator 230V/400V 12.5 kVA 50 Hz AVR

LINZ E1X13S C/2 Three-phase alternator 230V/400V 12.5 kVA 50 Hz AVR
search
  • LINZ E1X13S C/2 Three-phase alternator 230V/400V 12.5 kVA 50 Hz AVR
  • LINZ E1X13S C/2 Three-phase alternator 230V/400V 12.5 kVA 50 Hz AVR
LINZ ELECTRIC

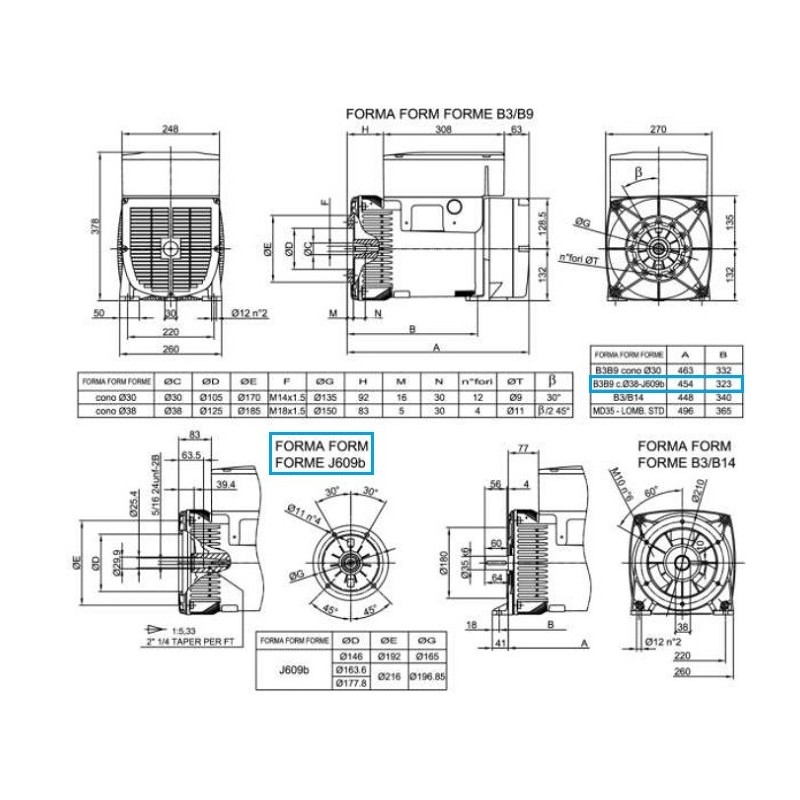

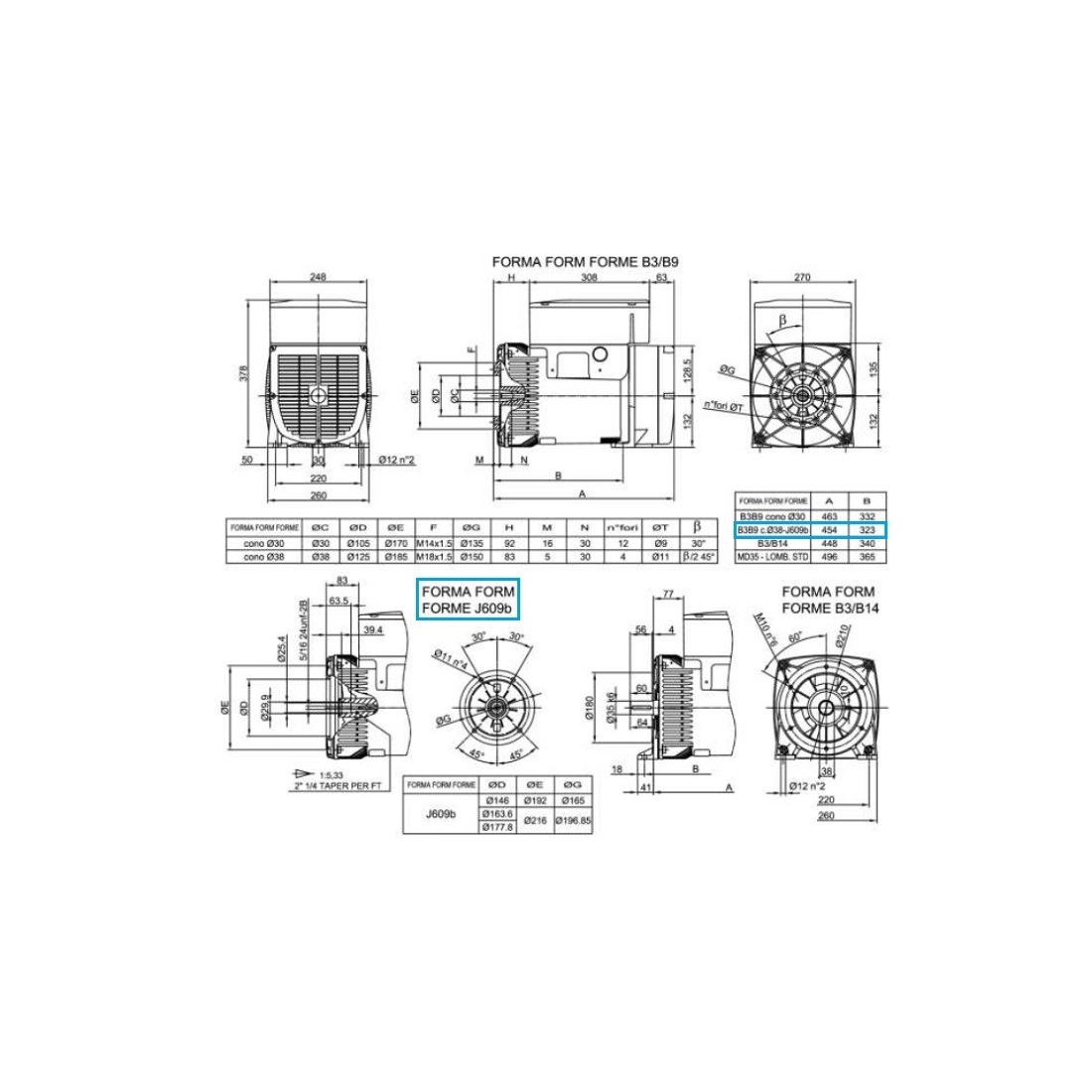

E1X13S C/2 50 Hz J609b
New product

Rated power at 50 Hz (kVA): 12.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 8.2 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
10
Continuous power three phase (KVA)
12.5
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Three-phase power (KVA)
12.5
Protection degree
IP21
Motor insulation class
H
Length (mm)
465
Width (mm)
270
Height (mm)
379
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
69
Details

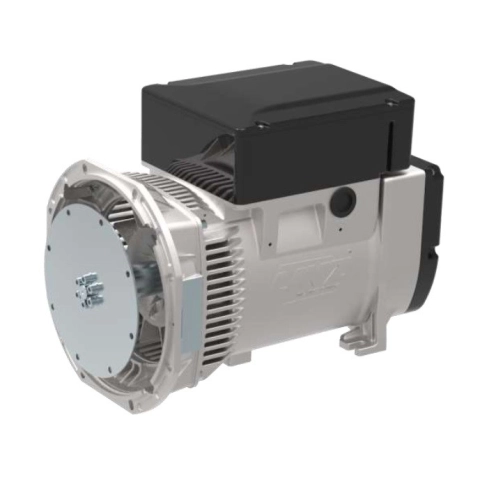

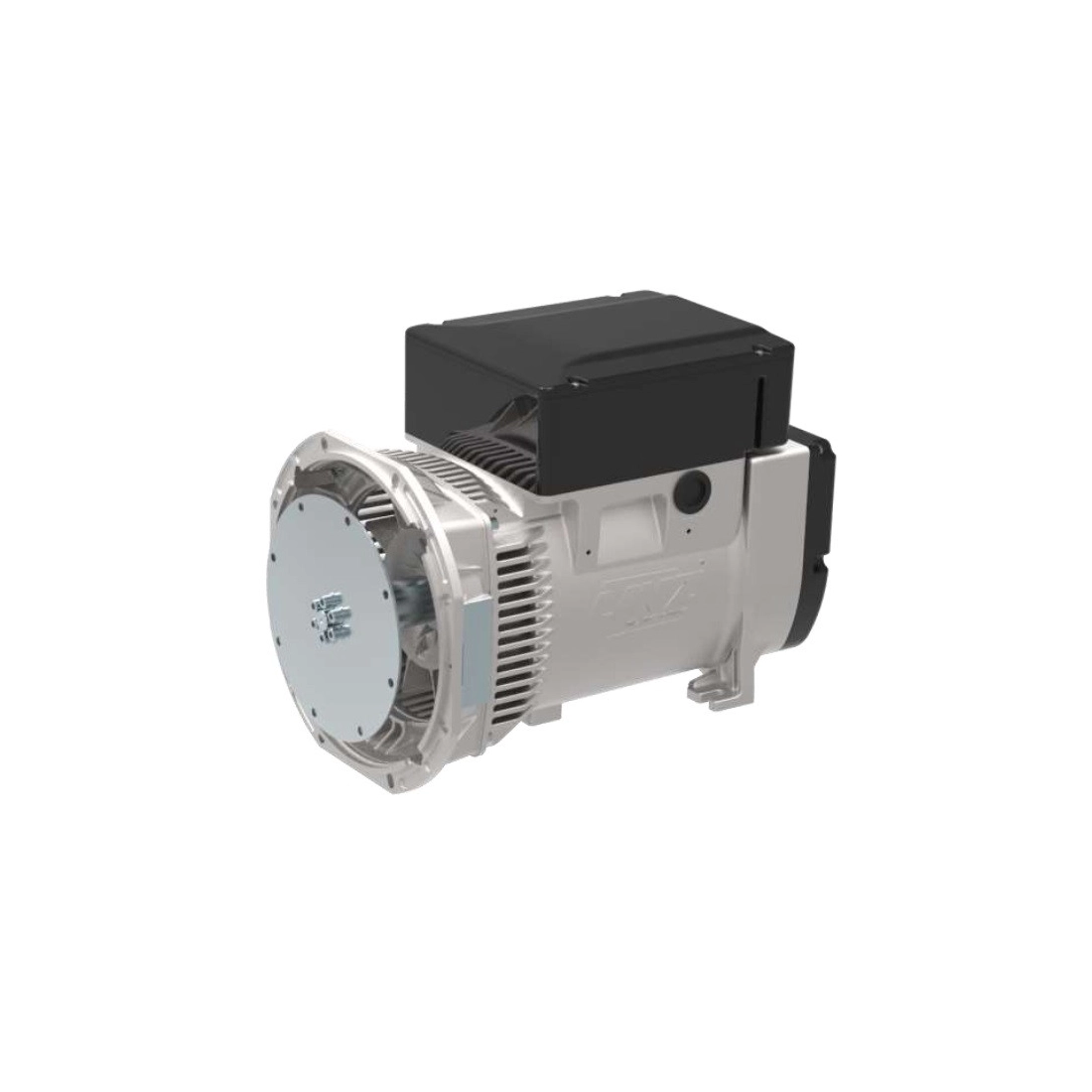

E1X/2 series are three-phase brushless 2 poles alternators with exciter and electronic regulation (AVR).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: AVR
  • Application: PORTABLE, TELECOMMUNICATION
    Product available in 50 Hz and 60 Hz versions

Technical Sheet / Manuals
Related Accessories
List price
1.609,18 € tax incl.
1.319,00 € tax excl.
Discounted Price
1.347,59 € tax incl.
1.104,58 € tax excl.
