LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR

LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
search
  • LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
  • LINZ E1X13M F/4 Three-phase alternator 4 poles 16 kVA 50 Hz AVR
LINZ ELECTRIC

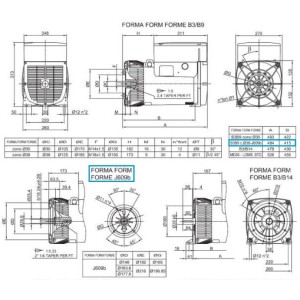

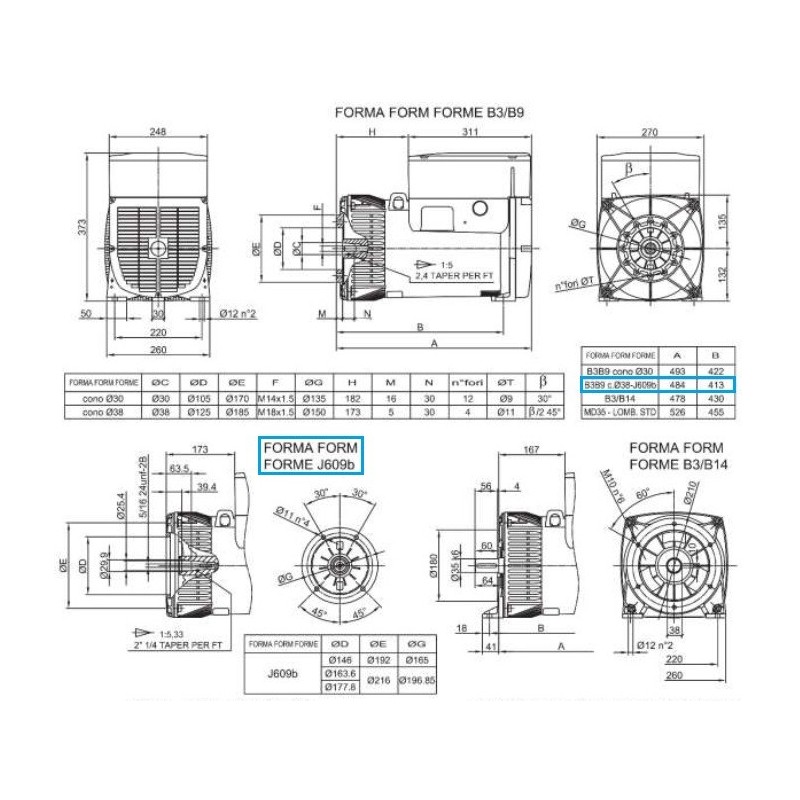

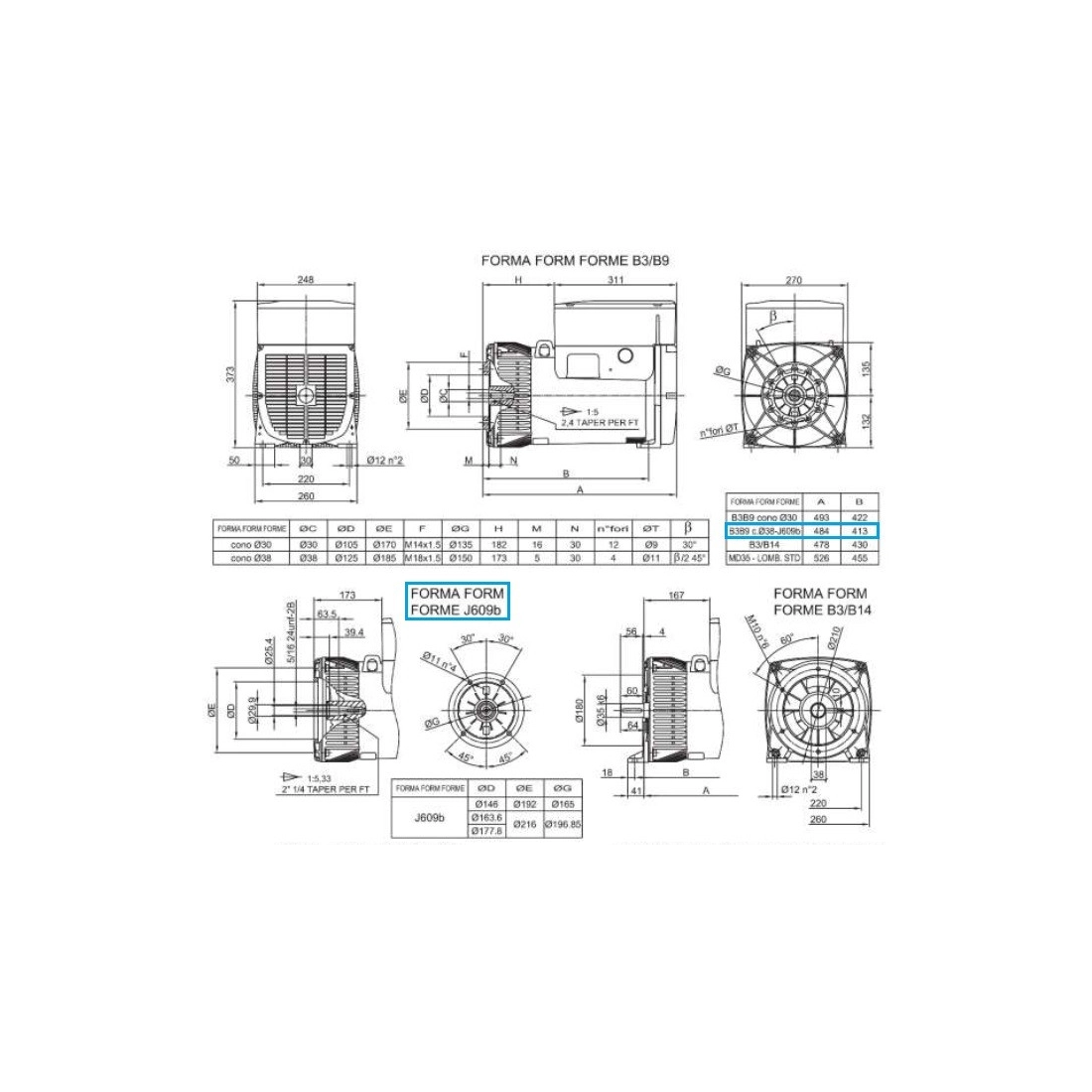

E1X13M F/4 50 Hz J609b
New product

Rated power at 50 Hz (kVA): 16
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.5 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
12.8
Continuous power three phase (KVA)
16
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
16
Protection degree
IP21
Motor insulation class
H
Length (mm)
544
Width (mm)
260
Height (mm)
373
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
96
Details

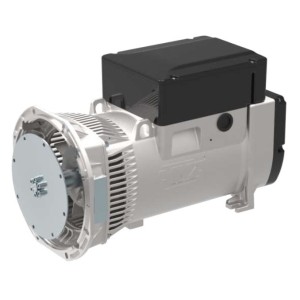

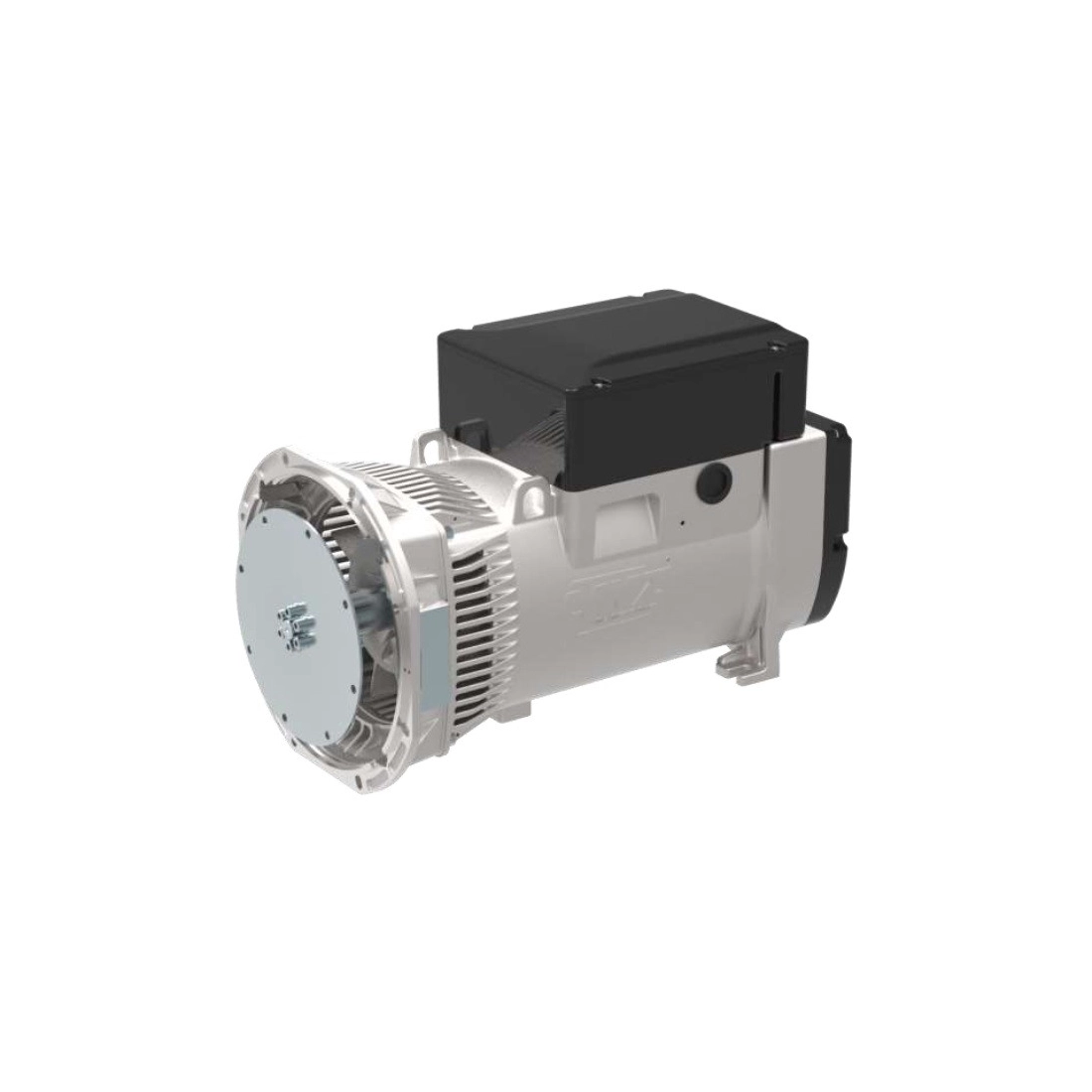

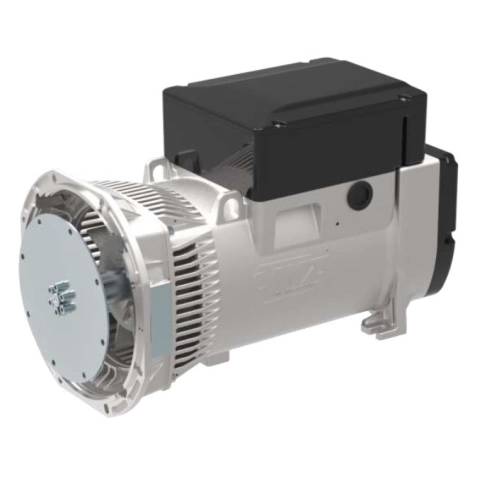

E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).

CHARACTERISTICS

  • Compact and mechnically resistant
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: PORTABLE, TELECOMMUNICATION

Technical Sheet / Manuals
icona_scheda

Technical Data E1X13M F/4

(933.4k)
Related Accessories
List price
2.075,22 € tax incl.
1.701,00 € tax excl.
Discounted Price
1.659,66 € tax incl.
1.360,38 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
