MARELLIMOTORI ALTERNATOR 1150KVA MJB 400 LA4

MARELLIMOTORI MJB 400LA4 ALTERNATOR 1150KVA THREE-PHASE

MARELLIMOTORI MJB 400LA4 is a three-phase alternator capable of delivering a power of 1150KVA 920KW, comes complete with AVR.

The frame of the alternator designed by MarelliMotori is equipped with side ribs to increase the resistance in addition the construction is made of strong welded steel
The 1150KVA alternators MarelliMotori for continuous operation are designed to meet the vibration levels according to the standards, so they have a shielding in spheroidal cast iron or gray cast iron.

The shaft of the MJB 400LA4 is made of carbon steel and obtained by rolling. The shaft is obtained by forging from 290 mm diameter and is tested at the manufacturer in order to verify the absence of defects.

The stator/motor core of MarelliMotori is laminated and enamelled on both sides to minimize losses due to eddy currents
The rotor of MJB 400LA4 is of salient pole type, made with class H flat copper wire insulated with enamel coating.
The winding is held by high quality steel through rods.

All MarelliMotori are equipped with a large damping cage and are suitable for parallel operation with other generators, if equipped with the parallelization unit.

All MarelliMotori alternators can be designed to meet specific reactance values (x'd and x''d).

The MarelliMotori alternators are all equipped with voltage regulators. For the correct voltage supply MARELLIMOTORI MJB 400LA4 1150KVA needs an electronic control system, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator). It guarantees the proper functioning of the machine and above all of the electrical network behind it.

The AVR is an electronic device that converts alternating current with frequency and voltage variable over time into direct current and thus allows to avoid current surges.

The AVR designed by MarelliMotori is internally equipped with a radio noise filter, which allows to contain radio noise emitted by MarelliMotori generators within the limits set by the European regulations for industrial environments

Each engine has a type of connection to be connected to the alternator, so it is necessary to pay attention to this aspect; a model can also have from 15 to 20 different forms of construction!

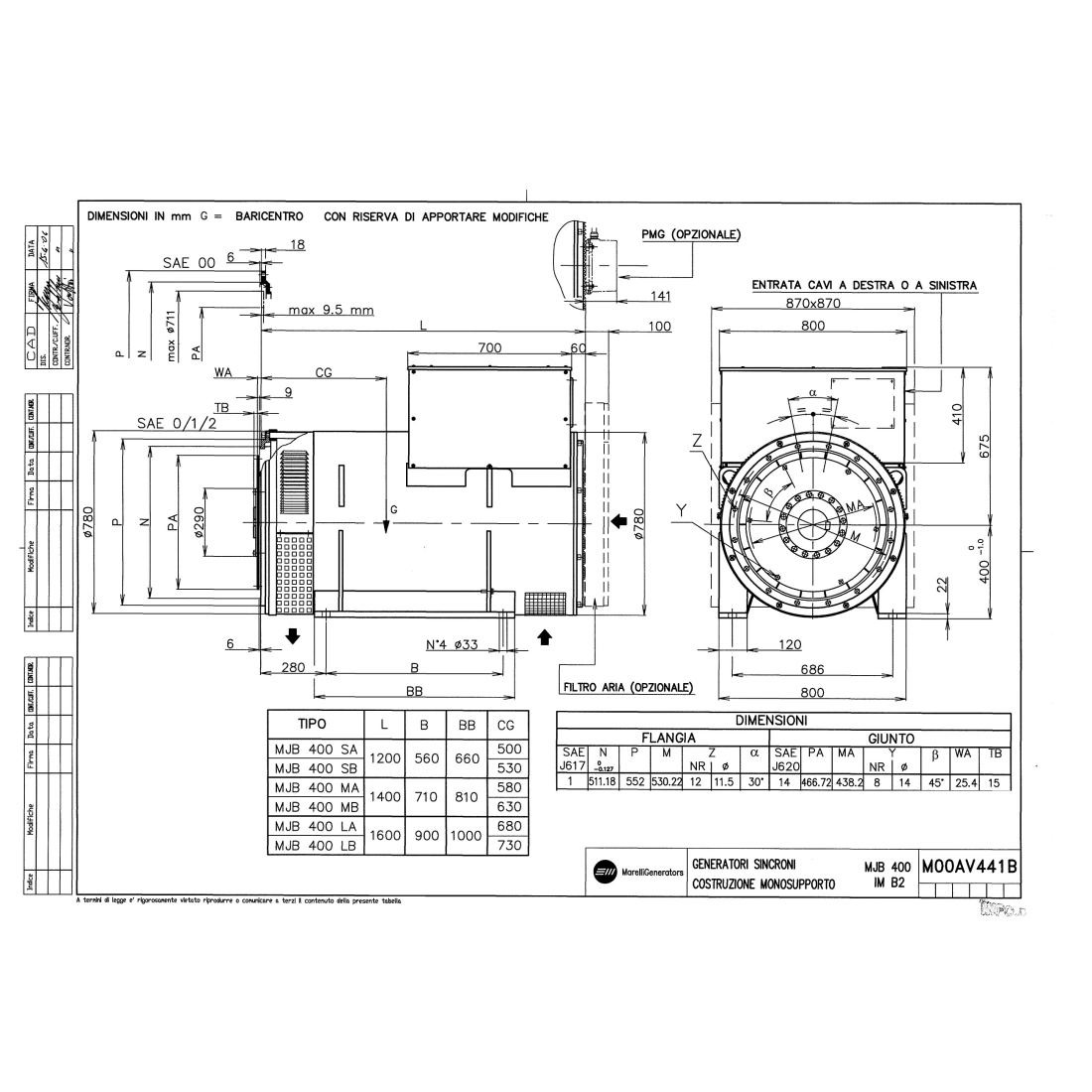

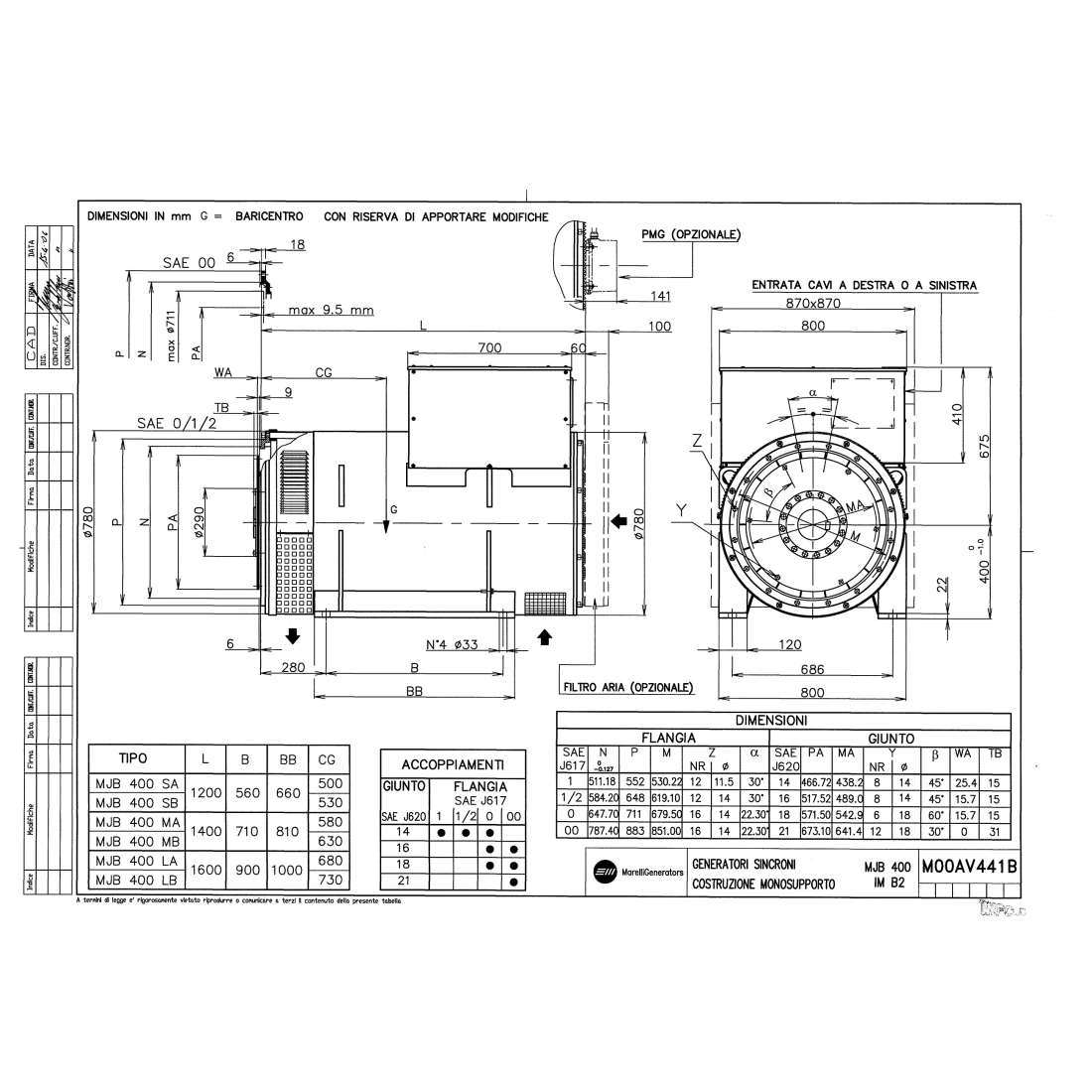

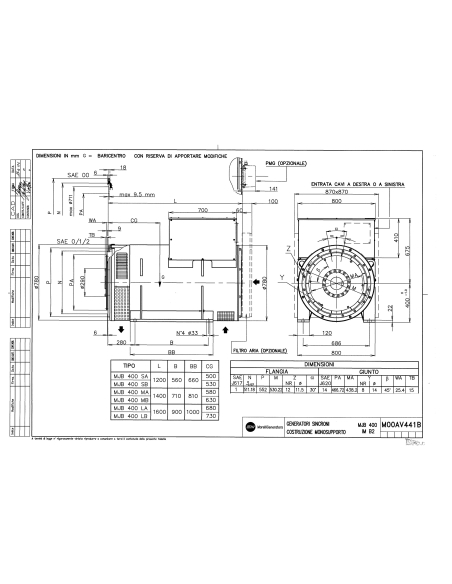

It is always advisable to check with the help of the technical data sheets the construction form of the alternator desired.

Select the alternator that reflects the technical specifications you require, visit our dedicated section to understand how.

TECHNICAL FEATURES OF THE ALTERNATOR 1150KVA THREE-PHASE MJB 400LA4

Phase type: Three phase
Maximum power 50Hz: 1150KVA
Maximum power 50Hz: 920KW
Maximum power 60Hz: 1420KVA
Maximum power 60Hz: 1135KW
Frequency: 50 - 60Hz
Voltage: 400V / 480V
Protection degree: IP23
A alternator speed: 1500 / 2250 rpm
Number of poles: 4
Yield: 96. 5%
Weight: 2550kg
Constant speed
AVR

Are you looking for a product with different characteristics? HERE you can find the entire range MARELLIMOTORI and other specialized brands.

Images and technical data not binding and subject to change by the manufacturer
