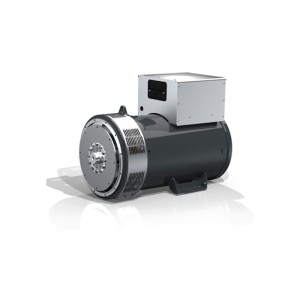

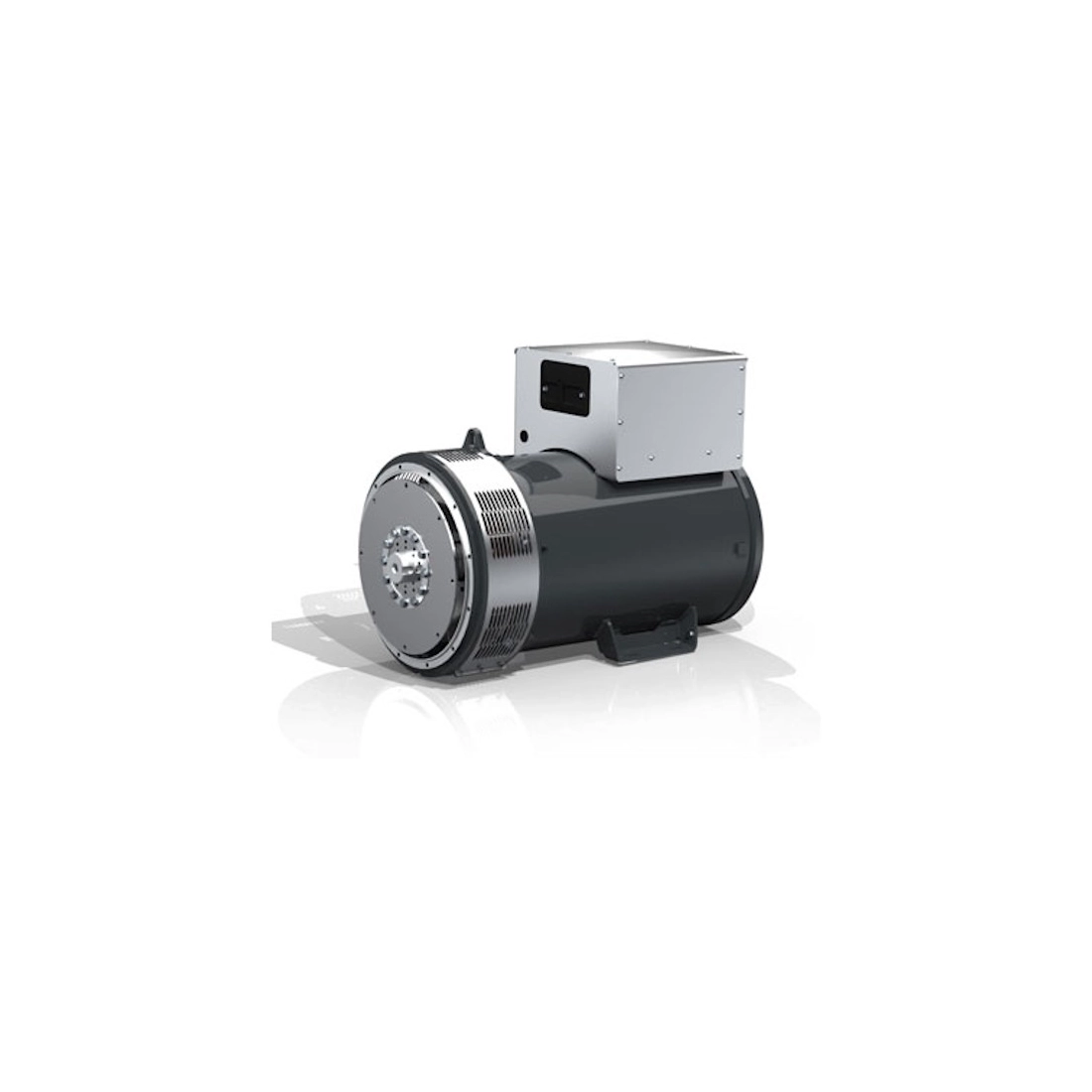

MECC ALTE ECO38 1S/4 C-TYPE 180KVA THREEPHASE ALTERNATOR
Phase Type: Single Phase / Three Phase
Three Phase Maximum Power: 196KVA / 156. 8 KW
Three-phase continuous use power: 180KVA / 144 KW
Single-phase maximum power: 95KVA / 95 KW
Single-phase continuous use power: 87KVA / 87 KW
Frequency: 50 - 60 Hz
Voltage: 230 V / 400 V
Protection class: IP23
Alternator speed: 1500 / 1800 rpm
Number of poles: 4
Efficiency: 92.6%

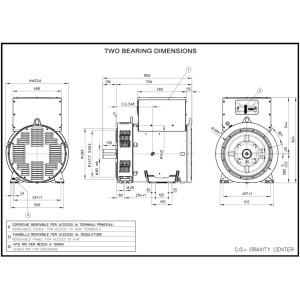

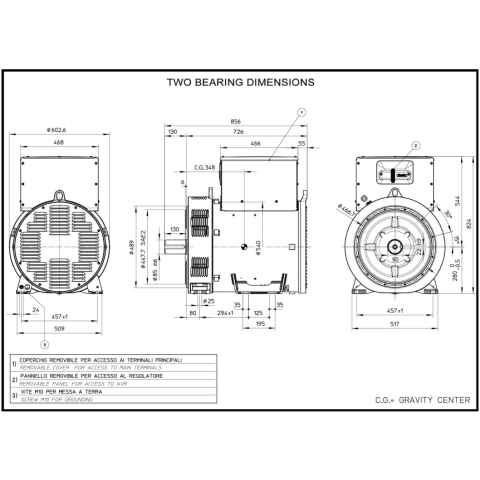

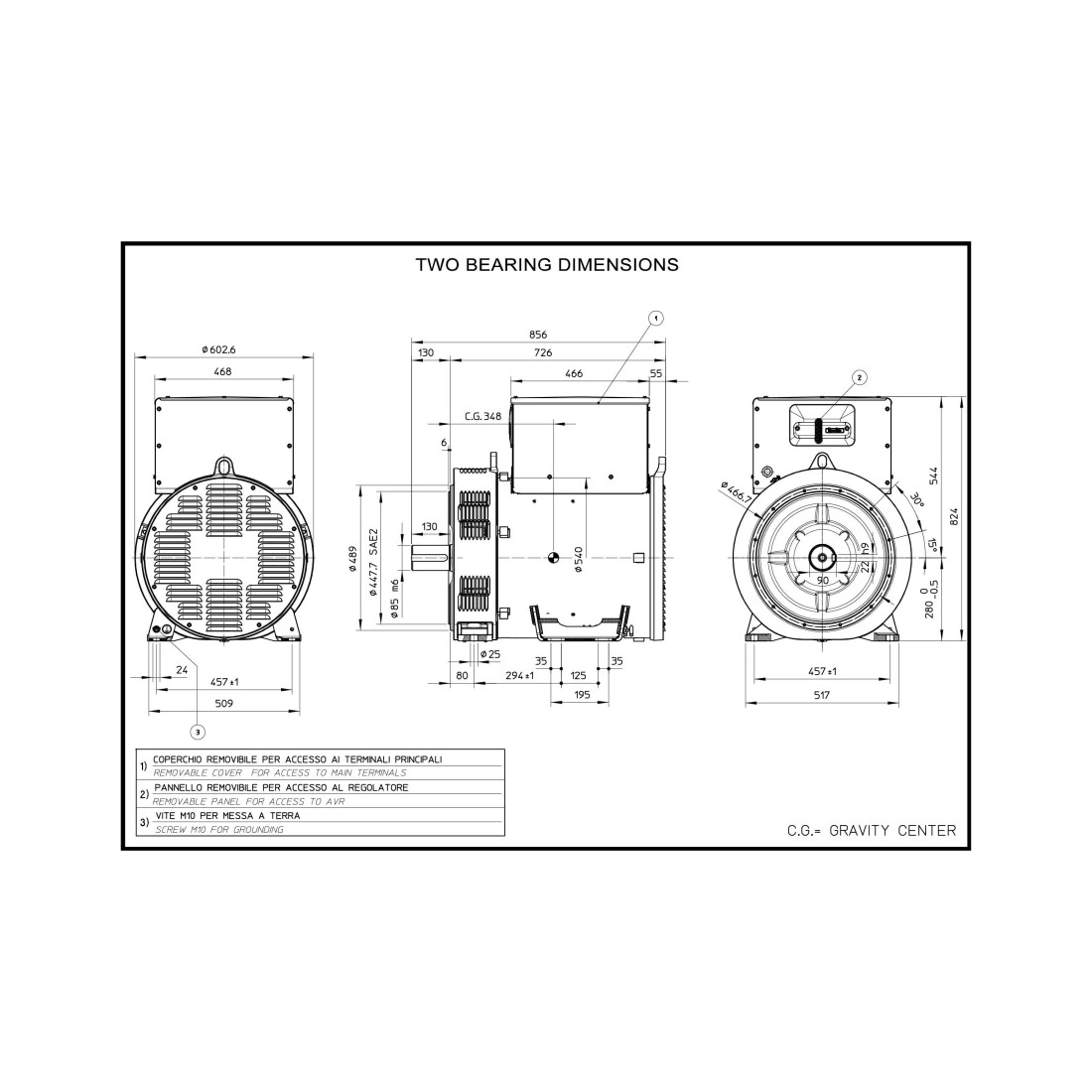

Width: 602. 6 mm
Length: 856 mm
Height: 824 mm
Weight: 525 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 95
- Continuous power single phase (KW)
- 87
- Maximum power single phase (KVA)
- 95
- Continuous power single phase (KVA)
- 87
- Maximum power three phase (KW)
- 156.8
- Continuous power three phase (KW)
- 144
- Maximum power three phase (KVA)
- 196
- Continuous power three phase (KVA)
- 180
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1500 / 1800
- Poles
- 4
- Single-phase power (KVA)
- 95
- Three-phase power (KVA)
- 196
- Efficiency (%)
- 92.6
- Protection degree
- IP23
- Brushes
- No
- PMG
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 525
MECC ALTE ECO38 1S/4 C-TYPE THREEPHASE 180KVA ALTERNATOR WILL AVR
The alternator MECC ALTE ECO38 1S/4 C-TYPE threephase is capable of delivering a power of 180KVA complete with AVR digital voltage regulator.

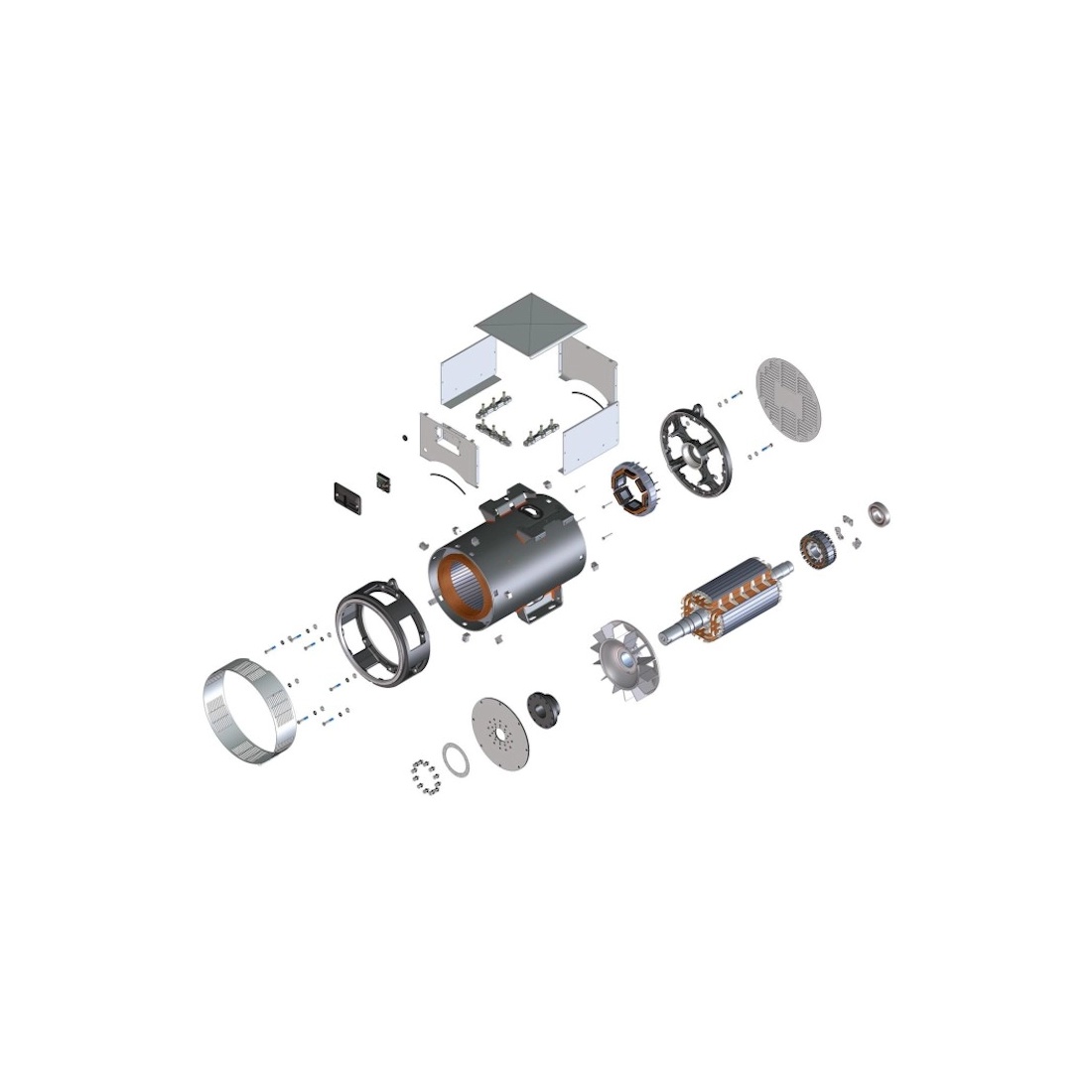

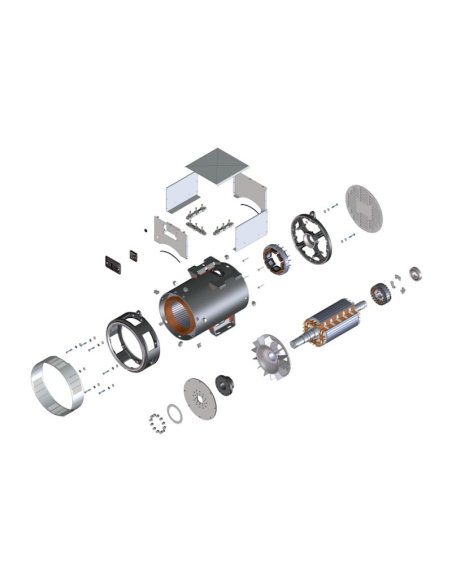

The robust construction of the MECC ALTE ECO38 1S/4 alternator can withstand up to 5G in any direction and 9G vertically. Its design allows easy access to connections and components during routine maintenance checks. The mechanical design has used the most advanced FEM Techniques.

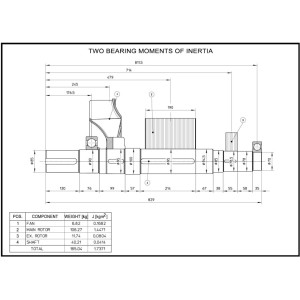

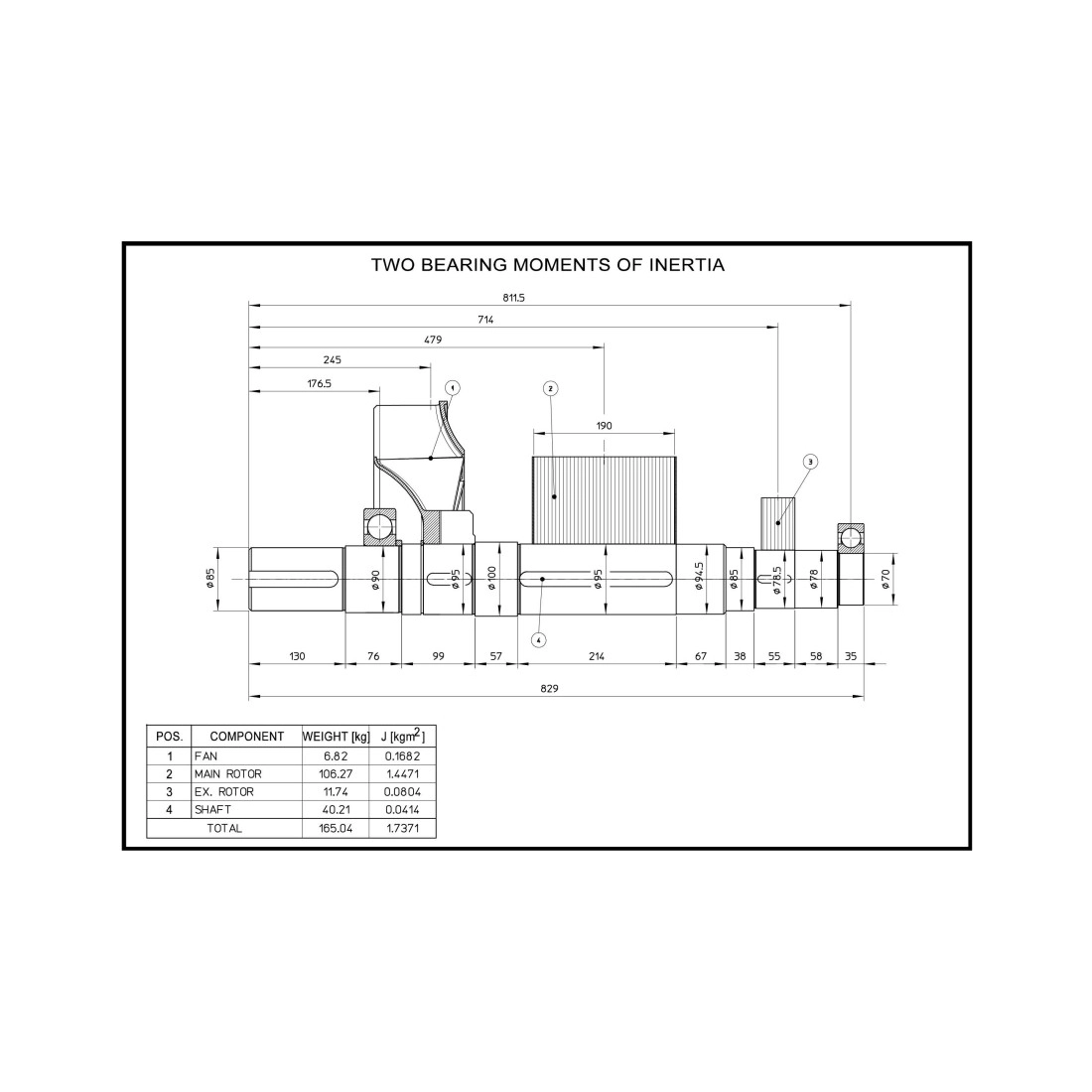

The materials used for the construction of the MECC ALTE of 180KVA structure are: FEP12 steel for the frame, C45 steel for the shaft and cast iron or pressure die-cast aluminum for the end supports: the fans are made of die-cast aluminum or fiberglass reinforced nylon, materials conforming to UL standards. The rotors are dynamically balanced according to grade 2.5 of ISO 1940-1.
In addition to the protection on the same windings, the alternator ECO38 1S/4 alternator can have a higher protection at the inlet. The standard levels are IP23 with further updates available to include input filters, IP43 and IP45: 7%.
Input filters and IP43 are subject to de-rating. 20-30% de-rating applies for IP45 depending on model.
EG43 grey paint, is a high temperature insulating enamel that forms a resistant and flexible film with excellent chemical and moisture protection.
It is water and oil resistant, and also protects the windings from abrasion. It is applied by spraying a layer of coating onto the impregnated winding, or by dipping the stator into a cylinder of paint for superior treatment.
The alternator MECC ALTE of 180KVA is supplied with TOTAL+ treatment, this is a treatment that offers superior performance when the environment is really difficult, or the application is very demanding. TOTAL+ a rubbery treatment, used to replace the encapsulation of epoxy and silicone windings. The flexible black compound cures to a hard, durable coating, sealing copper against moisture and chemical attack. Due to its encapsulation capacity and flexibility, it is also extremely resistant to abrasion of particles as it absorbs impacts.
The alternator is designed and manufactured in ISO 9001 environment. The whole series is manufactured according to the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, NF 51.111, CAN/CSA-C22.2 No14-95-No100-95, NEMA MG 1-2011, ISO 8528-3. Other standards such as UL1446, UL 1004/4 and /B are available upon request.
TECHNICAL CHARACTERISTICS MECC ALTE ECO38 1S/4 C-TYPE 180KVA
Phase Type: SinglePhase / ThreePhase
ThreePhase Maximum Power: 196KVA / 156. 8 KW
Threephase continuous use power: 180KVA / 144 KW
Singlephase maximum power: 95KVA / 95 KW
Singlephase continuous use power: 87KVA / 87 KW
Frequency: 50 - 60 Hz
Voltage: 230 V / 400 V
Protection class: IP23
Alternator speed: 1500 / 1800 rpm
Number of poles: 4
Efficiency: 92.6%
Width: 602. 6 mm
Length: 856 mm
Height: 824 mm
Weight: 525 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)
Are you looking for an alternator with different characteristics? HERE you can find the whole MECC ALTE range and other specialized brands
Images and technical data are not binding.
