SINCRO FB4 SA 6,5KVA AVR

SINCRO THREE PHASE ALTERNATOR FB4
search
  • SINCRO THREE PHASE ALTERNATOR FB4
  • SINCRO THREE PHASE ALTERNATOR FB4
SINCRO

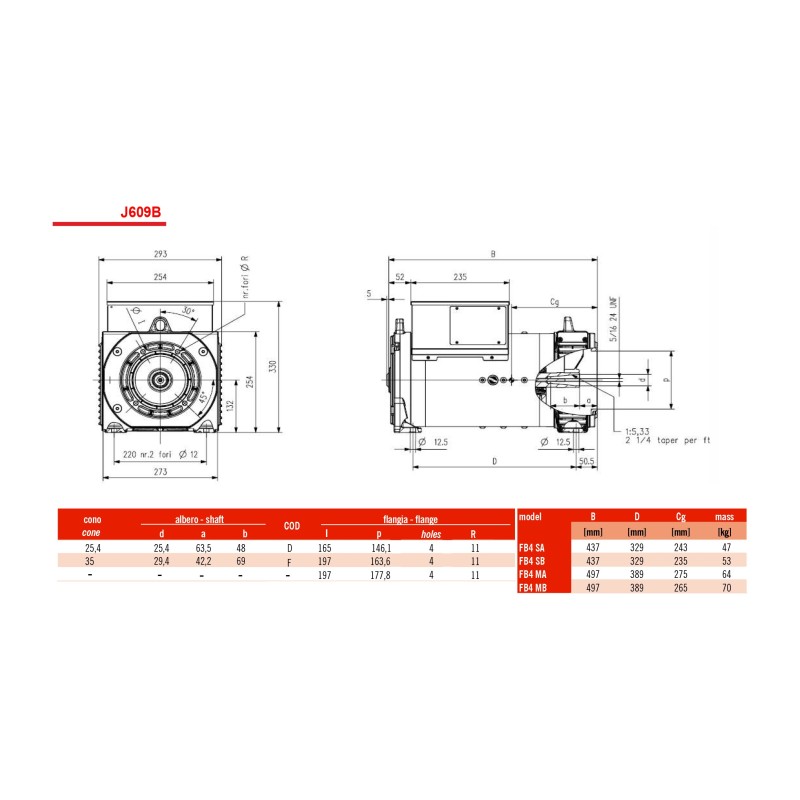

FB4 SA J609b c 25,4
New product

Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 3.9
Three Phase Output (kVA): 6.5
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 51.5
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
3.12
Single-phase power (KVA)
3.9
Three-phase power (KW)
5.2
Three-phase power (KVA)
6.5
Efficiency (%)
83
Protection degree
IP23
Dry weight (Kg)
51.5
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: FB4 alternators can be connected for single-phase use

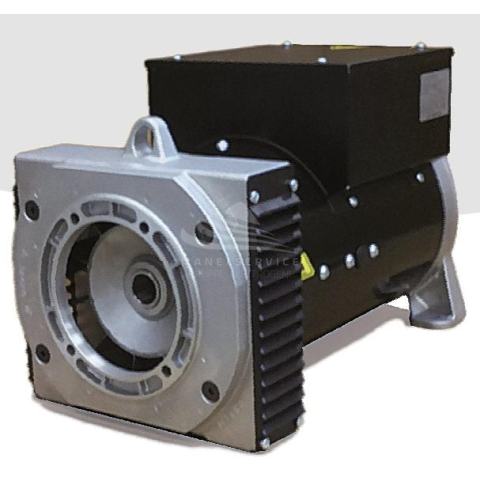

The image is purely indicative.

Related Accessories
List price
1.618,94 € tax incl.
1.327,00 € tax excl.
Discounted Price
981,49 € tax incl.
804,50 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: SINCRO FB4 SA 6,5KVA AVR
Offer on letterhead
Product: SINCRO FB4 SA 6,5KVA AVR
Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
3.12
Single-phase power (KVA)
3.9
Three-phase power (KW)
5.2
Three-phase power (KVA)
6.5
Efficiency (%)
83
Protection degree
IP23
Dry weight (Kg)
51.5
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details
