SINCRO SK225 SM SINGLE-THREE PHASE ALTERNATOR 65KVA AVR

SINCRO SK225 SM SINGLE-THREE PHASE ALTERNATOR 65KVA AVR
search
  • SINCRO SK225 SM SINGLE-THREE PHASE ALTERNATOR 65KVA AVR
  • SINCRO SK225 SM SINGLE-THREE PHASE ALTERNATOR 65KVA AVR
SINCRO
SK225 SM SAE3 d8
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 65
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 215
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
52
Three-phase power (KVA)
65
Efficiency (%)
90
Protection degree
IP23
Dry weight (Kg)
215
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

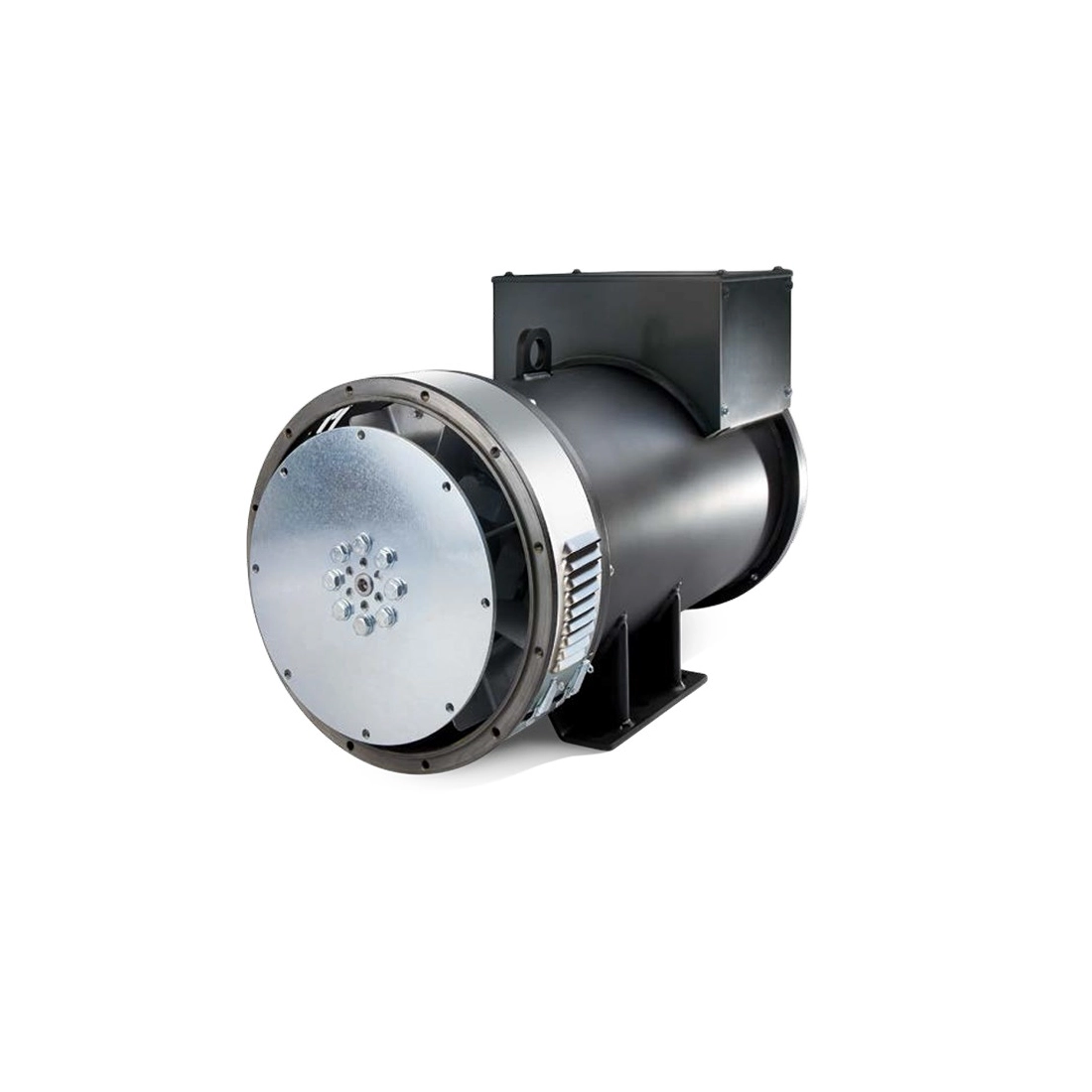

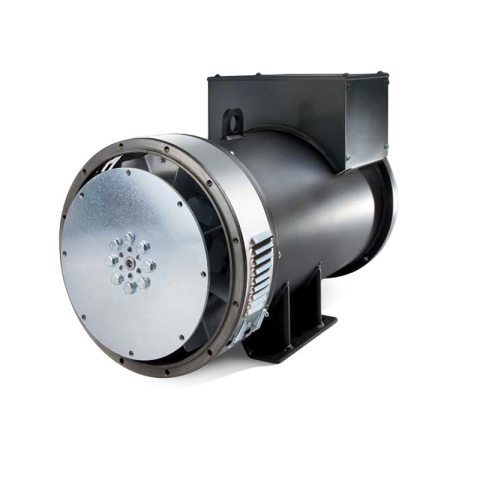

The image is purely indicative.

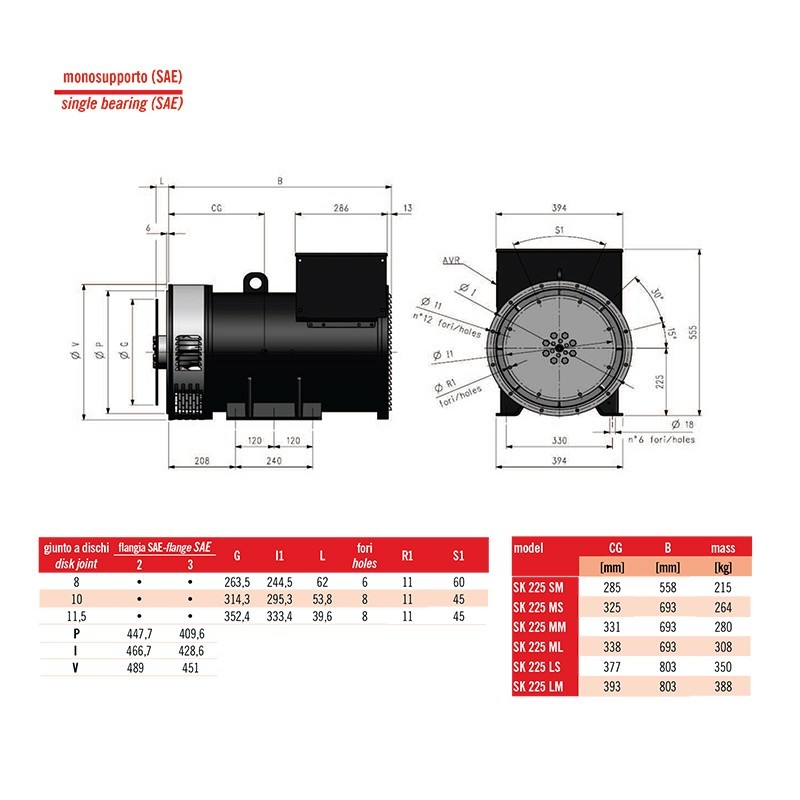

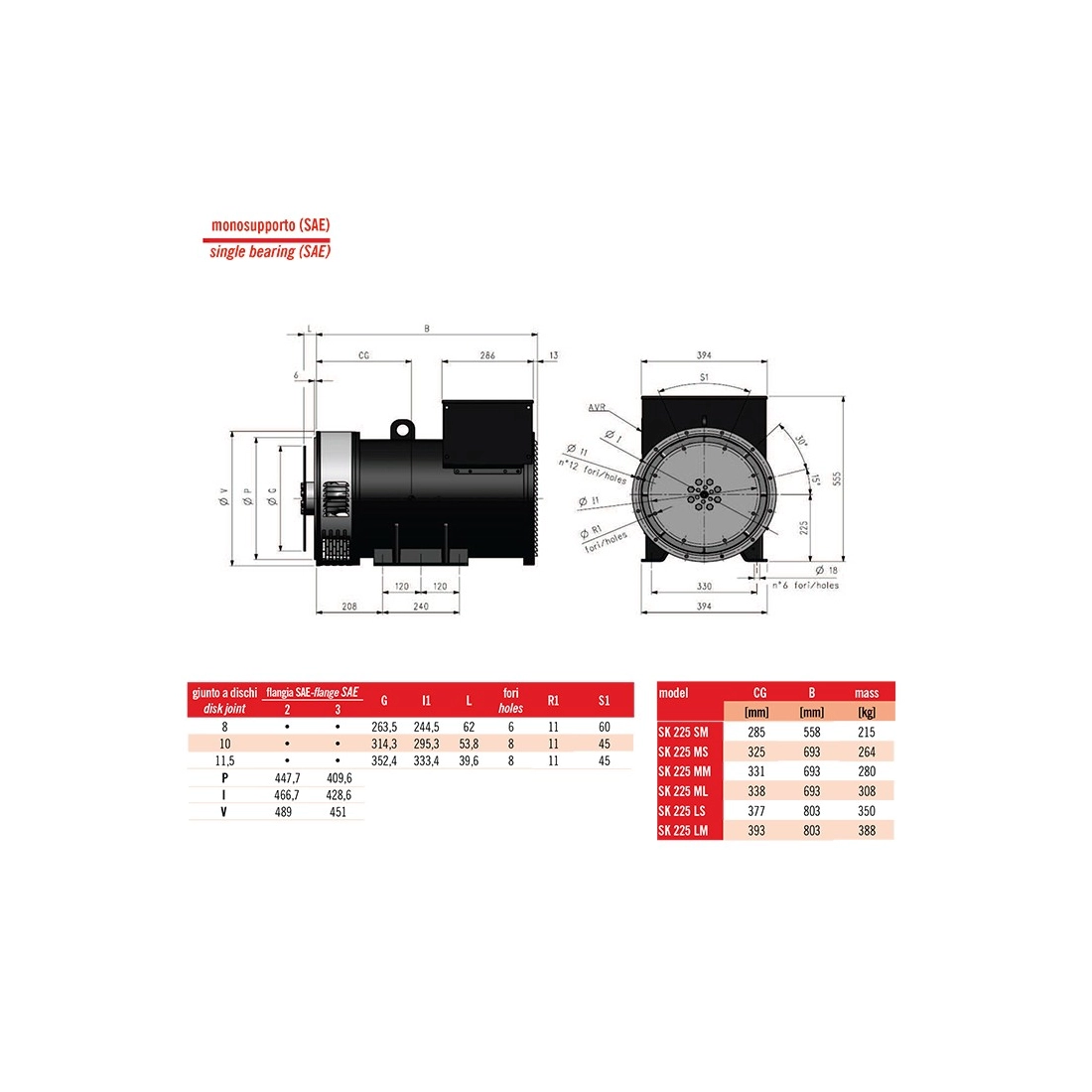

Technical Sheet / Manuals
icona_scheda

Technical data SK225

(2.18M)
