SINCRO SK225 MN SINGLE-THREE PHASE ALTERNATOR 100KVA AVR

SINCRO SK225 MM SINGLE-THREE PHASE ALTERNATOR 93KVA AVR
search
  • SINCRO SK225 MM SINGLE-THREE PHASE ALTERNATOR 93KVA AVR
  • SINCRO SK225 MM SINGLE-THREE PHASE ALTERNATOR 93KVA AVR
SINCRO
SK225 MN SAE3 d8
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 93
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 280
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KVA)
100
Protection degree
IP23
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

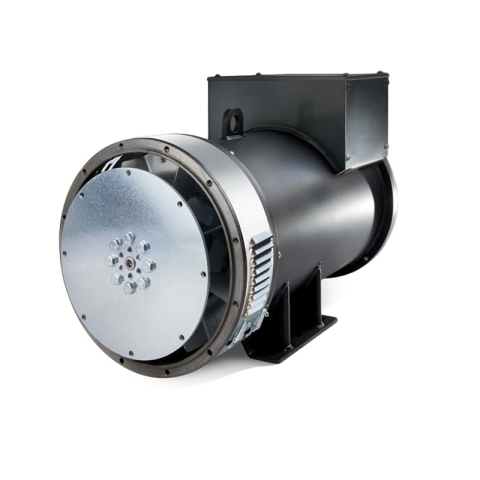

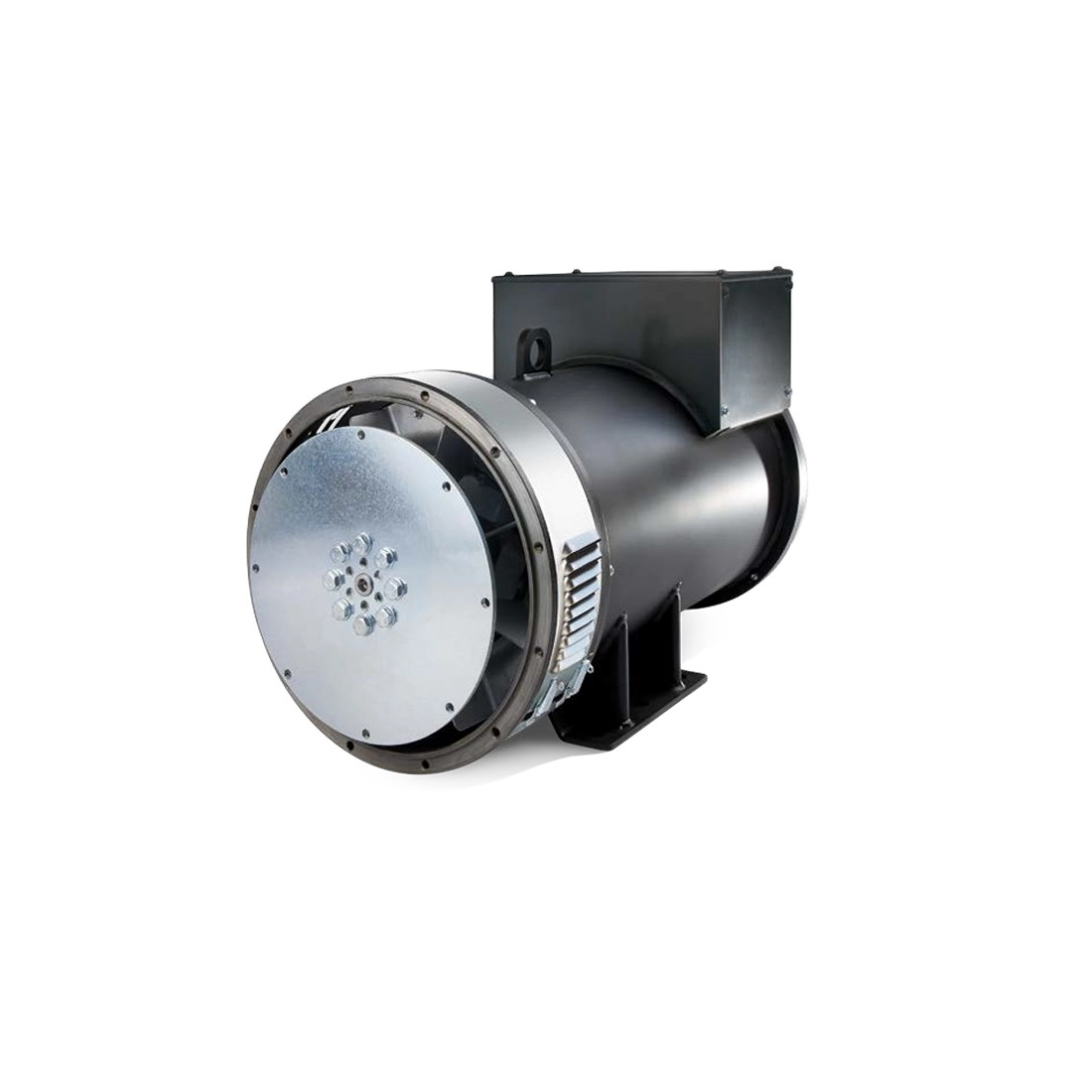

The image is purely indicative.

Technical Sheet / Manuals
icona_scheda

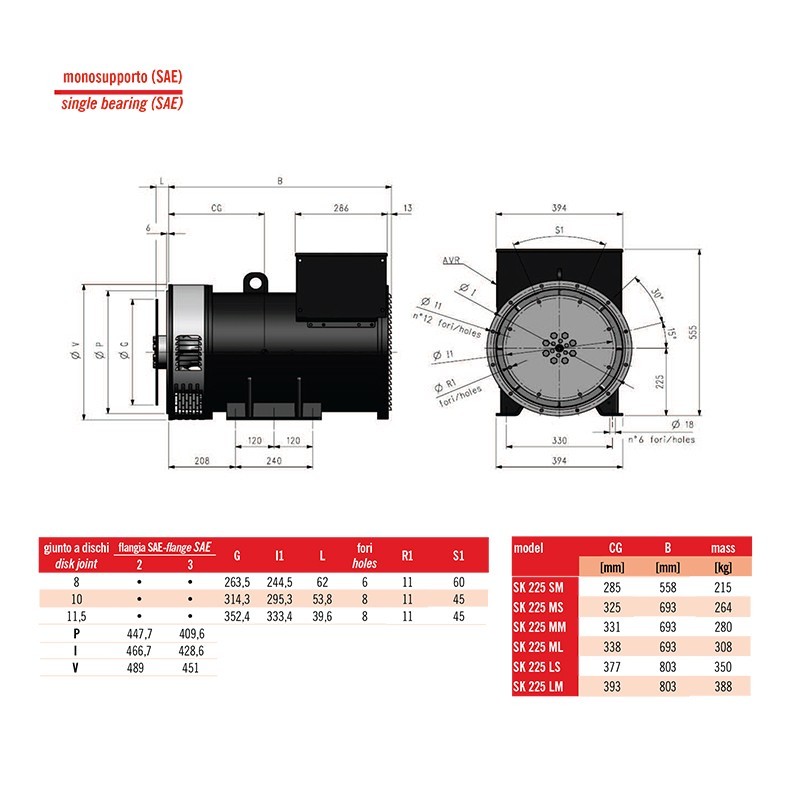

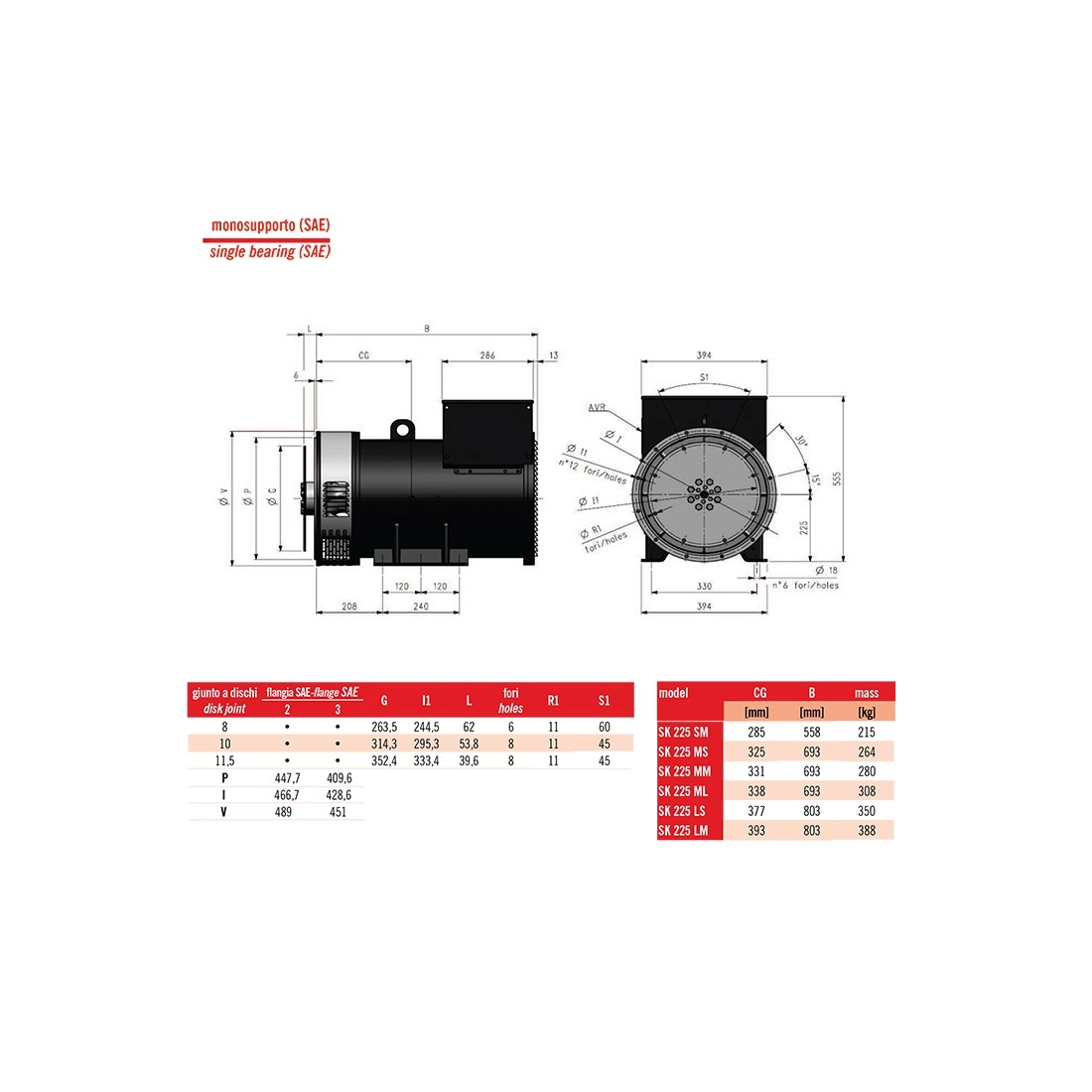

Technical data SK225

(2.18M)
Related Accessories
List price
6.501,38 € tax incl.
5.329,00 € tax excl.
Discounted Price
3.940,60 € tax incl.
3.230,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
