Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 1500
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 2490
Protection: IP23

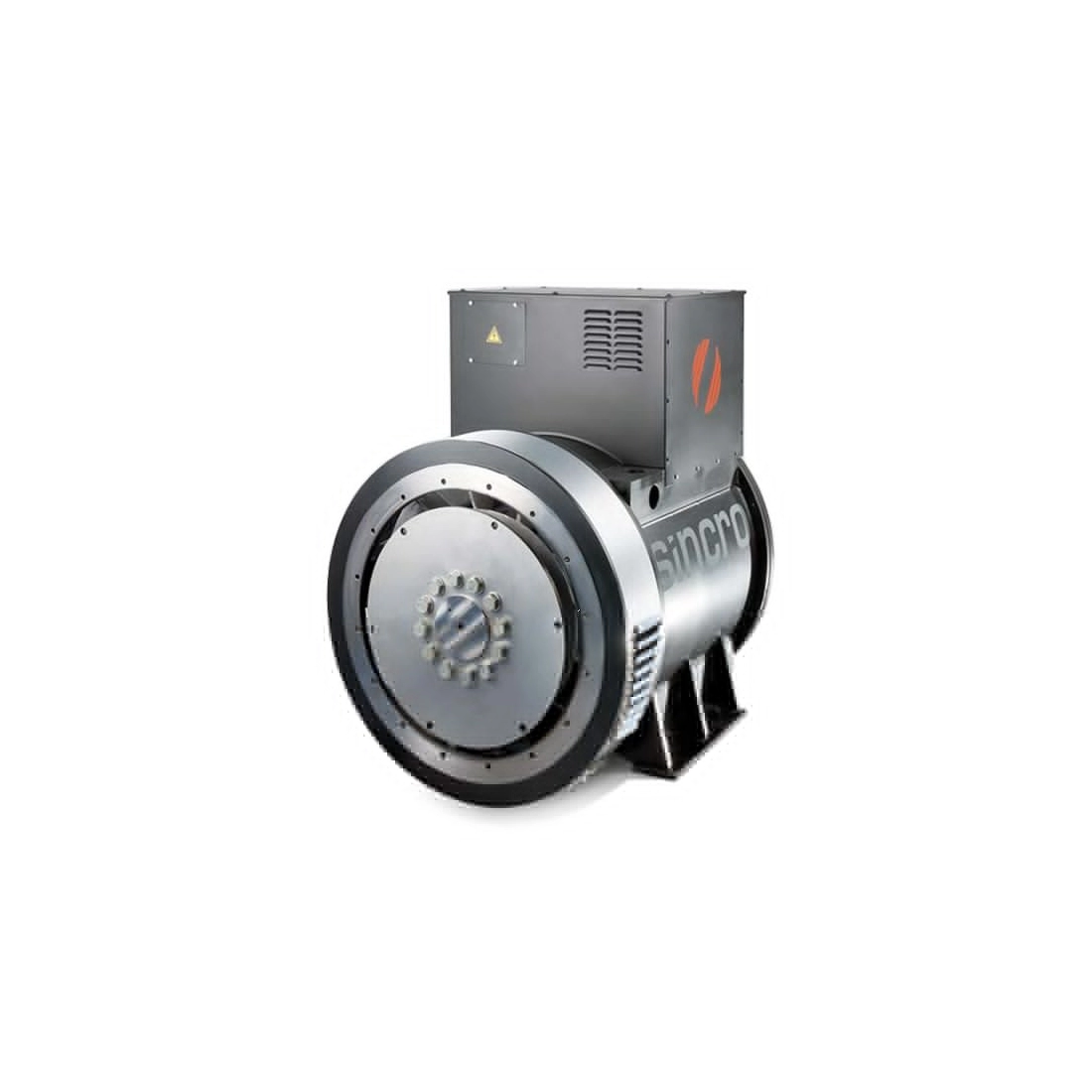

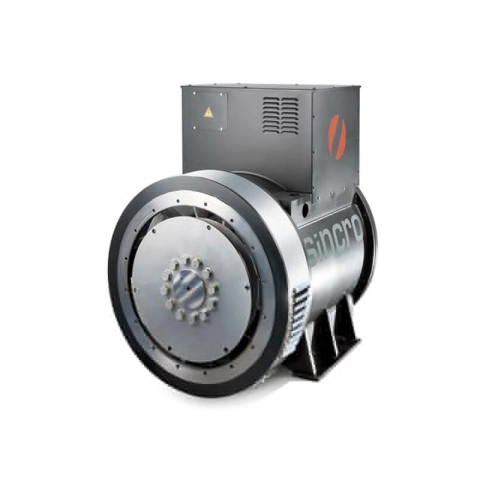

Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Winding pitch: 2/3
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard
The images are purely indicative.
Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 1500
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 2490
Protection: IP23
