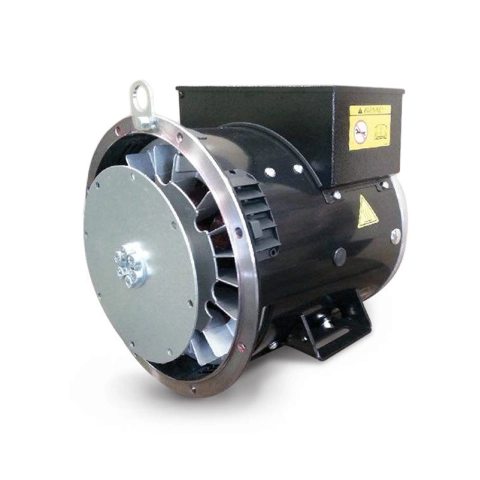

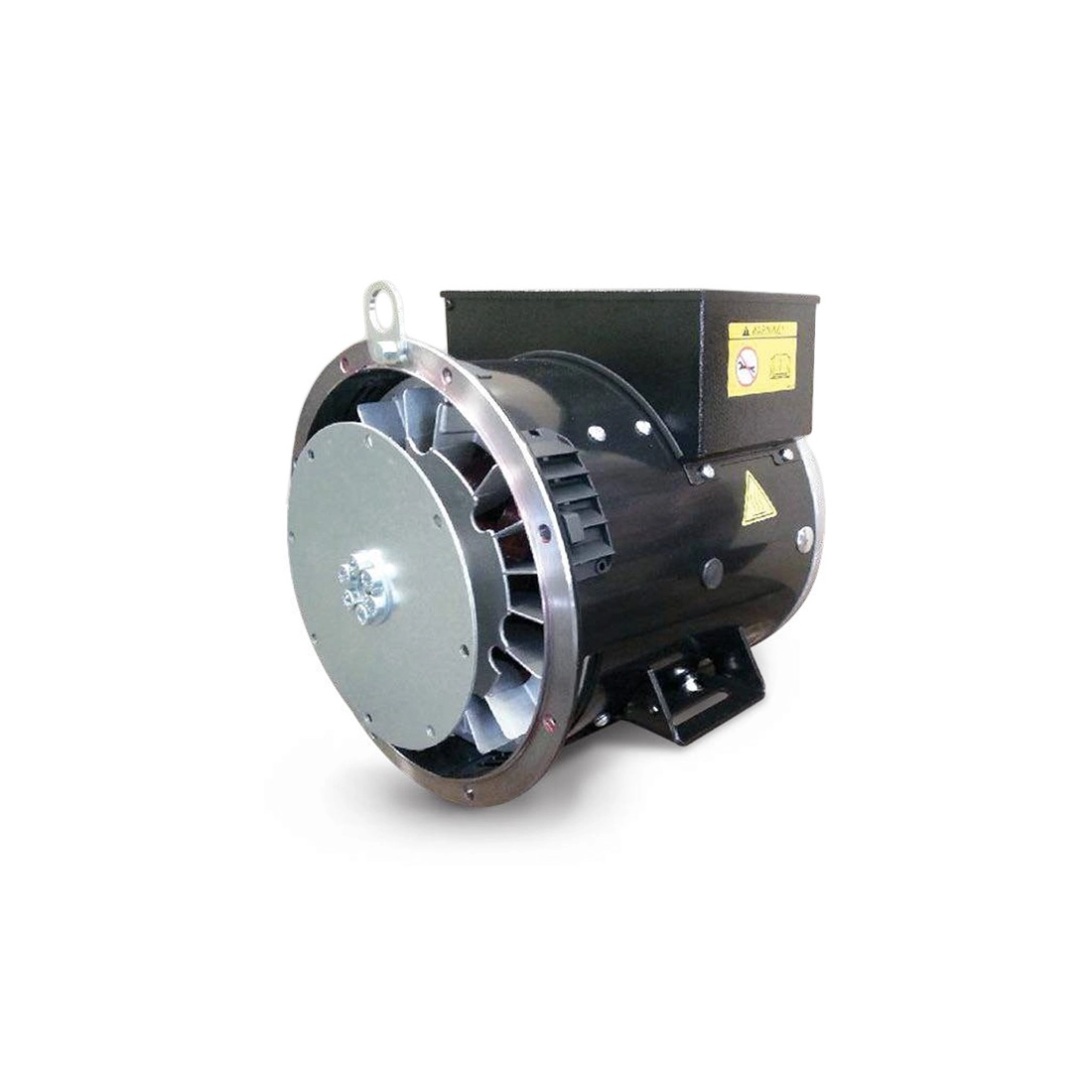

SINCRO SK160 LA SINGLE-THREE-PHASE ALTERNATOR 25KVA AVR
SK160 LA SAE5 d6.5
New product
Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 15
Three Phase Output (kVA): 25
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 103
Protection: IP23
Technical features
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50
- Voltage (V)
- 400
- Engine rpm (rpm)
- 1500
- Poles
- 4
- Single-phase power (KW)
- 12
- Single-phase power (KVA)
- 15
- Three-phase power (KW)
- 20
- Three-phase power (KVA)
- 25
- Efficiency (%)
- 87.4
- Protection degree
- IP23
- Dry weight (Kg)
- 80
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
Details
Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Three phase leads 12 / single phase leads 4
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard
The image is purely indicative.

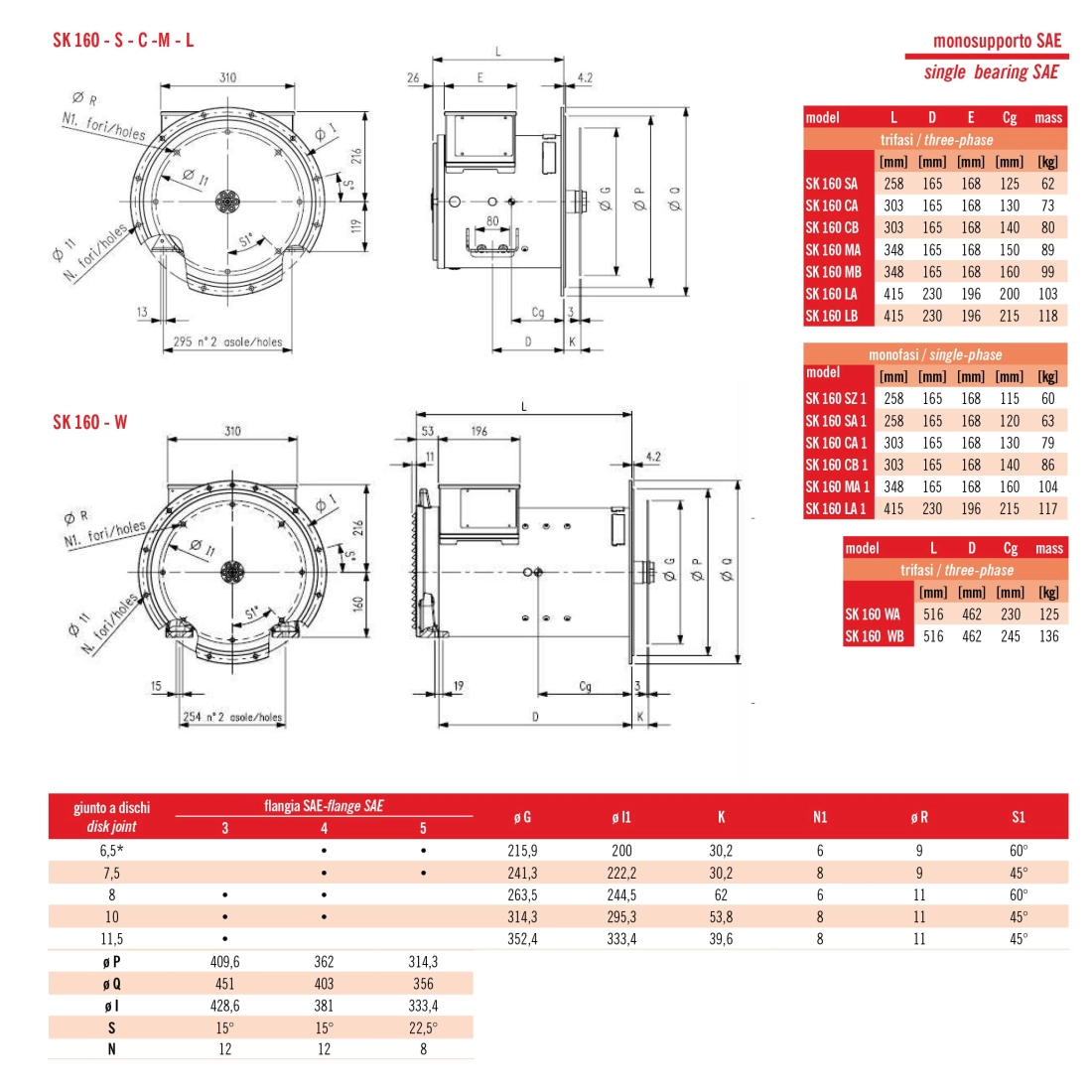

Technical Sheet / Manuals
