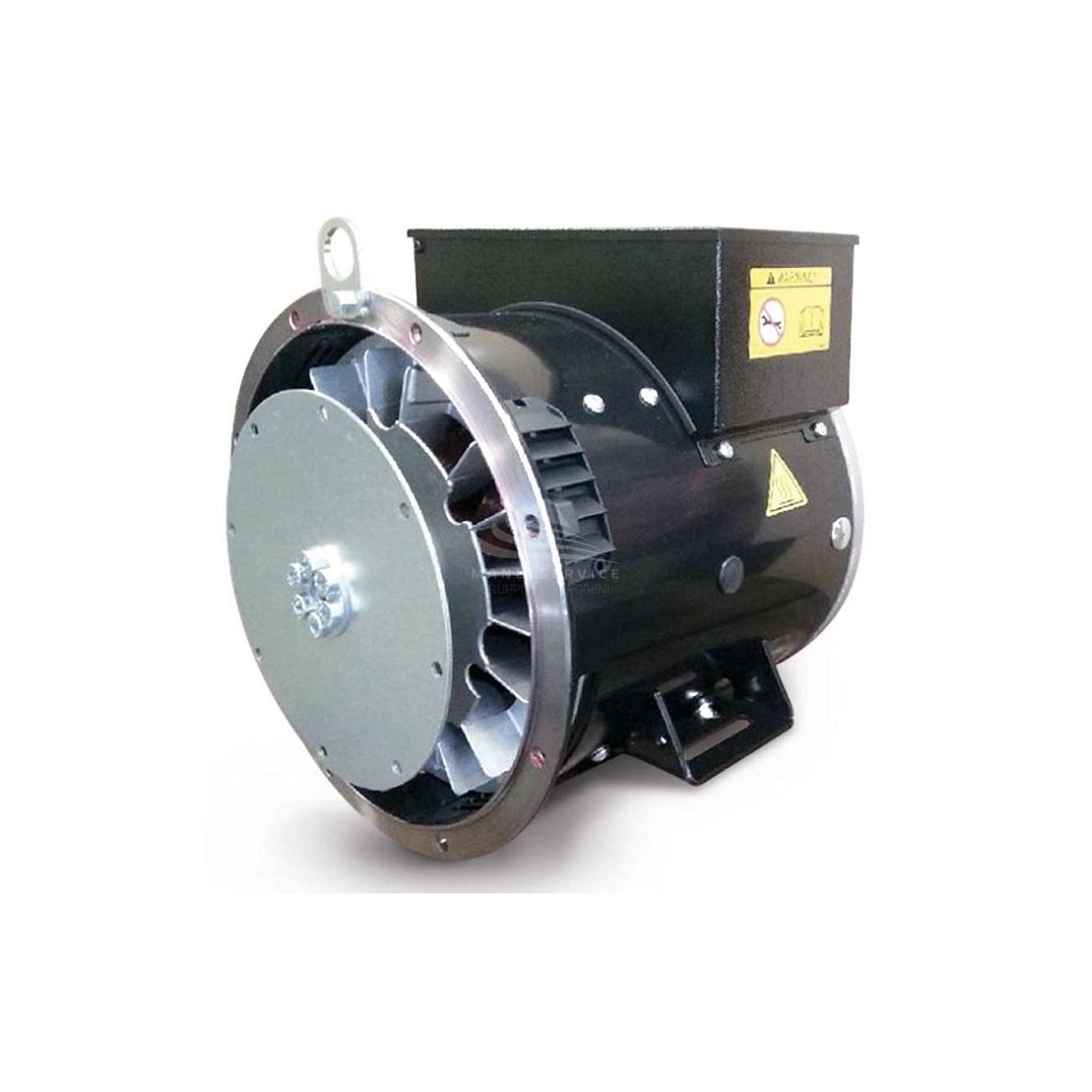

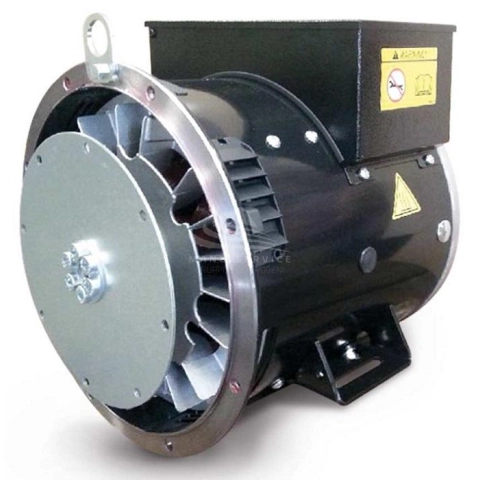

SINCRO SK160 MA2 SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR
SK160 MA2 SAE3 d8
New product
Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 12
Three Phase Output (kVA): 20
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 81
Protection: IP23
Technical features
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 3000
- Poles
- 2
- Single-phase power (KW)
- 9.6
- Single-phase power (KVA)
- 12
- Three-phase power (KW)
- 16
- Three-phase power (KVA)
- 20
- Efficiency (%)
- 83.7
- Protection degree
- IP23
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 81
Details
Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard
Not binding images and technical data.
Technical Sheet / Manuals
List price
tax incl.
tax excl.
Discounted Price
1.872,70 € tax incl.
1.535,00 € tax excl.
Technical features
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 3000
- Poles
- 2
- Single-phase power (KW)
- 9.6
- Single-phase power (KVA)
- 12
- Three-phase power (KW)
- 16
- Three-phase power (KVA)
- 20
- Efficiency (%)
- 83.7
- Protection degree
- IP23
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 81
Details
Technical Sheet / Manuals
