LINZ SLT18 MD Three-phase alternator 4 poles 24 kVA 60 Hz AVR

LINZ SLT18 MD Three-phase alternator 4 poles 20 kVA 50 Hz AVR
search
  • LINZ SLT18 MD Three-phase alternator 4 poles 20 kVA 50 Hz AVR
  • LINZ SLT18 MD Three-phase alternator 4 poles 20 kVA 50 Hz AVR
LINZ ELECTRIC
SLT18 MD 60 Hz SAE3 d6.5
New product

Rated power at 60 Hz (kVA): 24
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
AVR: HVR11
Sensing: single-phase
Voltage Regulation: ±1%
Sustained Short Circuit: > 250% of rated current

Technical features
Phase
Three phase
Continuous power three phase (KVA)
24
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
20
Protection degree
IP23
Motor insulation class
H
Length (mm)
370
Width (mm)
362
Height (mm)
439
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
116
Details

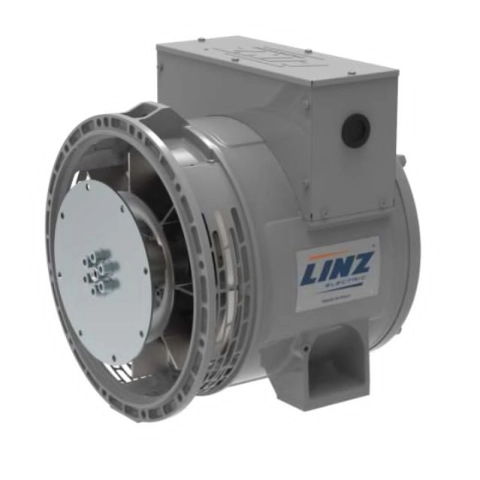

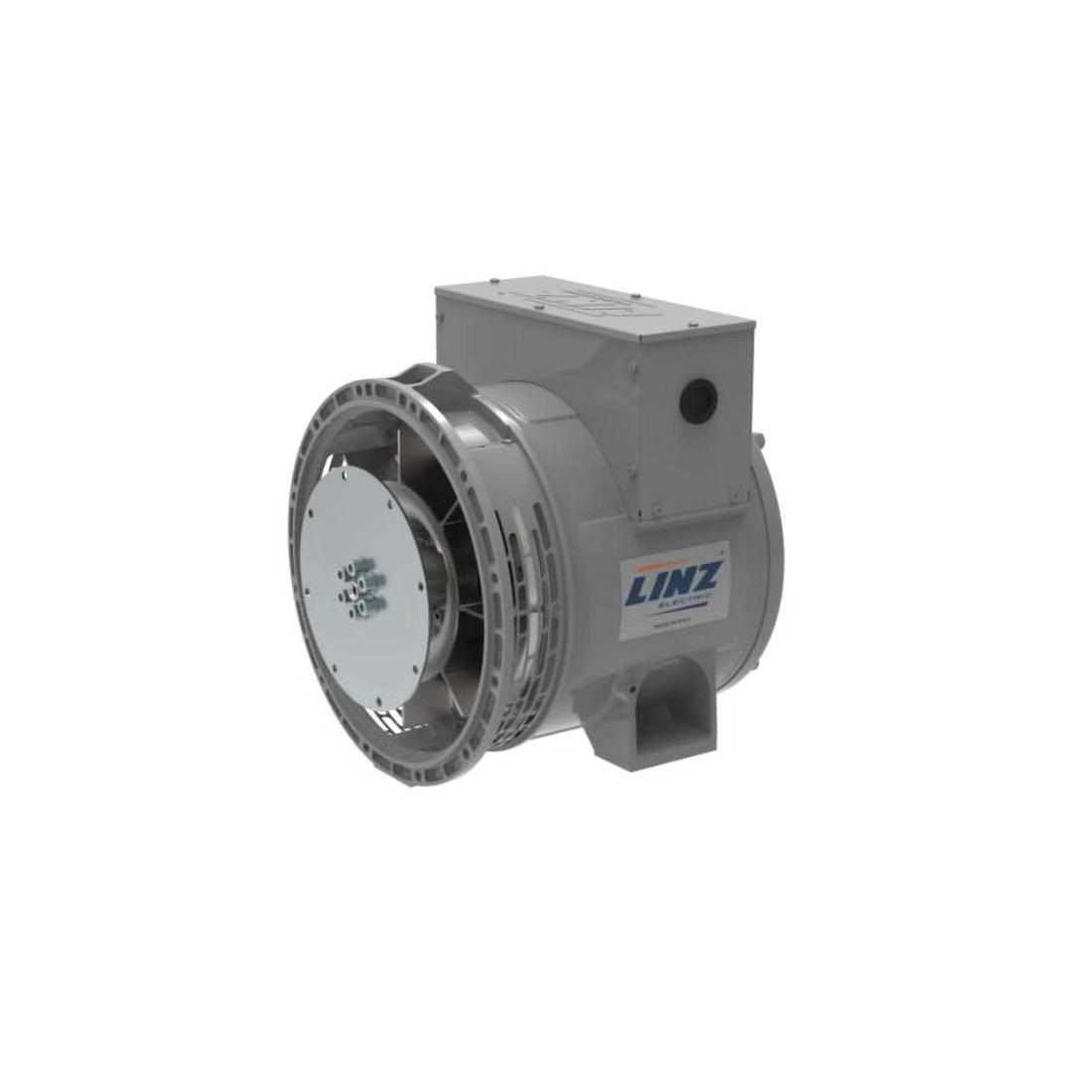

The alternators of SLT18 series are three-phase 4 poles brushless with electronic regulation (AVR) with single-phase sensing.

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, TELECOMMUNICATION
