LINZ PRO28S B/4 Three-phase alternator 4 poles 240 kVA 60 Hz AVR

LINZ PRO28S B/4 Three-phase alternator 4 poles 200 kVA 50 Hz AVR
search
  • LINZ PRO28S B/4 Three-phase alternator 4 poles 200 kVA 50 Hz AVR
  • LINZ PRO28S B/4 Three-phase alternator 4 poles 200 kVA 50 Hz AVR
LINZ ELECTRIC
PRO28S B/4 60 Hz SAE3 d11.5
New product

Rated power at 60 Hz (kVA): 240
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KVA)
240
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
200
Protection degree
IP23
Motor insulation class
H

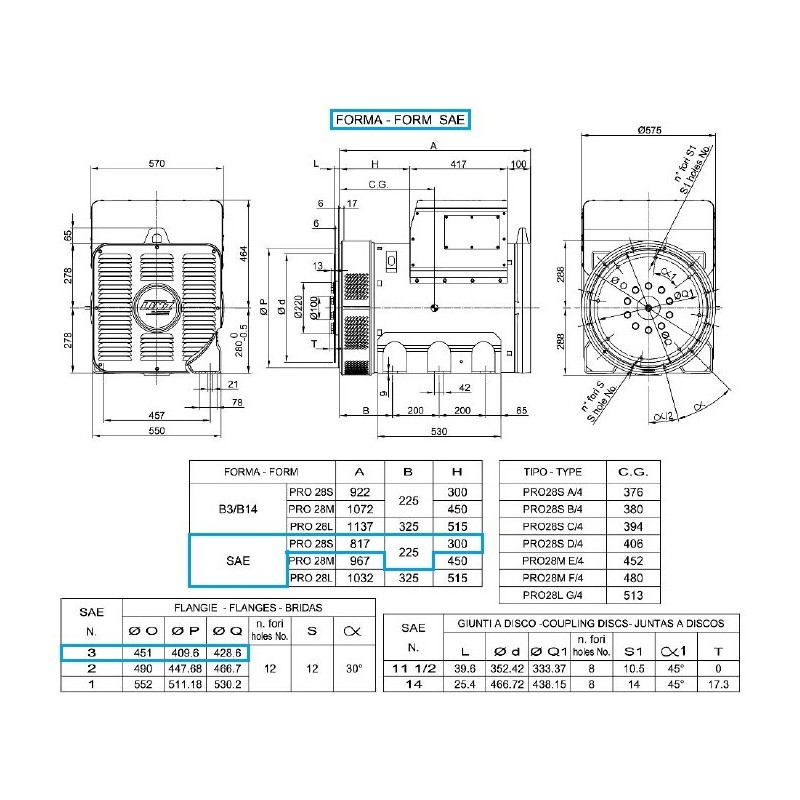

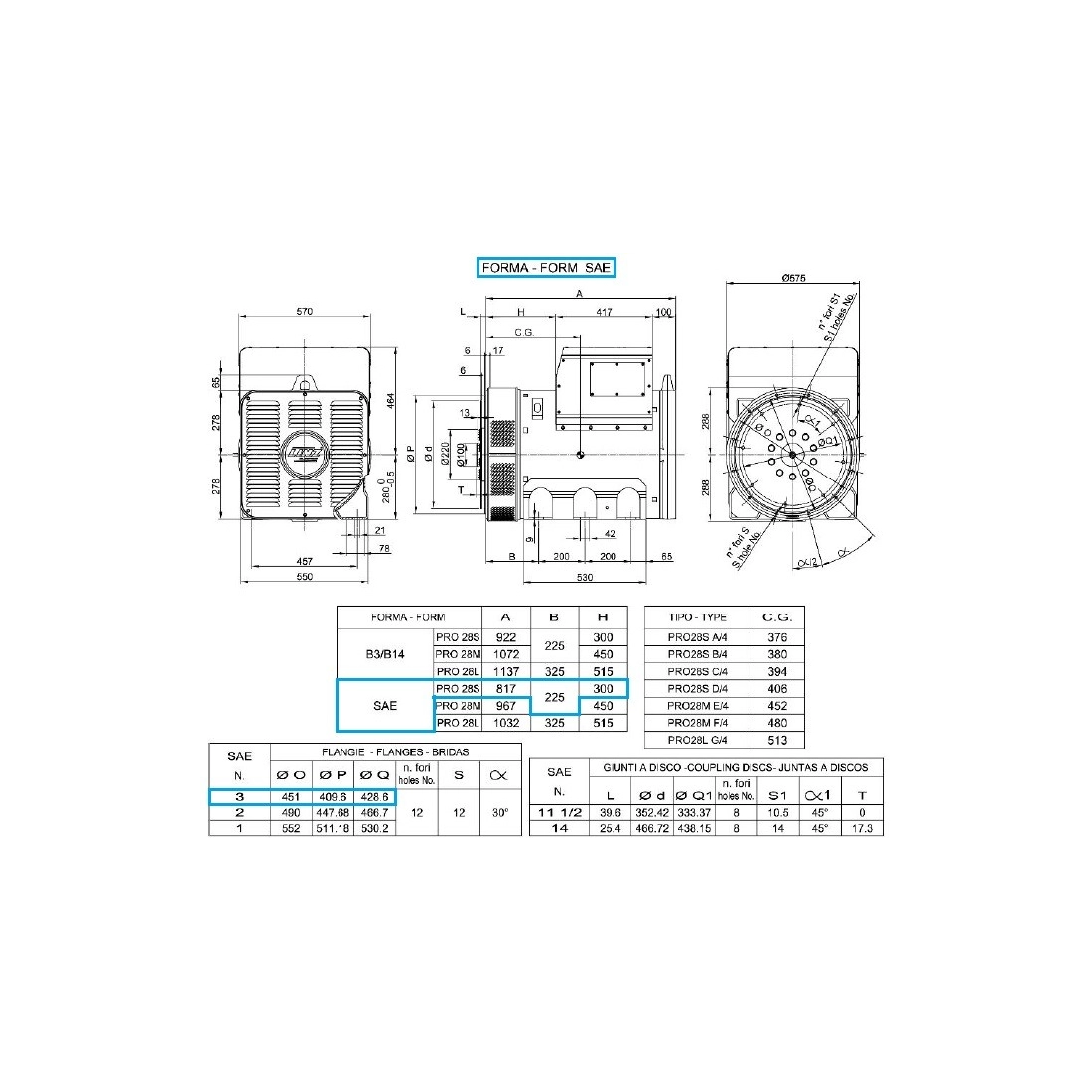

Length (mm)
817
Width (mm)
570
Height (mm)
620
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
591
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Related Accessories
List price
10.095,50 € tax incl.
8.275,00 € tax excl.
Discounted Price
5.803,71 € tax incl.
4.757,14 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: LINZ PRO28S B/4 Three-phase alternator 4 poles 240 kVA 60 Hz AVR
