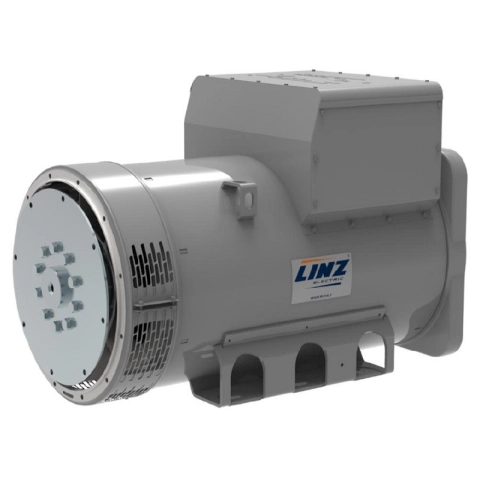

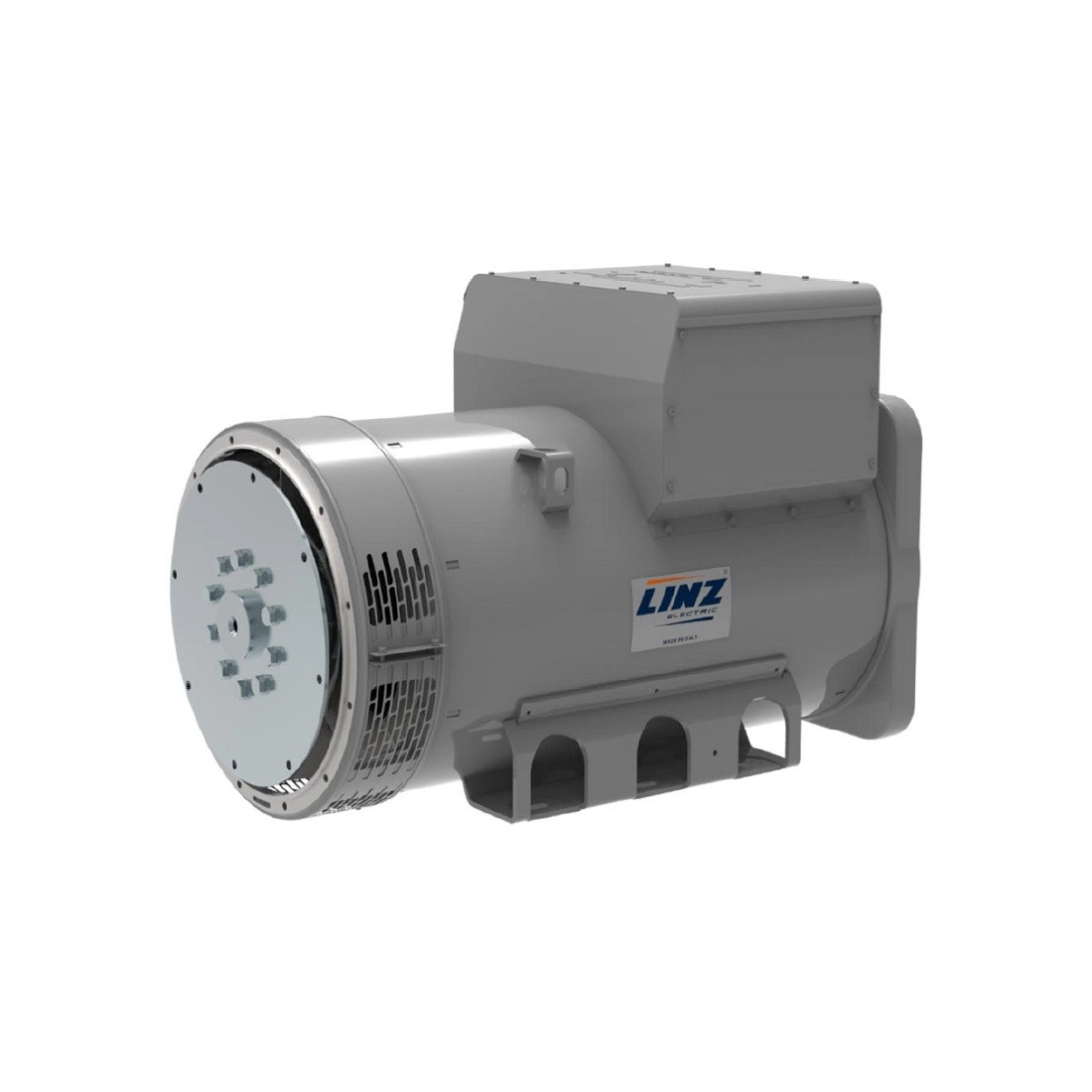

LINZ PRO28L G/4 Three-phase alternator 4 poles 480 kVA 60 Hz AVR

LINZ PRO28L G/4 Three-phase alternator 4 poles 400 kVA 50 Hz AVR
search
  • LINZ PRO28L G/4 Three-phase alternator 4 poles 400 kVA 50 Hz AVR
  • LINZ PRO28L G/4 Three-phase alternator 4 poles 400 kVA 50 Hz AVR
LINZ ELECTRIC
PRO28L G/4 60 Hz SAE3 d11.5
New product

Rated power at 60 Hz (kVA): 480
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
6 wires winding

Technical features
Phase
Three phase
Continuous power three phase (KVA)
480
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
400
Protection degree
IP23
Motor insulation class
H

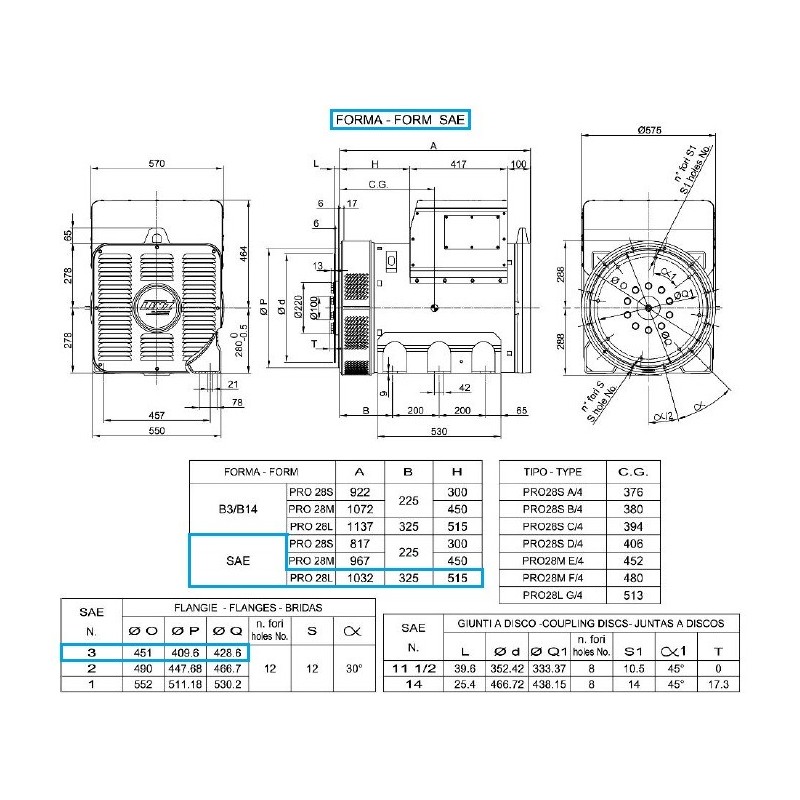

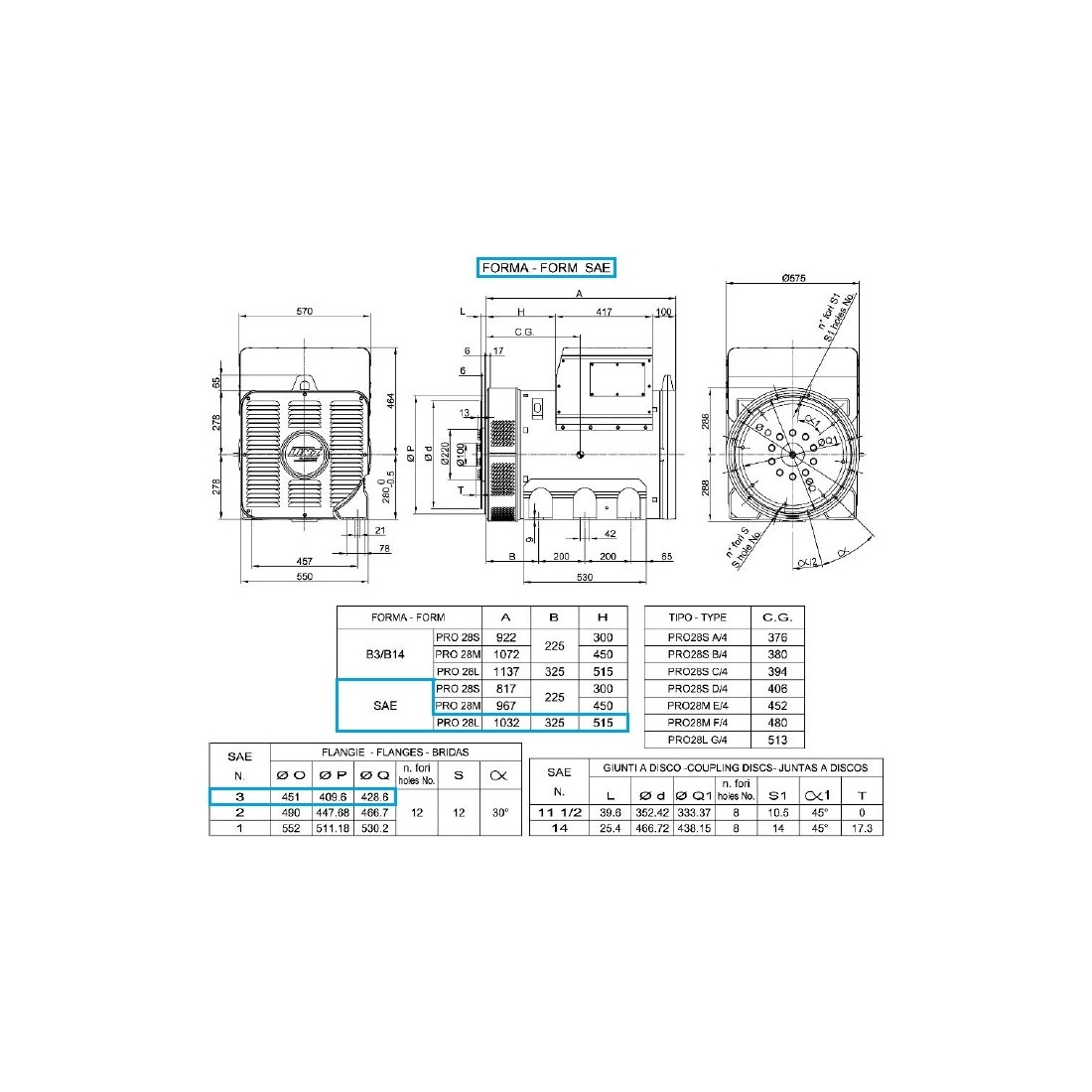

Length (mm)
1032
Width (mm)
570
Height (mm)
620
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
1034
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Related Accessories
List price
16.504,16 € tax incl.
13.528,00 € tax excl.
Discounted Price
9.770,57 € tax incl.
8.008,66 € tax excl.
Choose the type of coupling
Ask for availability
