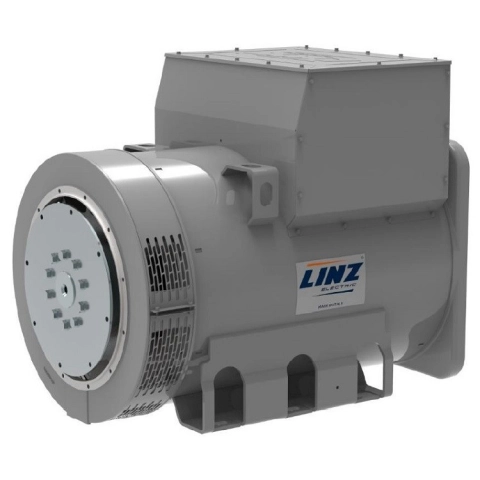

LINZ PRO35M E/4 Three-phase alternator 4 poles 720 kVA 60 Hz AVR

LINZ PRO35S E/4 Three-phase alternator 4 poles 600 kVA 50 Hz AVR
search
  • LINZ PRO35S E/4 Three-phase alternator 4 poles 600 kVA 50 Hz AVR
  • LINZ PRO35S E/4 Three-phase alternator 4 poles 600 kVA 50 Hz AVR
LINZ ELECTRIC
PRO35M E/4 60 Hz SAE1 d14
New product

Rated power at 60 Hz (kVA): 720
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
6 wires winding

Technical features
Phase
Three phase
Continuous power three phase (KVA)
720
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
600
Protection degree
IP23
Motor insulation class
H
Length (mm)
1106
Width (mm)
732
Height (mm)
950
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
1342.5
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Related Accessories
List price
24.431,72 € tax incl.
20.026,00 € tax excl.
Discounted Price
14.045,32 € tax incl.
11.512,56 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
