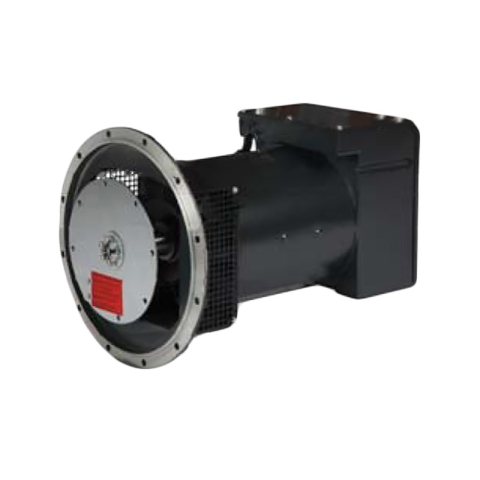

ZANARDI BTP3-1S/2 THREEPHASE ALTERNATOR 16 KVA

ZANARDI BTP3-1L/2 THREEPHASE ALTERNATOR 16 KVA
search
  • ZANARDI BTP3-1L/2 THREEPHASE ALTERNATOR 16 KVA
  • zanardi btp3 1l2 threephase alternator 16 kva
MECC ALTE
BTP3-1S/2 B3/B9 C30
New product

Phase type: Three-phase
Maximum three-phase power: 15.5 KW
Three-phase continuous use power: 12.8 KW
Three-phase maximum power: 19.2 KVA
Three-phase continuous use power: 16.0 KVA
Frequency: 50 - 60 Hz
Voltage: 230 V / 400 V
Isolation class: H
Protection class: IP23
Agent speed: 3000 rpm
Number of poles: 2
Efficiency: 83. 5%
Weight: 72 kg
Constant speed alternator
Brushed
Voltage regulator: coumpound

Technical features
Phase
Three phase
Maximum power three phase (KW)
12,4
Continuous power three phase (KW)
10,4
Maximum power three phase (KVA)
15,6
Continuous power three phase (KVA)
13,0
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Efficiency (%)
82.4
Protection degree
IP23
Acoustic power
85 dB(A)
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
72
Brushes
Yes
Voltage regulator
Compound
Details

ZANARDI BTP3-SL/2 THREE-PHASE ALTERNATOR 13 KVA

Alternator ZANARDI BTP3-1S/2 three-phase with a power of 16KVA, this unit has a brush operation equipped with coumpound voltage regulator.

The ZANARDI BTP3-1S/2 alternator is brush-operated with coumpound regulation on the three phases, with 2 poles. The alternator is equipped with a rotating inductor provided with a damping cage and a fixed armature with inclined slots.

The windings have a shortened pitch to reduce the harmonic content. The ZANARDI BTP3-1S/2 alternator is manufactured in compliance with the directives 2006/42, 2006/95, 2004/108 and their amendments, with the standards CEI 2-3, EN 60034-1, IEC 34-1, VDE 0530, S4999 - 5000.

The tests to verify the conformity of the windings with the standards CEI 2-3, EN 60034-1, IEC 34-1, VDE 0530, S4999 - 5000.

The tests for electromagnetic compatibility have been carried out under the conditions prescribed by the standards, with the neutral connected to earth.

Executions in accordance with other specifications can be made at the request of the customer. The mechanical structure, always very robust, allows an easy access to the connections and allows to carry out the verifications in the different parts just as easily.

The mechanical structure, always very robust, allows an easy access to the
connections and allows to carry out the verifications in the different parts just as easily.

The ZANARDI BTP3-1S/2 alternator casing is made of steel, the shields of die-cast aluminium, the shaft of C45 steel with splined fan. The protection degree is IP23 (on request it is possible to realize a higher protection degree).

The insulations are made in class H, the impregnations with epoxy resins for the rotating parts and vacuum treatments for the parts of higher voltage, such as stators (on request special treatments). In the field of radio interference, the series production meets the standard EN61000-6-3, EN61000-6-1.

TECHNICAL CHARACTERISTICS ALTERNATOR ZANARDI BTP3-1S/2

Phase type: Threephase
Maximum three-phase power: 12.5 KW
Threephase continuous use power: 10.4 KW
Threephase maximum power: 15.6 KVA
Threephase continuous use power: 13.0 KVA
Frequency: 50 - 60 Hz
Voltage: 230 V / 400 V
Isolation class: H
Protection class: IP23
Agent speed: 3000 rpm
Number of poles: 2
Efficiency: 82.4 %
Weight: 72 kg
Constant speed alternator
Brushed
Voltage regulator: coumpound

Looking for a product with different characteristics? Here you can find the full range MECC ALTE and other specialized brands.

Images and technical data are not binding and subject to changes by the manufacturer

Technical Sheet / Manuals
List price
1.728,41 € tax incl.
1.416,73 € tax excl.
Discounted Price
1.226,75 € tax incl.
1.005,53 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: ZANARDI BTP3-1S/2 THREEPHASE ALTERNATOR 16 KVA
Offer on letterhead
Product: ZANARDI BTP3-1S/2 THREEPHASE ALTERNATOR 16 KVA
Technical features
Phase
Three phase
Maximum power three phase (KW)
12,4
Continuous power three phase (KW)
10,4
Maximum power three phase (KVA)
15,6
Continuous power three phase (KVA)
13,0
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Efficiency (%)
82.4
Protection degree
IP23
Acoustic power
85 dB(A)
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
72
Brushes
Yes
Voltage regulator
Compound
Details
Technical Sheet / Manuals
