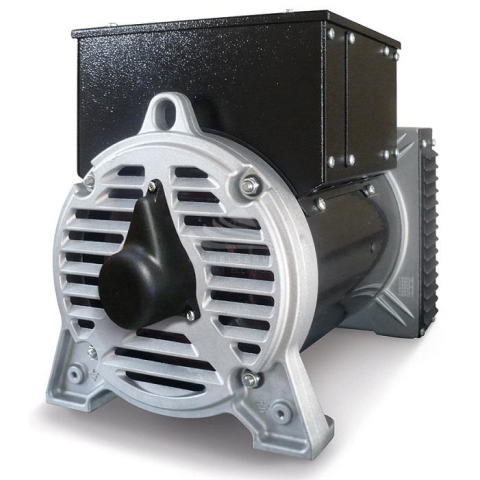

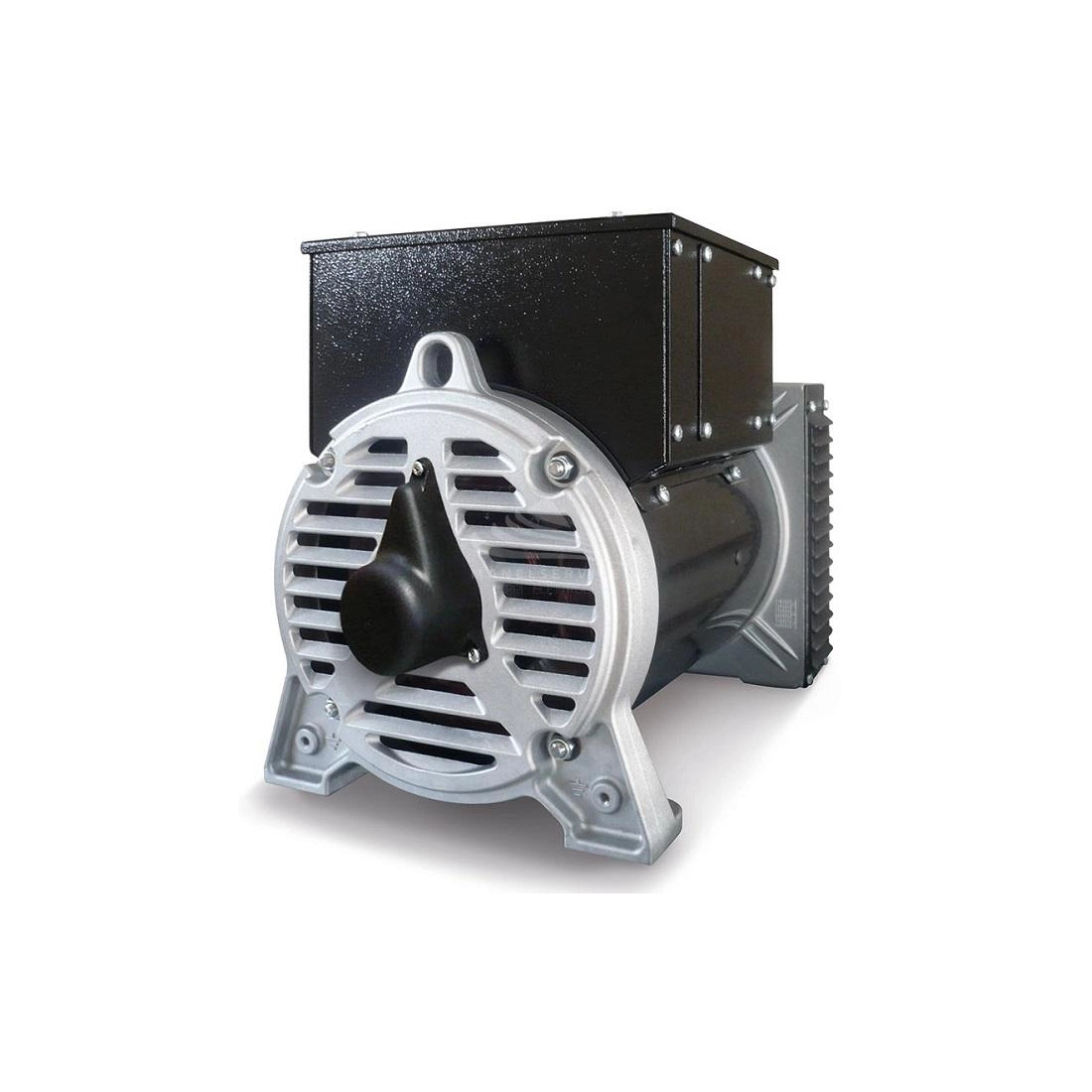

SINCRO FT2 LC Three Phase Synchronous AC Alternator 24 kVA Compound

SINCRO THREE PHASE ALTERNATOR FT2 STEEL
search
  • SINCRO THREE PHASE ALTERNATOR FT2 STEEL
  • SINCRO THREE PHASE ALTERNATOR FT2 STEEL
SINCRO
FT2 LC Steel J609b c25.4
New product

Phase: Three phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): ----
Three Phase Output (kVA): 24
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 88
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
19.2
Three-phase power (KVA)
24
Efficiency (%)
87
Protection degree
IP23
Dry weight (Kg)
88
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
88
Details

Three phase brushes alternator - Compound.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

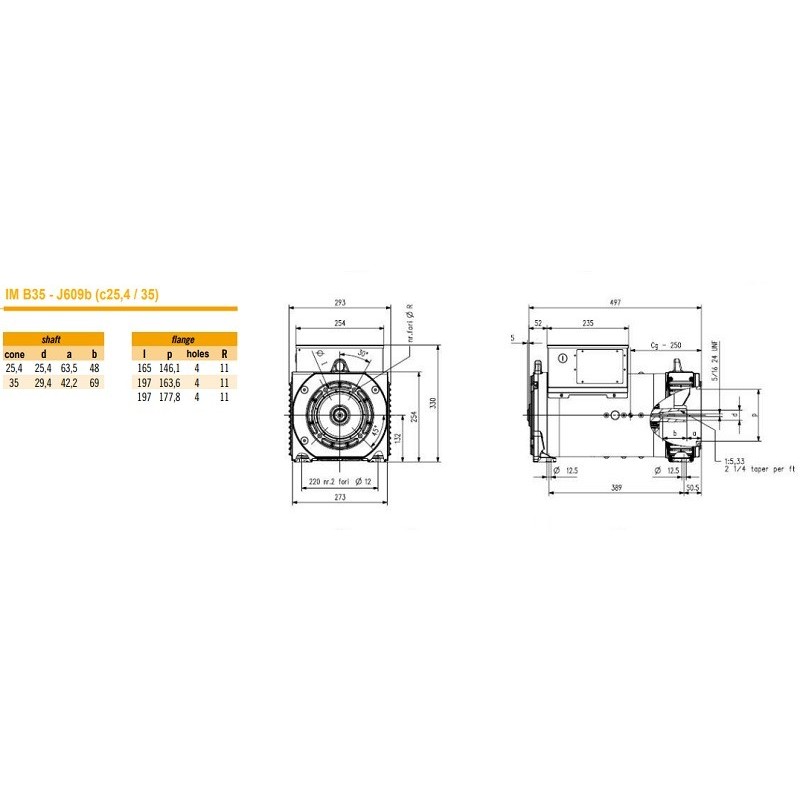

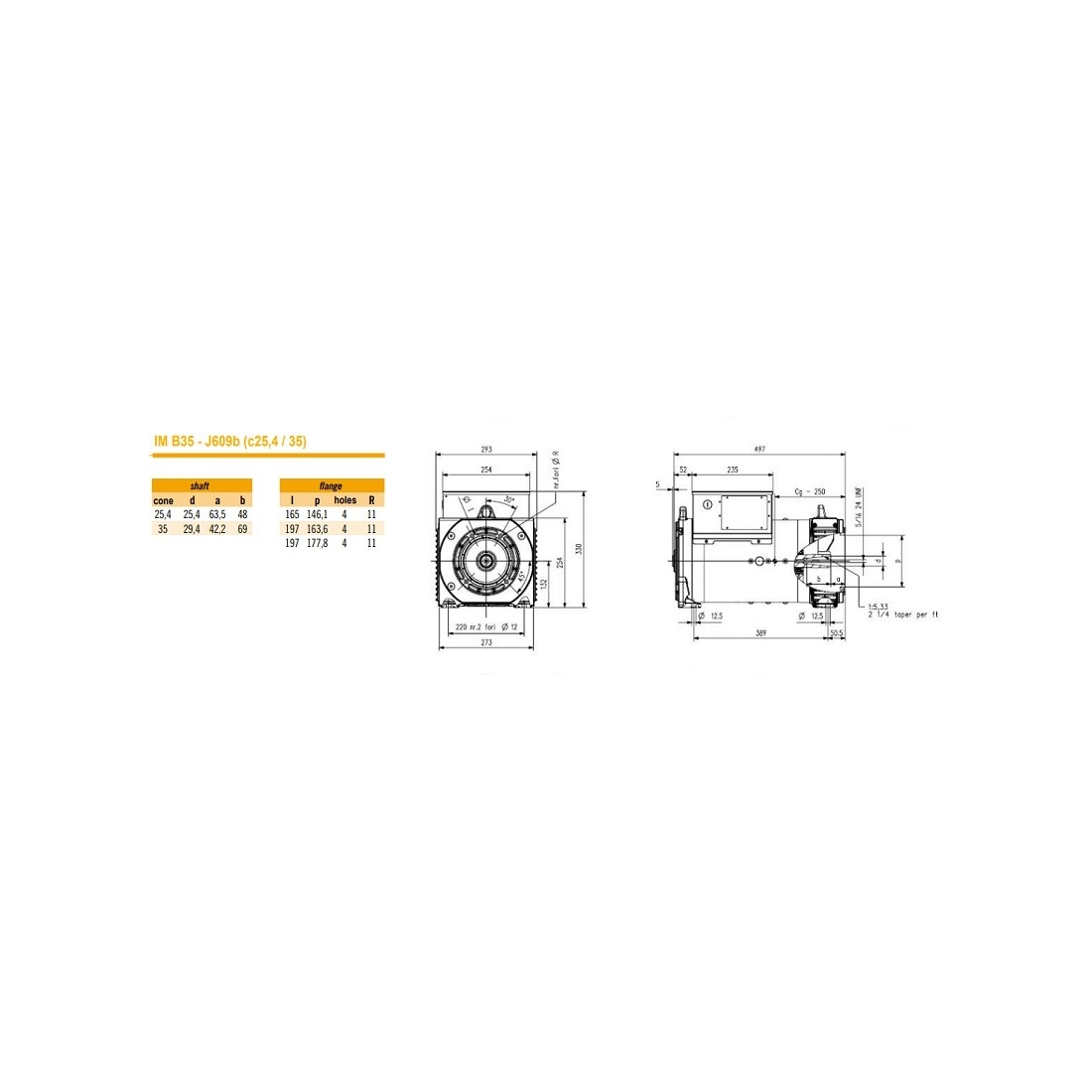

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Technical Sheet / Manuals
Related Accessories
List price
2.227,72 € tax incl.
1.826,00 € tax excl.
Discounted Price
1.350,56 € tax incl.
1.107,01 € tax excl.
