0
Phase: Three phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): ----
Three Phase Output (kVA): 38
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 124
Protection: IP23
Three phase brushes alternator - Compound.
- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

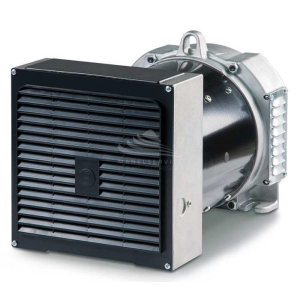

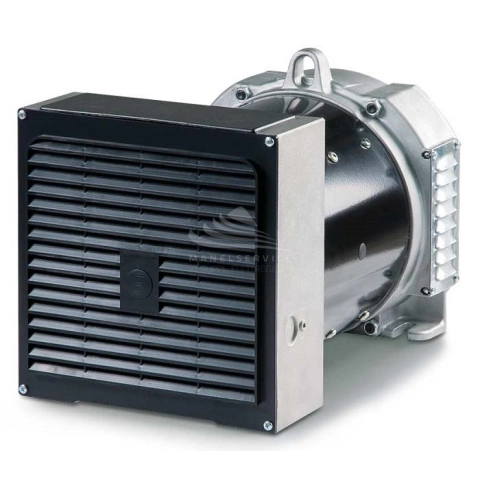

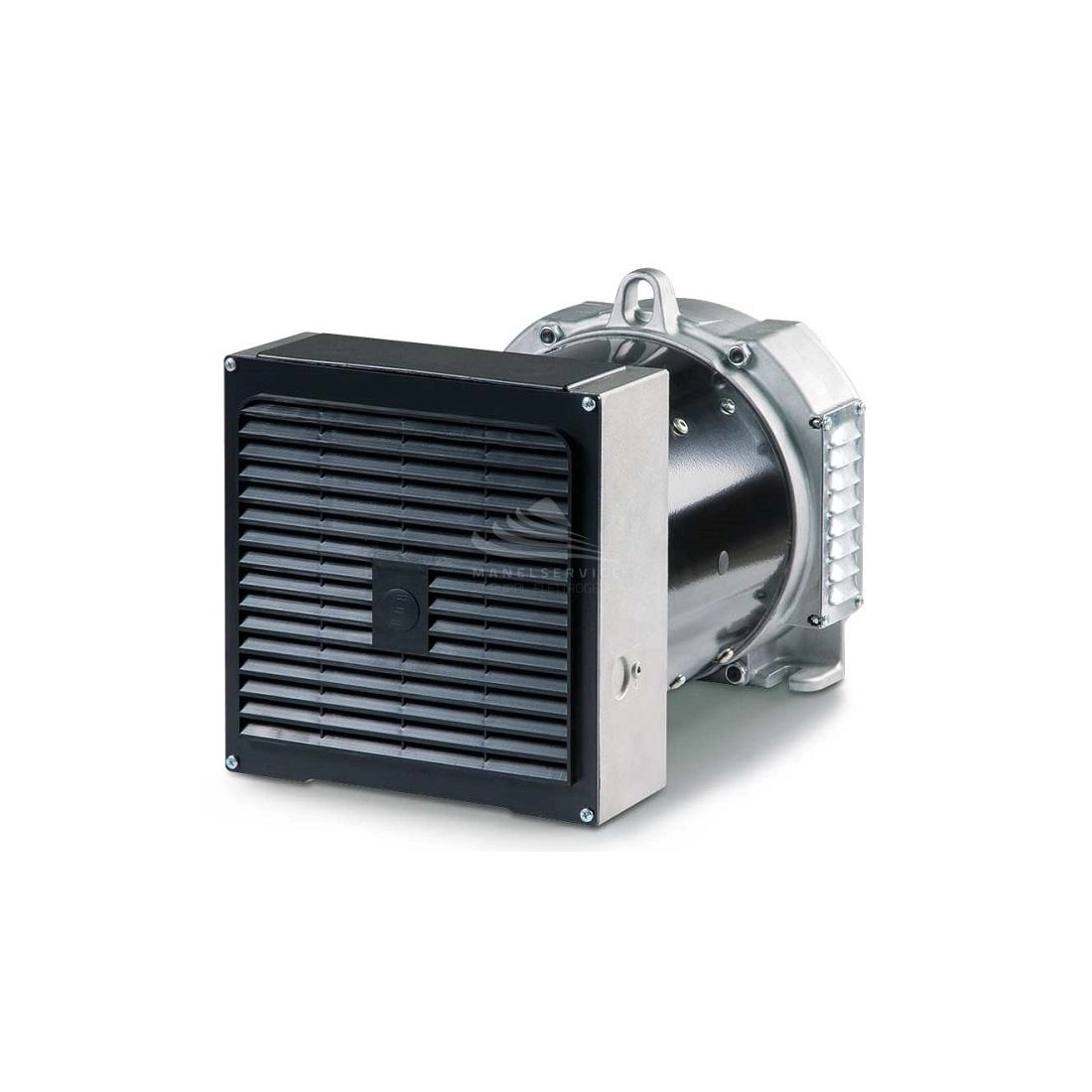

The image is purely indicative.
Phase: Three phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): ----
Three Phase Output (kVA): 38
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 124
Protection: IP23
