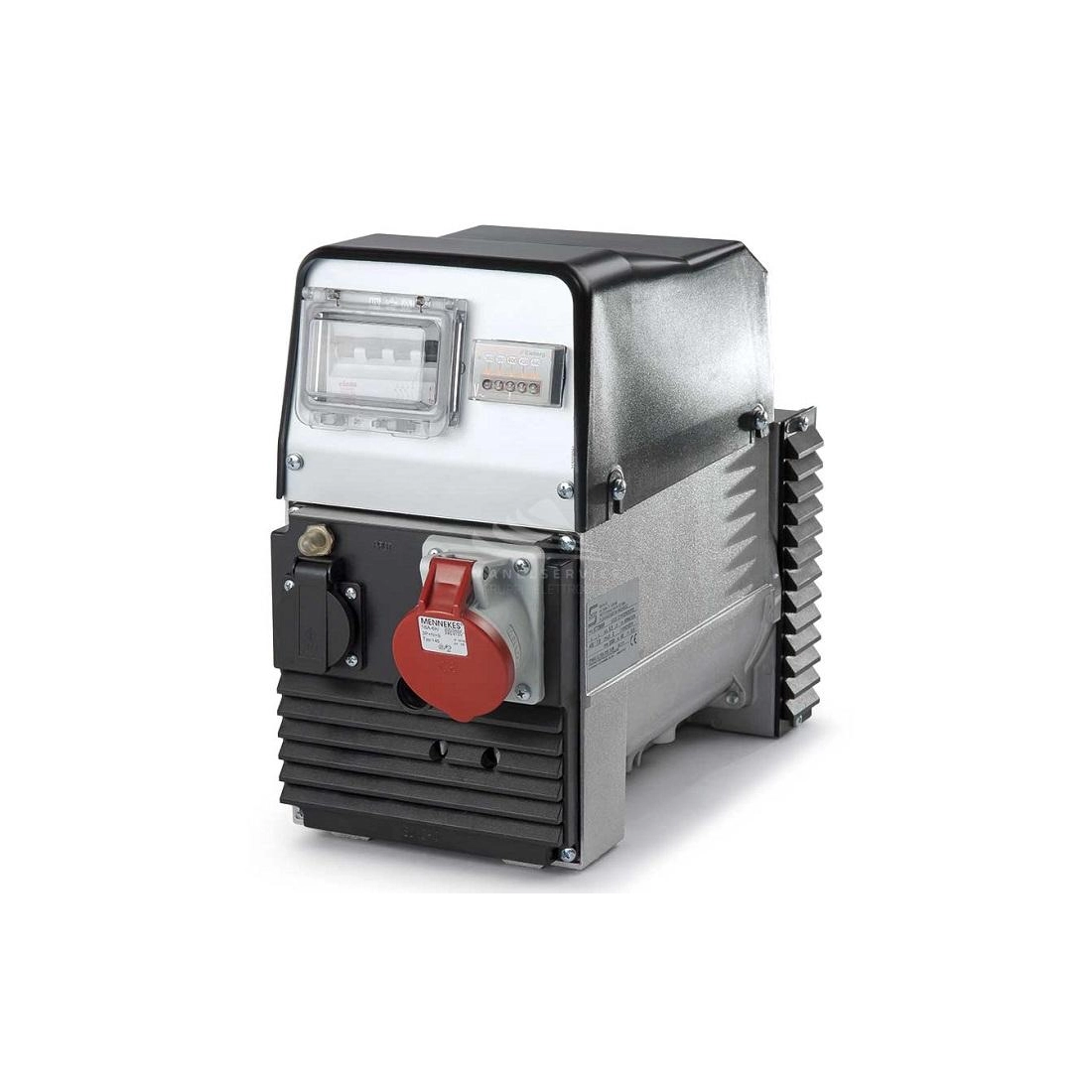

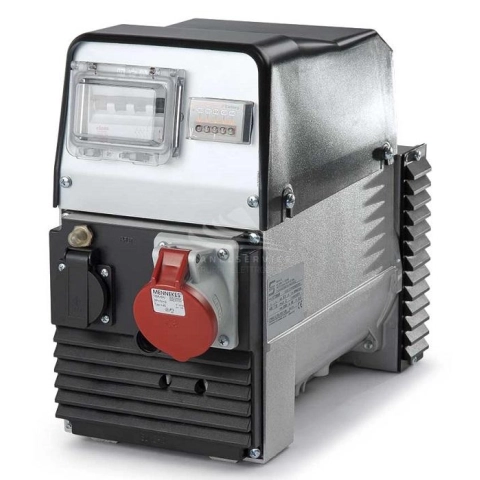

SINCRO ET2 MBR Three Phase Synchronous AC Alternator 5.5 kVA AVR

SINCRO THREE PHASE ALTERNATOR ET2
search
  • SINCRO THREE PHASE ALTERNATOR ET2
  • SINCRO THREE PHASE ALTERNATOR ET2
SINCRO
ET2 MBR J609b c22.14
New product

Phase: Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Three Phase Output (kVA): 5.5
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 25.3
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
4.4
Three-phase power (KVA)
5.5
Efficiency (%)
75
Protection degree
IP23
Dry weight (Kg)
25.3
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushes alternator - AVR.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

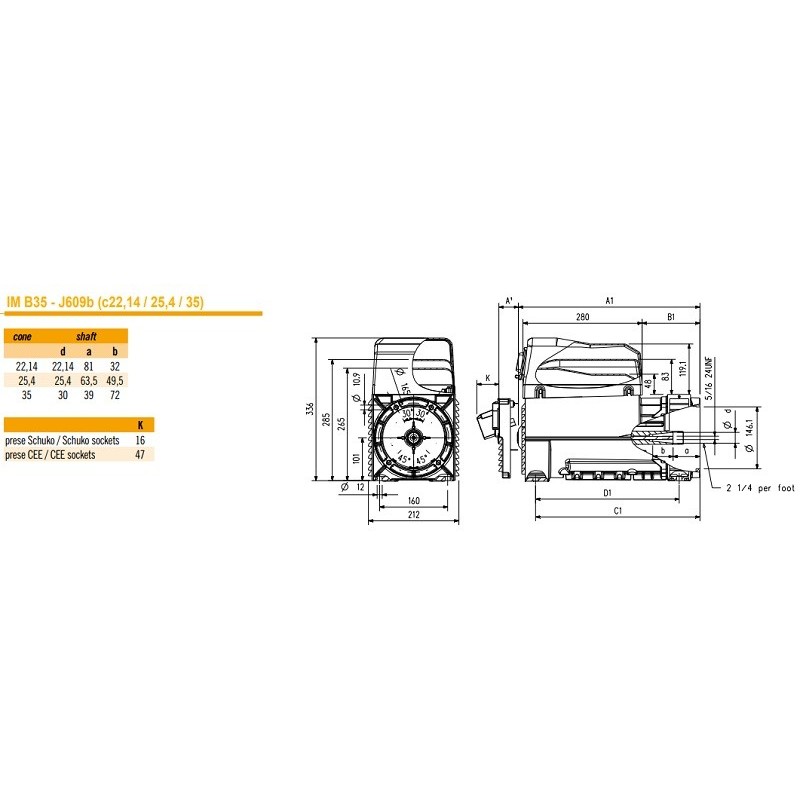

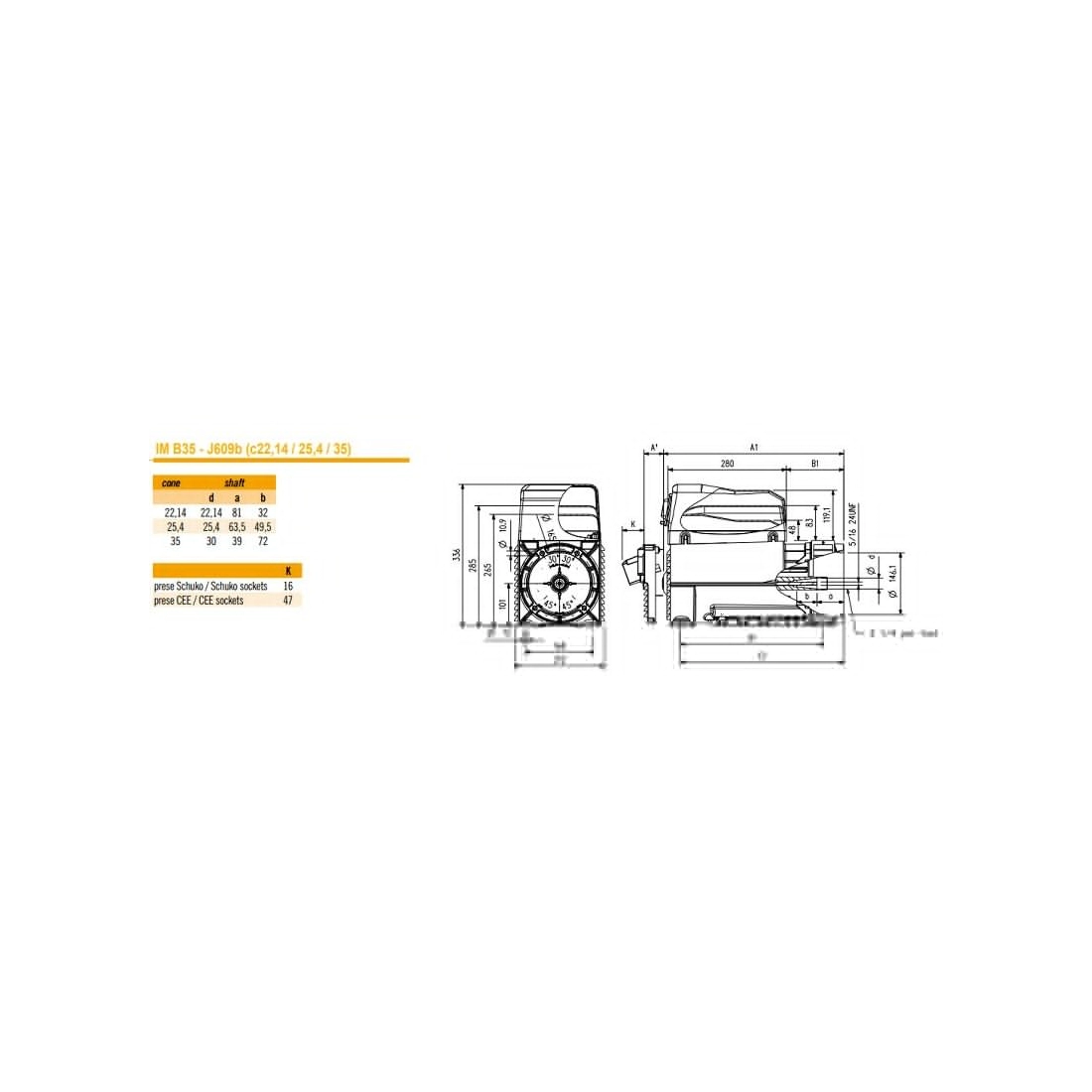

- Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

The image is purely indicative.

Technical Sheet / Manuals
icona_scheda

Technical data ET2

(267.46k)
