Phase: Single Phase
Poles: 4
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 17.5
Constant Speed Alternator
Digital AVR
Brushes
Weight (Kg): 104
Protection: IP23
Single phase brushes alternator - DIGITAL AVR.
- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In

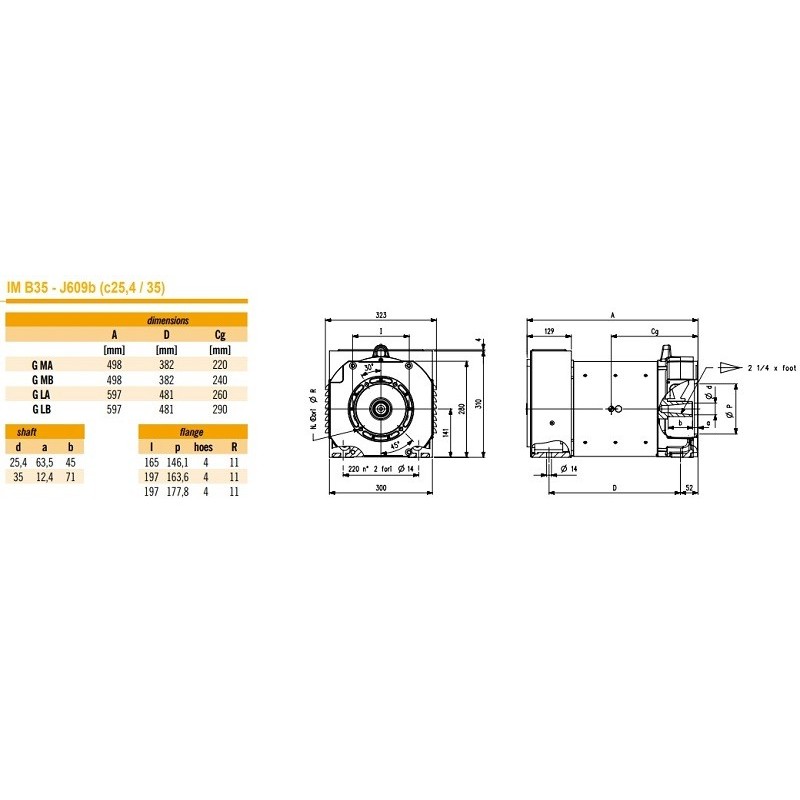

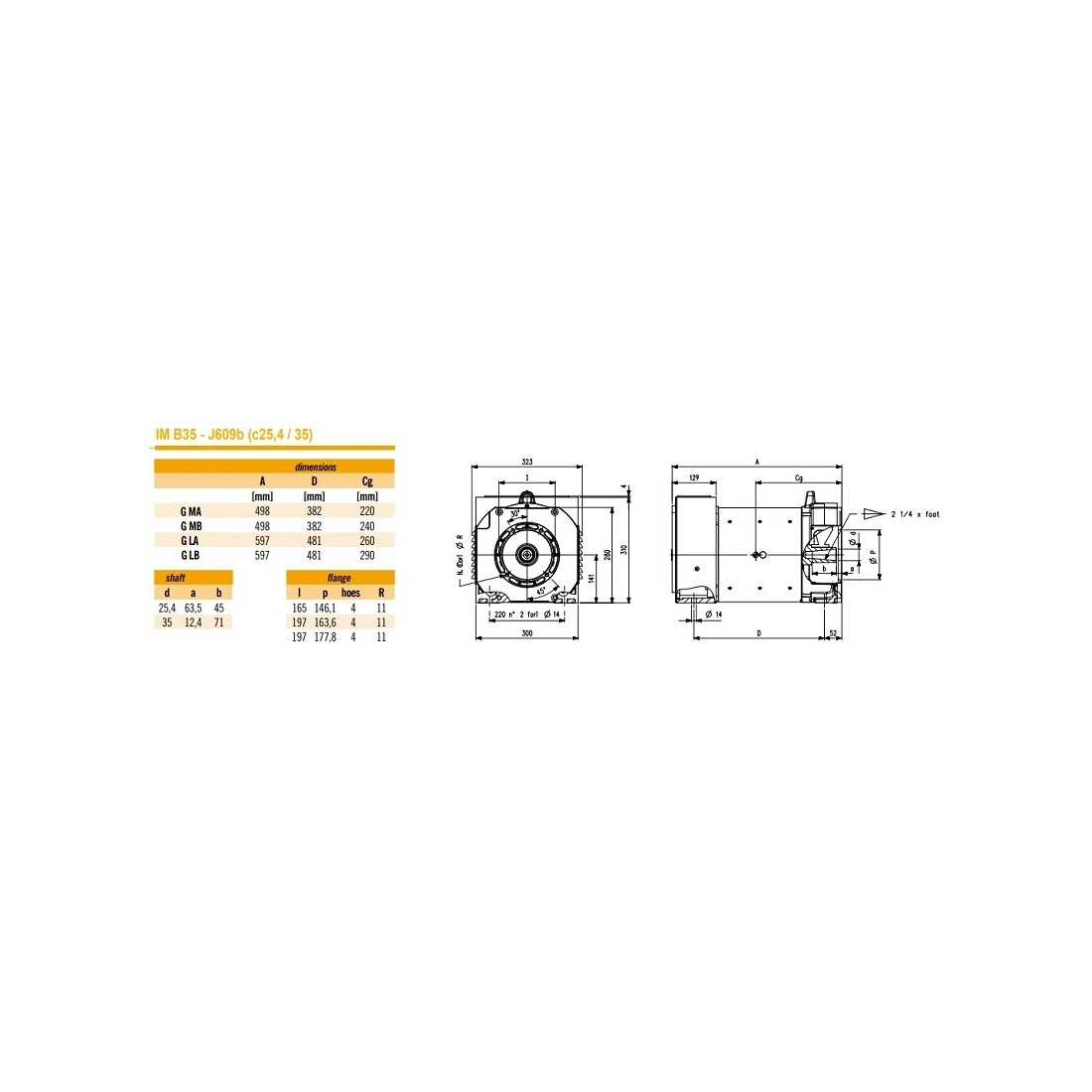

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

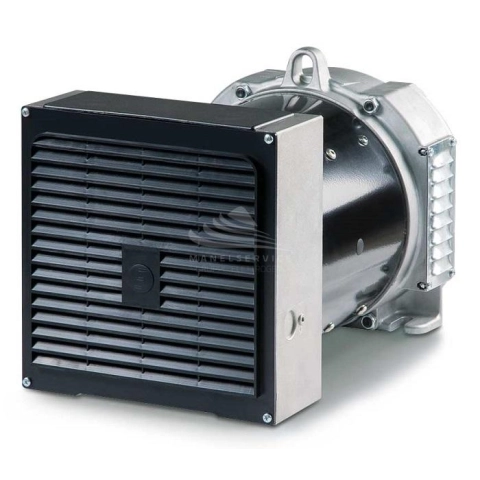

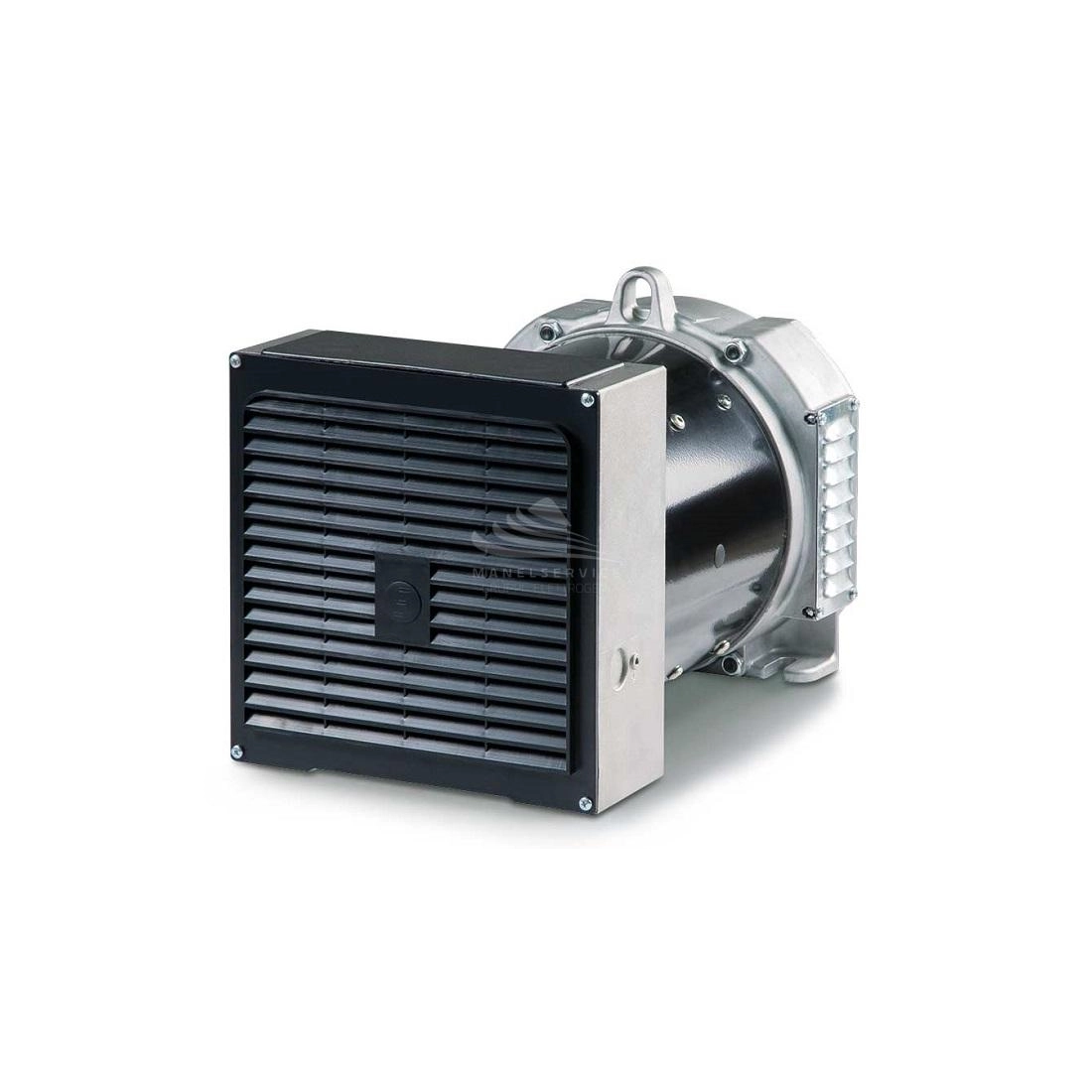

The image is purely indicative.
Phase: Single Phase
Poles: 4
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 17.5
Constant Speed Alternator
Digital AVR
Brushes
Weight (Kg): 104
Protection: IP23
