Phase: Three phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 27
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 110
Protection: IP23

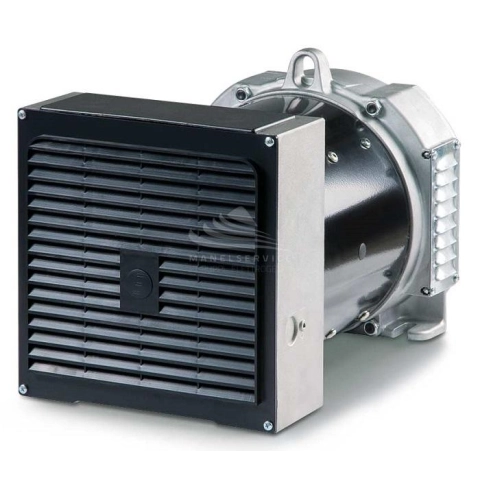

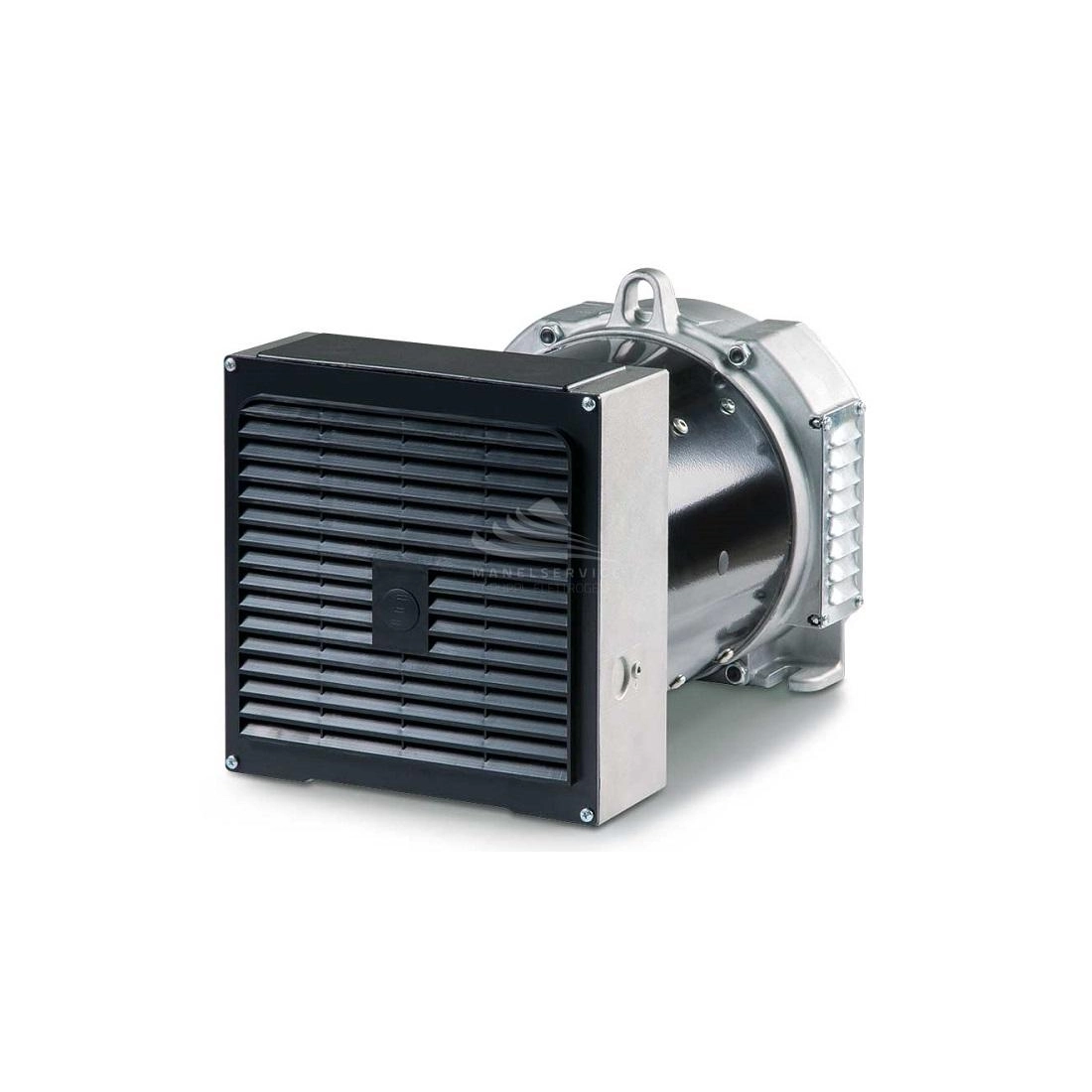

Three phase brushes alternator - Compound.
- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

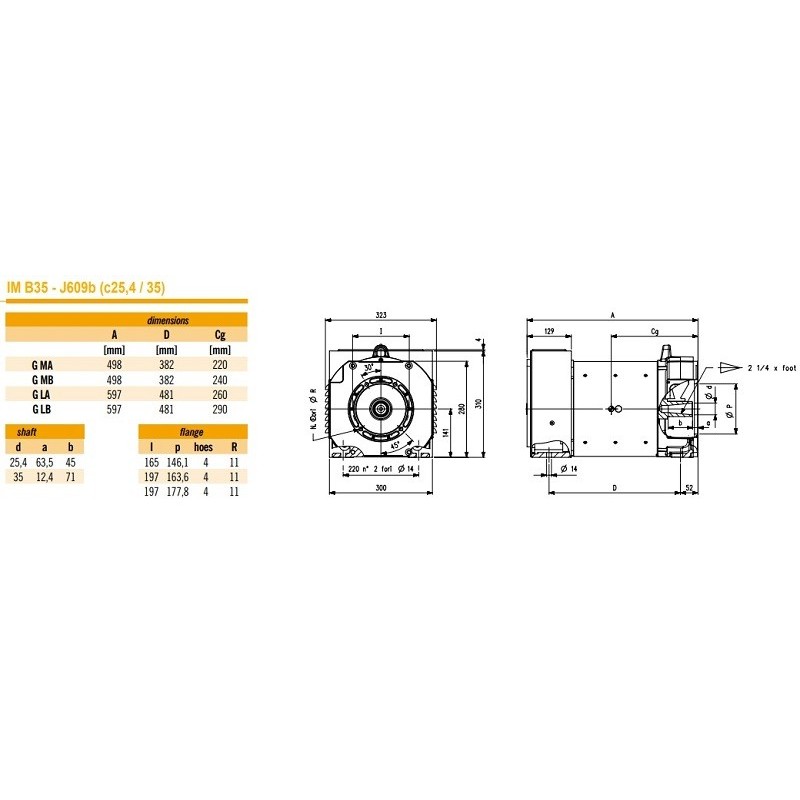

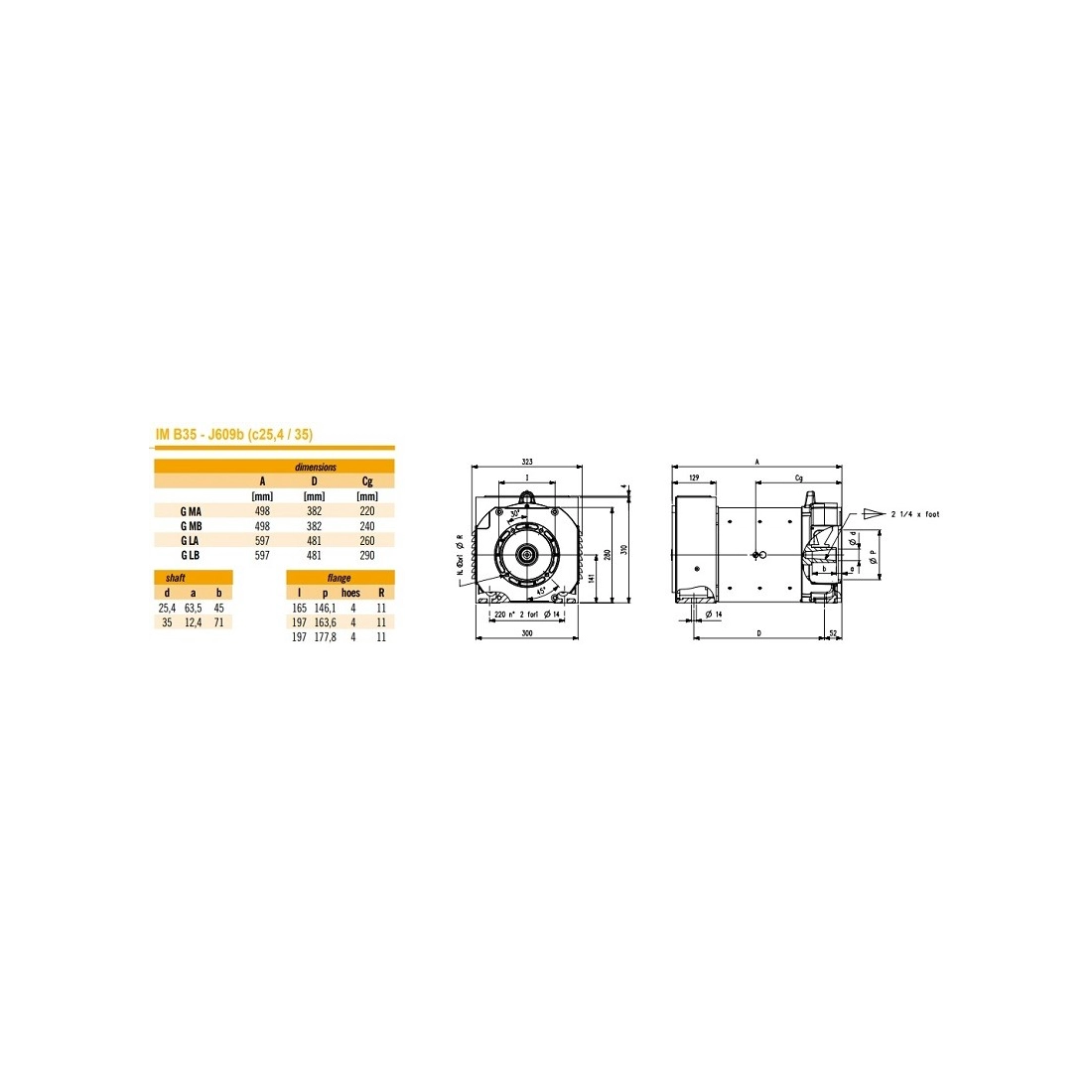

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
The image is purely indicative.
Phase: Three phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 27
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 110
Protection: IP23
