Phase: Three phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 13.2
Three Phase Output (kVA): 22
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 112
Protection: IP23
Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 12
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: HB alternators can be connected for single-phase use

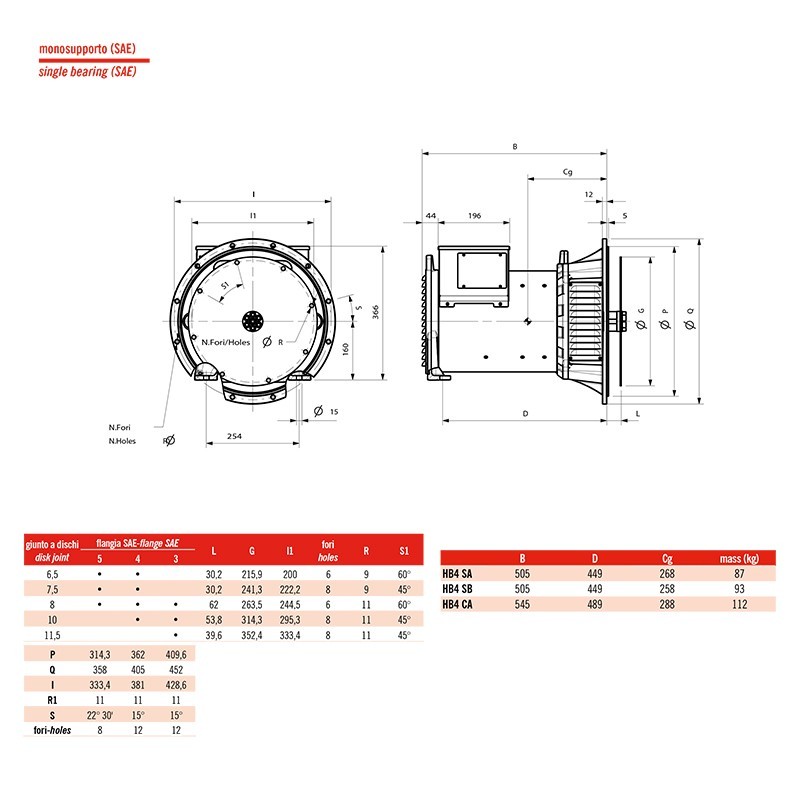

The image is purely indicative.
