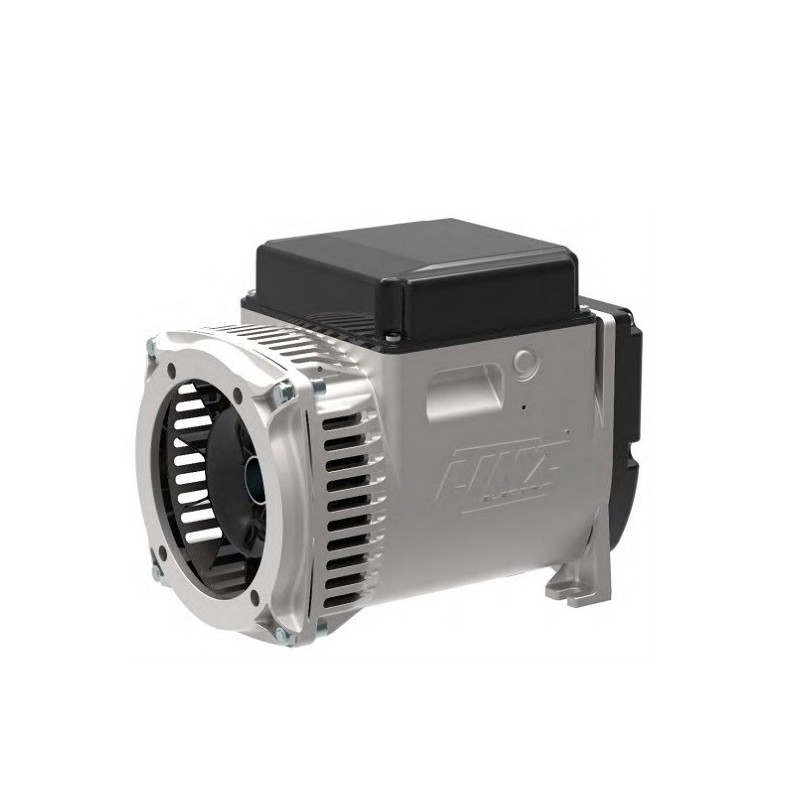

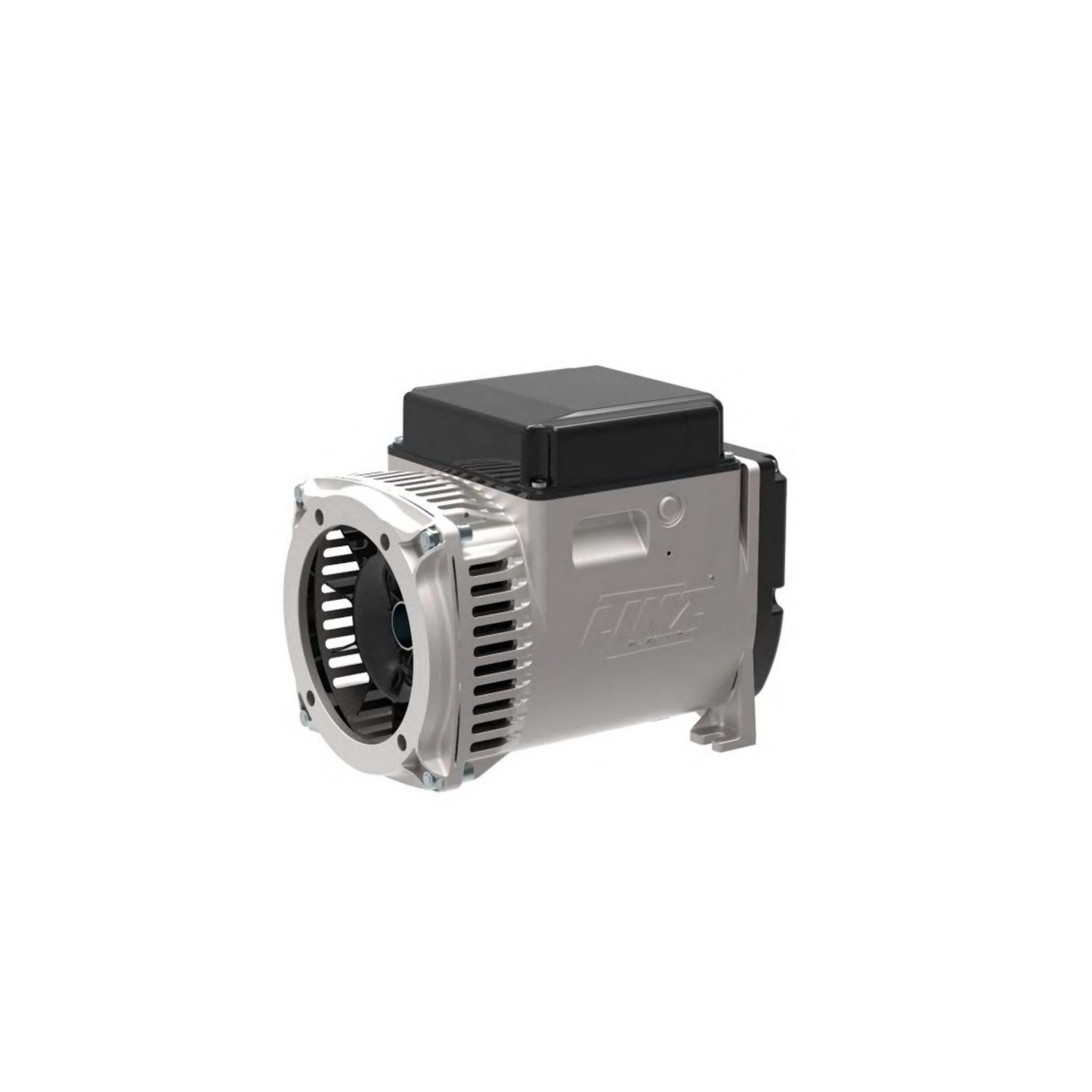

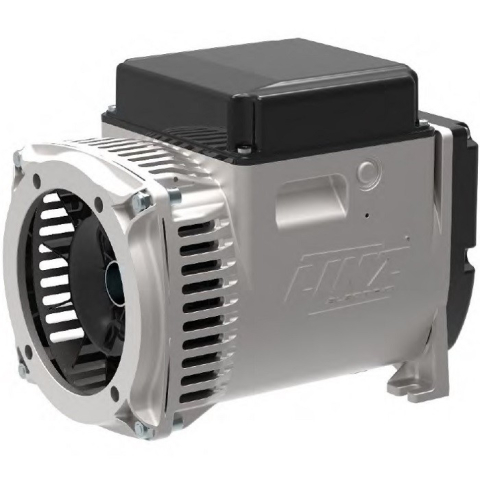

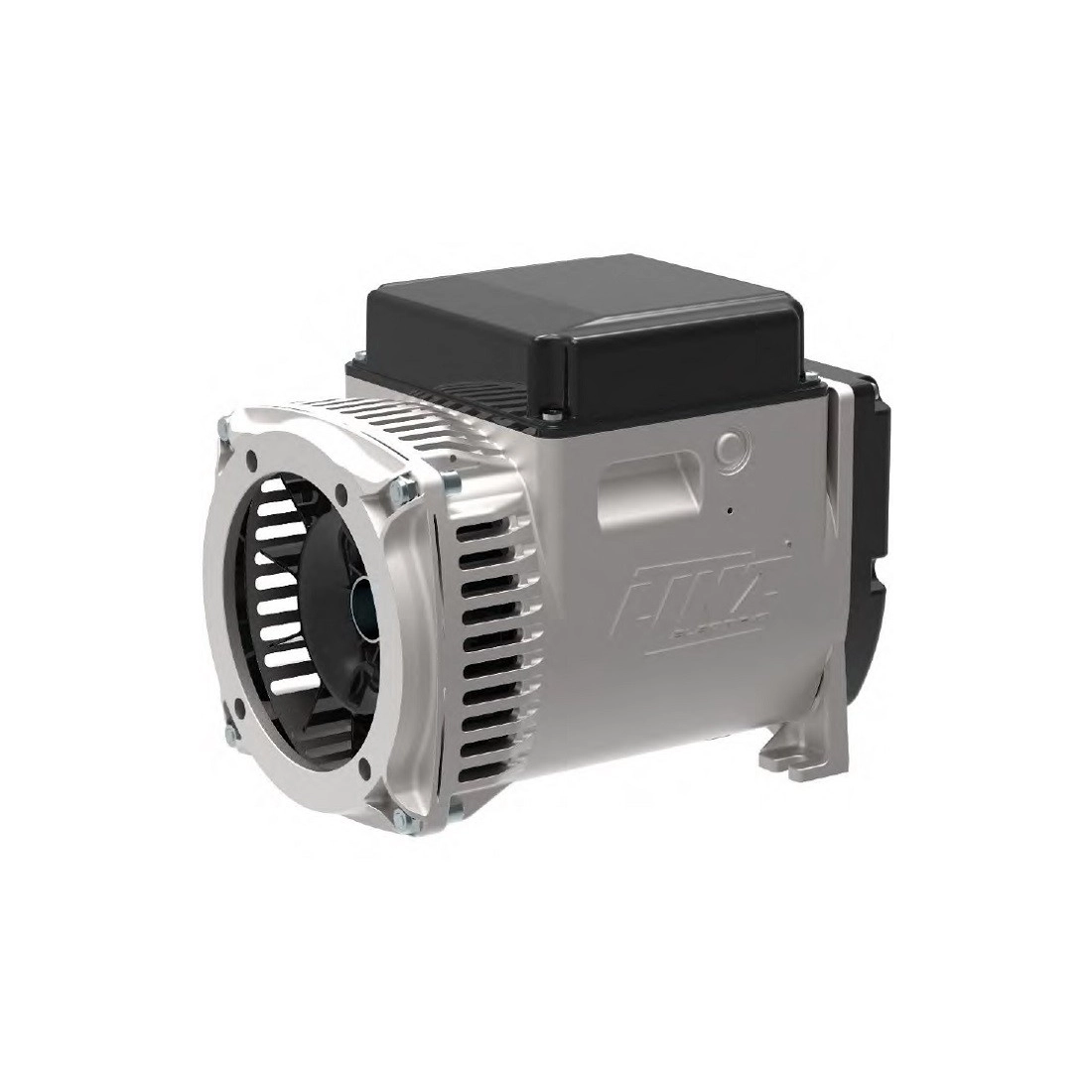

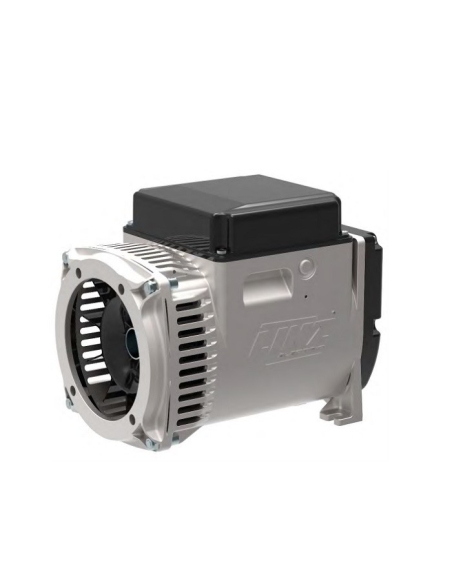

LINZ E1C10S F Single-phase Alternator 110/220V 5 kVA 60 Hz Brushless

LINZ E1C10S F Single-phase Alternator 110/220V 5 kVA 60 Hz Brushless
search
  • LINZ E1C10S F Single-phase Alternator 110/220V 5 kVA 60 Hz Brushless
  • LINZ E1C10S F Single-phase Alternator 110/220V 5 kVA 60 Hz Brushless
  • LINZ E1C10S F Single-phase Alternator 110/220V 5 kVA 60 Hz Brushless
LINZ ELECTRIC

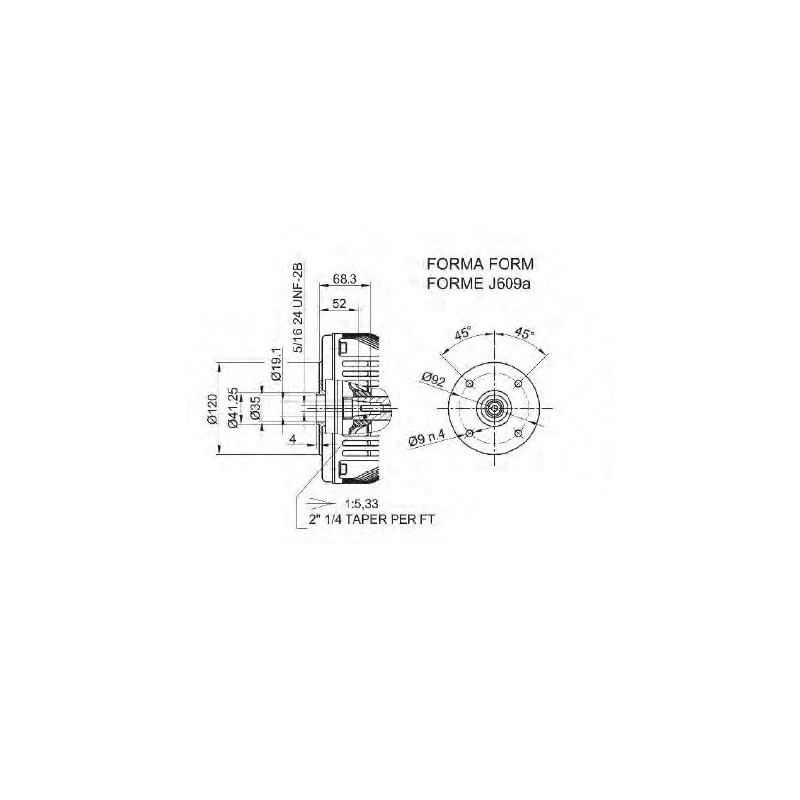

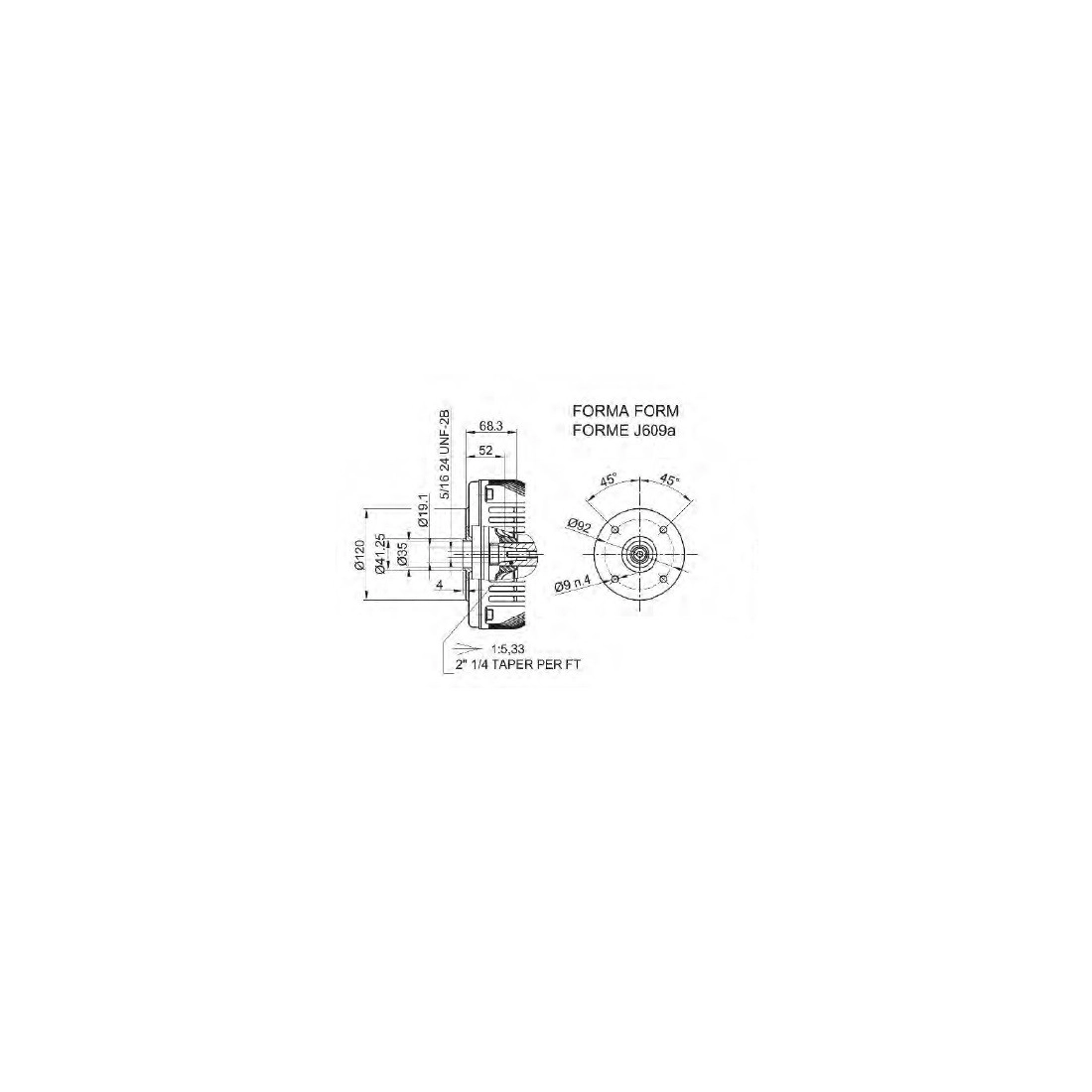

E1C10S F 60 Hz J609a
New product

Rated power at 60Hz (kVA): 5
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.6 at 60Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
5
Continuous power single phase (KVA)
5
Frequency (Hz)
60
Voltage (V)
110 / 220
Engine rpm (rpm)
3600
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
5
Protection degree
IP21
Motor insulation class
H
Length (mm)
294
Width (mm)
195
Height (mm)
245
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
21.3
Details

The E1C10S series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • Possibility of feeding any type of load
  • Wide range of accessories
  • High efficiency
  • Gamma: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: CONDENSER
  • Application: FLOW-UP
  • Images and technical data are not binding.
