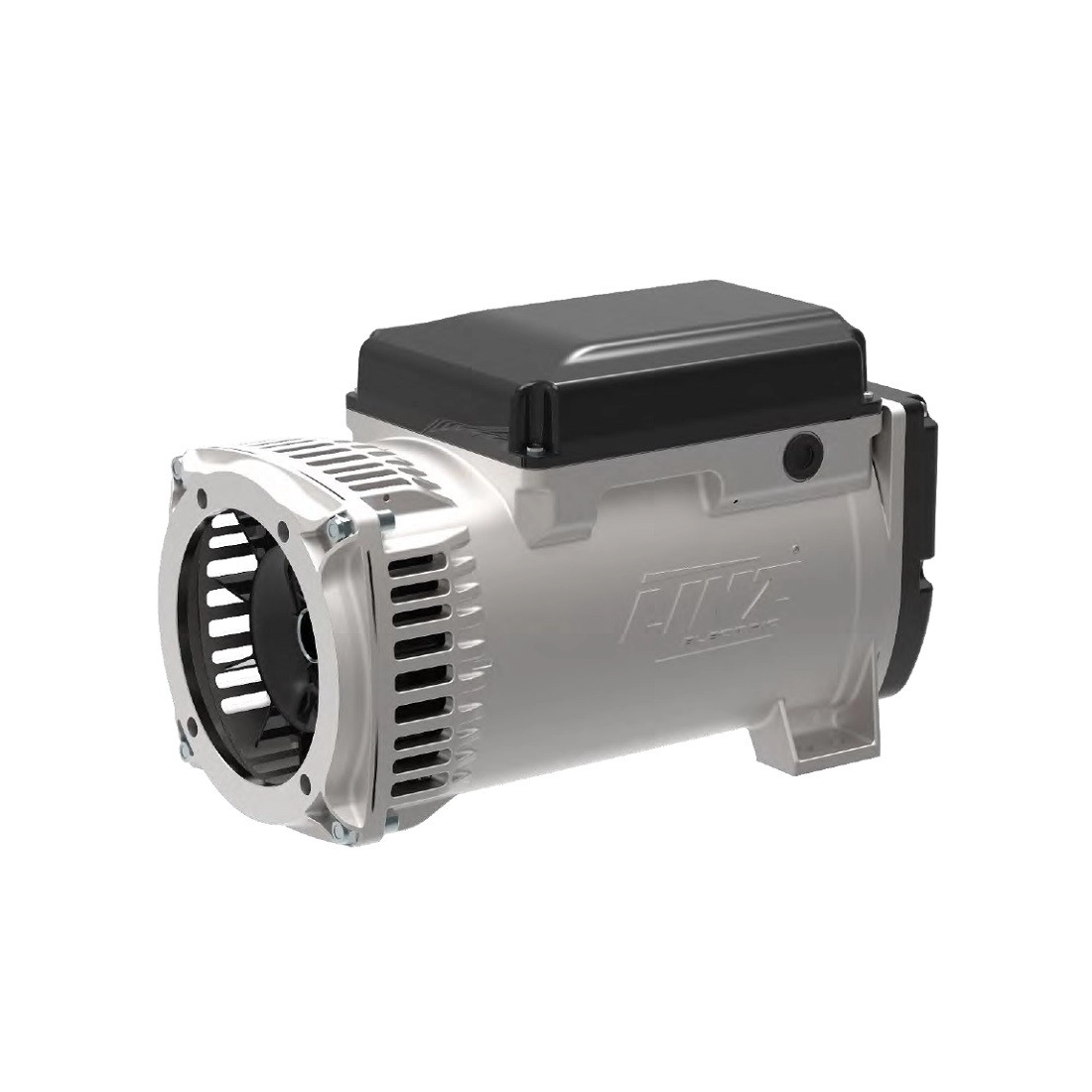

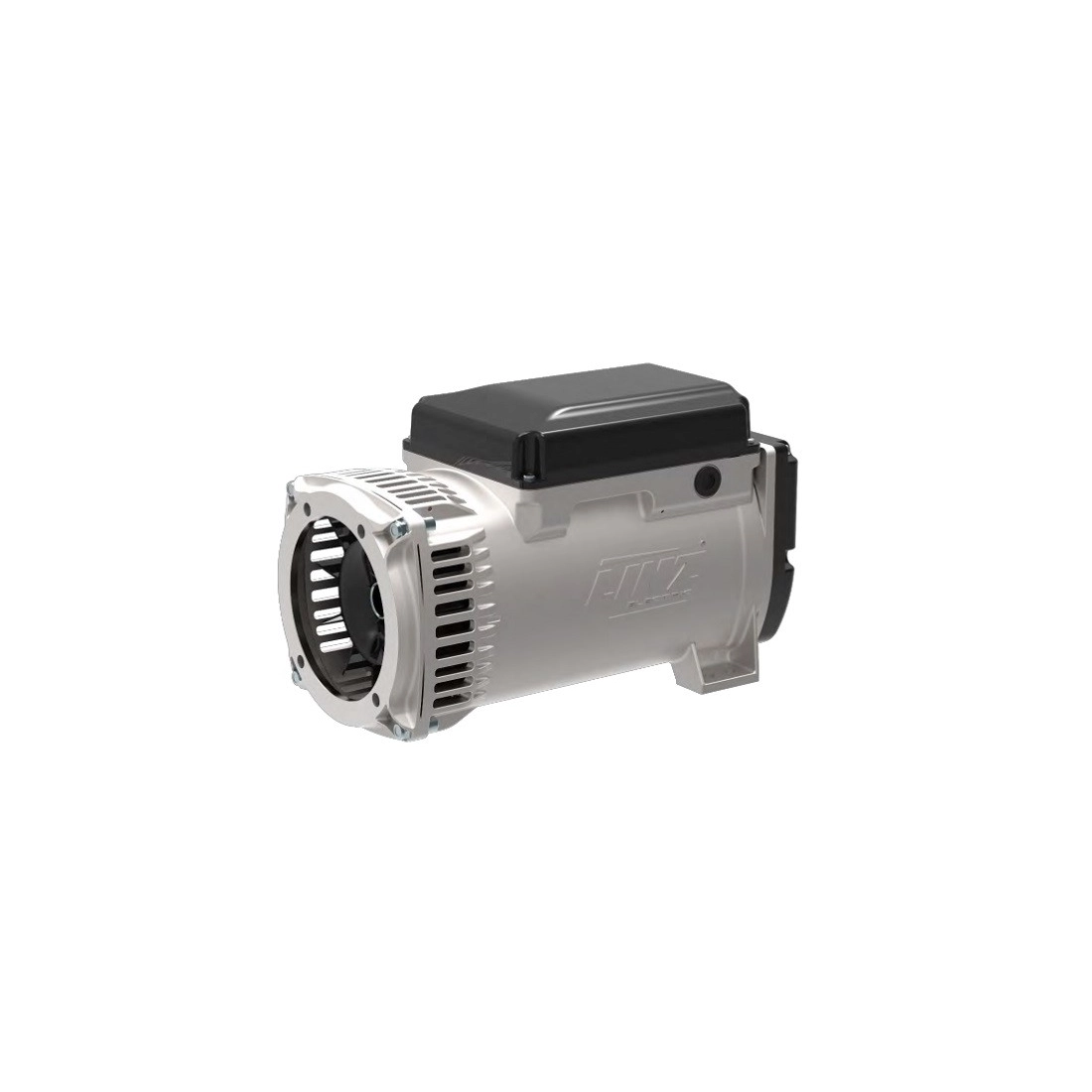

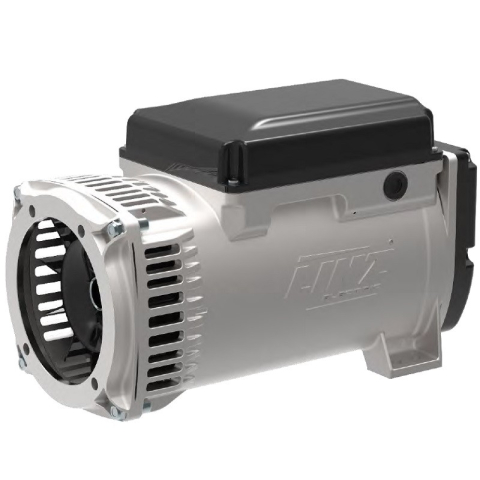

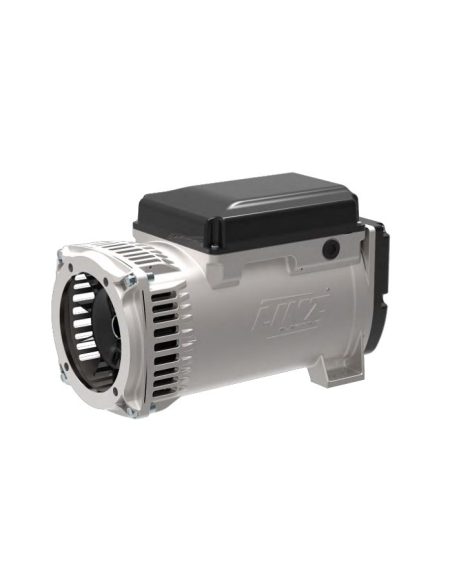

LINZ E1C10M I Single-phase alternator 110/220V 8.5 kVA 60 Hz Brushless

LINZ E1C10M I Single-phase alternator 110/220V 8.5 kVA 60 Hz Brushless
search
  • LINZ E1C10M I Single-phase alternator 110/220V 8.5 kVA 60 Hz Brushless
  • LINZ E1C10M I Single-phase alternator 110/220V 8.5 kVA 60 Hz Brushless
  • LINZ E1C10M I Single-phase alternator 110/220V 8.5 kVA 60 Hz Brushless
LINZ ELECTRIC

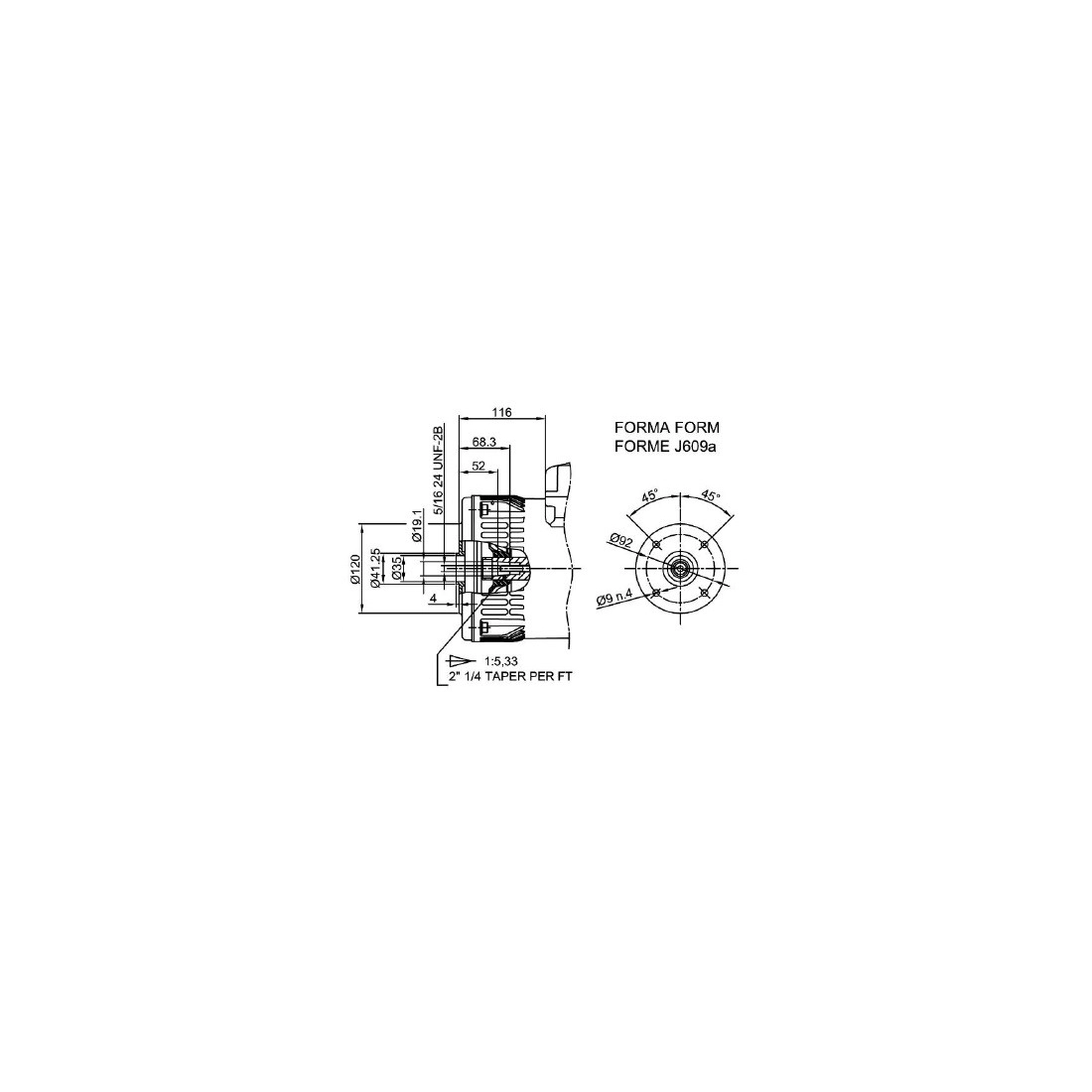

E1C10M I 60 Hz J609a
New product

Rated power at 60Hz (kVA): 8.5
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.5 at 60Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
8.5
Continuous power single phase (KVA)
8.5
Frequency (Hz)
60
Voltage (V)
110 / 220
Engine rpm (rpm)
3600
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
8.4
Protection degree
IP21
Motor insulation class
H
Length (mm)
395
Width (mm)
195
Height (mm)
249
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
29.3
Details

The E1C10M series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • Possibility of feeding any type of load
  • Wide range of accessories
  • High efficiency
  • Gamma: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: CONDENSER
  • Application: FLOW-UP
  • Images and technical data are not binding.

Technical Sheet / Manuals
icona_scheda

Technical Data E1C10M I

(1.18M)
Related Accessories
List price
564,86 € tax incl.
463,00 € tax excl.
Discounted Price
424,88 € tax incl.
348,26 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
