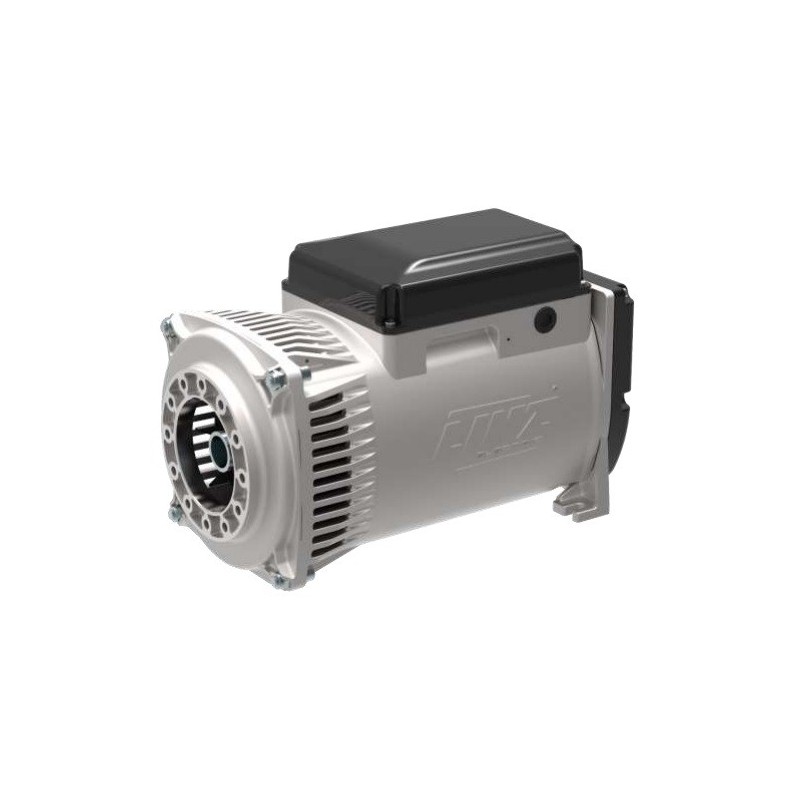

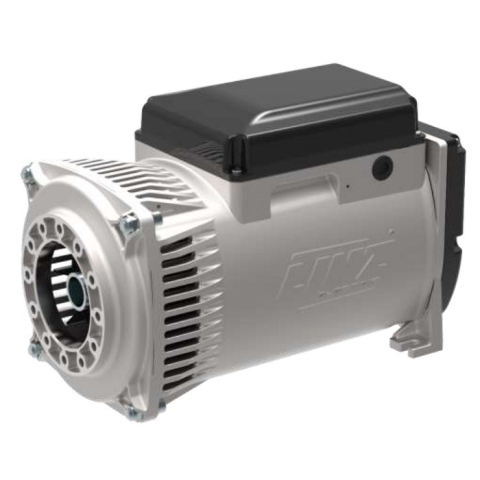

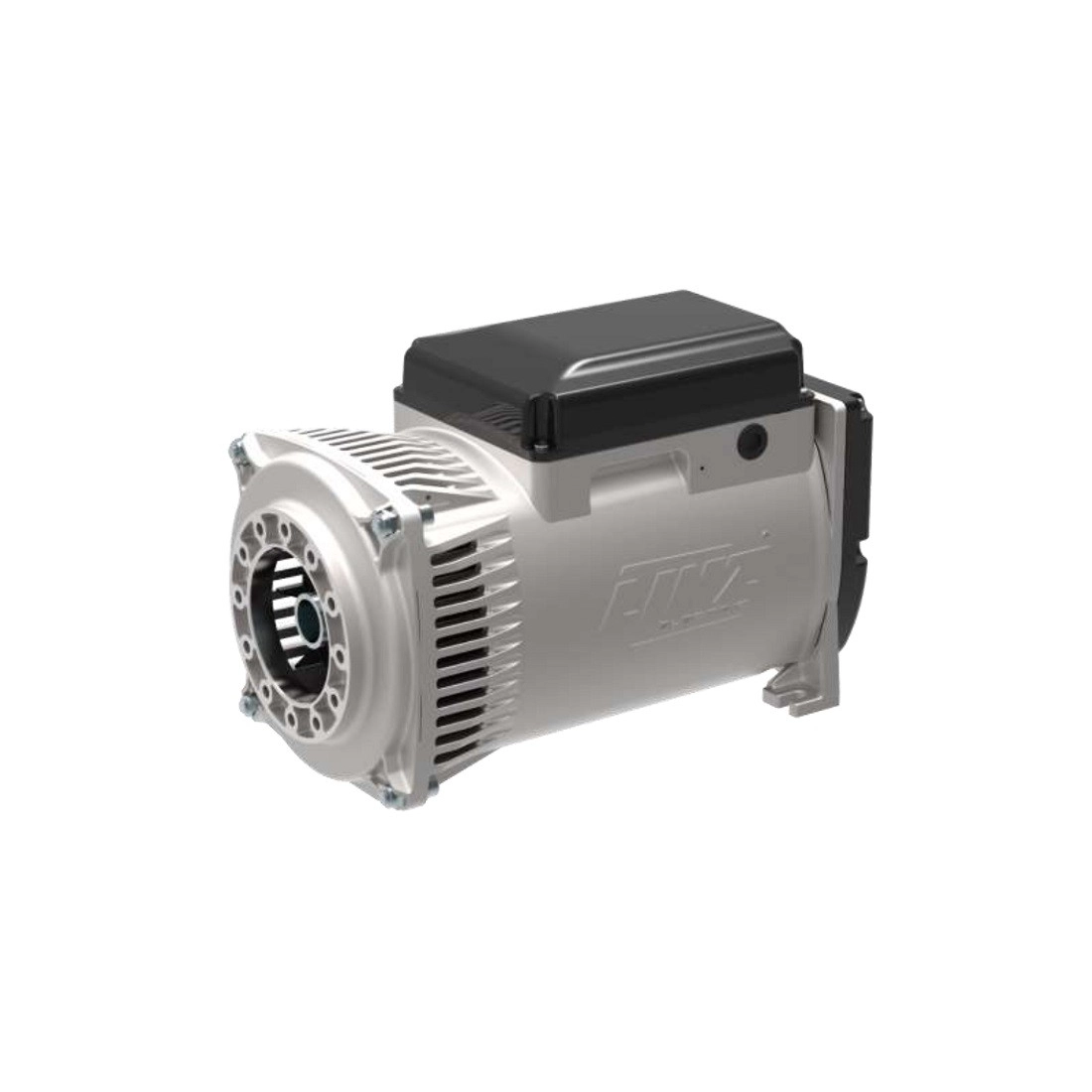

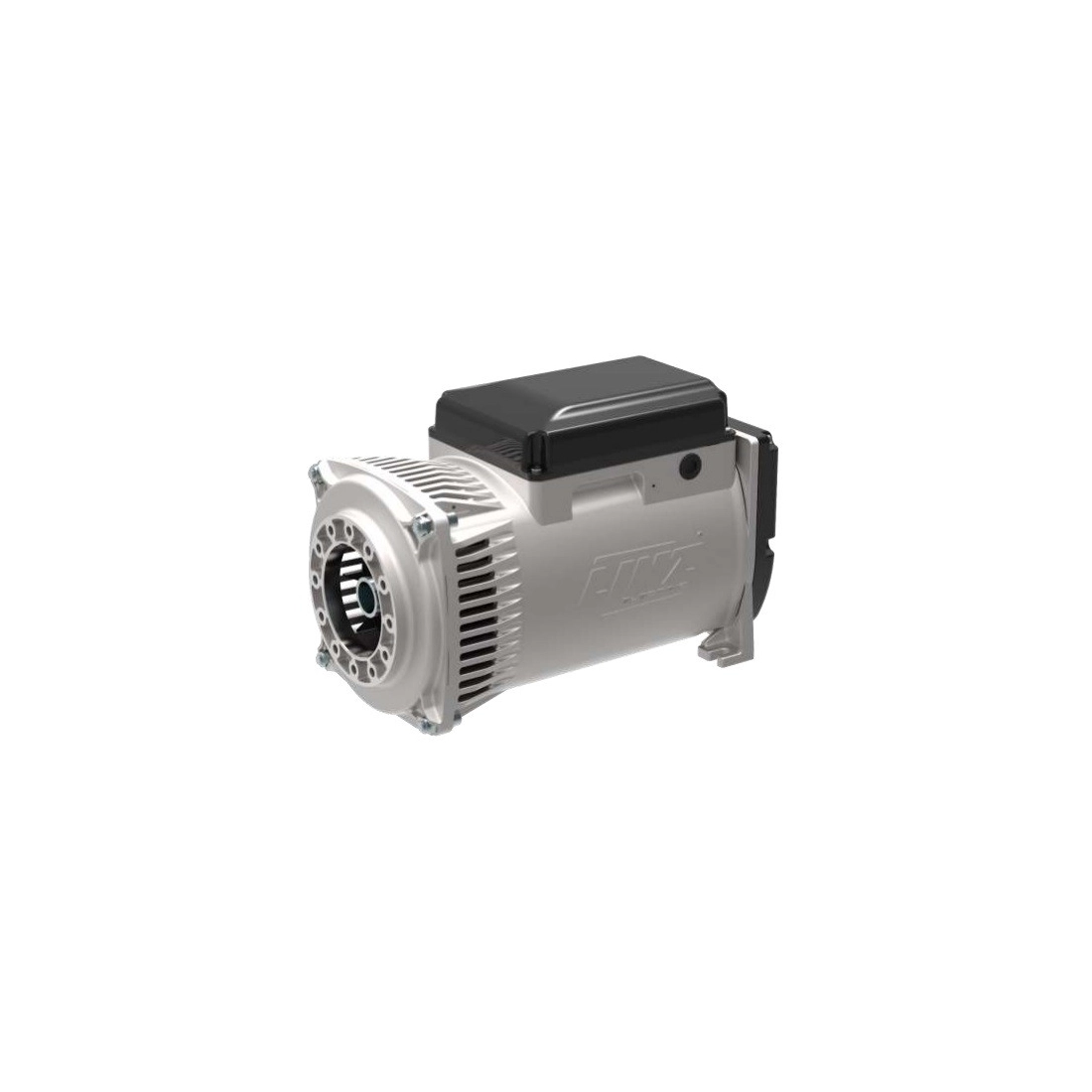

LINZ E1C11M B Single-phase alternator 115/230V 10 kVA 50 Hz Brushless

LINZ E1C11M B Single-phase alternator 115/230V 12 kVA 50 Hz Brushless
search
  • LINZ E1C11M B Single-phase alternator 115/230V 12 kVA 50 Hz Brushless
  • LINZ E1C11M B Single-phase alternator 115/230V 12 kVA 50 Hz Brushless
  • LINZ E1C11M B Single-phase alternator 115/230V 12 kVA 50 Hz Brushless
LINZ ELECTRIC

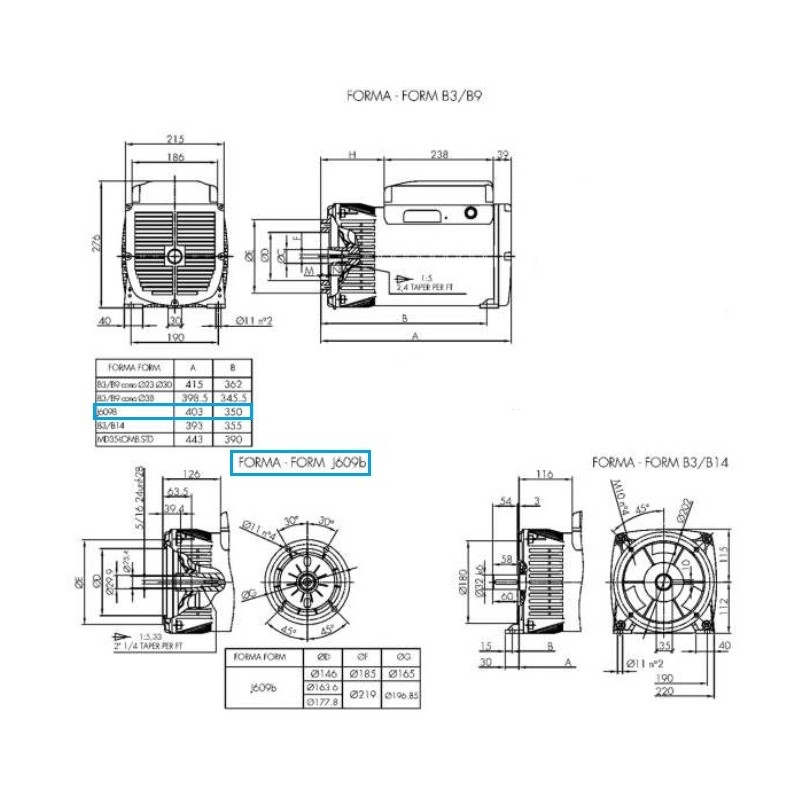

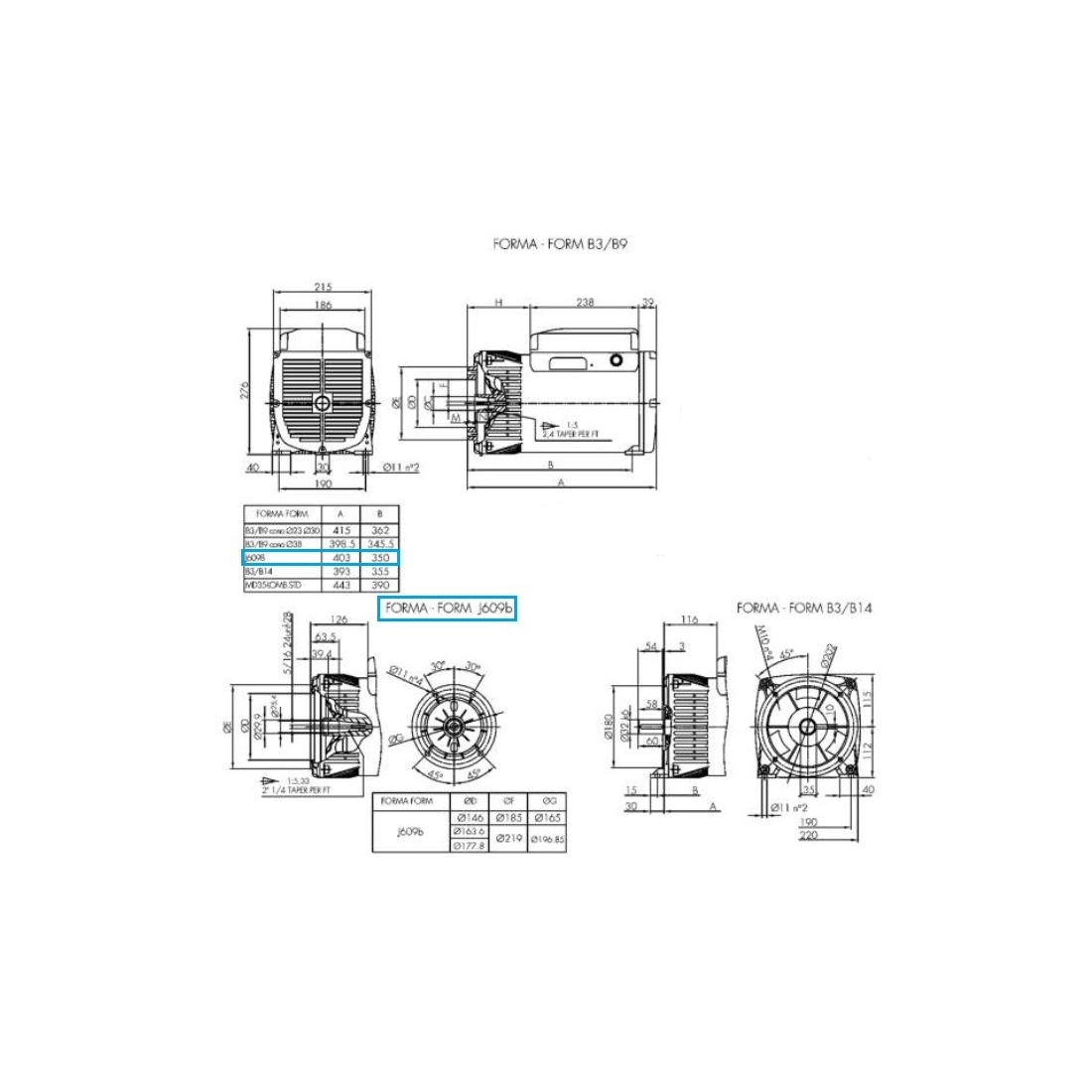

E1C11M B 50 Hz J609b
New product

Rated power at 50Hz (kVA): 10
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.8 at 50Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Maximum power single phase (KW)
10
Maximum power single phase (KVA)
10
Frequency (Hz)
50
Voltage (V)
115 / 230
Engine rpm (rpm)
3000
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
10
Protection degree
IP21
Motor insulation class
H
Length (mm)
440
Width (mm)
230
Height (mm)
275
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
48
Details

The E1C11M series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • Possibility of feeding any type of load
  • Wide range of accessories
  • High efficiency
  • Gamma: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: CONDENSER
  • Application: FLOW-UP
  • Images and technical data are not binding.

Technical Sheet / Manuals
Related Accessories
List price
844,24 € tax incl.
692,00 € tax excl.
Discounted Price
531,15 € tax incl.
435,37 € tax excl.
