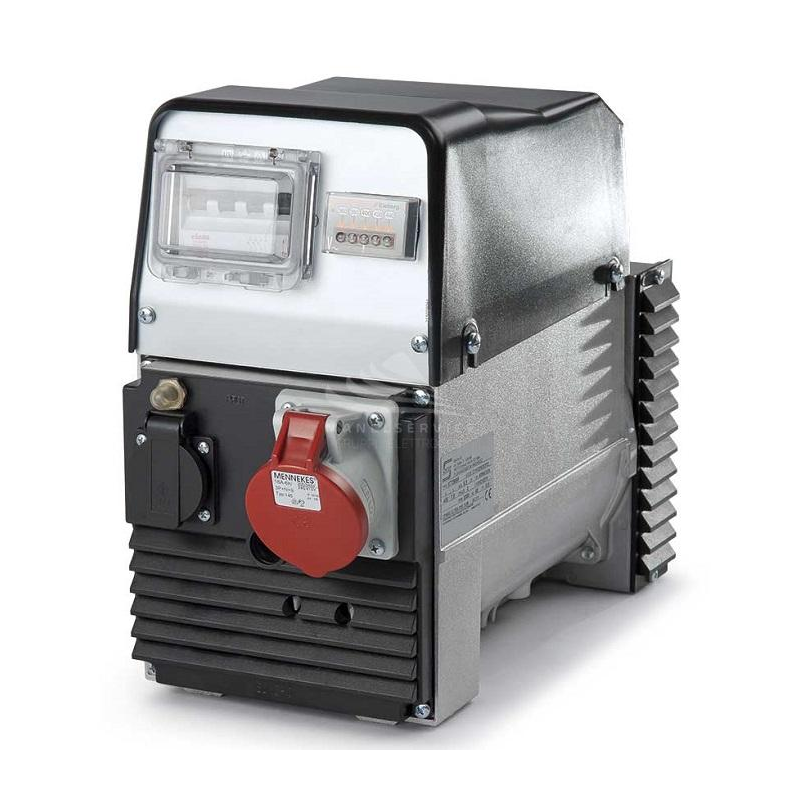

SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound

SINCRO THREE PHASE ALTERNATOR ET2
search
  • SINCRO THREE PHASE ALTERNATOR ET2
  • SINCRO THREE PHASE ALTERNATOR ET2
SINCRO
ET2 MCF J609b c22.14
New product

Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 4
Three Phase Output (kVA): 7
Constant Speed Alternator
Compound
Brushes
Weight (Kg): 32.3
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
3.2
Single-phase power (KVA)
4
Three-phase power (KW)
5.6
Three-phase power (KVA)
7
Efficiency (%)
89
Protection degree
IP23
Dry weight (Kg)
32.3
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Details

Three phase brushes alternator - Compound.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- With reinforced phase

The image is purely indicative.

Technical Sheet / Manuals
icona_scheda

Technical data ET2

(267.46k)
Related Accessories
List price
901,58 € tax incl.
739,00 € tax excl.
Discounted Price
546,56 € tax incl.
448,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
