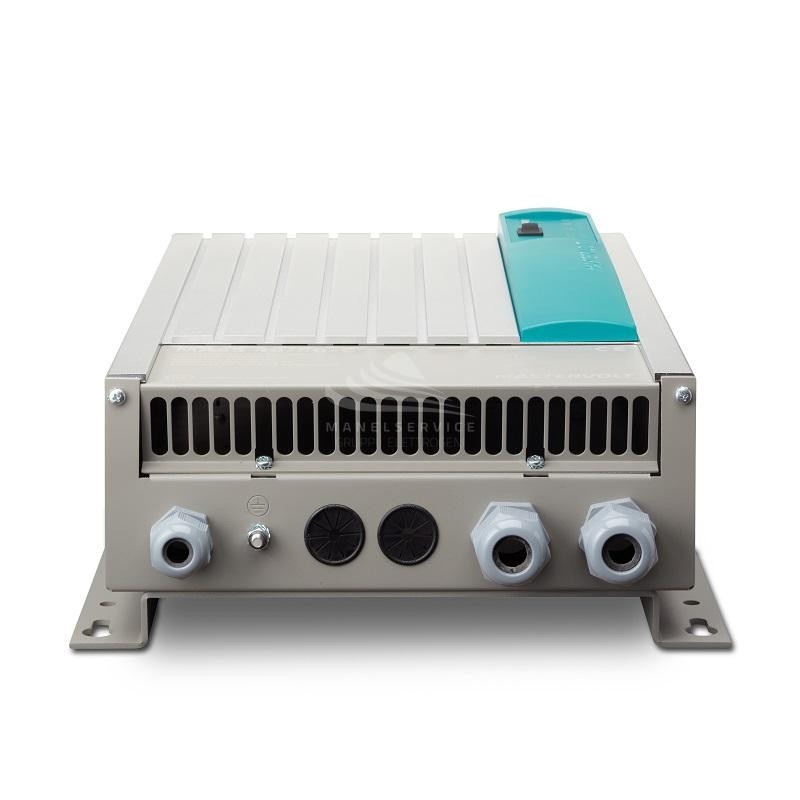

MASTERVOLT MASS 24/25-1ph LITHIUM BATTERY CHARGER
40020256
New product
Nominal voltage: 24 V
Total charging current: 100 A at 28.5 V
Number of battery outputs: 1
Battery capacity range: 200-1000 Ah
Nominal input voltage: 3 x 400 V (365-550 V), 50/60 Hz
Input voltage range: 365-550 V
Power supply function (even without battery): yes
Galvanic isolation: yes
Display/readings display: LED
Depth: 130 mm
Width: 318 mm
Height: 420 mm
Weight: 7.7 kg
Technical features
- Frequency (Hz)
- 50 / 60
- Cooling
- Vario fan
- Protection degree
- IP23
- Length (mm)
- 111
- Width (mm)
- 220
- Height (mm)
- 325
- Nominal output voltage (V)
- 24
- Total charge current
- 25 A 28,5 V
- Number of battery outlets
- 2
- Battery capacity range (Ah)
- 50-250 Ah
- Nominal input voltage (V)
- 230 V (180-265 V)
- Power supply mode
- Yes
- Display/read-out
- LED display
- Approvals
- CE, ABYC A-31, RRR, RMRS, Lloyds, DNV GL
- Charge characteristic
- IUoUo, automatic 3-stage+ for Gel/AGM/liquid lead/Lithium-ion + user-defined option
- Charge voltage Bulk (V)
- 28.5
- Charge voltage Absorption (V)
- 28.5
- Absorption time (h)
- 4
- Charge voltage Float (wet batteries) (V)
- 26.5
- Charge voltage Float (Gel/AGM batteries) (V)
- 27.6
- Temperature sensor
- Yes (included)
- DC voltage compensation
- Yes
- Power consumption (DC side) (mA)
- Less than 1
- Full load consumption (230 V AC) (W)
- 880
- Current Control function
- Yes, through MasterBus
- Power factor control
- Greater than 0.95
- Temperature range (ambient temp.)
- -25 °C at 80 °C, reduction greater than 45 °C -13 °F at 176 °F
- Protections
- Over temperature, over load, short circuit, high/low battery voltage
- MasterBus compatible
- Yes
- Charger Status Interface (alarm contact)
- Yes
- Weight (Kg)
- 3.3
Details
MASTERVOLT MASS 24/25-1ph LITHIUM BATTERY CHARGER
The MASTERVOLT MASS 24/25-1ph battery charger has a nominal voltage of 24 V and features an LED display for digital readout and remote control. GMDSS.
MASTERVOLT MASS 24/25-1ph battery chargers are designed for heavy duty service in professional, semi-professional and recreational environments. Even under extreme conditions, the MASTERVOLT MASS 24/25-1ph will run smoothly at full power.
The reliability and technologies behind these chargers have been proven in practice for many years. With an average lifetime (MTBF) of 180.000 hours at full load in 7/24 operation, the MASTERVOLT MASS 24/25-1ph are ideal for the most demanding tasks and in any situation where a reliable energy supply is needed. MASTERVOLT MASS 24/25-1ph can be easily connected to the MasterBus network with one cable and one connection.
MASTERVOLT MASS 24/100-3ph TECHNICAL SPECIFICATIONS
Nominal voltage: 24 V
Total charging current: 25 A at 28.5 V
Number of battery outputs: 2
Battery capacity range: 50-250 Ah
Nominal input voltage: 230 V (180-265 V), 50/60 Hz
Power supply function (even without battery): yes
Galvanic isolation: yes
Display/readings display: LED
Charging voltage in Bulk: 28.5 V
Charging voltage in Absorption: 28.5 V
Absorption time: 4 hours
Temperature sensor: yes (included)
Self-consumption (DC side): < 1 mA
Full load consumption (230 V AC): 800 W
Current Control function: yes, via MasterBus
Power factor: > 0.95
Ambient temperature: -25 °C to 80 °C, reduction > 40 °C
Cooling: variable speed fan
Degree of protection: IP23
Protections: overtemperature, overload, short-circuit, high/low battery voltage
MasterBus compatible: yes
Charger status interface (CSI) (alarm counting): yes
Depth: 111 mm
Width: 220 mm
Height: 325 mm
Weight: 3.3 kg
Looking for a charger with different technical specifications? Here you can find the full range of MASTERVOLT chargers or other specialized brands.
Images and technical data are not binding and may be subject to change by the manufacturer.
List price
tax incl.
tax excl.
Discounted Price
1.201,70 € tax incl.
985,00 € tax excl.
Technical features
- Frequency (Hz)
- 50 / 60
- Cooling
- Vario fan
- Protection degree
- IP23
- Length (mm)
- 111
- Width (mm)
- 220
- Height (mm)
- 325
- Nominal output voltage (V)
- 24
- Total charge current
- 25 A 28,5 V
- Number of battery outlets
- 2
- Battery capacity range (Ah)
- 50-250 Ah
- Nominal input voltage (V)
- 230 V (180-265 V)
- Power supply mode
- Yes
- Display/read-out
- LED display
- Approvals
- CE, ABYC A-31, RRR, RMRS, Lloyds, DNV GL
- Charge characteristic
- IUoUo, automatic 3-stage+ for Gel/AGM/liquid lead/Lithium-ion + user-defined option
- Charge voltage Bulk (V)
- 28.5
- Charge voltage Absorption (V)
- 28.5
- Absorption time (h)
- 4
- Charge voltage Float (wet batteries) (V)
- 26.5
- Charge voltage Float (Gel/AGM batteries) (V)
- 27.6
- Temperature sensor
- Yes (included)
- DC voltage compensation
- Yes
- Power consumption (DC side) (mA)
- Less than 1
- Full load consumption (230 V AC) (W)
- 880
- Current Control function
- Yes, through MasterBus
- Power factor control
- Greater than 0.95
- Temperature range (ambient temp.)
- -25 °C at 80 °C, reduction greater than 45 °C -13 °F at 176 °F
- Protections
- Over temperature, over load, short circuit, high/low battery voltage
- MasterBus compatible
- Yes
- Charger Status Interface (alarm contact)
- Yes
- Weight (Kg)
- 3.3
