FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 150 LITRES TANK

  • New
FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 200 LITRES TANK
search
  • FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 200 LITRES TANK
  • FINI ADVANCED MK 103-200-3M Compressor with 200 Lt. Tank
FINI
BNHC504FNM509
New product

Phase Type: Single-phase
Supply voltage: 230 V
Pumping air intake: 365 lt/min.
Pumping type: belt type
Maximum pressure: 10 bar
Electric motor power: 3 HP
Tank: Horizontal 150 lt
Length: 890 mm
Width: 1310 mm
Height: 1090 mm
Net weight: 85 Kg
Trailer

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1375
Number cylinders
2
Power (KW)
2,2 KW - 3 HP
Maximum flow (m³/h)
21,9
Intake air (L/m)
365
Pressure (bars)
10
Tank capacity (L)
150
Acoustic power
93 dB(A)
Acoustic pressure
79 dB(A) at 7 m
Length (mm)
1460
Width (mm)
430
Height (mm)
1090
Dry weight (Kg)
85
Product type
Compressor
Details

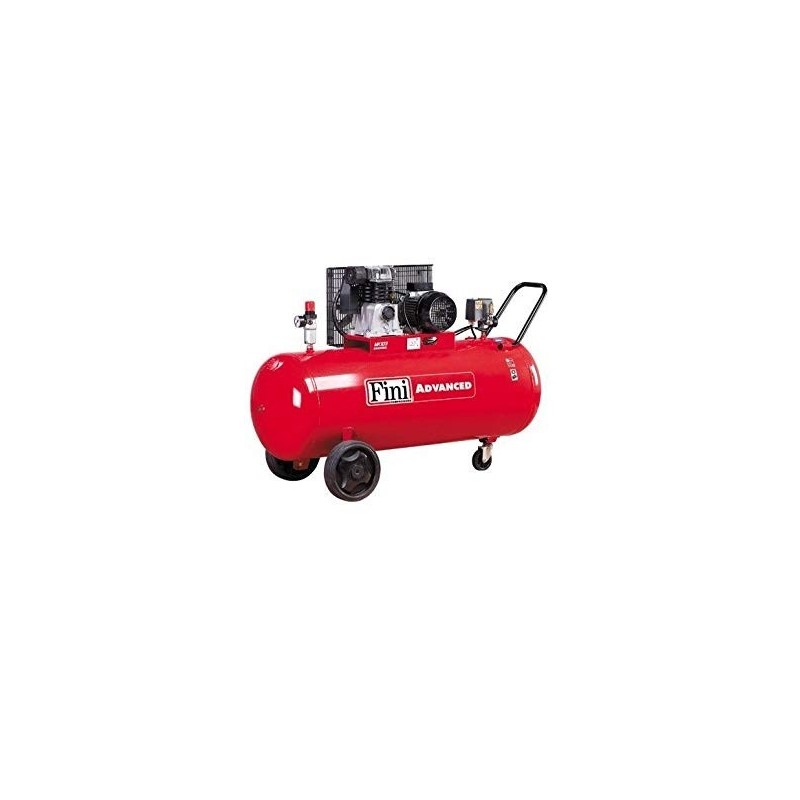

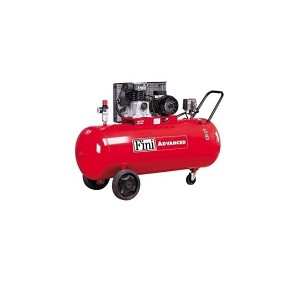

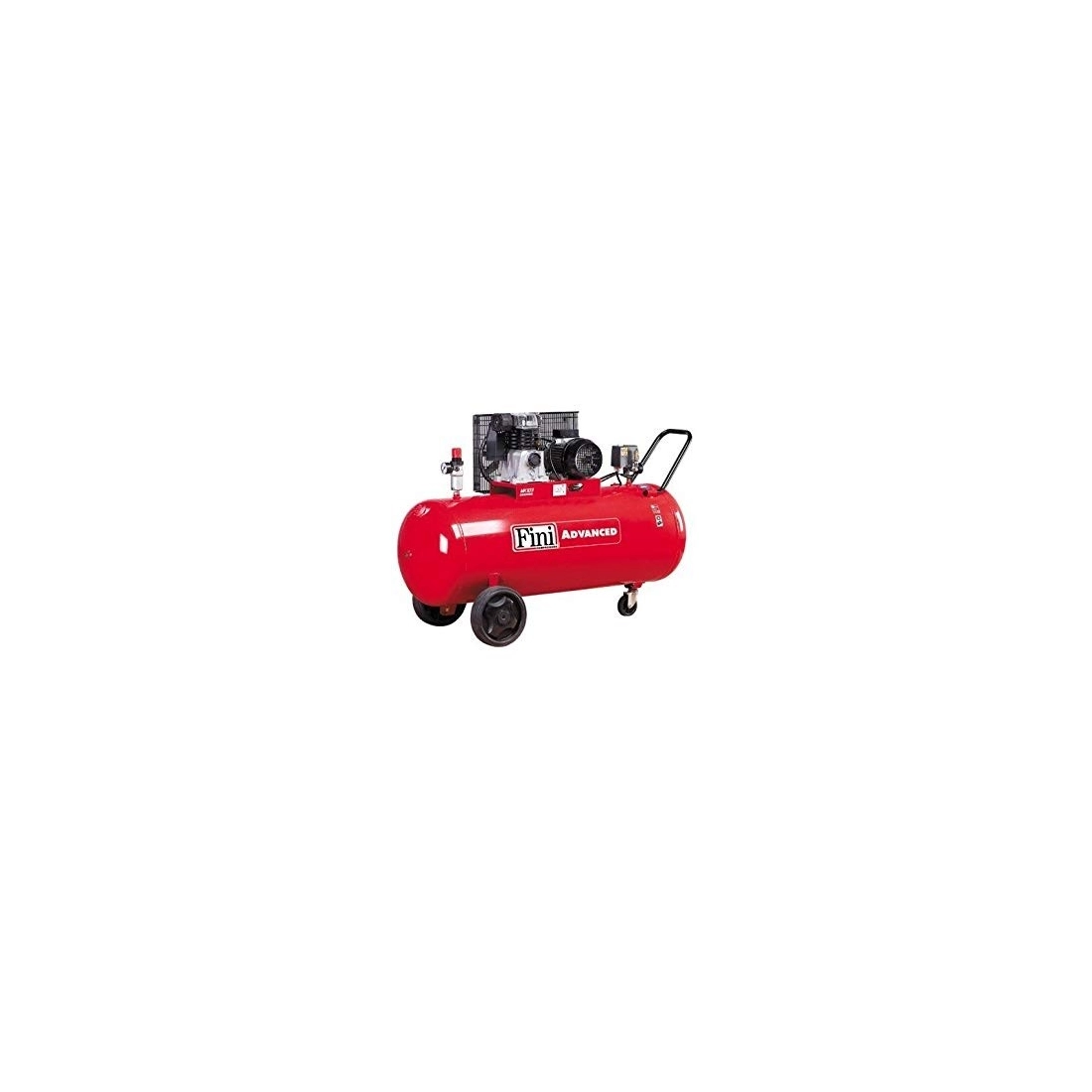

FINI ADVANCED MK 103-150-3M Compressor 3 HP - Horizontal tank 150 lt


MK103 - twin-cylinder compressor - wheeled - horizontal 150-litre tank - 10 Bar Max - single-phase - cooling manifold - wheels and handle.

The FINI ADVANCED MK 103 150-3M compressor is the reference for demanding hobbyists and professionals who want a reliable, high-performance and long-lasting machine.

It is equipped with an electric motor with a power of 3 HP, has a compressed air intake capacity of 365 liters of air per minute, can express a maximum pressure of 10 bar.

It has a horizontal compressed air storage tank of 150 litres.

The induction motor is characterised by its very long life and low maintenance requirements.

This motor is in fact free of brushes, the main component subject to wear in electric motors. The absence of this component gives the motor its proverbial durability.

Intake air production: 365 lt/min
Head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil lubrication
Speed: 1375 rpm

List price
1.671,40 € tax incl.
1.370,00 € tax excl.
Discounted Price
752,13 € tax incl.
616,50 € tax excl.
