MCH MINIDUMPER H500C GX POWER CARRIES WITH HYDRAULIC DUMPER CART SELF-LOADING SHOVEL 500 Kg

MCH MINIDUMPER H500C GX POWER CARRIES WITH HYDRAULIC DUMPER CART SELF-LOADING SHOVEL 500 Kg

The MCH MINIDUMPER H500CGX power carries is equipped with a Honda GX200 gasoline engine, with a load capacity of up to 500Kg.

The MCH MINIDUMPER H500CGX power carries your work easier, make transporting heavy materials easier and safer. In addition, in reducing accidents at work, they also take away a weight from you.

MCH MINIDUMPER H500CGX is designed for the most demanding professionals, are equipped with a deep tipper, ideal for transporting materials (rubble, sand, stones, bricks, concrete, wood...). Its hydrostatic tipping function facilitates your work, allowing you to unload up to 500 kg with the simple action of the control lever.

This power carries is suitable for a whole range of tasks that require moving heavy materials. Equipped with the renowned Honda GX200 4-stroke engine, they are solid and efficient and can do any job to the fullest.

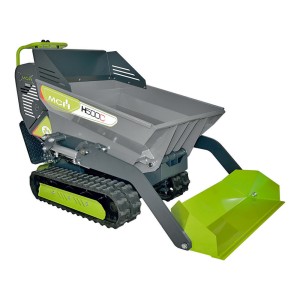

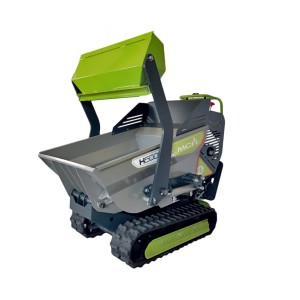

The power carriers MCH MINIDUMPER H500CGX is equipped with a selfloading shovel, with which you can load and move, without any effort, materials of various kinds, in the construction and agricultural field. The hydraulic selfloading shovel makes your work easier, make the transport of heavy materials simpler and safer, moreover, in reducing the possibility of accidents at work.

TECHNICAL SPECIFICATIONS MCH MINIDUMPER H500CGX

Engine: Honda GX200, OHV 4-stroke
Displacement: 196 cc
Power: 4.1 KW
Engine RPM: 3600 rpm
Fuel: Gasoline
Transmission: Hydrostatic
Advance Speed: 1 Speed 2.5 Km/h
Hydraulic motor type: Orbital
Hydraulic motor displacement: 200cc
pump type: Double gear
Displacement: Fixed
Maximum pressure: 180 bar
Operating pressure: 150 bar
Pump Flow Rate: 4.2+4.2 cc/rpm
Safety System: Block Valves
Oil Tank: 14 l
Dump Truck Volume: 0.21 m
Tipping: Hydraulic
Maximum slope allowed: 20%
Flat load capacity: 500 kg
Slope load capacity: 350 kg
Rubber tracks (mm) : 180 x 60 x 38
Width: 1478 mm
Depth: 835 mm
Height: 1250 mm
Net weight: 395 kg

Looking for a product with different technical characteristics? Here you can find the full range of power carries MCH or other specialized brands.

Images and technical data are not binding and may be subject to revisions by the manufacturer.
