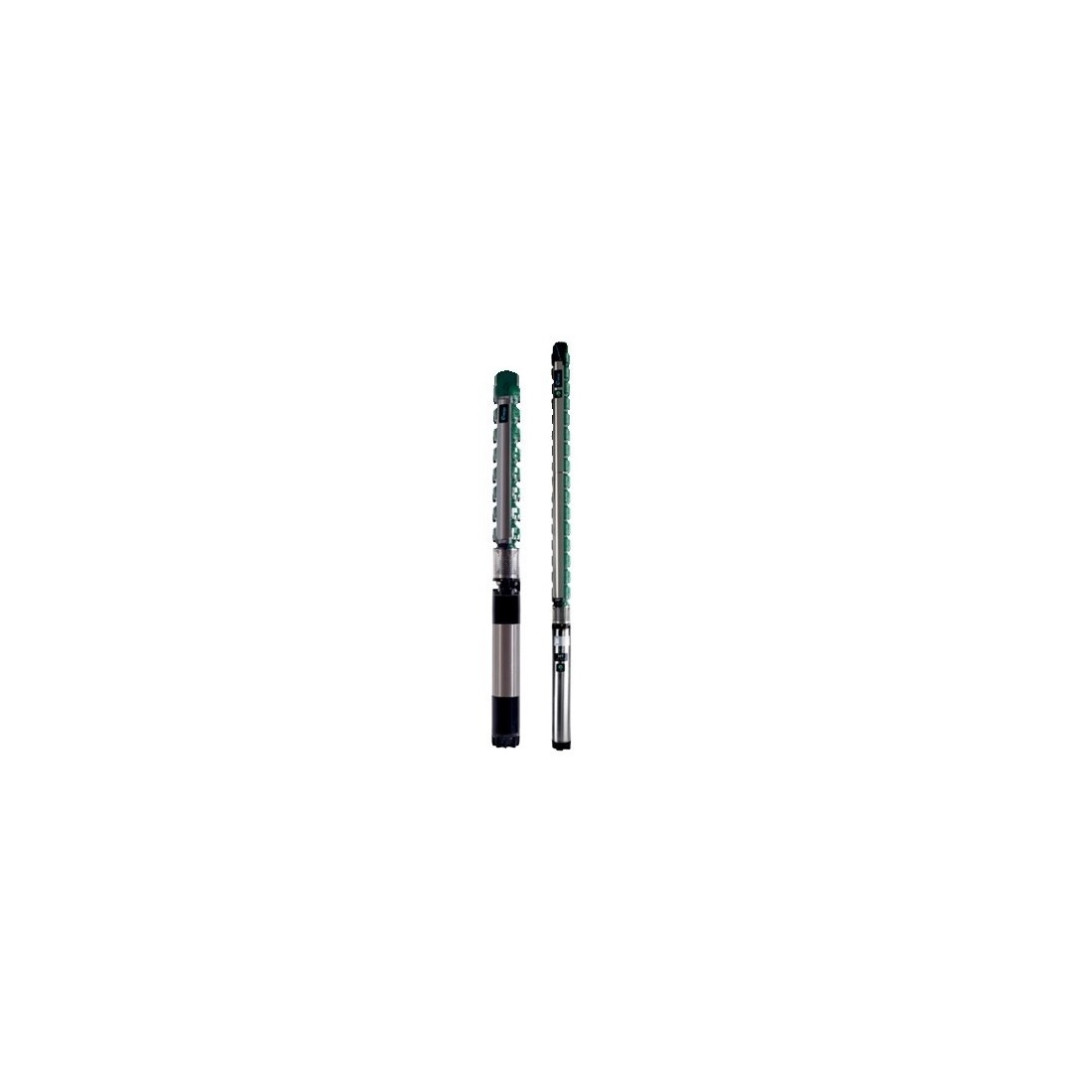

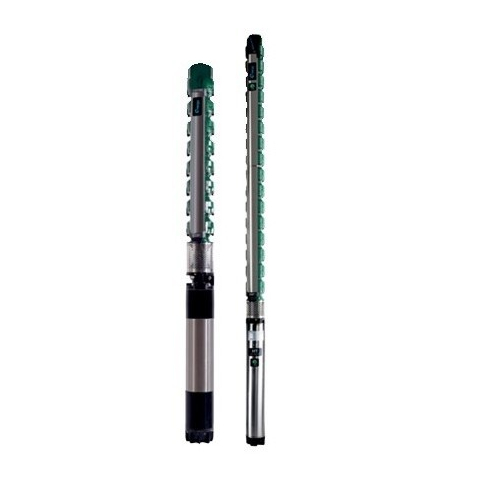

CAPRARI SUBMERSIBLE ELECTRIC PUMP WITH 30 KW MOTOR

  • New
CAPRARI SUBMERSIBLE ELECTRIC PUMP WITH 30 KW MOTOR
search
  • CAPRARI SUBMERSIBLE ELECTRIC PUMP WITH 30 KW MOTOR
E8P95/4C+MPC840A-8V
New product

Pumped liquid: Water
Max. temperature of pumped liquid: 25 °C
Maximum density: 1 kg/dm³
Maximum viscosity: 1 mm²/s
Max. solids content: 100 g/m³
Max. number of starts/hour: 10
Minimum submergence: 507.5 mm
Maximum power consumption: 30.2 KW
Maximum pump efficiency: 79.5
Frequency: 50 Hz
Rotation speed: 2890 1/min
Voltage: 400 V
Pump weight 69,5 Kg
Submersible motor weight 128 Kg
Electric pump weight 197,5 Kg
Motor model: MPC840/1A-8
Nominal power: 30 KW
Rated current: 63.5 A
Poles: 2
Revolutions per minute: 2890
Degree of protection: IP68
Maximum overall diameter: 203 mm
Height: 2016.5 mm
Number of stages: 4
Type of installation: vertical

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
2890
Efficiency (%)
79.5
Protection degree
IP68
Nominal power continuous
Pump type
ELECTRIC SUBMERSIBLE PUMP
Width (mm)
203
Height (mm)
2016,5
Details

CAPRARI SUBMERSIBLE ELECTRIC PUMP WITH 30 KW MOTOR

The 30 kW submersible electric pump + motor is the ideal solution for your pumping needs, offering high performance and impeccable durability. Designed for use with water, this electric pump boasts unique features that make it the ideal choice for a wide range of applications.

Advantages:

High flow rate and head: Ensures efficient pumping even under demanding conditions.

Robust and reliable: Built with high-quality materials for a long service life.

Suitable for a wide range of applications: From irrigation to drainage systems, from water supply to industries.

Pumped liquid: Water

Characteristics of the pumped liquid

Maximum temperature: 25 °C

Maximum density: 1 kg/dm³

Maximum viscosity: 1 mm²/s

Maximum solids content: 100 g/m³

Performance:

Maximum number of starts/hour: 10

Minimum submersion: 507.5 mm

Maximum power consumption: 30.2 kW

Maximum pump efficiency: 79.5%

Electrical specifications:

Frequency: 50 Hz

Rotational speed: 2890 rpm

Voltage: 400 V

Weights:

Pump: 69.5 kg

Submersible motor: 128 kg

Complete electric pump: 197.5 kg

Motor model: MPC840/1A-8

Motor data:

Rated power: 30 kW

Rated current: 63.5 A

Poles: 2

Revolutions per minute: 2890

Degree of protection: IP68

Dimensions:

Maximum overall diameter: 203 mm

Height: 2016.5 mm

Other details:

Number of stages: 4

Installation type: Vertical

if you are looking for a product similar to an electric pump click HERE.

Images and data purely indicative.
