PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4

PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4 1000X685
search
  • PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4 1000X685
  • PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4 1000X685
  • PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4 1000X685
  • PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4 1000X685
  • PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4 1000X685
LIFTER
QX20 EVO AC S4 1150X540
New product

Type of propulsion: Electric
Driving system: Accompaniment
Load capacity: 2000 Kg
Lifting height: 1200 mm
Total length: 1598 - 1748 mm
Total width: 710 mm
Fork width: 150 mm
Fork length: 1000 mm
Fork width: 685 mm
Storage corridor: 2189 mm
Turning radius: 1445 mm
Travel speed with load: 5. 6 Km/h
Travel speed without load: 6 Km/h
Traction motor power: 1.1 KW
Lithium Ion battery

Technical features
Battery type
Li-Ion
Drive
Electric
Operator type
Pedestrian
Load capacity (Kg)
2000
Load centre distance (mm)
500
Load axle to end forks (mm)
832
Wheel base (mm)
1268
Service weight (Kg)
340
Axle load, laden rear (Kg)
1599
Axle load, laden front (Kg)
931
Axle load, unladen front (Kg)
426
Axle load, unladen rear (Kg)
104
Tyres: front wheels
POLY.C
Tyres: stabilizers wheels
POLY.C.
Tyres: rear wheels
POLY.C.
Diameter steering wheels (mm)
230
Width steering wheels (mm)
75
Diameter load rollers (mm)
85
Width load rollers (mm)
70
Diameter stabilizers wheels front (mm)
85
Width stabilizers wheels front (mm)
48
Quantity rear wheels
4
Quantity front wheels
1x+2
Tread front (mm)
498
Tread rear (mm)
515
Lift height (mm)
120
Height of tiller in drive position max (mm)
1200
Height of tiller in drive position min (mm)
715
Overall lenght (mm)
1598 - 1748
Lenght to face of forks (mm)
598
Overall width (mm)
710
Thickness fork (mm)
55
Ground clearance at centre of wheelbase (mm)
30
Aisle width (mm)
2189
Turning radius (mm)
1445
Travel speed laden (Km/h)
5.6
Travel speed unladen (Km/h)
6
Lifting speed laden (m/s)
00.51
Lifting speed unladen (m/s)
0.06
Lowering speed laden (m/s)
0.06
Lowering speed unladen (m/s)
0.032
Max gradeability laden (%)
8
Max gradeability unladen (%)
16
Service brake
Electric
Drive motor power (KW)
1.1
Lift motor power (KW)
0.84
Battery voltage (V)
24
Battery capacity min (Ah)
210
Battery capacity max (Ah)
210
Battery weight min (Kg)
190
Battery weight max (Kg)
190
Sound level at driver's ear
74 dB(A)
Details

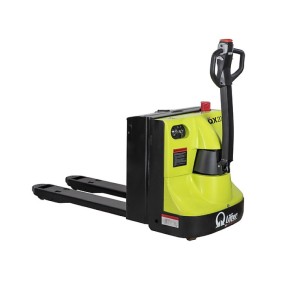

 PRAMAC LIFTER ELECTRIC PALLET TRUCK QX20 EVO AC S4

The PRAMAC QX20 EVO AC S4 electric pallet truck is perfect for heavy-duty applications, ideal for short-distance transportation.

The PRAMAC QX20 electric pallet truck proven technology, powerful and reliable motors, excellent maneuverability due to its compact size, this product is the most competitive solution for uses in medium-sized warehouses, loading/unloading trucks in addition to multi-shift use.

The PRAMAC QX20 EVO is specifically designed for superior performance, reliability and speed with powerful three-phase AC technology, while reducing noise emission and motor wheel overheating. The European-made traction battery with 12 DIN elements ensures long range and durability.

Ac technology allows for better power utilization and longer range, reducing maintenance costs. In addition, the absence of brushes in the motor and the simpler design of the motor increase the reliability of the system.

The PRAMAC electric pallet truck is equipped with integrated ergonomic technopolymer tiller that includes as standard equipment the accelerator, controls for forks, safety button, horn, turtle button, hour meter, battery status indicator.

Main technical features of PRAMAC QX20 EVO AC S4 electric pallet truck:

Type of propulsion: Electric
Driving system: Accompaniment
Load capacity: 2000 Kg
Lifting height: 1200 mm
Total length: 1598 - 1748 mm
Total width: 710 mm
Fork width: 150 mm
Fork length: 1000 mm
Fork width: 685 mm
Storage corridor: 2189 mm
Turning radius: 1445 mm
Travel speed with load: 5. 6 Km/h
Travel speed without load: 6 Km/h
Traction motor power: 1.1 KW
Lithium Ion battery

If you are looking for another kind of product for the transport and storage of goods then you can see our catalog with a wide selection of products.

Images and technical data are not binding.
