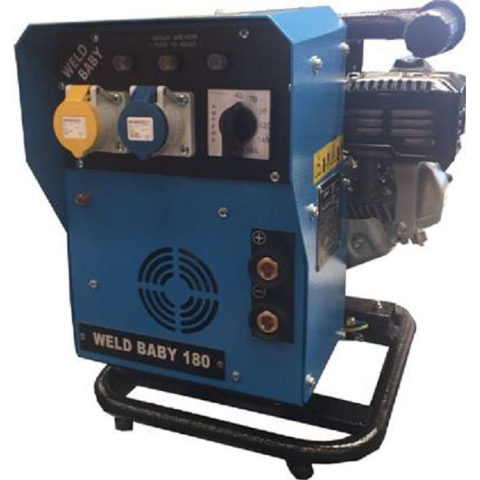

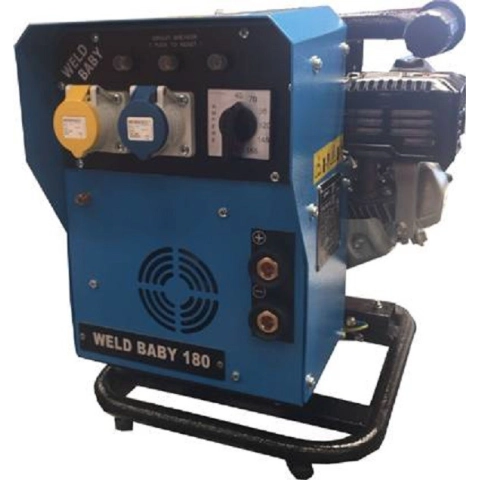

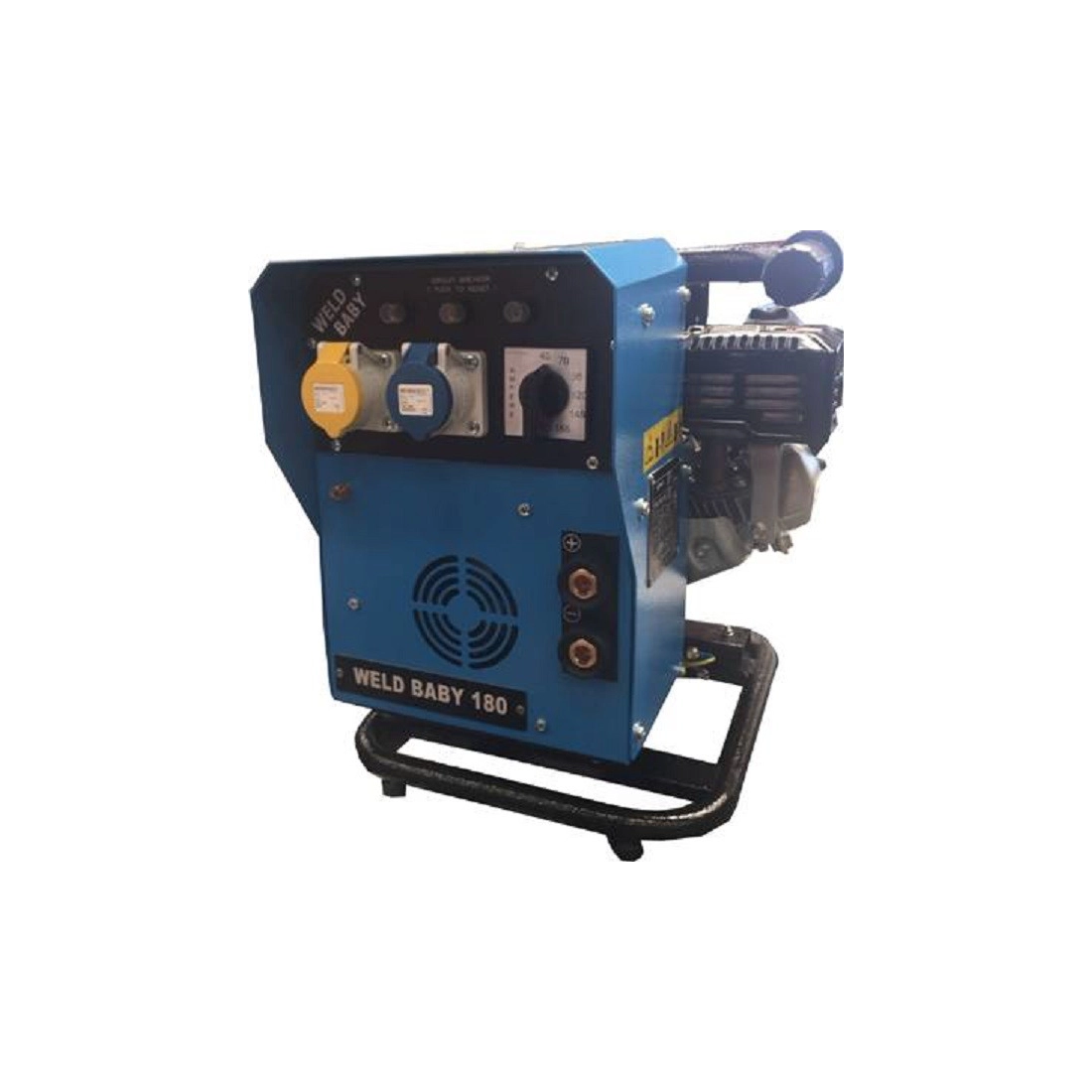

GENSET WELDBABY 180
Single-phase power (maximum): 1 kVA - 230 V DC
Single-phase power (maximum): 0.5 kVA - 110 V DC
Fuel: Petrol
Voltage: 110/230 V
Engine: Honda GX 200 OHV
Length: 510 mm
Width: 440 mm
Height: 460 mm
Weight: 35 Kg
- Phase
- Single phase
- Maximum power single phase (KVA)
- 1
- Fuel
- Gasoline
- Voltage (V)
- 110 / 230
- Sockets configuration
- Presa di corrente trifase CEE 400 V 16 A+ Presa di corrente monofase CEE 230 V 16 A
- Engine
- Honda GX200, 4 stroke, OHV
- Engine rpm (rpm)
- 4000
- Ignition
- Recoil
- Starting system
- Pull starter
- Engine capacity (cm³)
- 196
- Number cylinders
- 1
- Cooling
- Air
- Welding current (A)
- 400 A al 100% - 500 A al 60%
- Open circuit voltage (V)
- 70
- Fuel tank capacity (L)
- 3.8
- Consumption (L/h)
- 1.8 at 75% of the load
- Acoustic power
- 95 dB(A)
- Length (mm)
- 720
- Width (mm)
- 460
- Height (mm)
- 510
- Dry weight (Kg)
- 98
- Inverter
- No
- AVR
- No
- Compound
- No
- Silenced
- No
- Super silenced
- No
- Engine manufacturer
- Honda
The MPM range has been designed to meet the needs of those who need motor welding machines for highly professional applications. This result has been obtained mainly thanks to the peculiar characteristics of the GenSet asynchronous alternator: versatility, reliability and efficiency.
The attention paid by GenSet to the different needs of users of motor welding machines in every part of the world and in every environmental condition, has resulted in the development of a complete range in terms of:
- type of motorization;
- different levels of soundproofing;
- variety of welding processes that can be carried out;
- number of accessories available.
The image is purely indicative.
KIT MESSA A TERRA 10 METRI
KIT MESSA A TERRA 25 METRI
KIT MESSA A TERRA 35 METRI
GENSET WELDING CABLES ST 35
