MOSA MAGIC WELD250 Motor Welding Machine Stage5 50hz - 60Hz

  • New
MOSA MAGIC WELD250 Motor Welding Machine Stage5 50hz - 60Hz
search
  • MOSA MAGIC WELD250 Motor Welding Machine Stage5 50hz - 60Hz
  • MOSA MAGIC WELD250 Motor Welding Machine Stage5 50hz - 60Hz
MOSA
C1VN7000
New product

Fuel: Petrol
Phase type: Single-phase
Voltage and frequency: (50Hz - 230V) - (60hz - 110V)
Power kVA (Power kW) Max 3.3 kVA (2.4 kW) 2.1 kVA
Welding current (A): 250 A @ 25V
Type of regulation continuous 20A @ 20.8V - 250A @ 25V
Service 220A @ 28.8V / 35% | 200A @ 28V / 60% | 175A @ 27V / 100%
Trigger voltage (open circuit voltage) 70 VDC (VDC peak)
Arc penetration No
Welding processes: SMAW coated electrode (STICK)
Acoustic power LwA (LpA pressure): 99 dB(A) (74 dB(A) @ 7 m)
LENGTH (mm): 630
WIDTH (mm): 490
HEIGHT (mm): 540
DRIFT WEIGHT (kg): 71
Degree of protection: IP 23
Tank capacity: 6.1 l
Autonomy (welding 60%) 2.8 h
Engine model: HONDA GX 390 4-STROKE, OHV, NATURAL EXHAUST
Stand-by net power 8.7 kWm (11.8 hp)
Net power PRP 7 kWm (9.5 hp)
Welding current: 250A @ 25V
Service: 220A @ 28.8V / 35% | 200A @ 28V / 60% | 175A @ 27V / 100%
Trigger voltage (open circuit voltage): 70 VDC (VDC peak)

Technical features
Phase
Single phase
Maximum power single phase (KW)
2.4
Maximum power single phase (KVA)
3.3
Fuel
Gasoline
Frequency (Hz)
50 / 60
Voltage (V)
110 / 230
Engine
Honda GX390
Engine rpm (rpm)
3600
Starting system
Manual
Engine capacity (cm³)
389
Number cylinders
1
Cooling
Air
Alternator
Permanent magnets, self-excited, brushless
Motor insulation class
H
Welding current (A)
250A @ 25V
Open circuit voltage (V)
70
Fuel tank capacity (L)
6.1
Consumption (L/h)
3.5 at 100% of the load
Running time (h)
2.8
Acoustic power
99 dB(A)
Acoustic pressure
74 dB(A) at 7 m
Length (mm)
630
Width (mm)
490
Height (mm)
540
Dry weight (Kg)
71
Engine manufacturer
Honda
Details

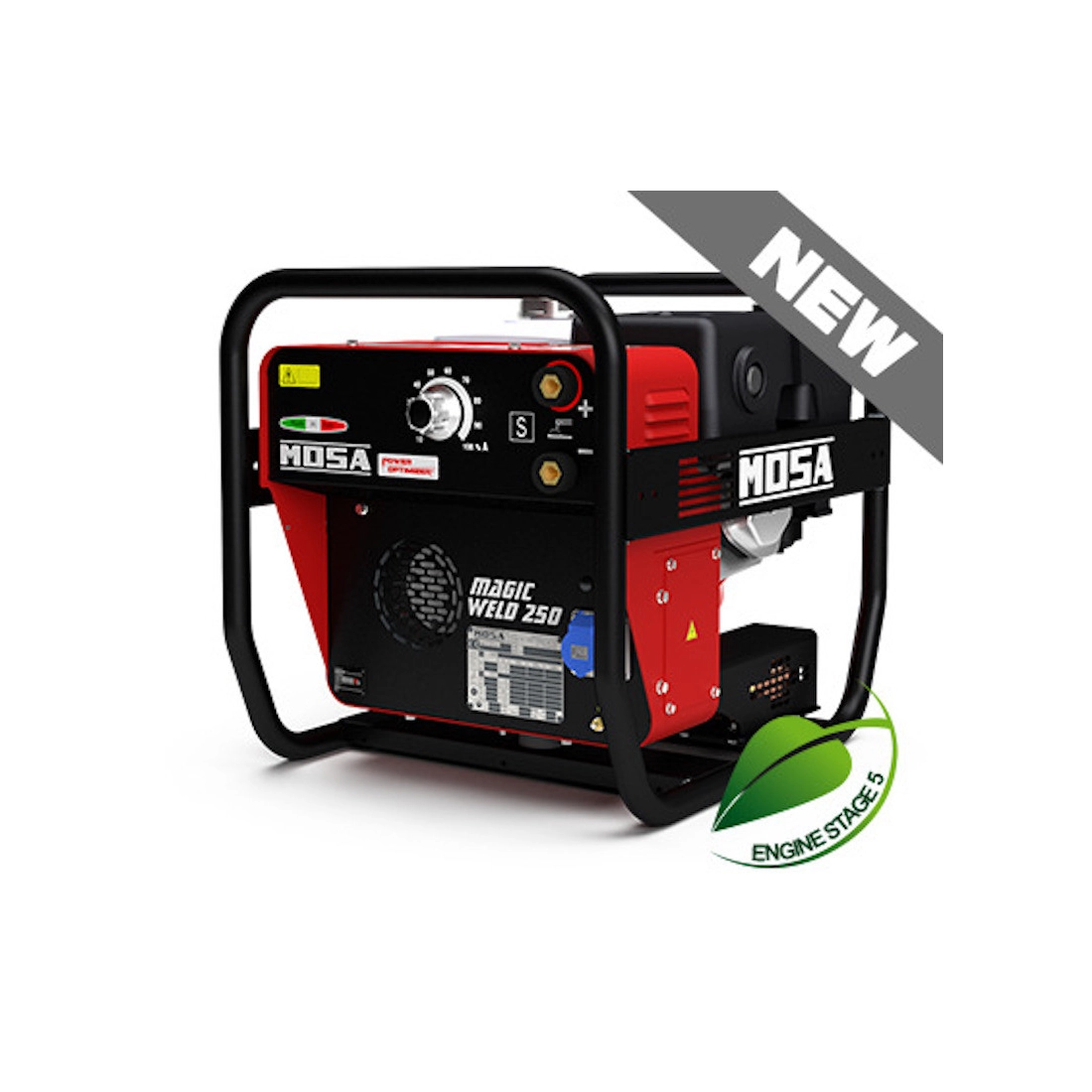

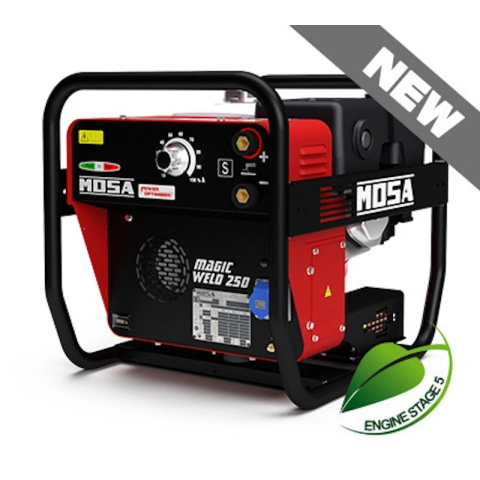

MOSA MAGIC WELD250 Motor Welding Machine Stage5 50hz - 60Hz

The MOSA MAGIC WELD250 Stage5 motor welder stands out as an excellent choice for welders looking for a reliable, versatile and powerful machine. Powered by petrol, this single-phase motor welder offers the flexibility to be used in different conditions, even without mains power.

AVAILABLE VERSIONS MAGIC WELD 250 - HONDA GX390 (3600 rpm)

C1VN7000 Socket- 230V 16A CEE - 50Hz
C1VN7010 Socket- 230V 16A Schuko - 50Hz
C1VN7030 Socket - 110V 16A CEE - 50Hz
C1VN7070 Socket- 110V 15A USA - 60Hz

Robust performance:

Power: With a maximum output of 3.3 kVA (2.4 kW) and a welding current of 250 A at 25 V,
the MAGIC WELD250 guarantees high performance to tackle a wide range of welding jobs.
Duty cycle: The generous duty cycle of 220 A at 28.8 V at 35%,
200 A at 28 V at 60% and 175 A at 27 V at 100% ensures continuous and prolonged welding.
Deep penetration: The high trigger voltage of 70 VDC (peak VDC)
guarantees deep arc penetration, ideal for robust and strong welds.

Versatility and ease of use:

Welding processes: The MAGIC WELD250 supports the arc welding process
with SMAW (STICK) coated electrodes, one of the most popular and versatile methods.
Continuous current regulation: Continuous current adjustment from 20 A at 20.8 V
up to 250 A at 25 V offers precise control to suit different welding requirements.
Portability: The compact design and light weight of 71 kg, combined with the sturdy carrying handle,
make the MAGIC WELD250 easily transportable from place to place.

Additional features:

Fuel level indicator: Allows you to monitor fuel levels
and plan refuelling efficiently.
IP23 protection: Provides resistance to dust and water jets,
allowing use in outdoor environments.
Large fuel tank: The 6.1-litre tank offers a good working range.

Technical specifications MOSA MAGIC WELD250 Stage5 motor welding machine

Fuel: Petrol
Phase type: Single-phase
Voltage and frequency: (50Hz - 230V) - (60hz - 110V)
Power kVA (Power kW) Max 3.3 kVA (2.4 kW) 2.1 kVA
Welding current (A): 250 A @ 25V
Type of regulation continuous 20A @ 20.8V - 250A @ 25V
Service 220A @ 28.8V / 35% | 200A @ 28V / 60% | 175A @ 27V / 100%
Trigger voltage (open circuit voltage) 70 VDC (VDC peak)
Arc penetration No
Welding processes: SMAW coated electrode (STICK)
Acoustic power LwA (LpA pressure): 99 dB(A) (74 dB(A) @ 7 m)
LENGTH (mm): 630
WIDTH (mm): 490
HEIGHT (mm): 540
DRIFT WEIGHT (kg): 71
Degree of protection: IP 23
Tank capacity: 6.1 l
Autonomy (welding 60%) 2.8 h
Engine model: HONDA GX 390 4-STROKE, OHV, NATURAL EXHAUST
Stand-by net power 8.7 kWm (11.8 hp)
Net power PRP 7 kWm (9.5 hp)
Welding current: 250A @ 25V
Service: 220A @ 28.8V / 35% | 200A @ 28V / 60% | 175A @ 27V / 100%
Trigger voltage (open circuit voltage): 70 VDC (VDC peak)

Are you looking for a motorwelding with other technical features? HERE you can find the whole range of MOSA motorwelding machines or other specialized brands

Images and technical data are not binding.
