GENSET MPM 15/400 I-K STAGE V
Maximum three-phase power: 15 KVA
Maximum three-phase power: 12 KW
Maximum single-phase power: 10 KVA
Maximum single-phase power: 8 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Kubota D1105-E
Length: 1600 mm
Width: 840 mm
Height: 1000 mm
Weight: 565 Kg
- Phase
- Single phase / Three phase
- Maximum power single phase (KW)
- 8
- Maximum power single phase (KVA)
- 10
- Maximum power three phase (KW)
- 12
- Maximum power three phase (KVA)
- 15
- Fuel
- Diesel
- Voltage (V)
- 230 / 400
- Sockets configuration
- 1 three-phase CEE 32 A+ socket 2 single-phase CEE 32 A sockets
- Engine
- Kubota D1105-E
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 3000
- Starting system
- Elettrico
- Engine capacity (cm³)
- 1123
- Number cylinders
- 3
- Cooling
- Water
- Alternator
- Asynchronous, self-excited and self-protected
- Welding current (A)
- 370 A at 35% - 350 A at 60%
- Open circuit voltage (V)
- 70
- Fuel tank capacity (L)
- 60
- Consumption (L/h)
- 4.9 at 75% of the load
- Running time (h)
- 12.23
- Acoustic power
- 98 dB(A)
- Acoustic pressure
- 73 dB(A) at 7 m
- Length (mm)
- 1600
- Width (mm)
- 840
- Height (mm)
- 1000
- Dry weight (Kg)
- 565
- Inverter
- No
- AVR
- No
- Compound
- No
- Silenced
- Yes
- Super silenced
- Yes
The MPM range has been designed to meet the needs of those who need motor welding machines for highly professional applications. This result has been obtained mainly thanks to the peculiar characteristics of the GenSet asynchronous alternator: versatility, reliability and efficiency.
The attention paid by GenSet to the different needs of users of motor welding machines in every part of the world and in every environmental condition, has resulted in the development of a complete range in terms of:
- type of motorization;
- different levels of soundproofing;
- variety of welding processes that can be carried out;
- number of accessories available.

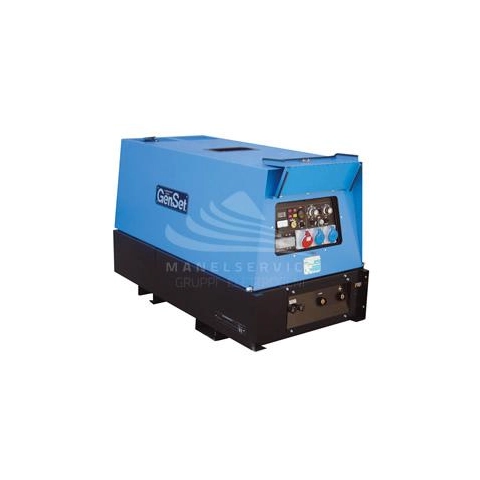

The image is purely indicative.
GASOLINE TANK 20 LT
KIT MESSA A TERRA 10 METRI
KIT MESSA A TERRA 25 METRI
KIT MESSA A TERRA 35 METRI
GENSET SPARK ARRESTER MUFFLER
GENSET CABLE 10 m FOR MIG WELDING MODULE
GENSET PREDISPOSITION WELDING MIG
GENSET PREDISPOSITION TIG WELDING
GENSET POLARITY INVERTER MODULE ON-BOARD
GENSET POLARITY INVERTER MODULE IN SEPARATE BOX
GENSET MODULE FOR MIG WIRE WELDING
