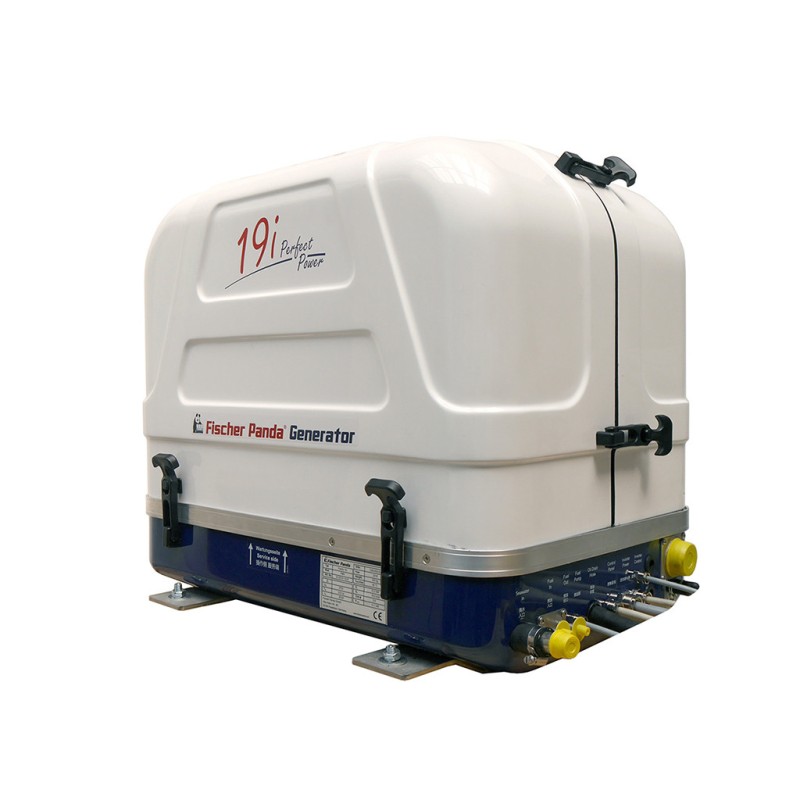

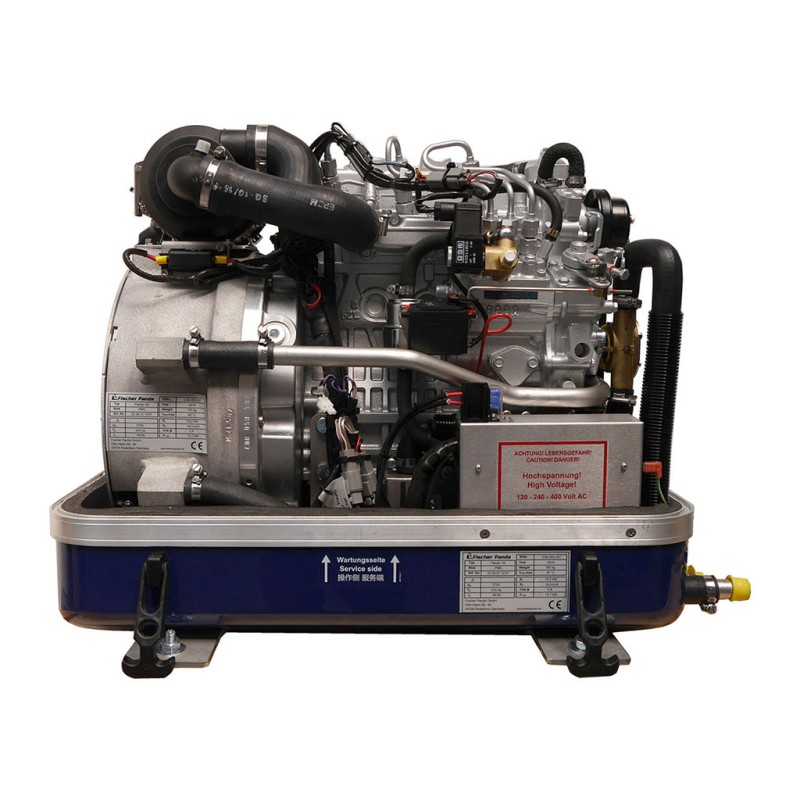

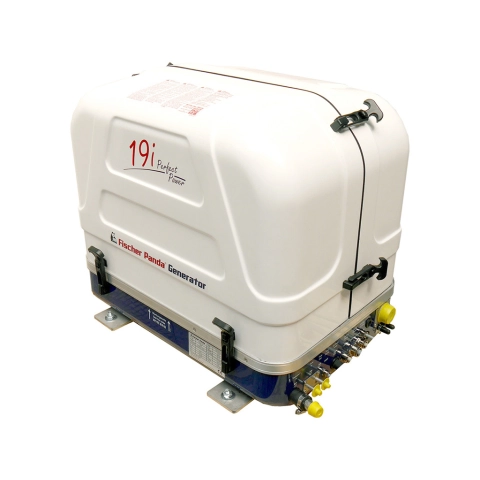

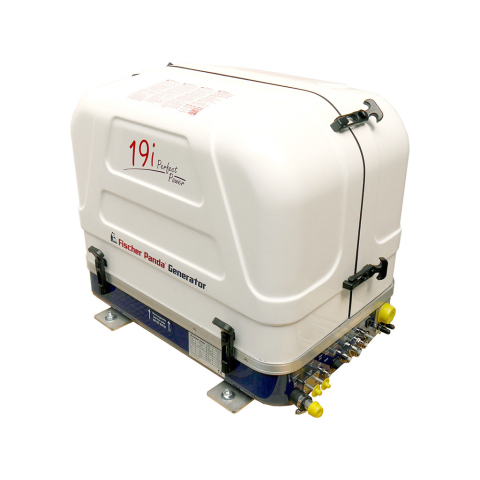

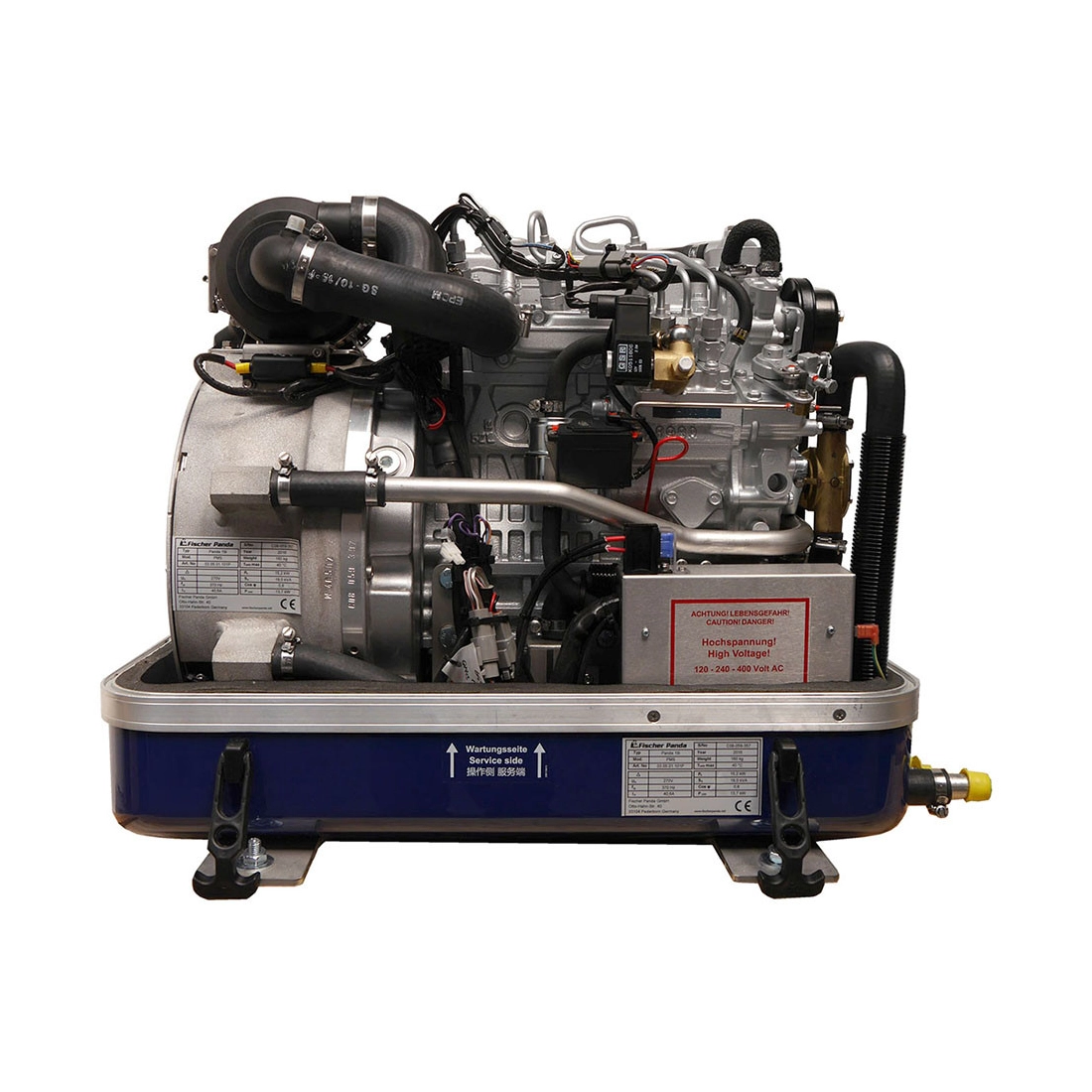

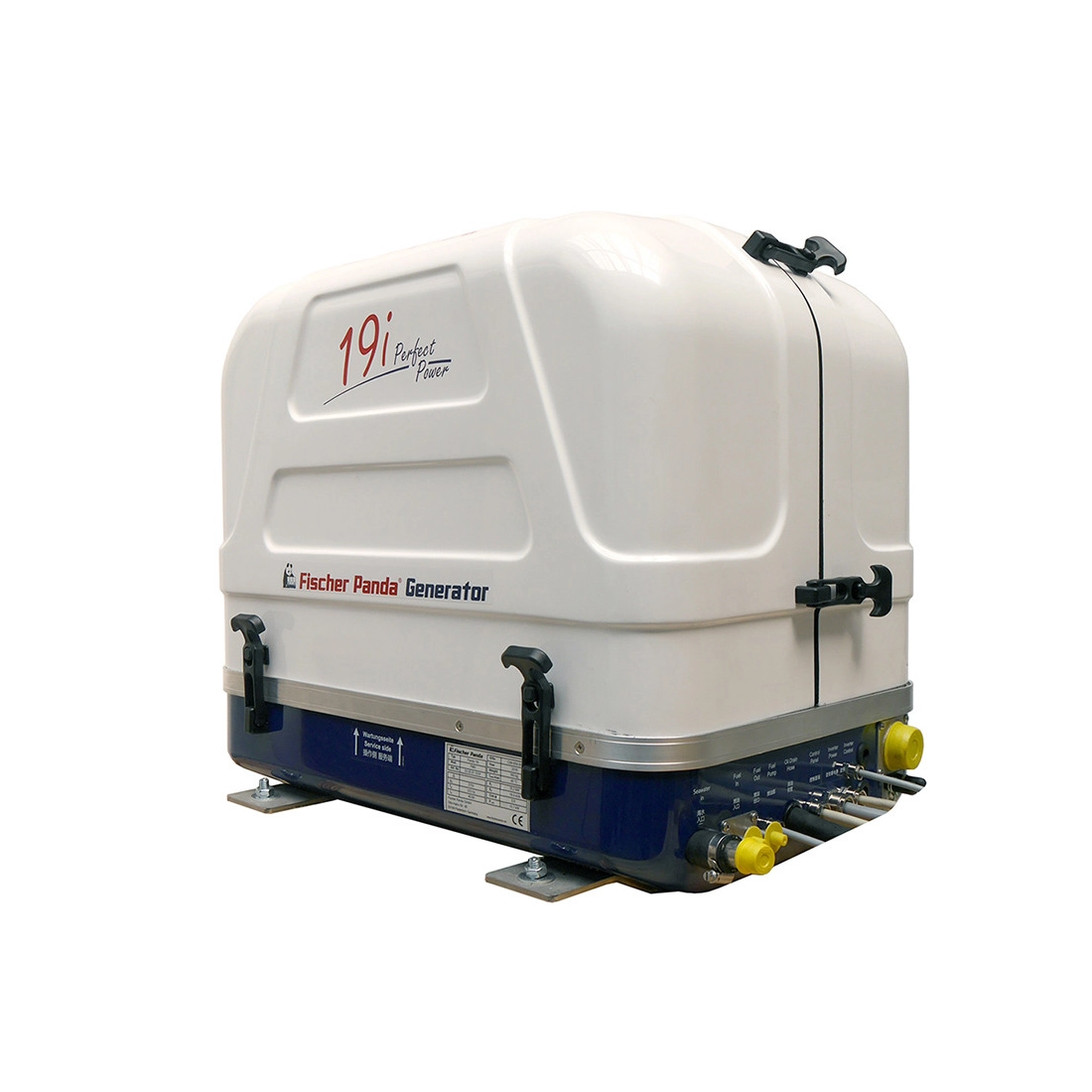

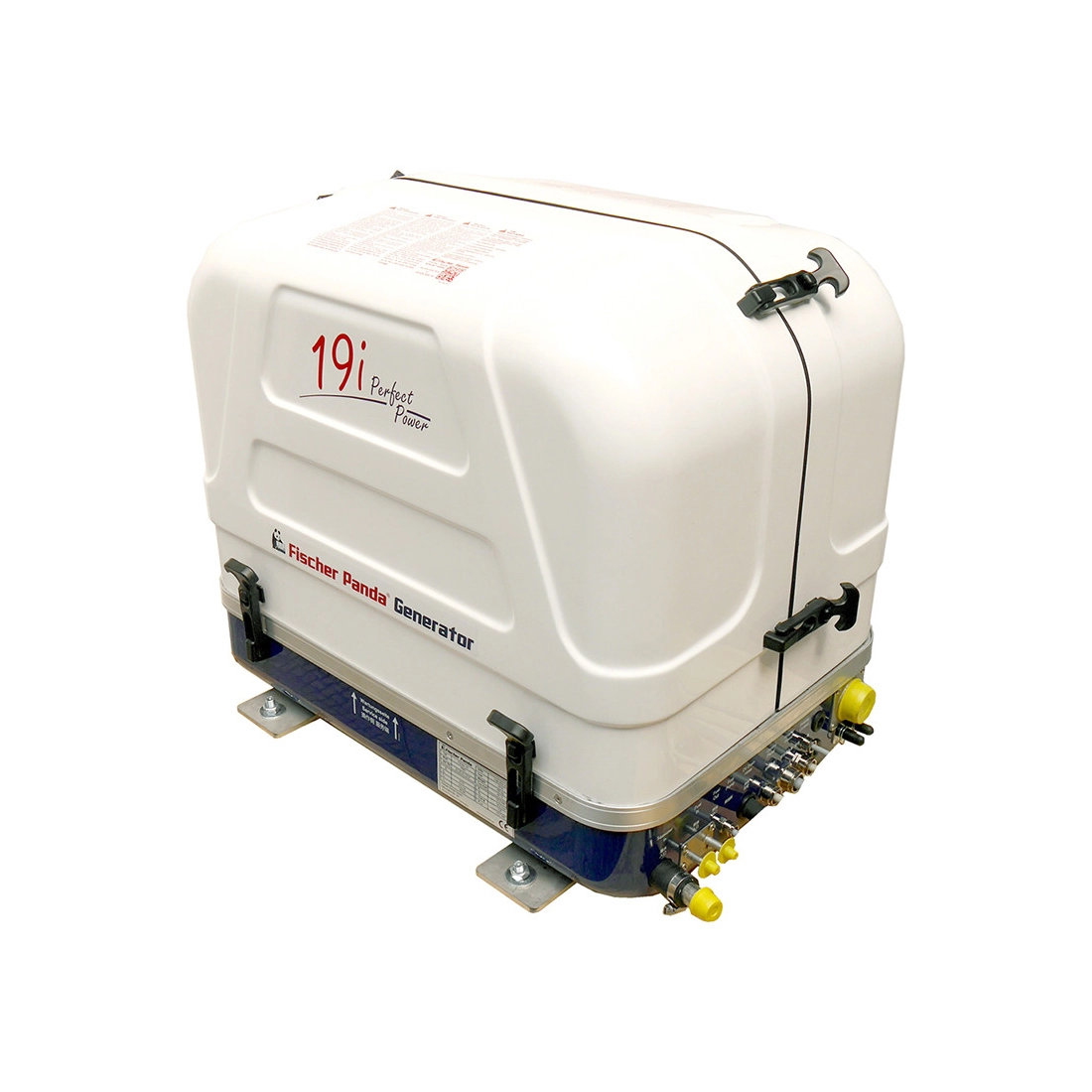

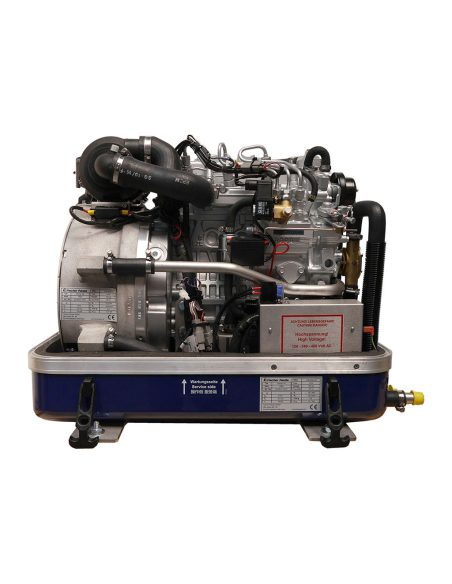

Fischer Panda 19i 230V Marine Generator Single-phase 18 kVA 50Hz

  • New
fischer panda 19i 230v marine generator single phase 18 kva 50hz
search
  • fischer panda 19i 230v marine generator single phase 18 kva 50hz
  • fischer panda 19i 230v marine generator single phase 18 kva 50hz
  • fischer panda 19i 230v marine generator single phase 18 kva 50hz
FISCHER PANDA
0014728 - NO

Insulation class of windings: H
Voltage regulation: iControl
Voltage tolerance: ±3%
Cos Pi 0.80
Rated voltage in volts: 230
Frequency: 50Hz
Number of phases: 1
Rated power: 14.5 kW
Rated performance: 18.1 kVA
Continuous performance: 13.1 kW
Continuous performance: 16.3 kVA
Engine: Kubota Engine
Engine Type: Model KU D902
No. Cylinders: 3
Displacement: 898 cm3
Starting system: 12V
Housing dimensions W x D x H mm
Dimensions: 650 x 465 x 582
Total weight of generator with capsule (kg): 162 + Inverter 21
Livelli sonori (dbA) 7m / 5m /1m: 54 / 64 / 68

Technical features
Continuous power single phase (KW)
13.1
Continuous power single phase (KVA)
16.3
Frequency (Hz)
50
Voltage (V)
12
Engine
Kubota KU D902
Engine capacity (cm³)
898
Number cylinders
3
Single-phase power (KW)
14.5
Single-phase power (KVA)
18.1
Motor insulation class
H
Product dimensions (mm)
650 x 465 x 582
Weight (Kg)
183
Noise level at 7 m
7m / 5m /1m 54 / 64 / 68
Details

Fischer Panda 19i 230V Single-phase Marine Generator 18 kVA

Fischer Panda 19i 230V Single-phase Marine Generator 18 kVA: Power and reliability for
your adventures at sea
The Fischer Panda 19i 230V is a single-phase marine generator designed to provide reliable and
quiet power aboard vessels. With a power rating of 18 kVA and a voltage of 230V, this generator
can power a wide range of electrical devices, from lighting systems to
powerful household appliances.

Key features Fischer Panda 19i:

Kubota KU D902 engine: The heart of the generator is Kubota's robust 3-cylinder engine,
known for its reliability and durability.
High performance: With a continuous output of 13.1 kW and a cos φ current of 0.80, this
generator ensures optimal performance even under varying load conditions.
Quietness: Thanks to its careful design and sound-absorbing materials,
the Fischer Panda 19i generator is particularly quiet, with low sound levels at
7 meters (54 dB(A)).
Compact and lightweight: With small dimensions (650 x 465 x 582 mm) and a weight of
only 162 kg (without inverter), this generator is easy to install and operate on board.
Electronic voltage regulation: The iControl system ensures stable and precise voltage,
protecting your electrical devices from voltage surges.
Insulation Class H: The generator's windings are made of high-quality materials to
ensure long life and high resistance to temperatures.
12V start system: The electric start makes it much easier to start the generator.

Fischer Panda 19i 230V Specifications:

Insulation class of windings: H
Voltage regulation: iControl
Voltage tolerance: ±3%
Cos Pi 0.80
Rated voltage in volts: 230
Frequency: 50Hz
Number of phases: 1
Rated power: 14.5 kW
Rated performance: 18.1 kVA
Continuous performance: 13.1 kW
Continuous performance: 16.3 kVA
Engine: Kubota Engine
Engine Type: Model KU D902
No. Cylinders: 3
Displacement: 898 cm3
Starting system: 12V
Housing dimensions W x D x H mm
Dimensions: 650 x 465 x 582
Total weight of generator with capsule (kg): 162 + Inverter 21
Livelli sonori (dbA) 7m / 5m /1m: 54 / 64 / 68

if you are looking for a product with similar characteristics CLICK HERE.

Images and technical data not binding.
