GRUPPO ELETTROGENO SILENZIATO 15 KVA AVR

  • New
gruppo elettrogeno silenziato 15 kva avr
search
  • gruppo elettrogeno silenziato 15 kva avr
NO BRAND
GES14SAVRNB
New product

Product Type: Industrial Generator Set
Continuous power (PRP): 15.0 (kVA)
Continuous power (PRP): 12.0 (kW)
Stand-by power (LTP): 16.5 (kVA)
Stand-by power (LTP): 13.2 (kW)
Voltage: 400V
Frequency: 50 Hz
Power factor: 0.8 cosφ
Sound pressure level at 7 m: 65.0 dBA

MOTOR

Motor brand: PERKINS
Engine model: 403A-15G2
Fuel: Diesel
Number of cylinders: 3
RPM: 1500 r.p.m.
Displacement: 1,50 l
Aspiration: Aspirated
Standard voltage: 12 V
Sae: 4-7 1/2
Effective average pressure: 746 kPa
Cooling: Water
Flywheel R.P.P. power: 13.8 KW
Stand-by power at flywheel: 15.2kW
Consumption at 100% (L.T.P.): 5.0 l/h
Consumption at 100% (P.R.P.): 4.3 l/h
Consumption at 75% (P.R.P.): 3.1 l/h
Consumption at 50% (P.R.P.): 2.2 l/h
Consumption at 25% (P.R.P.): 1.5 l/h
Electronic regulator: On request

DIMENSIONS AND WEIGHT

Width: 745 mm
Length: 1575 mm
Height: 1270 mm
Dry weight: 650 Kg.

Technical features
Phase
Three phase
Maximum power three phase (KW)
13.2
Continuous power three phase (KW)
12
Maximum power three phase (KVA)
16.5
Continuous power three phase (KVA)
15
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Sockets configuration
Terminal box
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
1500
Number cylinders
3
Oil capacity (L)
6
Cooling
Water
Poles
4
Fuel tank capacity (L)
55
Consumption (L/h)
3.1 at 75% of the load / 4.2 at 100% of the load
Running time (h)
17.53
Length (mm)
1575
Width (mm)
745
Height (mm)
1270
Dry weight (Kg)
650
Silenced
Yes
Brushes
No
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Perkins
Precision of voltage regulation
± 1%
Details

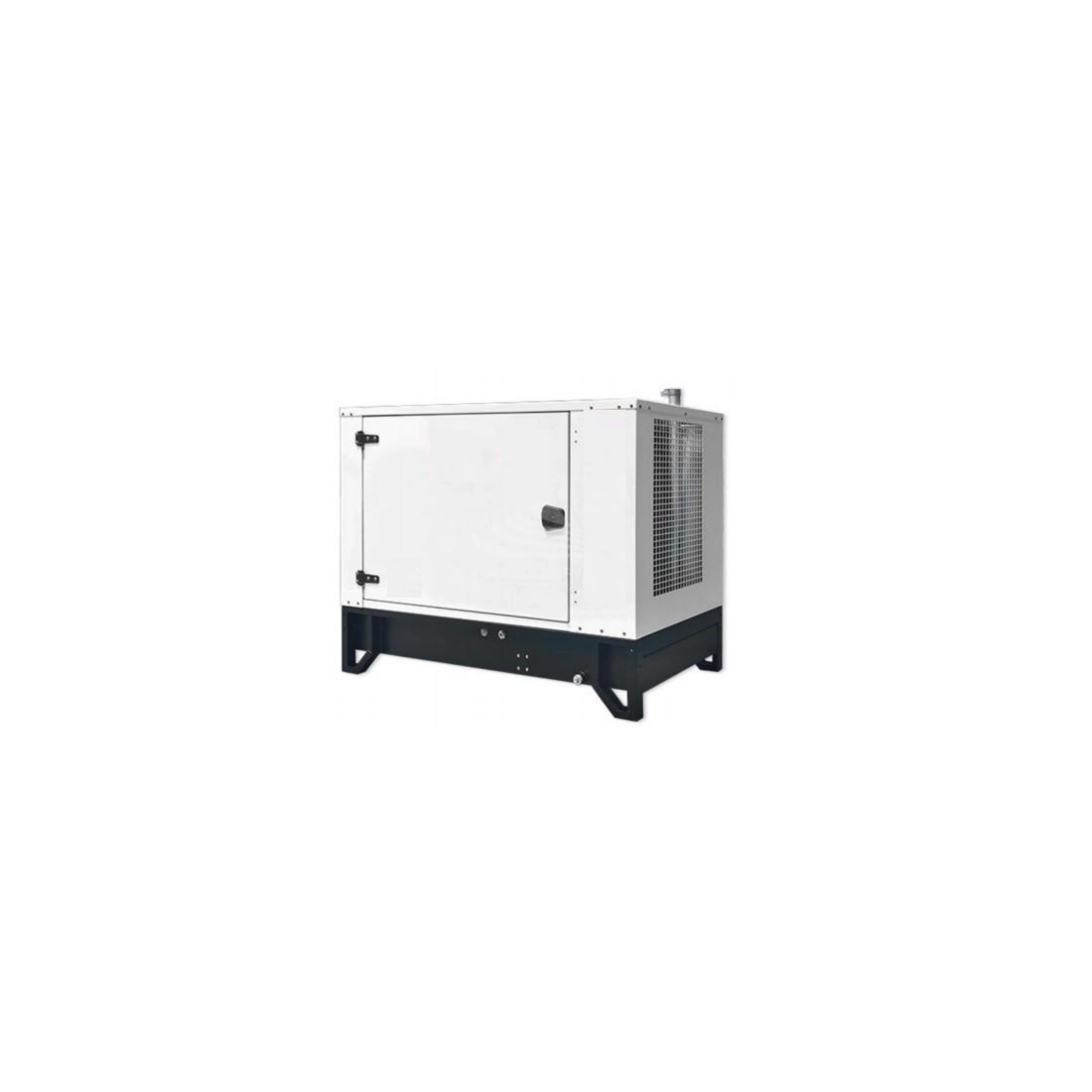

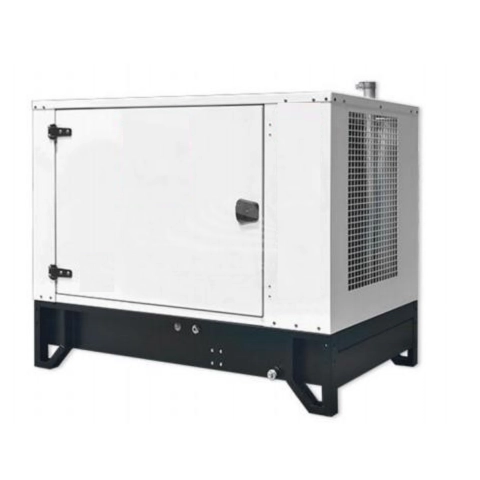

SILENCED GENSET 15KVA AVR

This silenced overland generator set, with a power of 15 KVA in continuous use and AVR, is fitted with top brand components: it uses a reliable PERKINS 403A-15G2 3-cylinder, 1500 rpm diesel engine and a STAMFORD S0L1-P alternator equipped with AVR AS480 with a voltage regulation accuracy of 1%.

This industrial power generator has silenced enclosures and a tropicalised treatment, making it suitable for use even in hot climates; in particular, it is water-cooled, which guarantees excellent heat management.

The robust frame of the silenced genset contains a capacious 55-litre tank, giving it an autonomy of more than 27 hours at 75% load; furthermore, the dimensions of this generator are optimised for its transport by truck and its storage on a 40' HC container.

Main advantages of choosing a 15 KVA AVR silenced genset

1 - Original industrial diesel engine with certificate of origin

2 - Brushless industrial alternator with AVR

3 - Steel base frame, tank with electro-level

4 - Soundproofing bonnet completely made of galvanised sheet metal and painted with polyester powders

5 - High-noise polyester fibre soundproofing material

6 - Residential exhaust silencer with insulated manifold

7 - Electrical panel mounted on the machine with control, control and protection device integrated in the box

8 - Compactness for ease of handling and use

9 - Test certification, manuals and diagrams supplied

10 - World wide after-sales technical support

AMF AUTOMATIC CONTROL BOX

Control panel composition

1 - On/off key;

2 - Emergency stop button;

3 - DEEP SEA® 4520 MKII control unit;

4 - Primary brand main switch.

DEEP SEA® 4520 MKII

DSE4520 control panel DSE4520 is a compact automatic power failure control module. By monitoring a large number of motor parameters, the module is able to display warning, shutdown and motor status information on the backlit LCD display.

Available accessories:

- Motor preheating system (heater);

- Mains/group switchboard

If you are looking for a. product with similar features CLICK HERE.

Non-binding images and technical data
